Overview

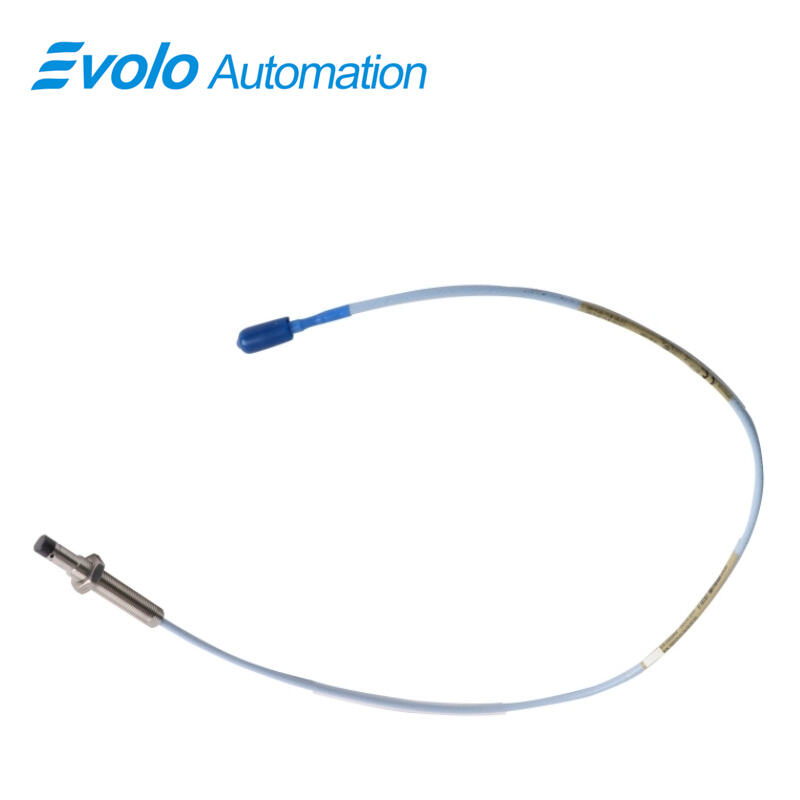

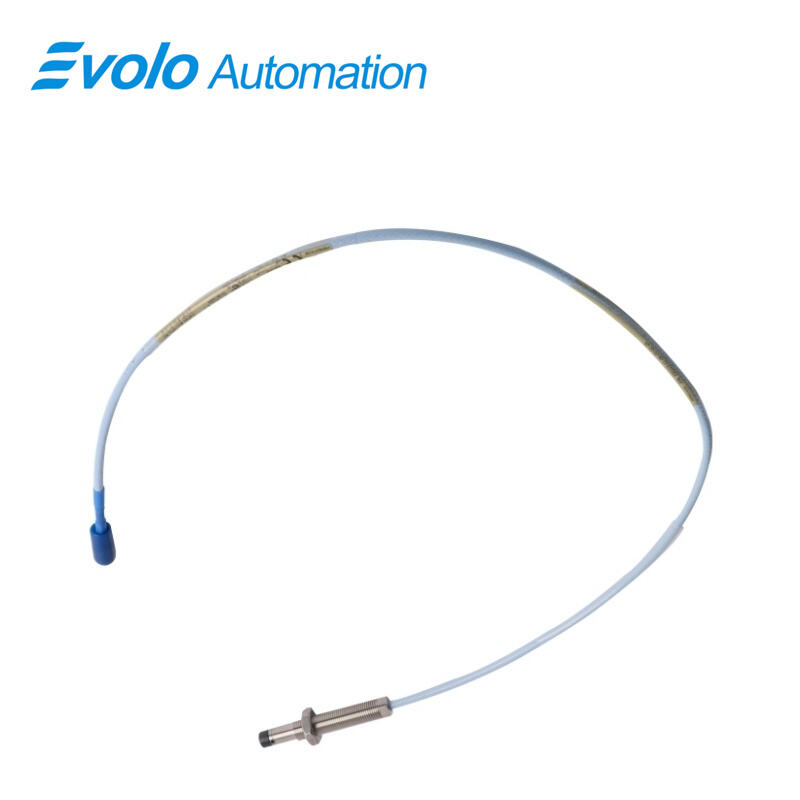

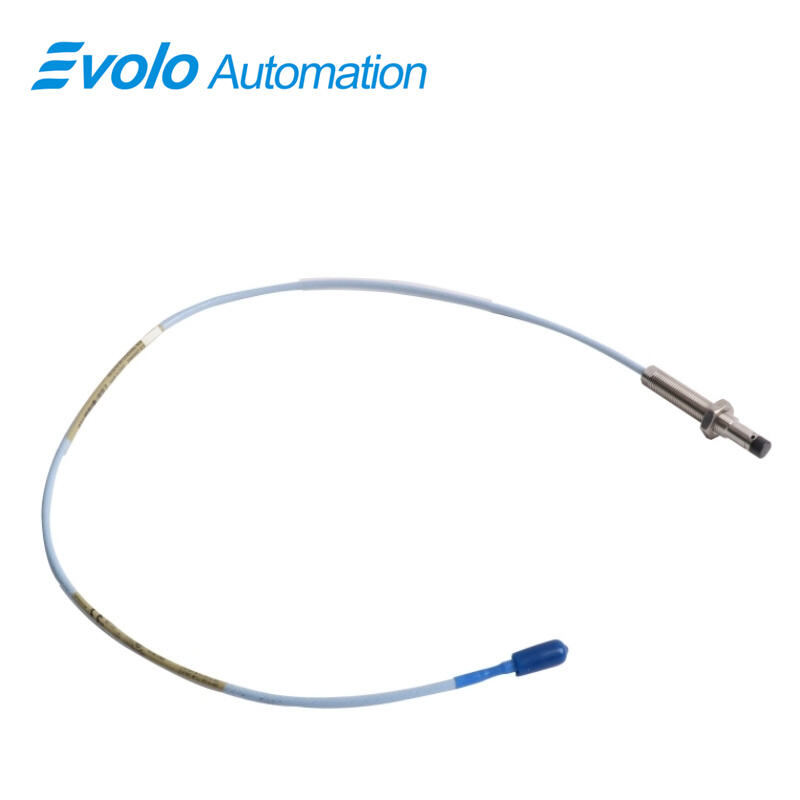

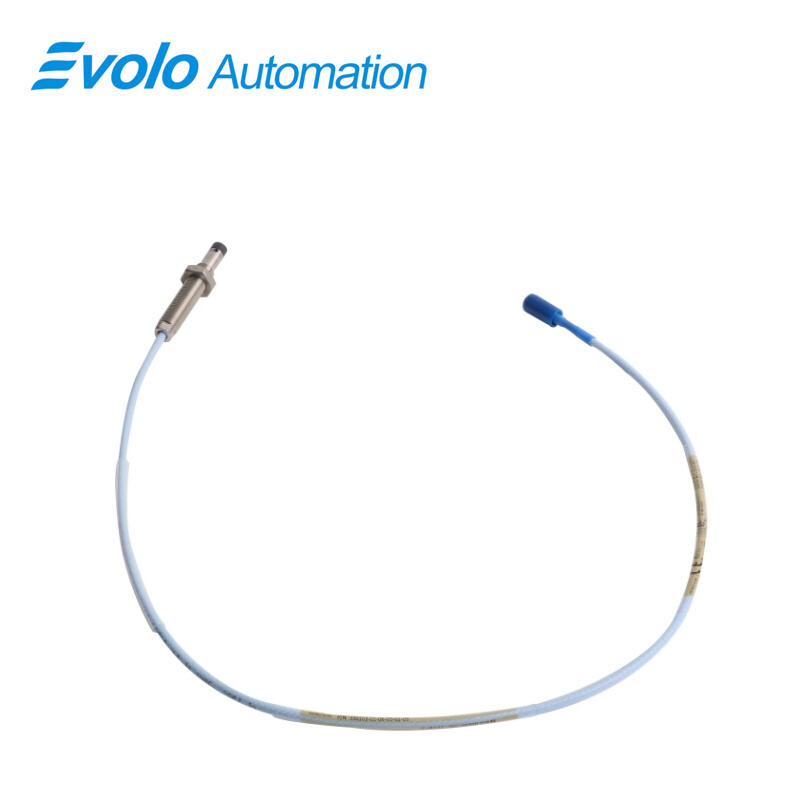

330103-01-09-50-02-00 3300 XL 8 mm Proximity Probe
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-01-09-50-02-00 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330103-01-09-50-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current proximity probe designed for advanced industrial automation and machinery condition monitoring systems. As part of the proven 3300 XL 8 mm Proximity Probe family, this model delivers a stable output voltage that remains directly proportional to the distance between the probe tip and a conductive target surface, enabling accurate measurement of both static position and dynamic vibration parameters.
With a 5.0-meter standard cable, M10x1 probe case thread, and a compact mechanical profile, the 330103-01-09-50-02-00 proximity probe is well suited for integration into automated rotating equipment where installation space is limited but measurement reliability is critical. The probe supports a 2 mm linear range, low output resistance of 50 Ω, and excellent supply voltage sensitivity, ensuring consistent signal quality even under fluctuating power conditions.
Engineered for harsh industrial environments, the 3300 XL 8 mm Proximity Probe operates reliably across a wide temperature range from -52°C to +177°C, making it ideal for turbomachinery, compressors, pumps, and other fluid-film bearing machines. The miniature coaxial ClickLoc connector and robust cable design improve mechanical strength and long-term durability, while full compliance with API 670 requirements ensures compatibility with modern automation and protection systems. This proximity probe maintains backward compatibility with earlier 3300 series components, simplifying system upgrades and reducing maintenance complexity in industrial automation applications.
Key Functions
Applications
The 330103-01-09-50-02-00 3300 XL 8 mm Proximity Probe is widely applied in industrial automation systems for vibration monitoring, shaft position measurement, and speed reference detection on rotating machinery. Typical applications include steam turbines, gas turbines, centrifugal compressors, and large pumps equipped with fluid-film bearings. In automated condition monitoring systems, the probe provides real-time displacement and vibration data that supports predictive maintenance, machine protection, and operational optimization. Its stable linear output and resistance to temperature variation make it suitable for continuous monitoring in demanding process industries such as oil and gas, petrochemical plants, and power generation facilities.
Official Specifications
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
10 mm |
|
Overall Case Length Option(Minimum case length): |
90 mm |
|
Total Length Option: |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.6x68cm |
|
Weight: |
0.06kg |
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Frequently Asked Questions
What is the model number?
The listed model number is 330103-01-09-50-02-00.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
The key competitive advantage of the 3300 XL 8 mm Proximity Probe lies in its combination of measurement accuracy, mechanical robustness, and system interchangeability. The optimized probe design delivers low noise, high sensitivity, and reliable linear performance across the full operating range, reducing false alarms in automation systems. Backward compatibility with legacy 3300 series components minimizes retrofit costs, while the rugged cable and connector construction enhances long-term reliability in harsh industrial environments. Compared with conventional proximity probes, this model offers improved thermal stability, simplified installation, and proven compliance with API 670 standards, making it a preferred choice for critical automation and machinery protection applications.
