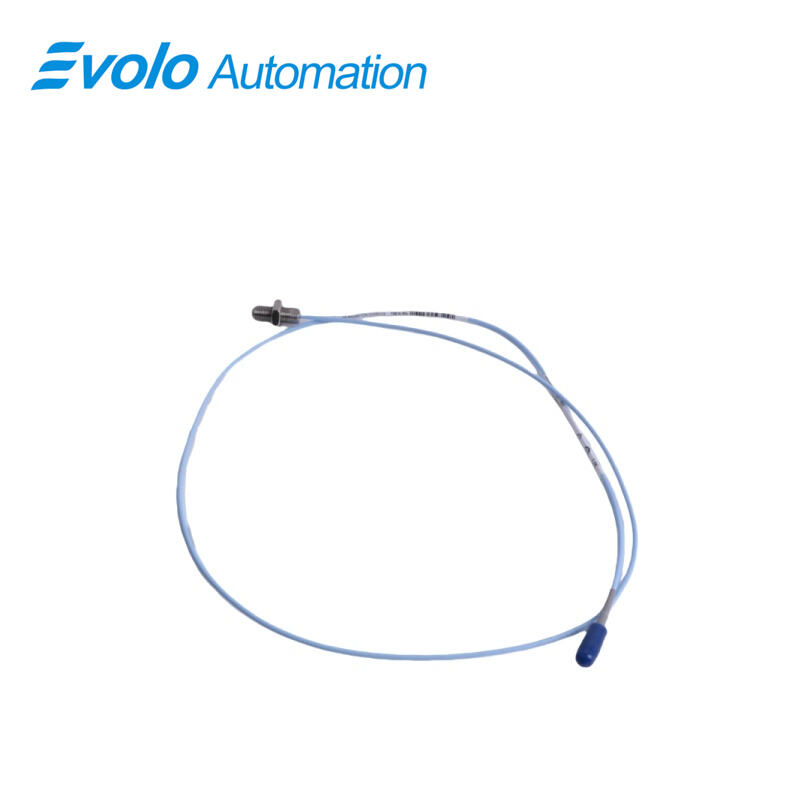

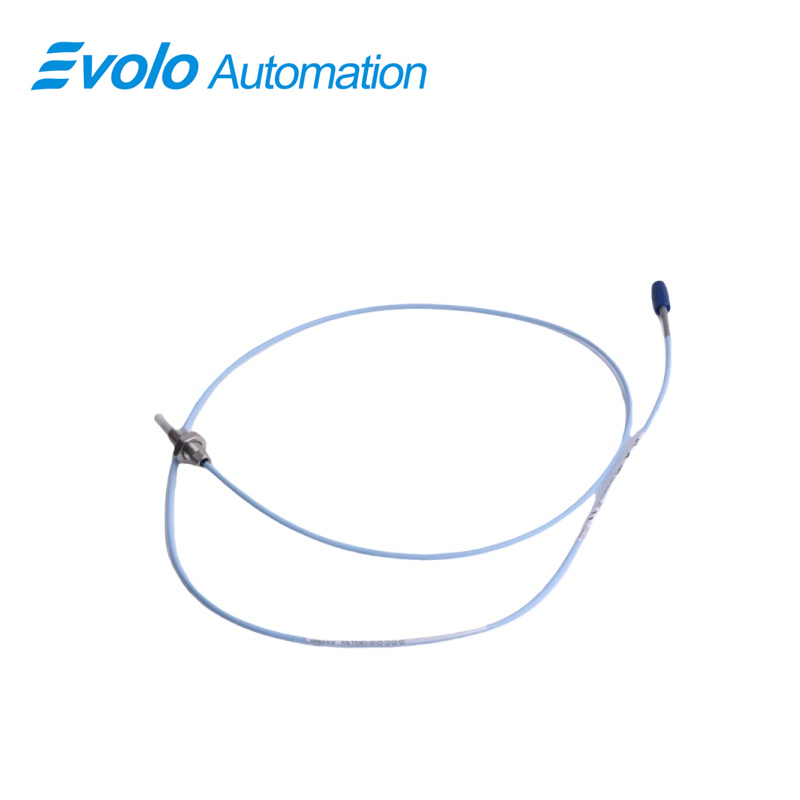

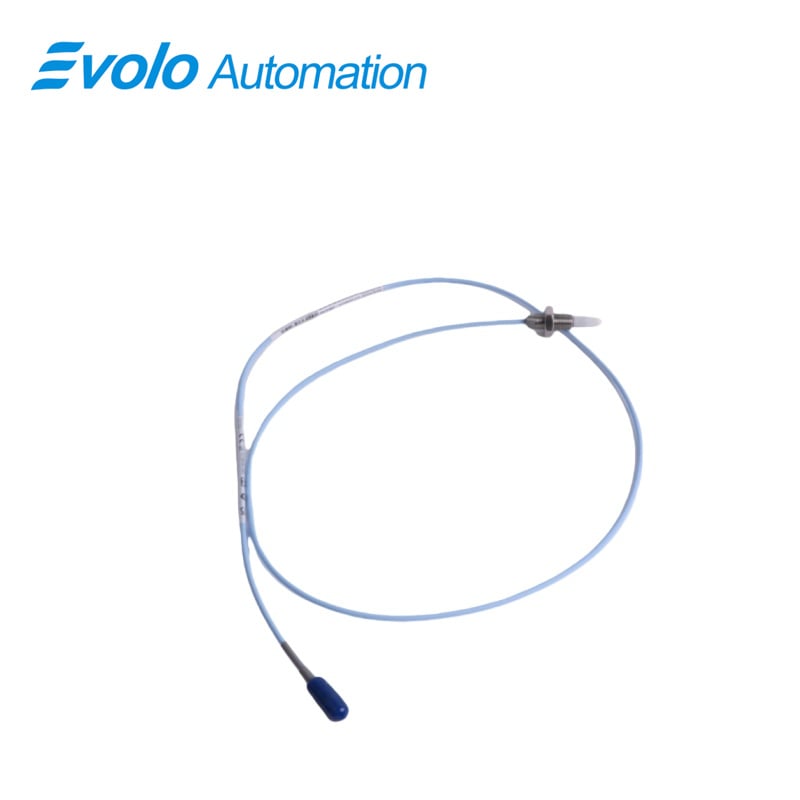

330905-01-08-10-01-00 3300 NSv Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330905-01-08-10-01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330905-01-08-10-01-00 3300 NSv Proximity Probe is a high-performance sensor designed for accurate vibration and displacement monitoring in demanding industrial environments. As part of the Bently Nevada 3300 XL series, this proximity probe delivers advanced technology for critical applications. It is engineered to replace older systems, such as the 3300 RAM Transducer Systems, as well as the 3000-series and 7000-series 190 Transducer Systems, providing a seamless upgrade path with improved capabilities and greater reliability.

Upgrading from the 3300 RAM system to the 3300 XL NSv system is straightforward and cost-efficient, as existing probes, extension cables, and monitoring systems can be retained. The integration of the 3300 XL NSv Proximitor Sensor further enhances system performance. However, when migrating from the 3000-series or 7000-series systems, it is necessary to replace the probe, extension cable, and Proximitor Sensor with the corresponding NSv components to ensure full compatibility and achieve optimal performance.

A key feature of the 3300 NSv Proximity Probe is its average scale factor of 7.87 V/mm (200 mV/mil), a widely accepted output for eddy current transducers. This scale factor ensures accurate and dependable readings in various applications. The probe’s enhanced sideview characteristics and compact target size provide a shorter linear range than the Bently Nevada 3300 XL-series 5 mm and 8 mm probes. With a linear range of 1.5 mm (60 mils), the 3300 NSv surpasses the 3000-series 190 Transducer System’s range, making it ideal for more precise displacement measurements.

The 3300 NSv Proximity Probe is particularly well-suited for industries like power generation, oil and gas, aerospace, and manufacturing, where precision monitoring is crucial. Its robust design and superior performance in harsh environments—such as turbine enclosures, motors, and compressors—allow it to detect early signs of mechanical issues, such as misalignment, wear, and imbalance. This enables effective predictive maintenance, preventing costly downtime and extending equipment life.

Applications

The 330905-01-08-10-01-00 3300 NSv Proximity Probe is a state-of-the-art sensor engineered to deliver precise condition monitoring and vibration displacement measurements across a broad spectrum of industrial fields. It excels especially in rigorous application scenarios spanning power generation, oil and gas, aerospace, marine operations, and heavy manufacturing industries. Built with rugged structural integrity and premium performance specs, this proximity probe furnishes accurate data that enables the early identification of mechanical anomalies—such as misalignment, imbalance, and component wear—thus averting expensive equipment breakdowns.Boasting an extensive operating temperature span from -52°C to +177°C, the probe is perfectly suited for extreme working environments, including turbine enclosures, compressor units, and outdoor installations exposed to both freezing cold and intense heat. Crafted with a stainless steel (SST) probe housing and a polyphenylene sulfide (PPS) probe tip, the 3300 NSv exhibits strong resistance to corrosion, chemical erosion, and high temperatures—an essential trait for applications in oil and gas extraction, marine engineering, and similar harsh sectors.Equipped with a miniature coaxial ClickLoc connector, the probe ensures straightforward yet secure installation.

Specifications

Competitive Advantage

1. Wide Temperature Range and Durability

The 3300 NSv Proximity Probe offers an exceptional operating temperature range of -52°C to +177°C (-62°F to +351°F), making it ideal for use in extreme environments. Whether in high-heat machinery rooms, outdoor installations, or cold temperature settings, this probe maintains optimal performance without degradation. Additionally, its AISI 304 stainless steel (SST) probe case and polyphenylene sulfide (PPS) tip ensure outstanding corrosion and chemical resistance, providing long-lasting durability in harsh industrial conditions.

2. Compact Design with Easy Integration

With a compact size of 10x7.3x5 cm and weighing only 0.44 kg, the 3300 NSv is lightweight and easy to install in tight, space-constrained environments. It features a miniature coaxial ClickLoc connector with a connector protector, ensuring secure connections and simplifying the installation process. Its 1-meter total length and compatibility with 0.2 to 1.5 mm² (16 to 24 AWG) field wiring make it easy to integrate into existing monitoring systems, reducing setup complexity and costs.

3. Superior Signal Integrity

The 3300 NSv ensures reliable and precise measurements with 50 Ω output resistance and 69.9 pF/m extension cable capacitance, minimizing signal loss and distortion. It also offers less than 2 mV change in output voltage per volt change in input voltage, ensuring high data accuracy even in environments with fluctuating power or electromagnetic interference. This level of signal stability is crucial for effective predictive maintenance and condition monitoring, providing early detection of mechanical issues like misalignment and wear.
