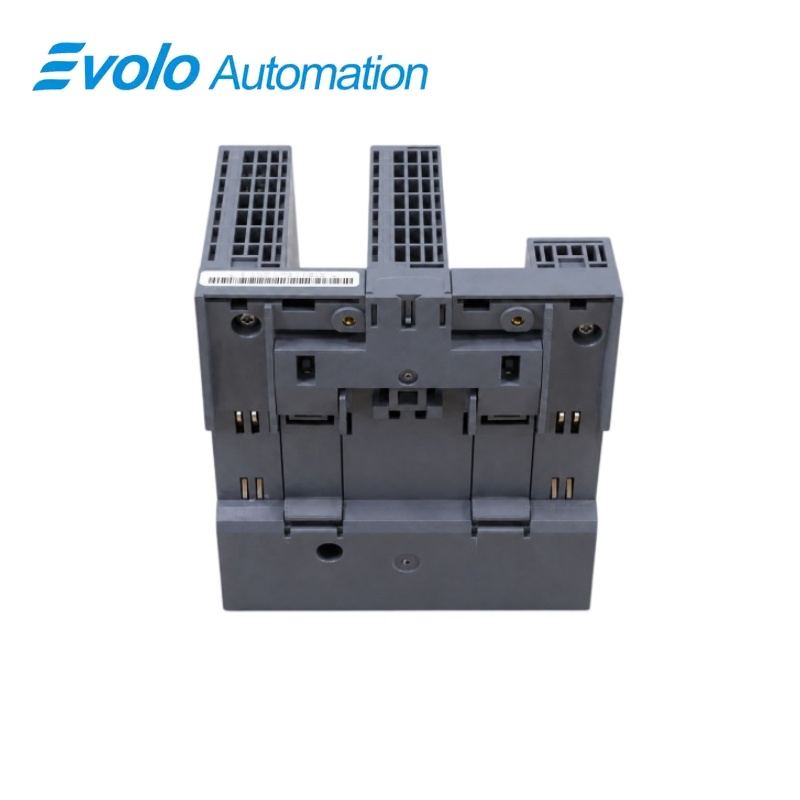

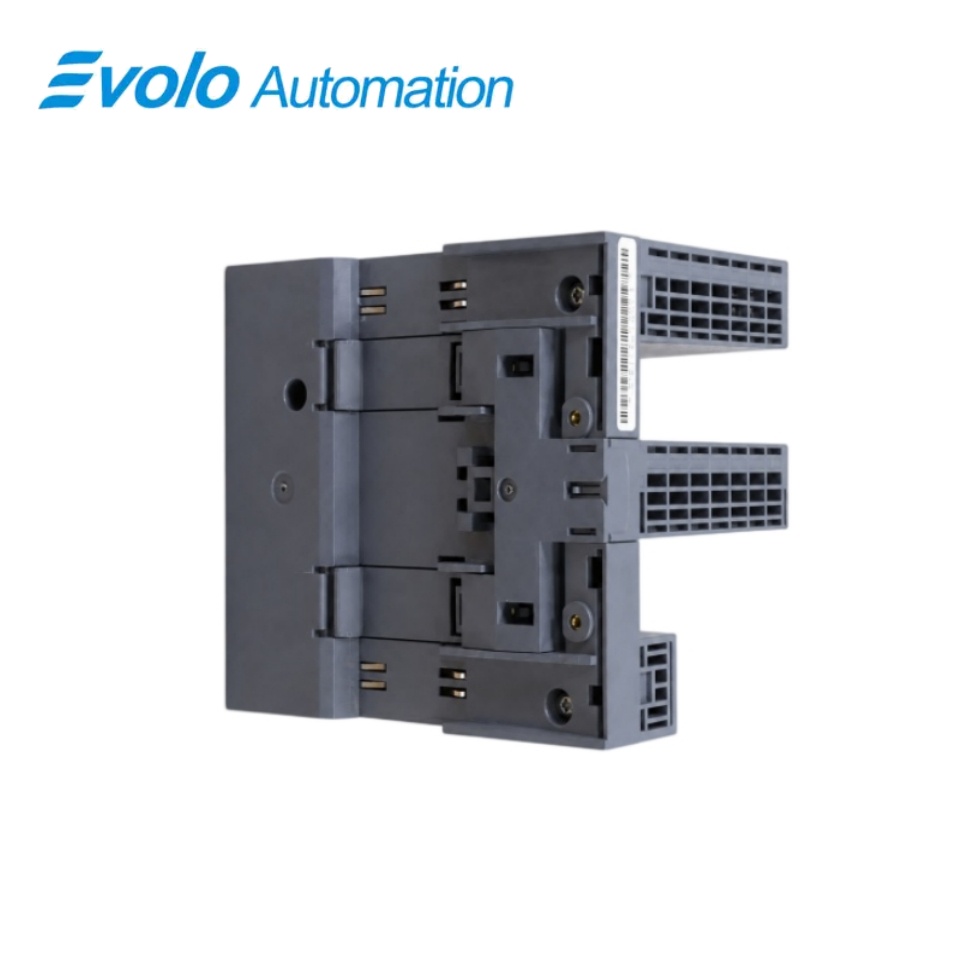

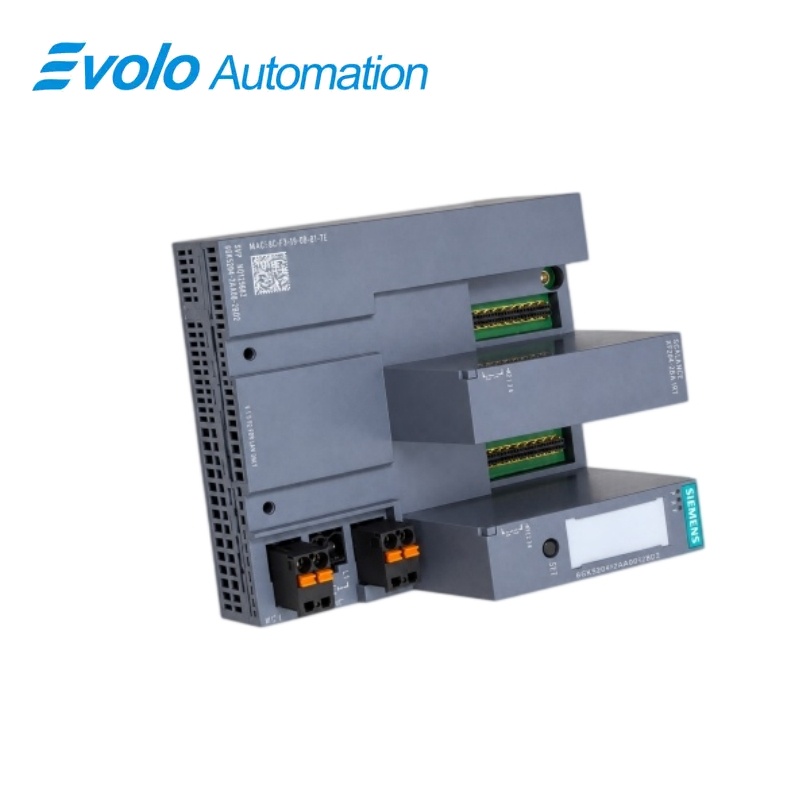

Siemens SCALANCE XF204-2BA IRT Managed Ethernet Switch 6GK5204-2AA00-2BD2
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SCALANCE XF-200IRT managed
6GK5204-2AA00-2BD2 SCALANCE XF204-2BA IRT Managed Ethernet Switch
The SCALANCE XF204-2BA IRT is a managed Industrial Ethernet switch with four 10/100 Mbit/s ports provided through two BusAdapter interfaces, redundant 24 V DC power and integrated redundancy management.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6GK5204-2AA00-2BD2 |
| Product Type | Managed PROFINET IRT Industrial Ethernet switch |
| Core Function | Switches four 10/100 Mbit/s links through two modular BusAdapter interfaces |
| Application or Compatible Series | PROFINET IRT networks requiring a slim managed switch and modular media connection |
Exact Identification
Match 6GK5204-2AA00-2BD2 character by character and confirm the complete SCALANCE XF204-2BA IRT Managed Ethernet Switch designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SCALANCE XF204-2BA IRT is a managed Industrial Ethernet switch with four 10/100 Mbit/s ports provided through two BusAdapter interfaces, redundant 24 V DC power and integrated redundancy management.
Two modular BusAdapter interfaces provide the four configured Ethernet ports. The managed switch supports deterministic PROFINET IRT network structures. A signaling contact, set pushbutton, network management and optional C-PLUG support controlled maintenance.
Key Functions
BusAdapter Media Flexibility
Two modular BusAdapter interfaces provide the four configured Ethernet ports.
PROFINET IRT Operation
The managed switch supports deterministic PROFINET IRT network structures.
Integrated Service Functions
A signaling contact, set pushbutton, network management and optional C-PLUG support controlled maintenance.
Official Specifications
| Ethernet Ports | 4 |
|---|---|
| Port Data Rate | 10/100 Mbit/s |
| BusAdapter Interfaces | 2 |
| Supply Voltage | 24 V DC |
| Power Supply Arrangement | Redundant |
| Fault Signaling Contact | Provided |
| Set Pushbutton | Provided |
| PROFINET IO Device | Supported |
| Network Management | Supported |
| Integrated Redundancy Manager | Provided |
| Configuration Memory | C-PLUG optional |
| Net Weight | 0.3 kg |
| Packaging Dimensions | 19 x 25 x 14.1 cm |
Frequently Asked Questions
How are the four network ports provided on 6GK5204-2AA00-2BD2?
The switch uses two BusAdapter interfaces to provide four 10/100 Mbit/s ports.
Can 6GK5204-2AA00-2BD2 be used in a PROFINET IRT network?
Yes; configure the managed switch for the validated IRT topology.
Does 6GK5204-2AA00-2BD2 support redundant power?
Yes; connect and verify both 24 V DC supply paths when redundancy is required.
What should be saved before replacing 6GK5204-2AA00-2BD2?
Back up the IP settings, PROFINET name, port configuration, redundancy parameters and management data.
Can a C-PLUG be used with 6GK5204-2AA00-2BD2?
Yes; use an approved C-PLUG when the installation is designed for removable configuration memory.
What must match when selecting BusAdapters for 6GK5204-2AA00-2BD2?
Choose approved BusAdapters that match the required media, connectors and network layout.
What should I test after installing 6GK5204-2AA00-2BD2?
Verify both supplies, all BusAdapter links, IRT communication, the signaling contact and redundancy recovery.
Compatibility & Ordering Notes
Compatibility Checklist
- Use only approved BusAdapters for the required media and connector type.
- Preserve the complete PROFINET IRT and redundancy configuration.
- Check firmware and optional C-PLUG compatibility before transferring configuration.
