330101-00-55-05-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-55-05-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

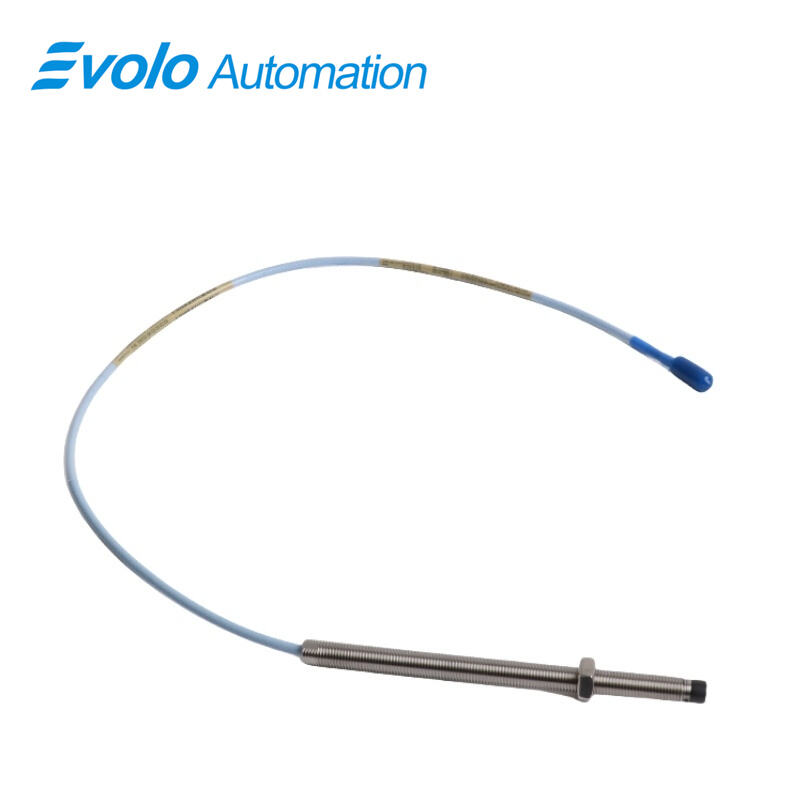

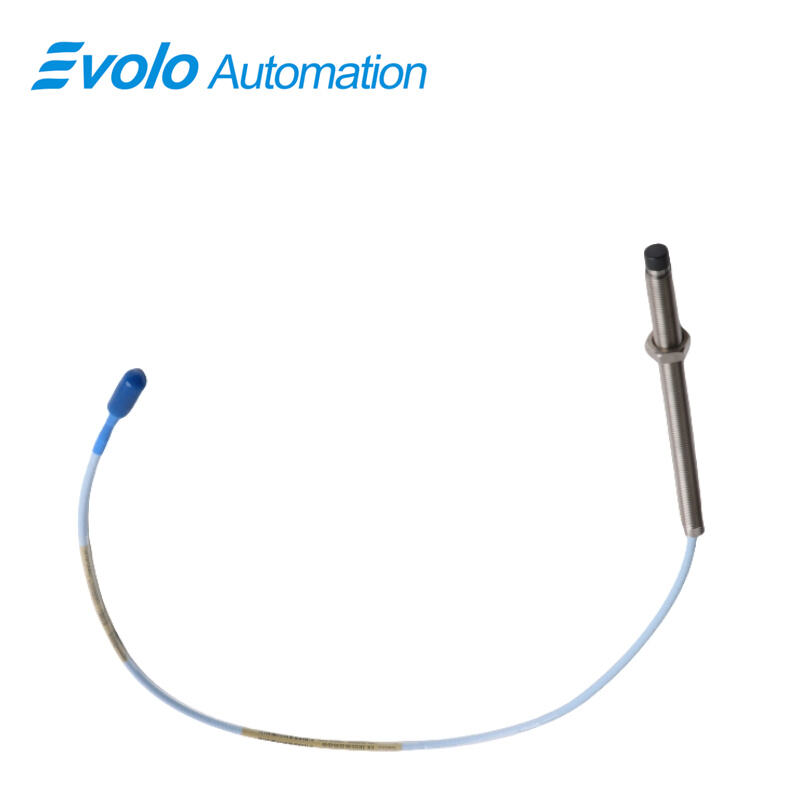

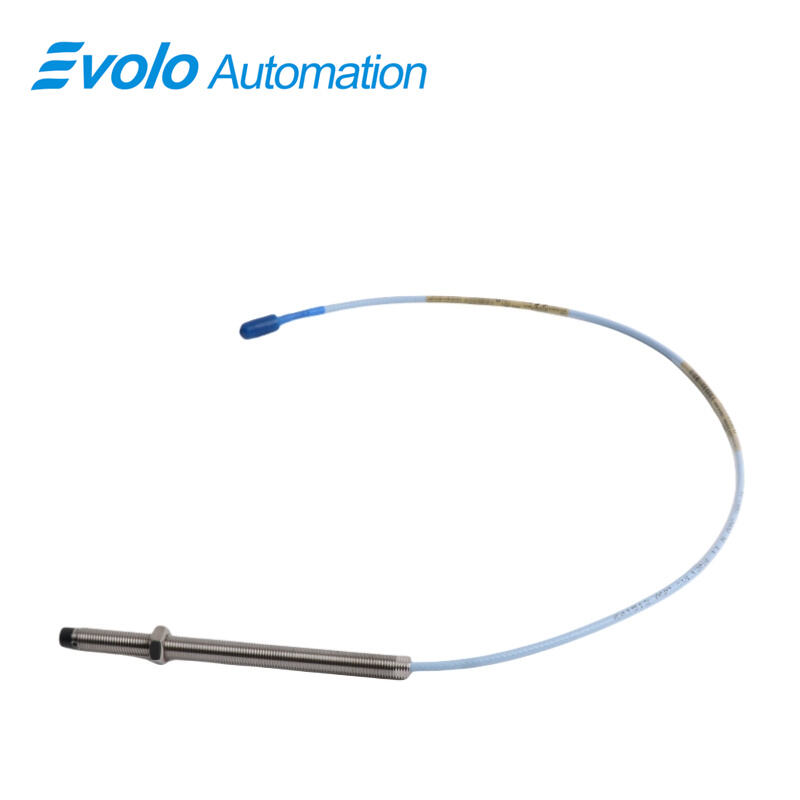

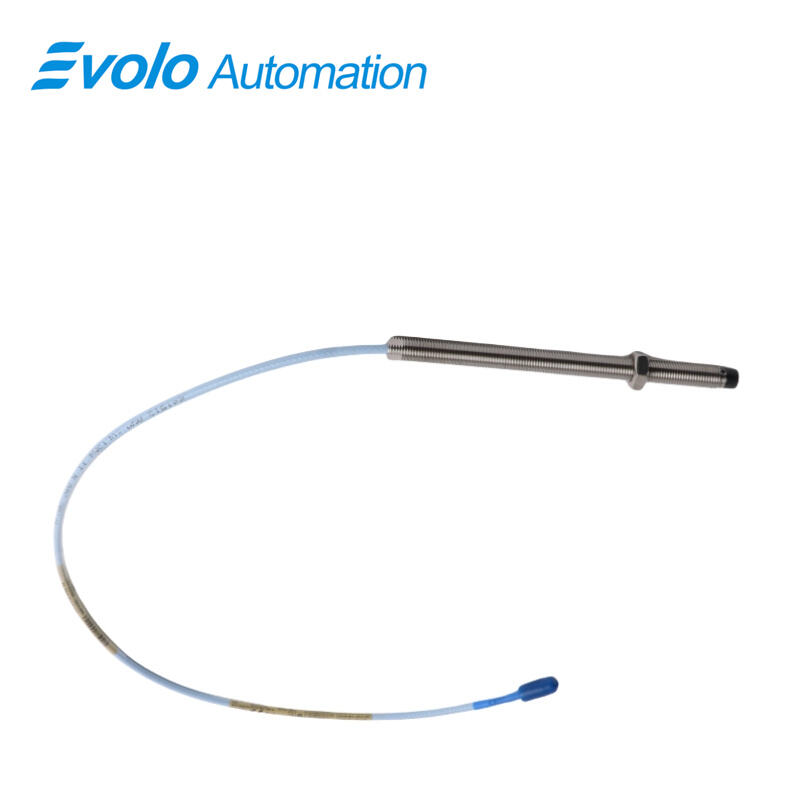

The 330101-00-55-05-02-05 3300 XL 8 mm Proximity Probe is a high-precision, non-contacting sensor designed for advanced vibration and position monitoring in automated industrial systems. Featuring a 3/8-24 UNF threaded stainless steel case, miniature coaxial ClickLoc connector, and 0.5-meter standard cable, this probe reliably measures both static and dynamic displacements with a 2 mm linear range. It operates in extreme temperature conditions from -52°C to +177°C (-62°F to +350°F) and maintains output voltage stability with less than 2 mV change per volt of input variation. Fully compliant with CSA, ATEX, and IECEx approvals, the 3300 XL 8 mm probe is suitable for hazardous environments. Patented TipLoc and CableLoc technologies enhance mechanical robustness, delivering 330 N (75 lbf) pull strength to ensure secure probe-cable attachment. The optional FluidLoc cable prevents fluid leakage, providing reliable operation in lubricated machinery. Fully backward compatible with 3300 XL system components, this probe simplifies maintenance, system upgrades, and calibration requirements.

Applications

Vibration Analysis on Fluid-Film Bearings
Provides high-resolution radial and axial vibration measurements on pumps, turbines, and compressors, enabling predictive maintenance and reducing unexpected equipment failures.

Shaft Displacement and Position Monitoring
Accurately measures shaft alignment, rotor deflection, and axial movement in rotating machinery to prevent misalignment-related wear and optimize performance.

Keyphasor Signal Generation
Generates reliable phase reference signals for rotor balancing, speed synchronization, and diagnostic analysis according to API 670 standards.

Speed and Zero-Speed Detection
Enables precise speed monitoring and zero-speed detection, supporting automated control systems for safe machine startup and shutdown sequences.

Hazardous Area Monitoring
CSA, ATEX, and IECEx approvals allow use in chemical, petrochemical, and refinery environments, ensuring safe operation in potentially explosive atmospheres.

Specifications

Competitive Advantage

High Measurement Accuracy
Maintains 2 mm linear range with minimal sensitivity drift (less than 2 mV per volt of input variation), ensuring precise measurements under dynamic conditions.

Robust Mechanical Design
TipLoc and CableLoc technologies provide 330 N (75 lbf) pull strength, securing probe-cable connections and preventing accidental disconnection in high-vibration environments.

Extreme Temperature Capability
Operates reliably from -52°C to +177°C, supporting a wide range of industrial applications, including high-temperature compressors and turbines.

System Compatibility and Interchangeability
Fully compatible with other 3300 XL probes, extension cables, and Proximitor sensors, reducing system upgrade costs and eliminating the need for recalibration.

Leak-Proof Cable Option
Optional FluidLoc cable prevents fluid ingress, ensuring consistent operation and protecting machine internals from oil and lubricants.
