330130-080-01-00 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

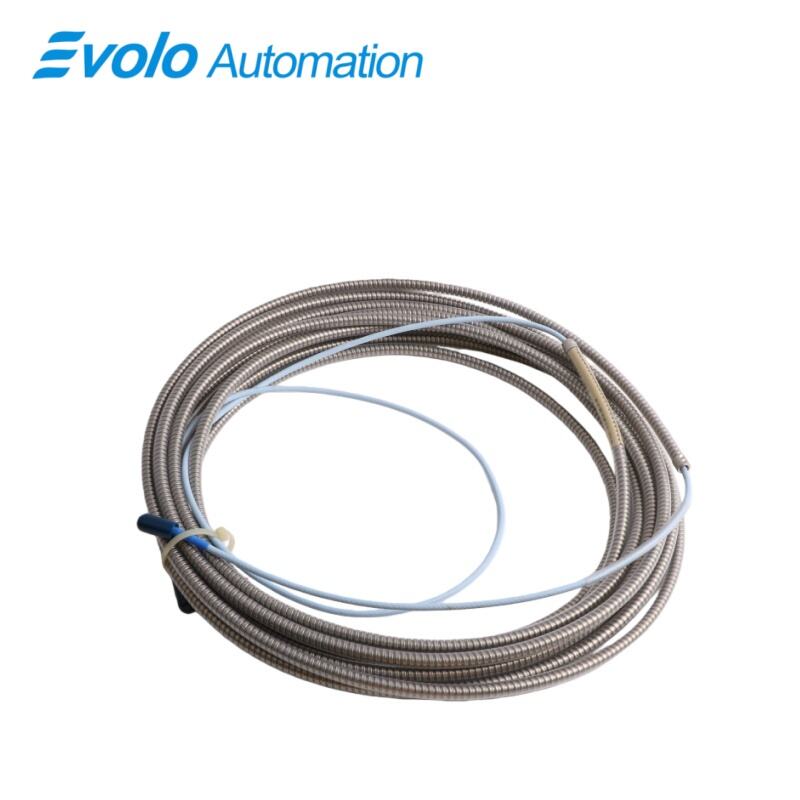

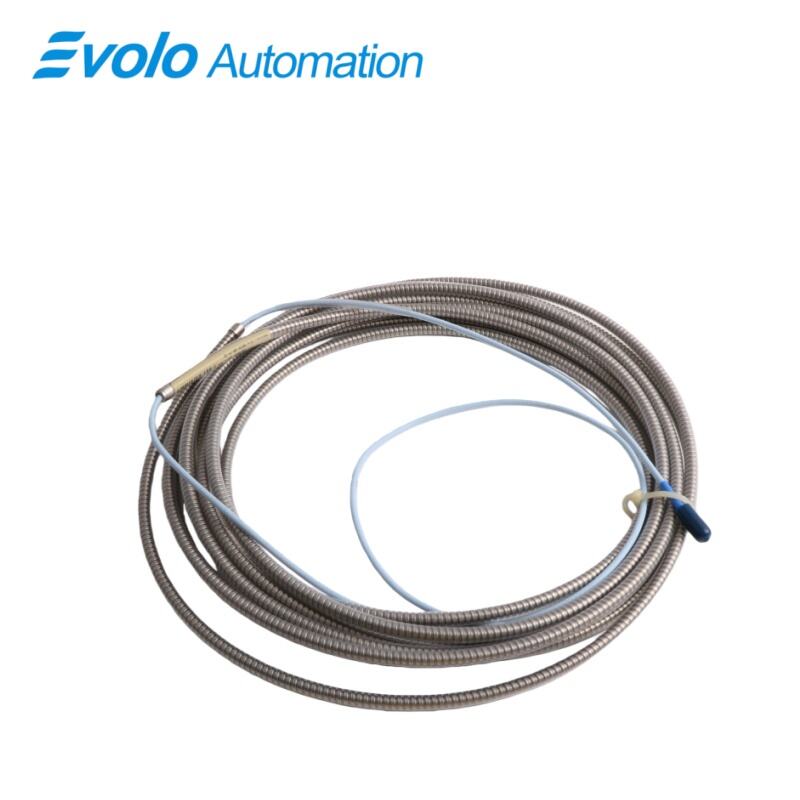

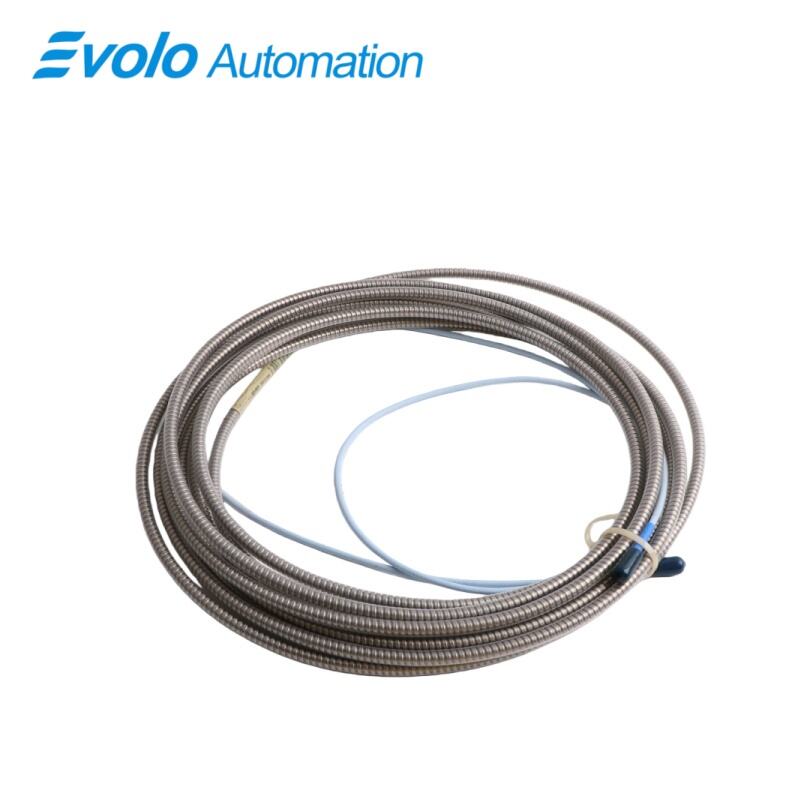

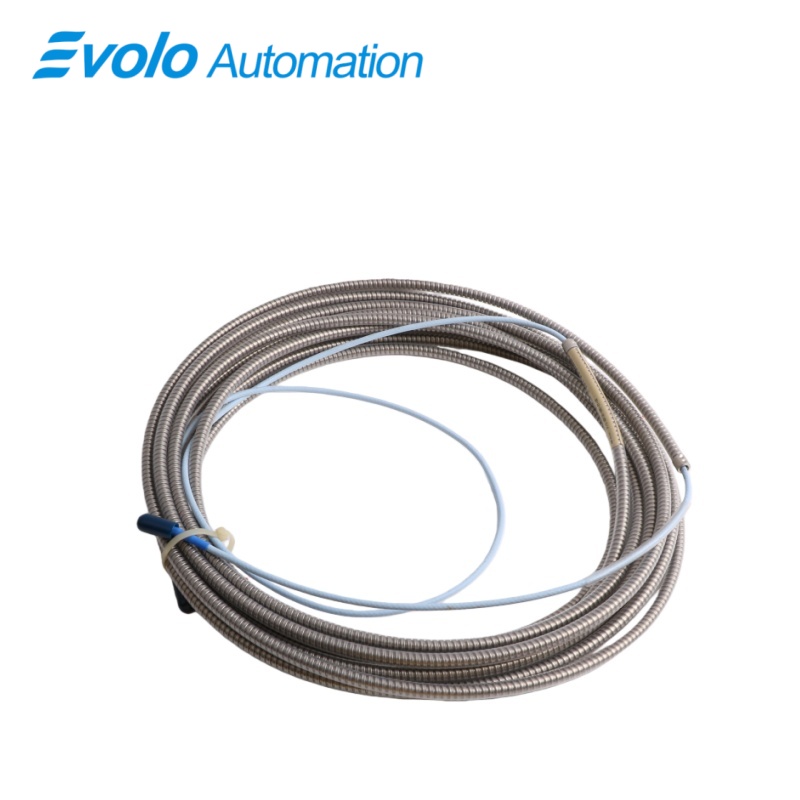

The Bently Nevada 330130-080-01-00 3300 XL Standard Extension Cable is a critical high-performance component engineered to ensure signal integrity and robust connectivity within advanced machinery monitoring systems. Specifically designed to interface seamlessly with 3300 XL series proximity probes and sensors, this extension cable serves as a vital link, transmitting precise vibration and displacement data from the sensing point to the monitoring instrumentation. A defining feature of this model is its 8.0-meter (26.2-foot) armored cable construction, which provides superior mechanical protection against crushing, abrasion, and accidental impact in the most demanding industrial environments. This rugged design ensures the cable's longevity and reliability, making it an indispensable asset for critical applications where cable failure is not an option.

The 330130-080-01-00 cable is engineered for optimal electrical performance, featuring a standard 73Ω triaxial configuration that effectively minimizes signal loss and electromagnetic interference over its entire length. With a typical extension cable capacitance of 68.9 pF/m (21.3 pF/ft) and a stable output resistance of 46 Ω, it preserves the linearity and sensitivity of the original probe signal, which is paramount for accurate machinery condition assessment. The cable maintains exceptional signal fidelity with a supply sensitivity of less than 2 mV per volt change in input voltage, ensuring that measurement accuracy remains uncompromised by power supply variations.

Applications

This armored 3300 XL extension cable is primarily deployed in heavy industrial environments such as steel mills, mining operations, and pulp & paper plants, where cables are exposed to significant mechanical abuse from moving equipment, falling debris, or frequent foot traffic. Its 8.0-meter armored construction provides essential physical protection, ensuring uninterrupted signal transmission from proximity probes on crushers, rolling mills, and large fans to the central monitoring system, thereby safeguarding against costly downtime.

The cable's wide operating temperature range (-62°C to +167°C) and stable electrical characteristics make it suitable for use in power generation facilities, including thermal and hydroelectric plants. It is commonly used to connect sensors on steam turbines, generators, and boiler feed pumps, where it must reliably route signals through both hot turbine hall environments and cooler, outdoor cable runs without signal degradation, supporting accurate predictive maintenance.

In general manufacturing and machinery automation, this cable provides a reliable and durable connection solution for 3300 XL monitoring systems installed on production line equipment, large motors, and compressors. Its support for standard field wiring (0.2 to 1.5 mm²) and robust triaxial design simplifies installation and ensures long-term, maintenance-free operation in facilities where consistent equipment health monitoring is crucial for operational efficiency.

Specifications

Competitive Advantage

1.Armored Construction for Maximum Physical Durability

The incorporation of an armored cable sheath sets this extension cable apart in environments prone to mechanical damage. Unlike standard unarmored cables, this design provides superior resistance to crushing, cut-through, abrasion, and impact from tools or falling objects. This enhanced physical protection significantly extends the cable's service life in challenging settings like heavy machining areas, mining sites, and material handling plants, reducing replacement frequency and associated maintenance costs.

2.Superior Electrical Stability for Long-Distance Signal Fidelity

Engineered with a 73Ω triaxial standard cable and a low typical capacitance of 68.9 pF/m, this cable is optimized to minimize signal attenuation and preserve waveform integrity over its full 8.0-meter length. Coupled with a stable 46 Ω output resistance and exceptionally low supply sensitivity (<2 mV/V), it ensures that the precise data from 3300 XL proximity probes is delivered to the monitoring system without distortion, which is critical for accurate vibration analysis and fault diagnosis.

3.Wide Operational Temperature Range for Versatile Deployment

Capable of operating reliably from -62°C to +167°C, this cable offers exceptional versatility for deployment across a vast spectrum of industrial climates. This performance ensures consistent functionality whether routed through the freezing conditions of an outdoor compressor station or the high-heat zones near a steam turbine casing, providing a single, reliable cable solution for diverse application needs without the risk of temperature-induced failure or signal drift.
