Siemens SIMATIC PCS 7 Redundant F-AI6 HART MTA 6ES7650-1AH62-5XX0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SIMATIC PCS 7 / ET 200M MTA

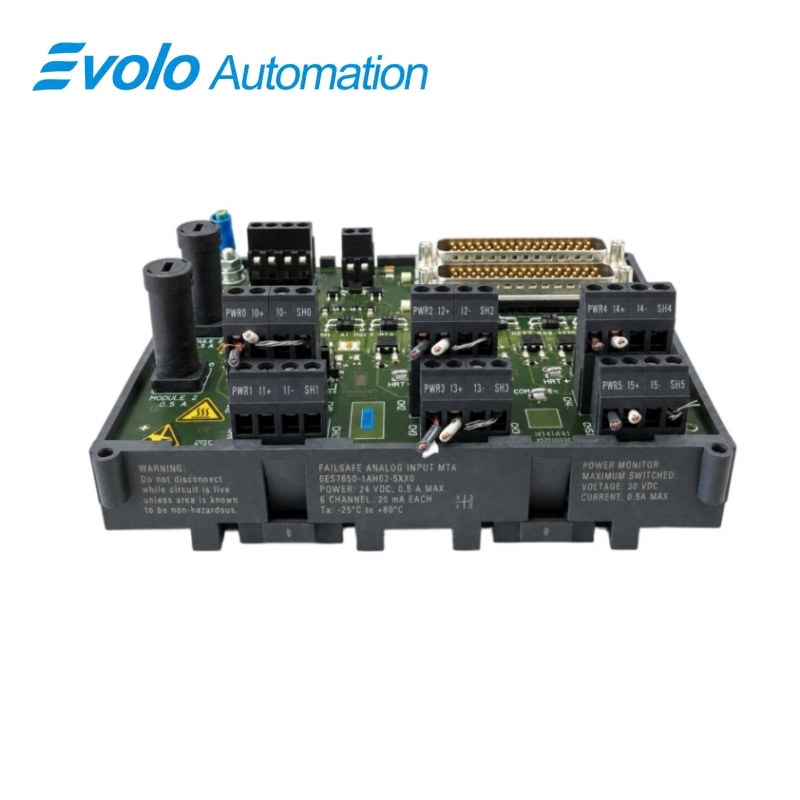

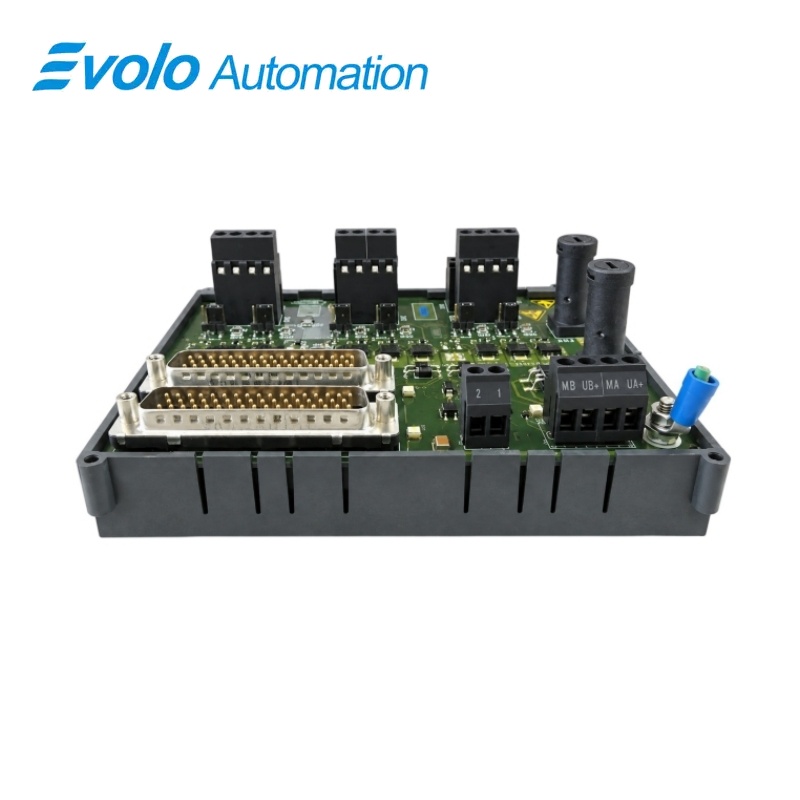

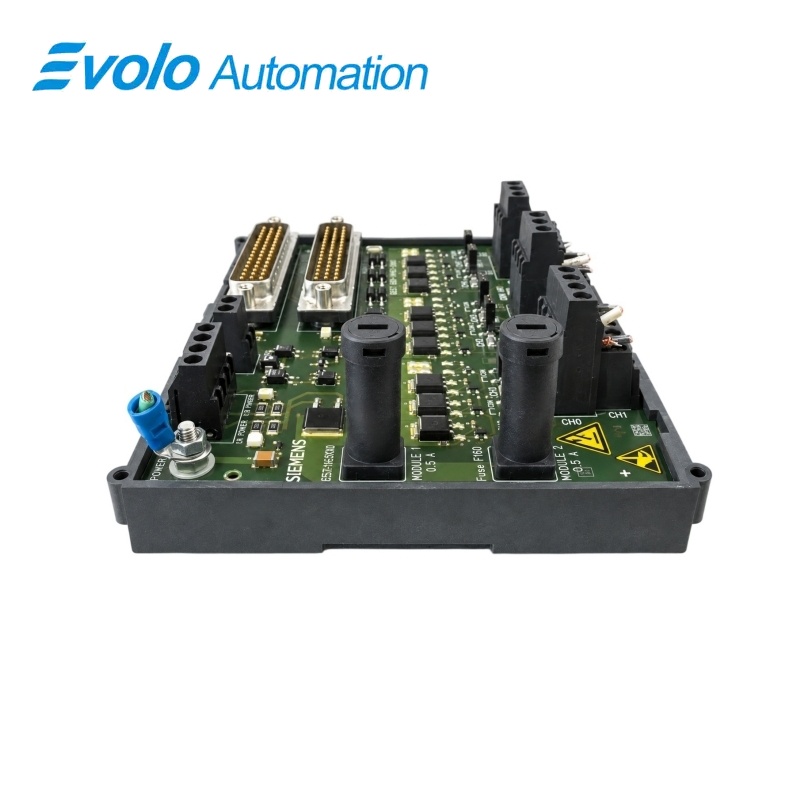

6ES7650-1AH62-5XX0 SIMATIC PCS 7 Redundant F-AI6 HART MTA
This redundant F-AI6 HART MTA connects six field current loops to the ET 200M fail-safe analog input module, providing redundant fused power, protected two-wire transmitter supplies, HART access and diagnostic LEDs.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7650-1AH62-5XX0 |
| Product Type | Six-channel fail-safe HART marshalled termination assembly |
| Core Function | Provides redundant protected termination for the ET 200M six-channel fail-safe HART analog input module |
| Application or Compatible Series | SIMATIC PCS 7 safety applications using 6ES7336-4GE00-0AB0 with redundant MTA cabling |
Exact Identification
Match 6ES7650-1AH62-5XX0 character by character and confirm the complete SIMATIC PCS 7 Redundant F-AI6 HART MTA designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
This redundant F-AI6 HART MTA connects six field current loops to the ET 200M fail-safe analog input module, providing redundant fused power, protected two-wire transmitter supplies, HART access and diagnostic LEDs.
Provides individual current-limited two-wire transmitter supplies and HART access. Dual connectors support the documented redundant I/O module arrangement. Fused redundant feeds, polarity indication and a power-monitor relay improve diagnostics.
Key Functions
Six Protected HART Channels
Provides individual current-limited two-wire transmitter supplies and HART access.
Redundant I/O Connection
Dual connectors support the documented redundant I/O module arrangement.
Power Monitoring
Fused redundant feeds, polarity indication and a power-monitor relay improve diagnostics.
Official Specifications
| Signal Channels | 6 |
|---|---|
| Compatible I/O Module | 6ES7336-4GE00-0AB0 |
| Measuring Range | 0/4 to 20 mA |
| Supply Input | 21.6 to 28.8 V DC |
| Supply Arrangement | Single or redundant feed |
| Nominal Current Consumption | Less than 0.5 A with all channels at 20 mA |
| Typical Power Dissipation | 1 W |
| Module Fuse Rating | 0.5 A |
| Typical Transmitter Current | 20 mA per channel |
| Maximum Channel Short-Circuit Current | 40 mA |
| Load Capability | Greater than 750 Ω |
| Short-Circuit Protection | Electronic, individual per channel |
| Power-Monitor Threshold | Approximately 15 V |
| Maximum Relay Switching Voltage | 30 V DC |
| Maximum Relay Switching Current | 0.5 A resistive |
| Mounting | 35 mm DIN rail |
| Ambient Temperature | -25 to +70 °C horizontal |
| Humidity | 5 to 95%, non-condensing |
Frequently Asked Questions
Which analog input module is paired with 6ES7650-1AH62-5XX0?
Use it with the specified ET 200M six-channel fail-safe HART module and approved interconnecting cables.
How many field loops terminate on 6ES7650-1AH62-5XX0?
Six 0/4 to 20 mA channels are provided.
Can 6ES7650-1AH62-5XX0 use redundant power feeds?
Yes; the MTA accepts single or redundant 21.6 to 28.8 V DC input.
Are the transmitter supplies of 6ES7650-1AH62-5XX0 individually protected?
Yes; every channel has electronic short-circuit protection.
How is HART maintenance access provided by 6ES7650-1AH62-5XX0?
A dedicated handheld-terminal connection is available for each channel.
Which mounting method is specified for 6ES7650-1AH62-5XX0?
Install the assembly on a 35 mm deep top-hat DIN rail.
What should be verified after changing 6ES7650-1AH62-5XX0?
Check both power feeds, polarity LEDs, fuses, field wiring, HART access, loop current and safety diagnostics.
Compatibility & Ordering Notes
Compatibility Checklist
- Use only with the specified F-AI6 HART module and approved cables.
- Preserve redundant channel mapping and power-feed separation.
- Complete the required safety loop test after replacement.
