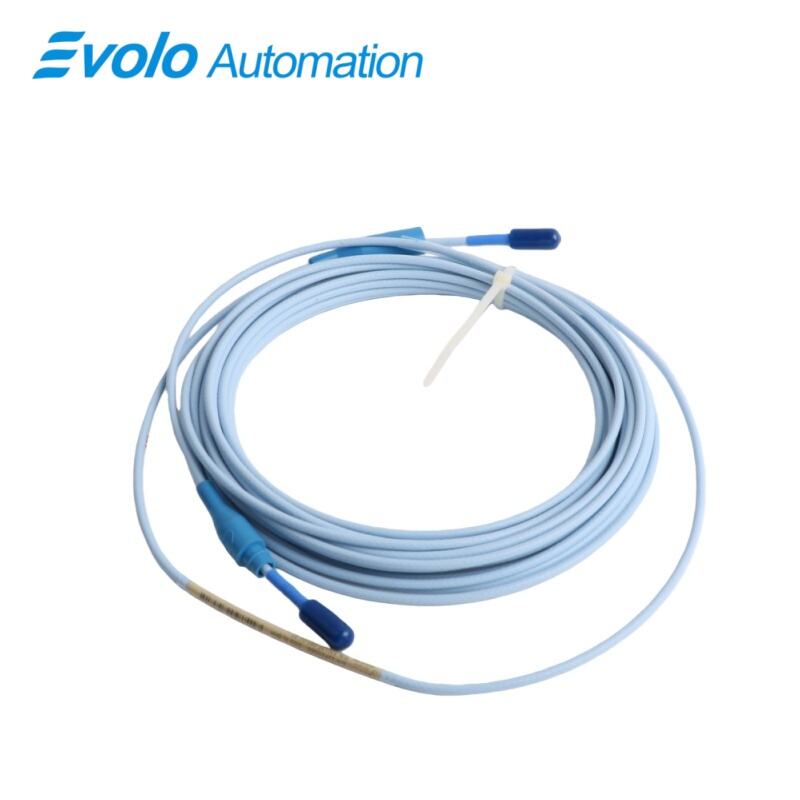

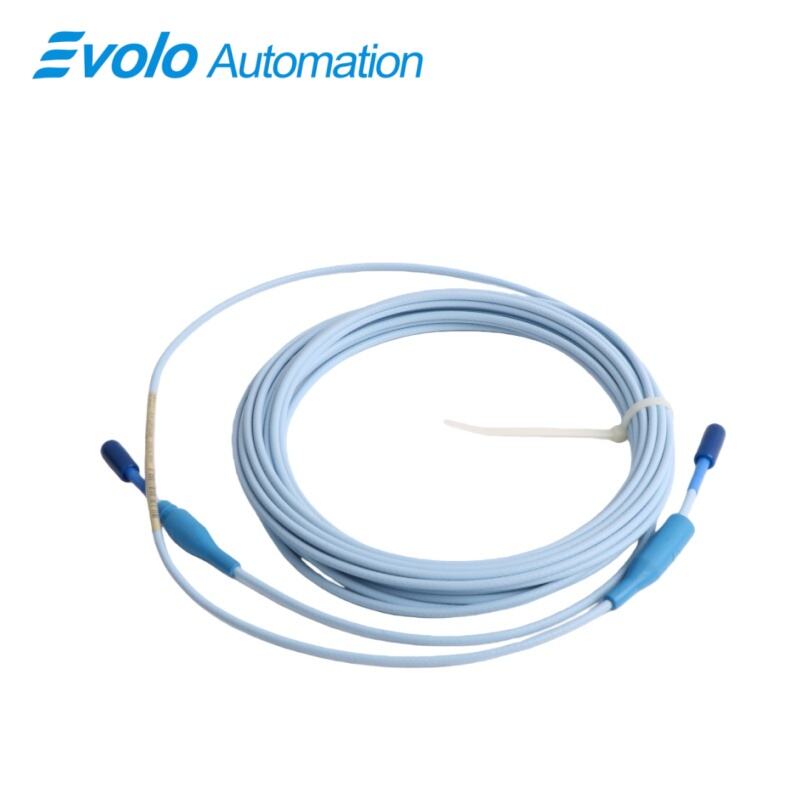

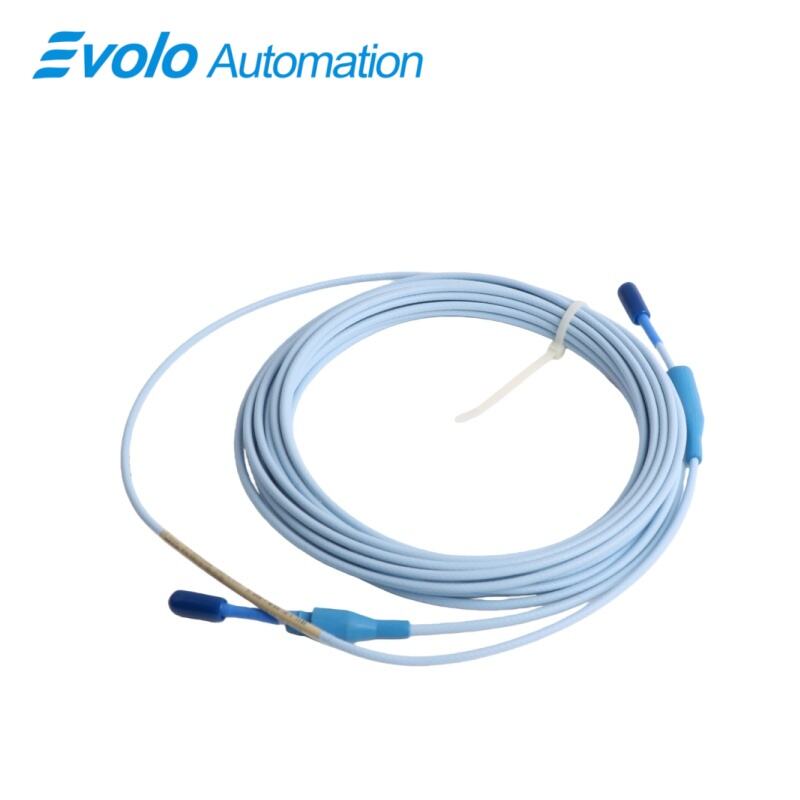

330130-080-02-00 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-080-02-00 3300 XL Standard Extension Cable represents a pinnacle of signal transmission technology within the Bently Nevada 3300 XL transducer system. Engineered as a high-fidelity bridge between proximity probes and Proximitor sensors, the 330130-080-02-00 3300 XL Standard Extension Cable ensures that critical vibration and displacement data remain uncompromised over long distances. This specific 330130-080-02-00 3300 XL Standard Extension Cable configuration features an 8.0-meter (26.2 feet) length and is equipped with flexible stainless steel armor, providing an indispensable layer of physical protection for demanding industrial environments.

A core strength of the 330130-080-02-00 3300 XL Standard Extension Cable lies in its advanced mechanical construction. Utilizing the patented CableLoc design, the 330130-080-02-00 3300 XL Standard Extension Cable provides a remarkable 330 N (75 lbf) pull strength, ensuring that the connection points remain intact even when subjected to intense structural resonance or accidental pulling. Furthermore, the 330130-080-02-00 3300 XL Standard Extension Cable utilizes gold-plated ClickLoc connectors. These miniature coaxial connectors lock securely into place, preventing the signal degradation often caused by oxidation or loose fittings in high-vibration machinery like steam turbines and centrifugal compressors.

Applications

The 330130-080-02-00 is primarily utilized as a long-reach signal conduit in large-scale turbomachinery trains, such as those found in thermal power plants and LNG facilities. With its 8.0-meter length and integrated armor, the cable is routed from bearing-mounted proximity probes through complex machine internal structures to reach remote instrument junction boxes. This configuration allows the sensitive Proximitor sensors to be housed in a protected, vibration-free environment while the armored cable resists physical abrasion and impact from moving parts or maintenance activities.

In petrochemical and refinery operations, this 3300 XL Standard Extension Cable is applied to monitor the axial thrust and radial vibration of high-speed centrifugal compressors. The cable’s FEP-insulated triaxial design is highly resistant to industrial lubricants and process chemicals, ensuring that signal attenuation remains minimal even in oil-saturated environments. Its wide temperature rating allows it to operate reliably near hot turbine casings, providing the continuous high-accuracy data required for 24/7 machinery protection and predictive maintenance strategies.

This armored extension cable is also extensively used in heavy manufacturing and mining applications, where equipment is subjected to severe dust, moisture, and mechanical stress. The 330130-080-02-00 connects 3300 XL series probes on primary crushers, large motors, and industrial fans to centralized monitoring racks. The combination of ClickLoc connector security and the protective stainless steel armor ensures that external electromagnetic interference (EMI) and physical debris do not compromise the 4 to 20 mA or raw vibration signals, supporting the safe and efficient operation of critical production lines.

Specifications

Competitive Advantage

Superior Mechanical Protection with Integrated Armor The 330130-080-02-00 features a factory-installed, flexible stainless steel armor that provides a significant competitive edge over standard unarmored cables. This armor shields the inner coaxial core from sharp edges, mechanical pinching, and abrasion, which are the leading causes of cable failure in the field. By preventing physical damage, this cable significantly extends the intervals between maintenance turnarounds and lowers the total cost of ownership for vibration monitoring systems.

High-Strength CableLoc and ClickLoc Technology Equipped with Bently Nevada’s proprietary CableLoc retention system and ClickLoc connectors, this cable offers unmatched connection stability. With 330 N (75 lbf) of pull strength, it resists the "pull-out" failures common in high-vibration environments. The gold-plated ClickLoc connectors provide an audible and tactile "click" to confirm a secure connection, ensuring low-resistance signal transmission and preventing intermittent data loss caused by mechanical loosening.

Optimized Electrical Precision for Long-Distance Signal Integrity Unlike generic coaxial cables, the 330130-080-02-00 is specifically calibrated to a 75Ω triaxial standard with ultra-low capacitance (66.9 pF/m). This precision engineering ensures that the scale factor and linearity of the proximity transducer system remain constant over the full 8.0-meter length. By maintaining impedance matching with 3300 XL probes and Proximitors, it delivers the most stable and accurate vibration readings available, reducing the risk of false alarms or missed machinery faults.
