Siemens 6ES7392-1AM00-0AA0 SIMATIC S7-300 40-Pole Screw Front Connector

Overview

SIEMENS SIMATIC S7-300

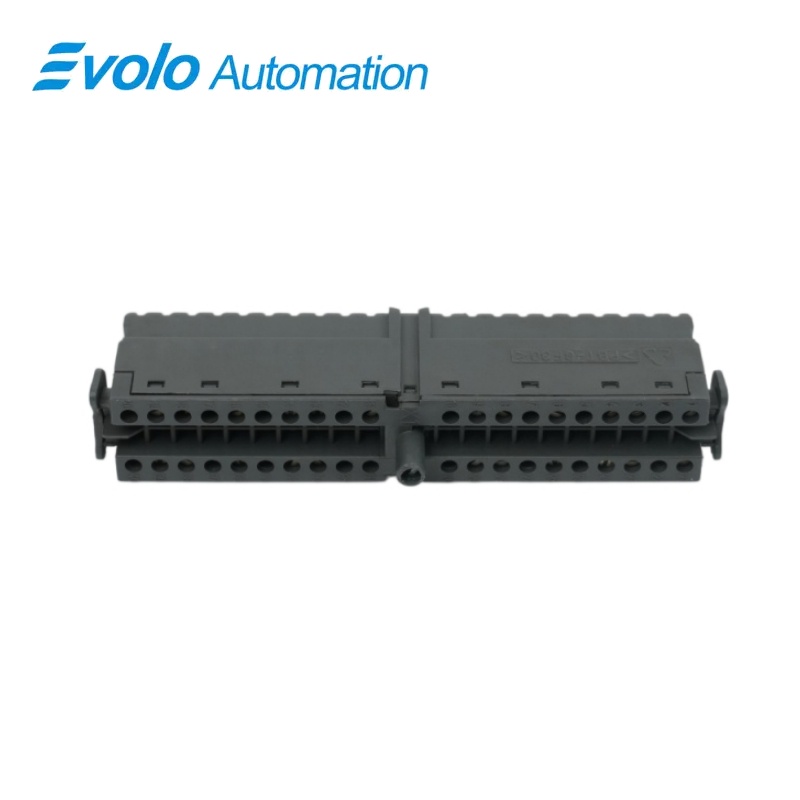

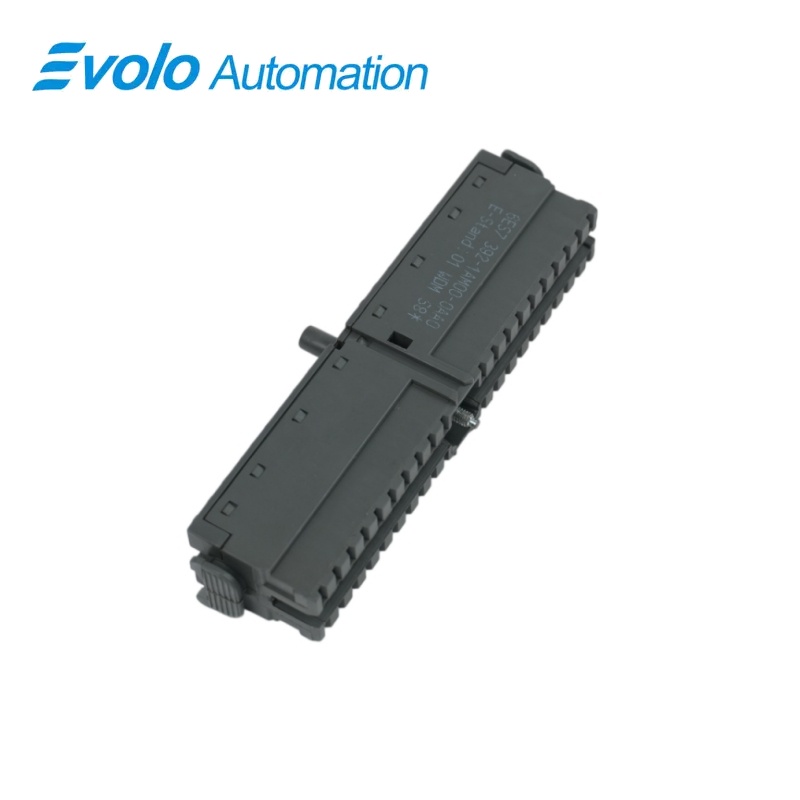

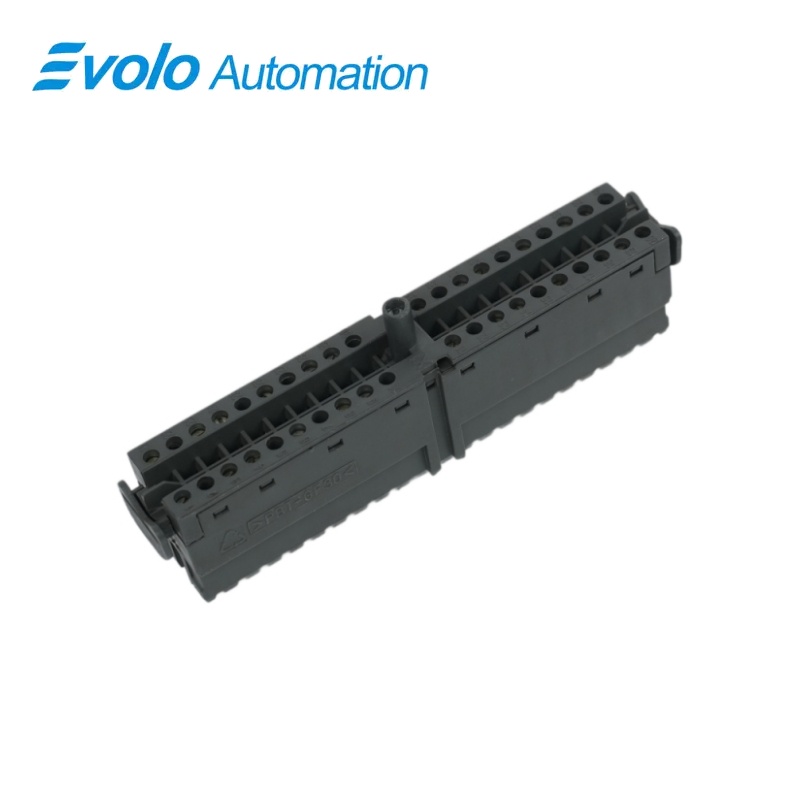

6ES7392-1AM00-0AA0 SIMATIC S7-300 40-Pole Screw Front Connector

A 40-pole screw connector for field wiring on compatible S7-300 signal modules and compact CPUs.

At a Glance

Brand	Siemens
Model	6ES7392-1AM00-0AA0
Product Type	Front connector
Core Function	Detachable field wiring
Application	S7-300 cabinet I/O connections

40-pole format

Connect the field conductors for compatible 32-channel signal modules and CPU 31xC onboard I/O.

Controlled screw termination

Use a conical 3–3.5 mm screwdriver and a tightening torque of 0.4–0.7 N·m.

Compact wire preparation

Prepare 6 mm stripped ends and select conductors within the 0.14–0.75 mm² terminal range.

Product Overview

6ES7392-1AM00-0AA0 connects sensors and actuators to compatible SIMATIC S7-300 hardware through a removable 40-pole screw-terminal assembly.

Its termination geometry suits closely spaced field conductors, while the detachable connection provides a defined interface between the field harness and the module.

Ordering focus: For 32-channel S7-300 signal modules and CPU 31xC installations requiring a 40-pole screw connector.

Key Functions

Connect dense I/O wiring

Forty poles provide the field connection format used by compatible 32-channel signal modules and compact CPU I/O.

Secure prepared conductors

Screw terminals accept solid or flexible 0.14–0.75 mm² wires, including correctly sized ferruled conductors.

Keep terminations consistent

A 6 mm stripping length and 0.4–0.7 N·m torque give technicians defined wire preparation and tightening targets.

Official Specifications

Terminal arrangement	40 poles
Termination method	Screw terminals
Solid and flexible conductor range	0.14–0.75 mm², with or without ferrules as applicable
AWG conductor range	AWG 24–19
Conductors per terminal	1; alternatively 2 conductors totaling up to 0.75 mm² in a shared ferrule
Stripping length	6 mm
Uninsulated ferrule	DIN 46228 Form A, 5–7 mm long
Insulated ferrule	DIN 46228 Form E, up to 6 mm long
Required screwdriver	Conical blade, 3–3.5 mm
Tightening torque	0.4–0.7 N·m
Operating ambient temperature	0–60 °C
Storage and transport temperature	−40 to +70 °C
Dimensions (W × H × D)	21.6 × 125 × 40.9 mm
Approximate weight	137 g

Official source:Siemens product manual and technical specifications

Frequently Asked Questions

Can I use 6ES7392-1AM00-0AA0 on a CPU 31xC?

Yes, the 40-pole screw version is assigned to CPU 31xC onboard I/O and compatible 32-channel S7-300 signal modules.

Does 6ES7392-1AM00-0AA0 support Controlled screw termination for mobile equipment?

No, the terminal range for this article ends at 0.75 mm², so use conductors within 0.14–0.75 mm².

How much insulation should I remove for 6ES7392-1AM00-0AA0?

Strip 6 mm so the conductor end matches the specified terminal preparation length.

Can I combine two small wires in 6ES7392-1AM00-0AA0?

Two conductors may share one ferrule when their combined cross-section does not exceed 0.75 mm².

What torque should my technician use on 6ES7392-1AM00-0AA0?

Tighten the terminal screws to 0.4–0.7 N·m with a conical 3–3.5 mm screwdriver.

Which ferrule collar length is suitable for 6ES7392-1AM00-0AA0?

Use DIN 46228 Form E insulated ferrules up to 6 mm long or Form A uninsulated ferrules 5–7 mm long.

How should I store spare 6ES7392-1AM00-0AA0 connectors?

Keep the connectors within the specified storage and transport temperature range of −40 to +70 °C.

Compatibility & Ordering Notes

Before ordering 6ES7392-1AM00-0AA0: Match the 40-pole format to the S7-300 module socket and its terminal assignment, then size the field wiring for the 0.75 mm² upper limit of this connector.

Compatibility Checklist for 6ES7392-1AM00-0AA0

• Select the 40-pole screw version required by the module.
• Prepare 6 mm stripped conductor ends.
• Keep a shared ferrule within 0.75 mm² total cross-section.
• Use the specified screwdriver and 0.4–0.7 N·m torque.
