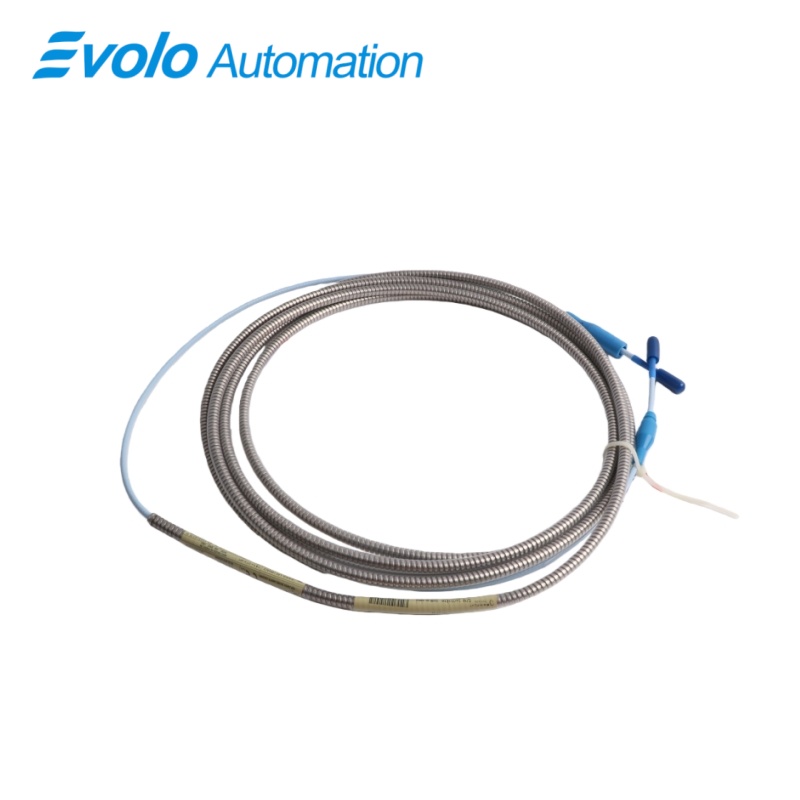

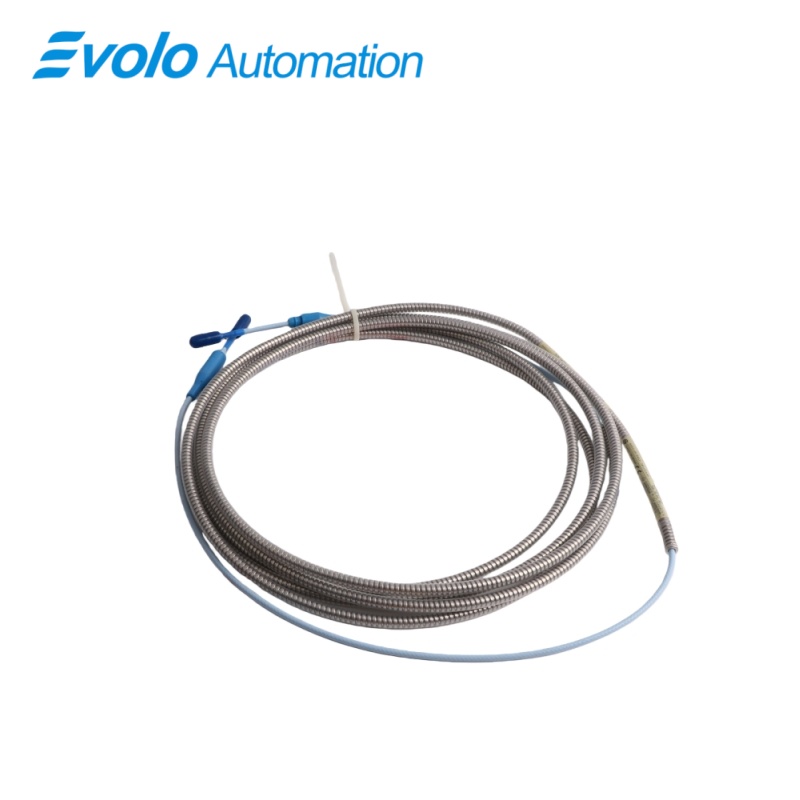

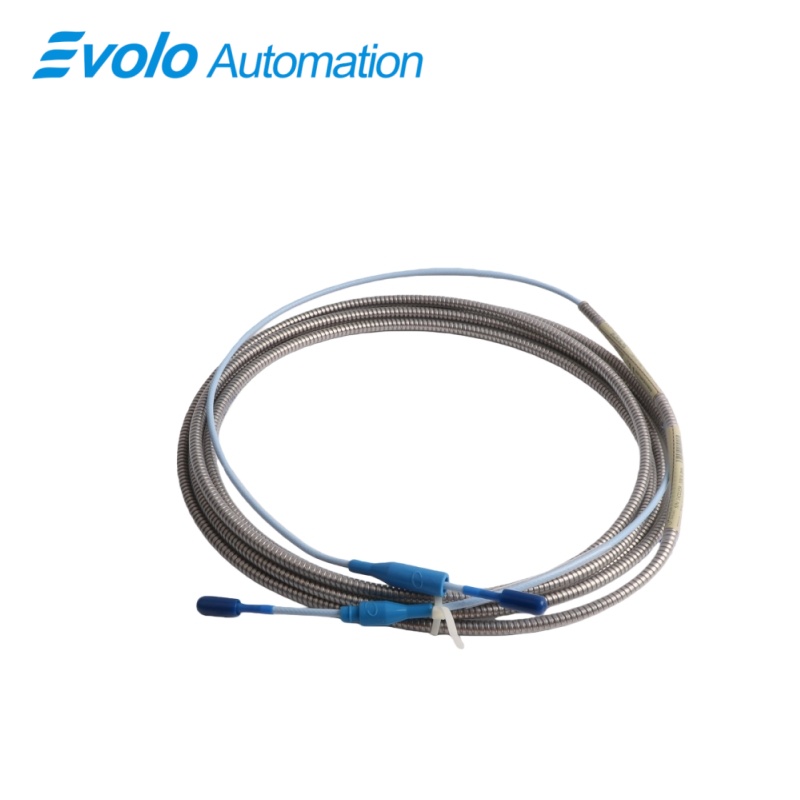

330130-045-03-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-045-03-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-045-03-05 3300 XL Standard Extension Cable is an industrial-grade, high-integrity signal transmission cable meticulously engineered by Bently Nevada to serve as the critical connectivity backbone for its premier 3300 XL proximity transducer monitoring systems. As a certified component within this advanced system, this specific 330130-045-03-05 model is designed to reliably extend the distance between 3300 XL eddy current proximity probes and their corresponding Proximitor signal conditioners without compromising the precision measurement data that is vital for machinery health monitoring. It plays an indispensable role in capturing and transmitting accurate dynamic vibration, static position, and Keyphasor reference signals from rotating equipment, thereby enabling robust predictive maintenance and asset protection strategies in the world's most demanding industrial facilities.

This high-performance extension cable is distinguished by its robust armored construction and comprehensive set of global hazardous area certifications, including CSA, ATEX, and IECEx Approvals. This multi-agency approval makes the 330130-045-03-05 cable a safe and compliant choice for deployment in potentially explosive atmospheres commonly found in oil & gas refineries, petrochemical plants, and offshore platforms. The cable's 4.5-meter (14.8-foot) standard length provides essential flexibility for installations in large-scale machinery or hard-to-access locations, such as deep turbine casings or remote compressor skids, where direct wiring is impractical.

Applications

This extension cable is essential for connecting 3300 XL proximity probes to monitoring systems on large turbomachinery like steam turbines and centrifugal compressors in power generation and oil & gas sectors. Its 4.5-meter armored cable length allows for flexible routing from probes installed deep within heavy machinery casings to remotely mounted Proximitor signal conditioners in control cabinets, ensuring precise vibration and position measurement is maintained over distance without signal loss, even in high-vibration environments.

Featuring CSA, ATEX, and IECEx Approvals, the cable is specifically designed for use in hazardous areas with explosive atmospheres, such as gas compression stations and refinery process units. Its rugged armored construction protects against physical damage from mechanical impact and chemical exposure, while its wide operating temperature range (-55°C to +175°C) guarantees reliable signal transmission through extreme thermal cycles, making it a safe and durable choice for critical safety-related monitoring points.

The cable facilitates the extension of Keyphasor reference signals for accurate speed and phase measurement in complex machinery trains. Its low capacitance (68.9 pF/m typical) and stable 74Ω triaxial impedance are critical for preserving the sharp edge of timing signals over the cable's length, enabling reliable synchronization of monitoring data across multiple measurement points for advanced diagnostics like torsional vibration analysis and rotor dynamics studies.

Specifications

Competitive Advantage

1.Armored Durability with Global Hazardous Area Certification

The 330130-045-03-05 cable features a robust armored jacket that provides superior protection against crushing, abrasion, and chemical corrosion in harsh industrial environments. Coupled with its triple certification (CSA, ATEX, IECEx), this design ensures not only long-term physical resilience but also compliance with the strictest international safety standards for explosive atmospheres, offering a significant advantage over standard, unarmored cables that lack such comprehensive approvals.

2.Engineered for Signal Integrity Over Extended Distances

This cable is specifically engineered to preserve the high-fidelity signal transmission required by sensitive 3300 XL monitoring systems. Its precise 74Ω triaxial construction and minimized capacitance (68.9 pF/m typical) work in concert to reduce signal attenuation, distortion, and susceptibility to electromagnetic interference (EMI), ensuring that critical vibration and positional data arrive at the monitoring system with uncompromised accuracy, even across its full 4.5-meter length.

3.Exceptional Environmental Tolerance and Plug-and-Play Compatibility
