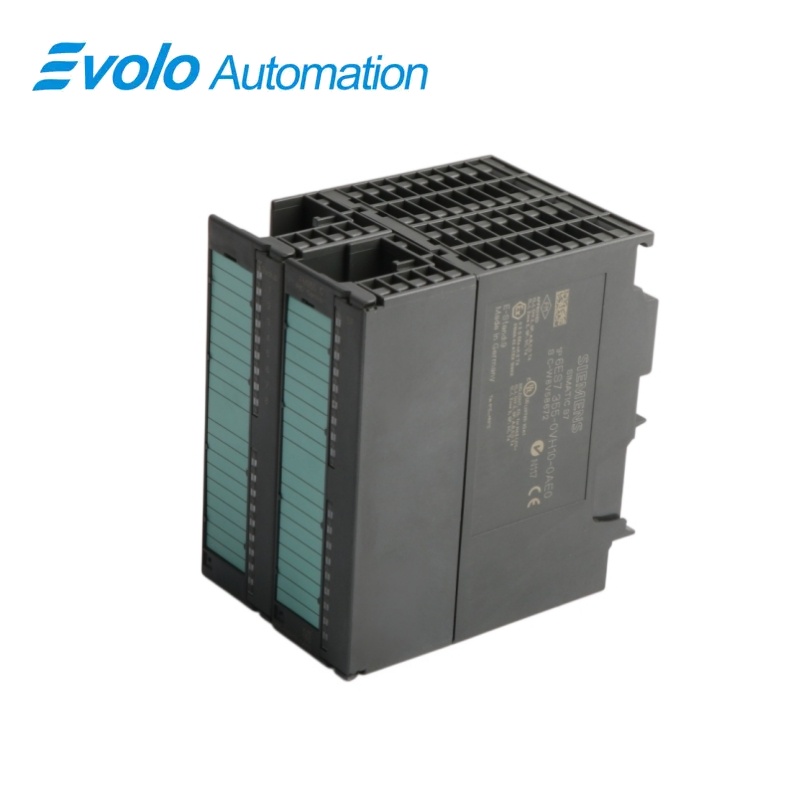

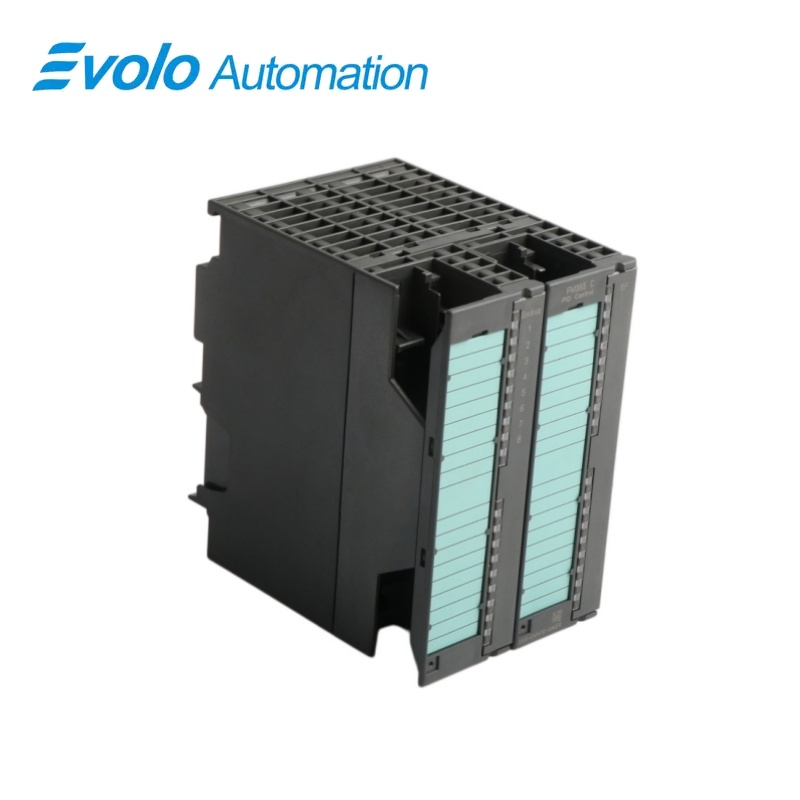

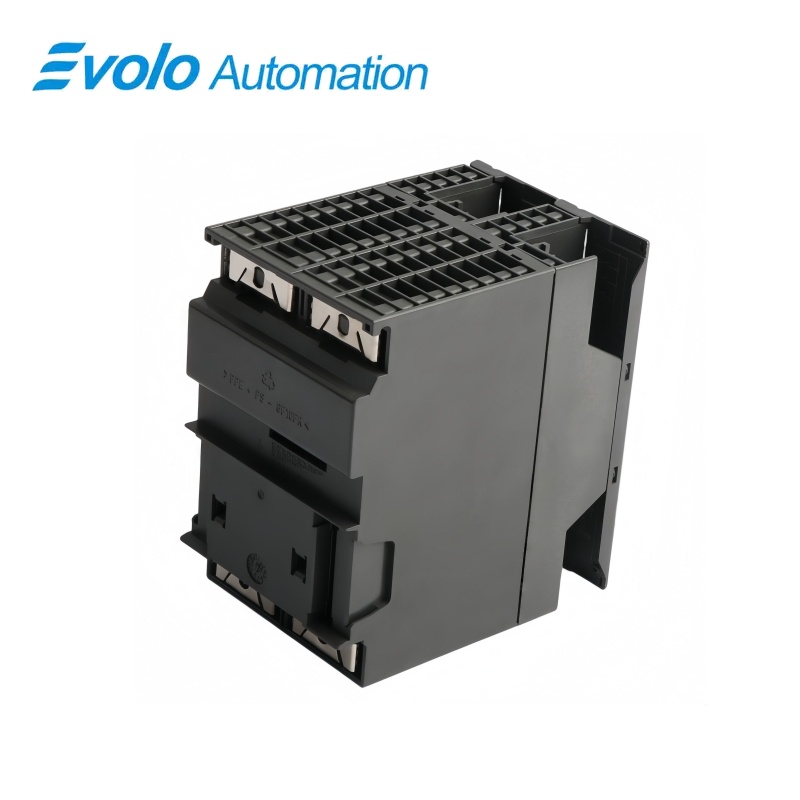

Siemens SIMATIC S7-300 FM 355 S Control Module 6ES7355-1VH10-0AE0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SIMATIC S7-300
6ES7355-1VH10-0AE0 SIMATIC S7-300 FM 355 S Control Module
The SIMATIC S7-300 FM 355 S is a four-channel closed-loop control module for step and pulse applications with four analog inputs, eight digital inputs and eight digital outputs.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7355-1VH10-0AE0 |
| Product Type | Four-channel step and pulse control module |
| Core Function | Implements closed-loop control with four analog inputs, eight digital inputs and eight digital outputs |
| Application or Compatible Series | S7-300 process-control applications using step or pulse actuators and compatible transducers |
Exact Identification
Match 6ES7355-1VH10-0AE0 character by character and confirm the complete SIMATIC S7-300 FM 355 S Control Module designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SIMATIC S7-300 FM 355 S is a four-channel closed-loop control module for step and pulse applications with four analog inputs, eight digital inputs and eight digital outputs.
The module performs four process-control tasks for step or pulse actuator arrangements. Four analog inputs and sixteen digital points provide direct process-signal and actuator interfacing. Parameterizable voltage, current, thermocouple and Pt100 measurement modes support diverse process applications.
Key Functions
Four Independent Control Channels
The module performs four process-control tasks for step or pulse actuator arrangements.
Integrated Mixed I/O
Four analog inputs and sixteen digital points provide direct process-signal and actuator interfacing.
Flexible Sensor Processing
Parameterizable voltage, current, thermocouple and Pt100 measurement modes support diverse process applications.
Official Specifications
| Rated Load Voltage | 24 V DC |
|---|---|
| Permissible Load-Voltage Range | 20.4 to 28.8 V DC |
| Maximum L+ Current without Load | 270 mA; 220 mA typical |
| Maximum 5 V Backplane Current | 75 mA; 50 mA typical |
| Control Channels | 4 |
| Analog Inputs | 4 |
| Digital Inputs | 8 |
| Digital Outputs | 8 |
| Measurement Resolution | 12 or 14 bit, parameterizable |
| Conversion Time at 12 bit | 16.67 ms at 60 Hz / 20 ms at 50 Hz |
| Conversion Time at 14 bit | 100 ms |
| Maximum Shielded Cable Length | 200 m; 50 m for 80 mV and thermocouple ranges |
| Supported Thermocouples | Types B, J, K, R and S |
| Resistance Thermometer | Pt100 standard |
| Linearity Error | ±0.05% of input range |
| Temperature Error | ±0.005%/K |
| Dimensions | 80 x 125 x 120 mm |
Frequently Asked Questions
Which actuator types can be controlled by 6ES7355-1VH10-0AE0?
Configure each channel only for the approved step or pulse actuator arrangement used by the process.
Which sensors can connect to 6ES7355-1VH10-0AE0?
Use supported voltage, current, thermocouple or Pt100 signals with the correct measuring range and compensation settings.
How many loops can 6ES7355-1VH10-0AE0 regulate?
The module provides four independent control channels when the project and wiring are configured accordingly.
What cable limit applies to 6ES7355-1VH10-0AE0?
Keep shielded analog runs within 200 m and use the 50 m limit for 80 mV and thermocouple circuits.
What must be backed up before replacing 6ES7355-1VH10-0AE0?
Save the channel modes, controller parameters, measurement ranges, scaling, alarms and digital I/O assignments.
How should 6ES7355-1VH10-0AE0 be wired after replacement?
Restore every analog and digital terminal exactly and verify the 24 V load supply before energizing.
What commissioning tests are required for 6ES7355-1VH10-0AE0?
Check sensor scaling, actuator direction, loop tuning, limit behavior, diagnostics and safe process response on all four channels.
Compatibility & Ordering Notes
Compatibility Checklist
- Use only in a compatible S7-300 hardware configuration.
- Restore the exact measuring mode and controller parameters for every channel.
- Match the actuator wiring and digital I/O assignments before loop testing.
