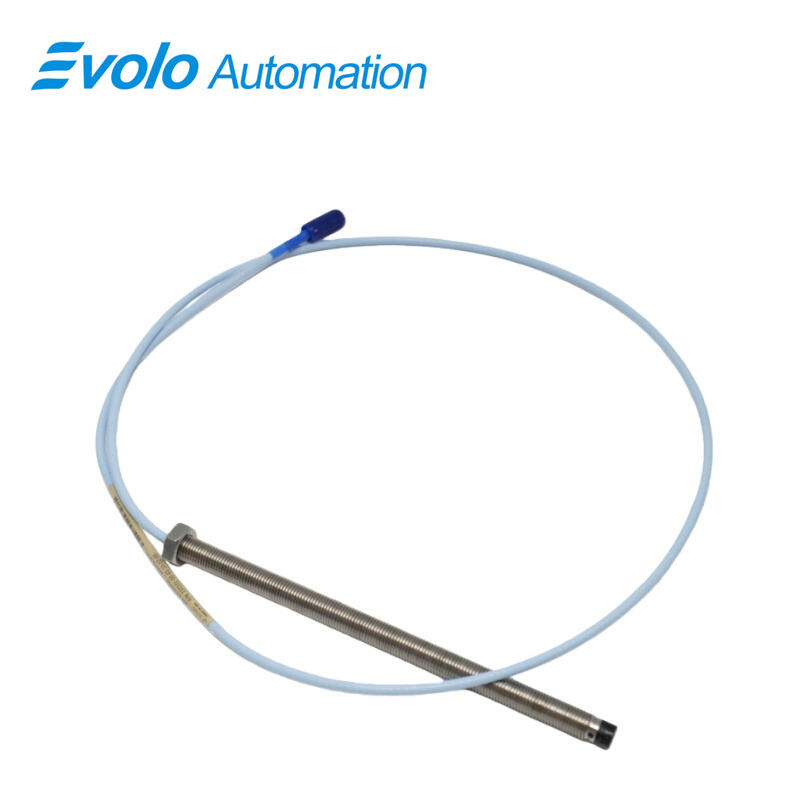

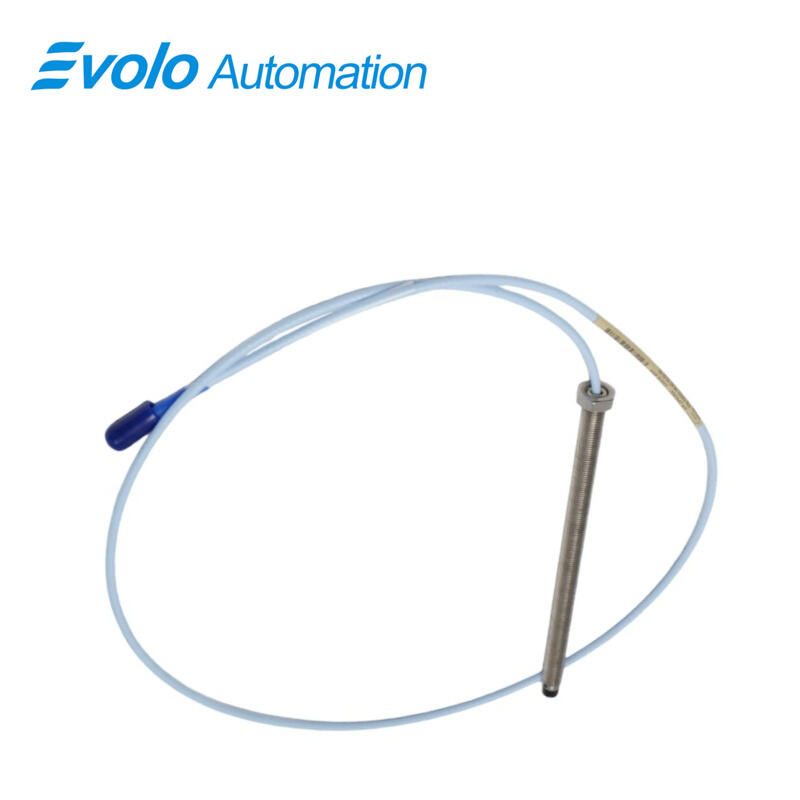

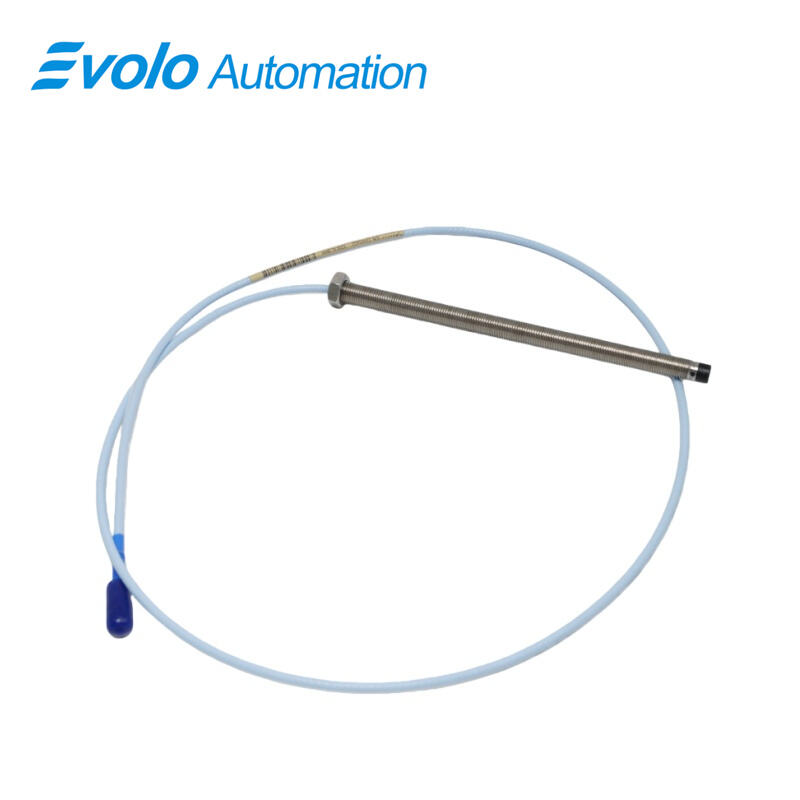

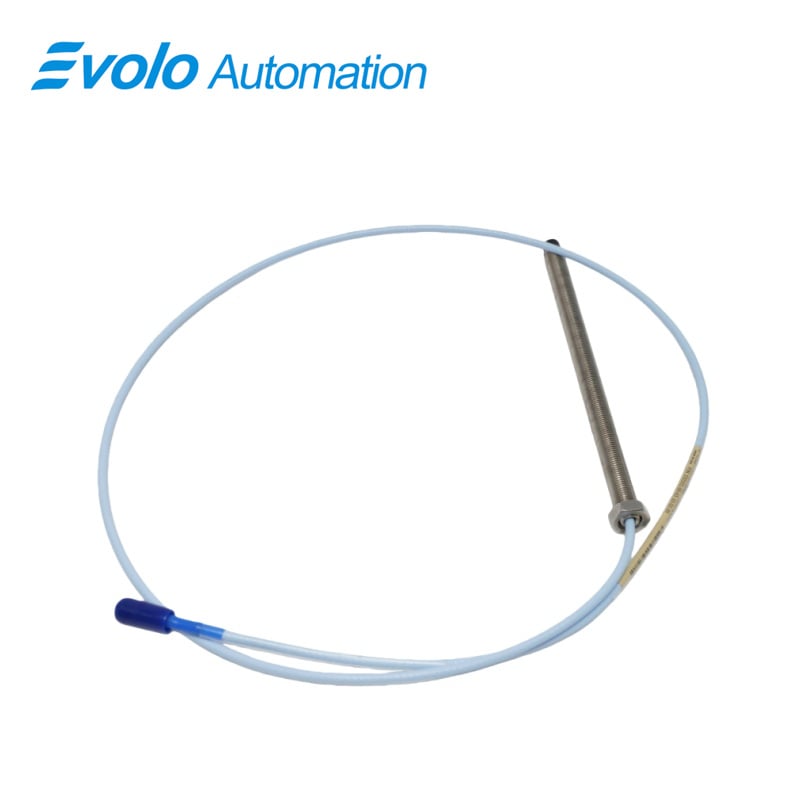

330101-00-66-20-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-66-20-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-66-20-02-00 3300 XL 8 mm Proximity Probe is a high-performance eddy-current transducer designed for industrial automation, predictive maintenance, and machine condition monitoring. It produces a voltage output directly proportional to the distance between the probe tip and a conductive target, enabling precise static (position) and dynamic (vibration) measurements. With a 2 mm linear range and a 3/8-24 UNF probe thread, it is ideal for applications with limited installation space and extreme operating conditions from -52°C to +177°C (-62°F to +350°F).

The probe includes a 2.0-meter (6.6 ft) miniature coaxial ClickLoc cable, ensuring low-noise and reliable signal transmission. The patented TipLoc molding reinforces the mechanical bond between the probe tip and probe body, while the CableLoc design provides 330 N (75 lbf) pull strength for secure probe-cable connection. Optional FluidLoc cable technology prevents oil or other fluids from leaking through the cable, making it suitable for harsh industrial and automated environments. Fully compatible with other 3300 XL series components, this probe allows easy interchangeability of probes, extension cables, and Proximitor sensors, maintaining compliance with API 670 standards for linearity, accuracy, and temperature stability.

Applications

1. Turbomachinery Vibration Monitoring
Monitors radial and axial vibrations in turbines, compressors, and pumps, ensuring early detection of abnormal operating conditions. The 2 mm linear range supports high-resolution vibration tracking for automated maintenance systems.

2. Shaft and Rotor Position Measurement
Provides accurate shaft positioning for rotating machinery in automated production lines, preventing misalignment and reducing mechanical wear.

3. Keyphasor Signal Generation
Delivers precise phase reference outputs for Keyphasor systems, enabling real-time speed monitoring and synchronization in control systems.

4. High-Temperature Machine Applications
Operates reliably in extreme temperatures up to 177°C, supporting automation in high-heat environments such as chemical plants and refineries.

5. Predictive Maintenance and Retrofit
Facilitates probe replacement and gap adjustment without disassembling machinery, reducing downtime and enhancing operational efficiency in automated industrial settings.

Specifications

Competitive Advantage

1. Exceptional Measurement Precision
Offers a linear range of 2 mm and supply sensitivity below 2 mV per volt, ensuring accurate vibration and position data for industrial automation systems.

2. Robust Mechanical Bond
TipLoc and CableLoc technologies provide 330 N (75 lbf) pull strength, enhancing durability in high-vibration environments.

3. Optional Fluid Containment
FluidLoc cable option prevents oil and liquid leakage, protecting sensitive electronics and ensuring stable automated operation.

4. Full Interchangeability and Backward Compatibility
Compatible with 3300 XL probes, cables, and Proximitor sensors, allowing seamless integration into existing automation systems without recalibration.

5. Compliance with Industry Standards
Meets API 670 requirements for linear range, mechanical configuration, and temperature stability, ensuring reliable operation in critical industrial applications.
