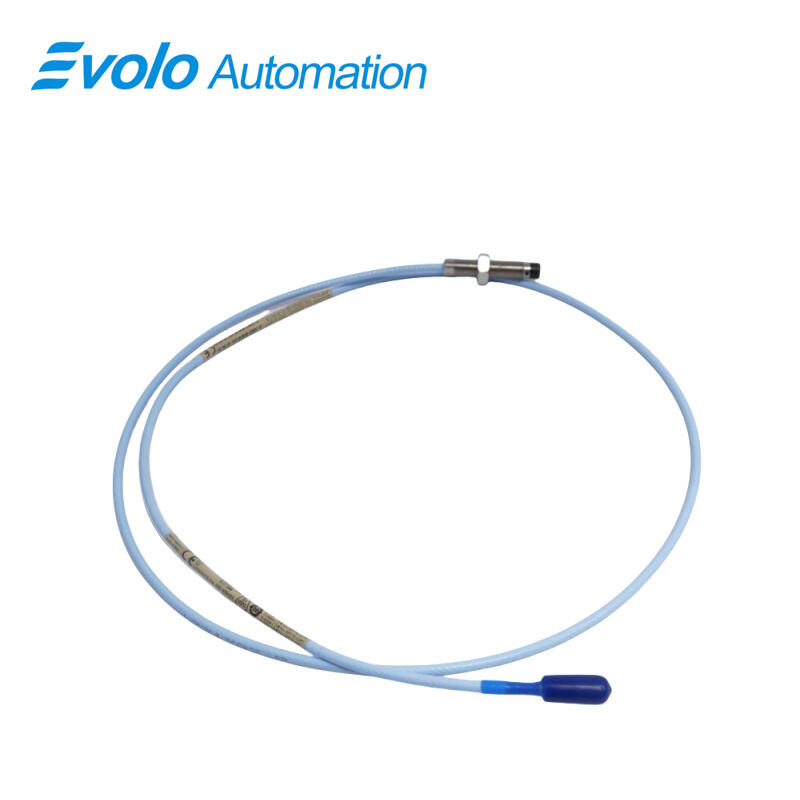

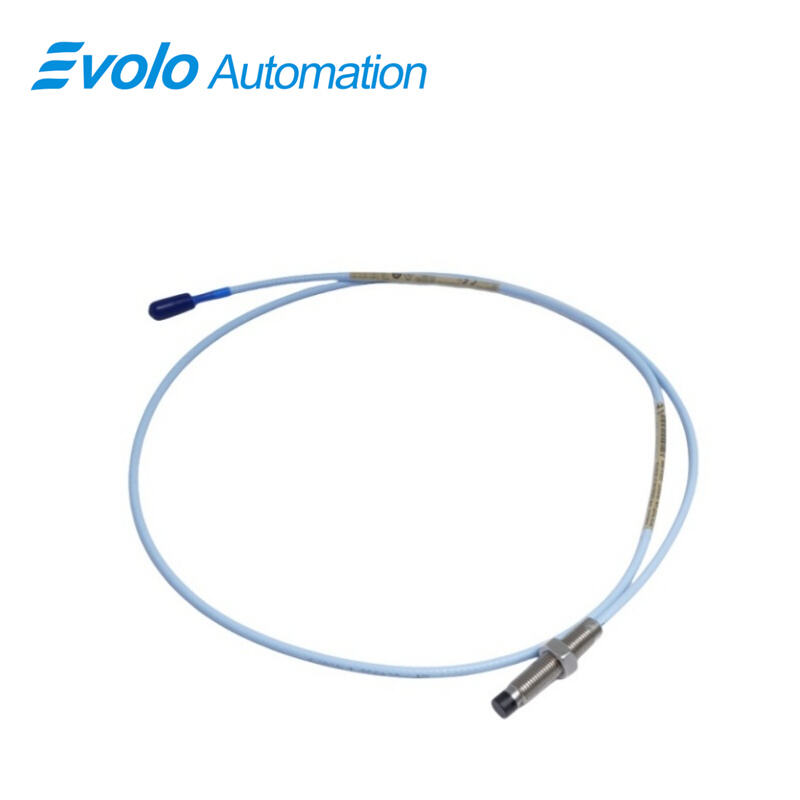

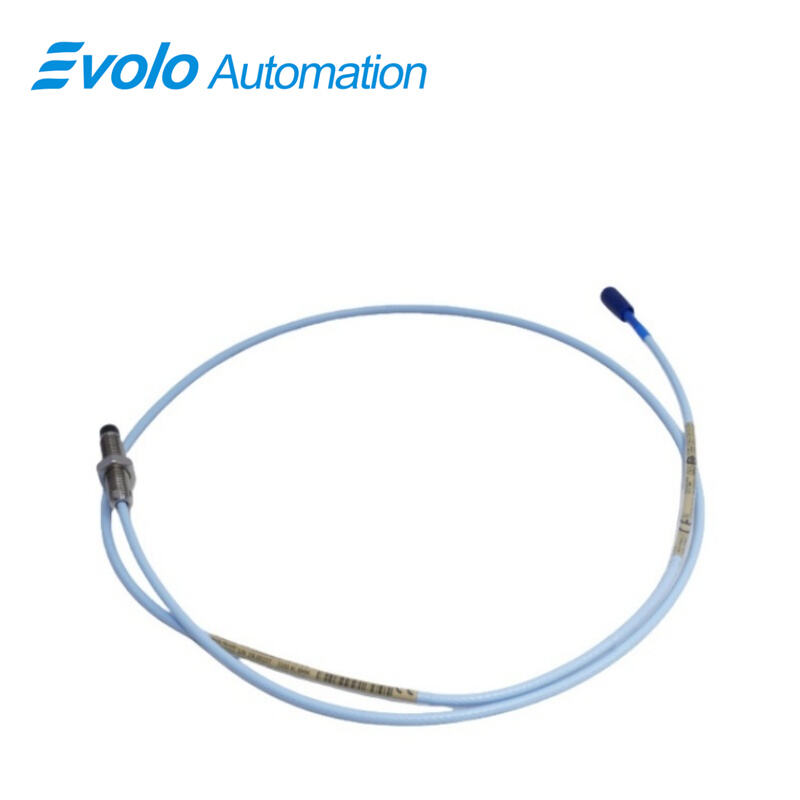

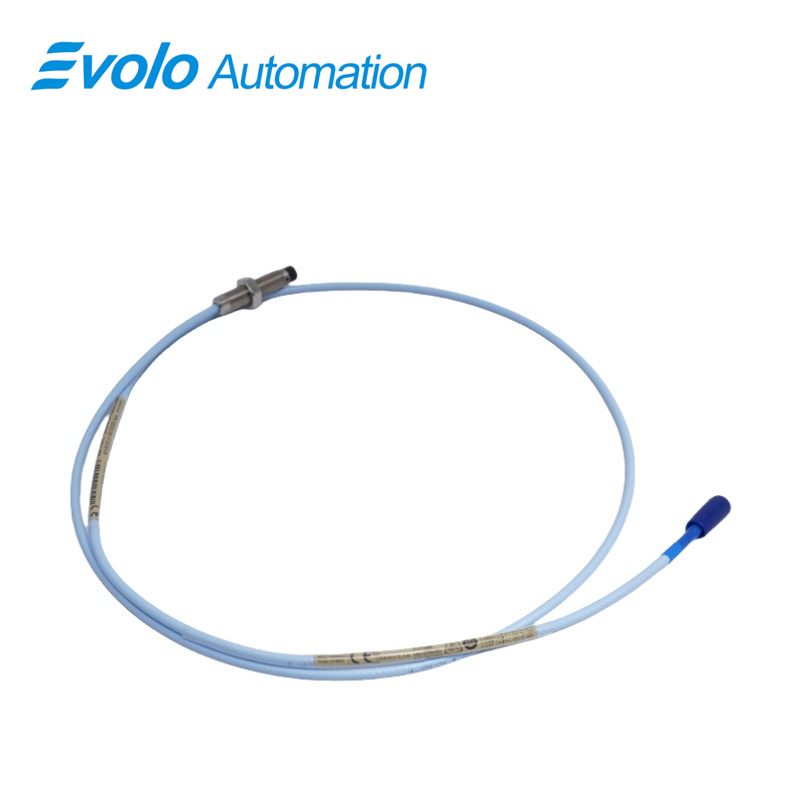

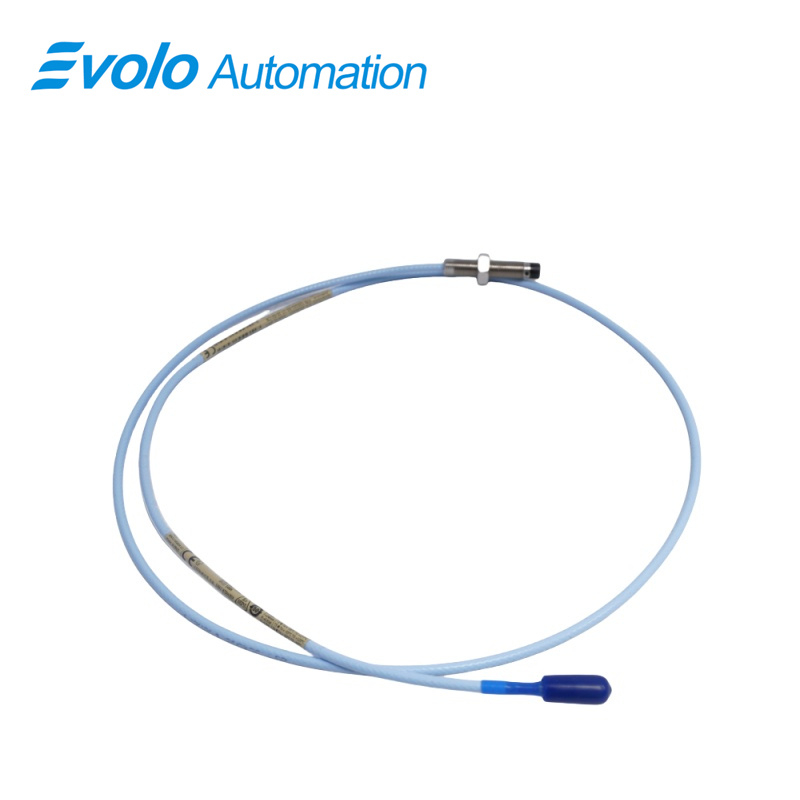

330101-00-17-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-17-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-17-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for advanced industrial automation applications, providing reliable and linear measurements of both static positions and dynamic vibrations. With a total length of 1.0 meter (3.3 feet) and a robust 3/8-24 UNF threaded case, this probe ensures secure installation and consistent measurement performance. It operates within a wide temperature range from -52°C to +177°C (-62°F to +350°F), making it suitable for harsh industrial environments.

The probe features a Miniature coaxial ClickLoc connector with standard cable, supporting field wiring of 0.2 to 1.5 mm² (16 to 24 AWG), and delivers a highly stable output with less than 2 mV variation per volt of input change. Its linear range of 2 mm (80 mils) and output resistance of 50 Ω provide precise and repeatable measurements for vibration, position monitoring, Keyphasor signals, and rotational speed tracking in critical machinery.

The 3300 XL 8 mm system meets API 670 standards, offering backward compatibility with both 5 mm and 8 mm non-XL 3300 series components. This interchangeability eliminates the need for bench calibration and simplifies component replacement. Innovative design enhancements include the TipLoc molded probe tip for a more robust bond and the CableLoc connector, providing 330 N (75 lbf) pull strength for secure attachment. Optional FluidLoc cabling prevents oil or liquid leakage through the cable interior, further improving reliability in automated fluid-film bearing systems and other industrial machinery applications.

This probe is ideal for high-performance industrial automation, predictive maintenance, and condition monitoring, combining precise measurement, durability, and easy system integration to enhance operational efficiency.

Applications

1. Vibration Monitoring on Fluid-Film Bearings
The 3300 XL 8 mm probe precisely measures shaft vibration in turbines, compressors, and pumps. Its linear range of 2 mm allows detection of subtle displacement changes, supporting predictive maintenance and reducing unplanned downtime by up to 25%.

2. Position Measurement in Automated Machinery
With a robust 3/8-24 UNF threaded mounting, the probe accurately monitors static positions of machine components, enabling high-speed automated adjustments in manufacturing systems with tolerances under 0.05 mm.

3. Keyphasor Signal Generation for Rotating Equipment
The probe provides reliable Keyphasor outputs, essential for synchronizing vibration data acquisition and speed measurements in rotating equipment, improving fault detection resolution by up to 30%.

4. Harsh Environment Industrial Automation
Rated for operation from -52°C to +177°C (-62°F to +350°F), this probe performs in extreme industrial environments such as petrochemical plants or power stations, maintaining stable output under temperature fluctuations.

5. Speed and Rotational Monitoring in Critical Machinery
When installed on pumps, compressors, or turbines, the probe’s high output stability (<2 mV/V) ensures accurate rotational speed monitoring, enabling automated control systems to optimize machinery efficiency and energy usage.

Specifications

Competitive Advantage

1. API 670 Compliance for Industrial Standards
The 3300 XL 8 mm probe fully complies with API 670 standards for mechanical configuration, linearity, and accuracy, providing assurance for critical applications in oil, gas, and power generation industries.

2. Advanced TipLoc and CableLoc Design
Patented TipLoc molding strengthens the probe tip bond, while CableLoc ensures 330 N pull strength, reducing cable failures and enhancing reliability under mechanical stress.

3. Backward Compatibility and Interchangeability
Compatible with non-XL 3300 series 5 mm and 8 mm components, the probe allows seamless integration into existing automation systems without additional calibration, reducing maintenance time and cost.

4. Optional FluidLoc Cable Protection
The optional FluidLoc design prevents oil and liquid leaks through the cable, maintaining clean and safe environments in lubrication-intensive machinery, extending service life of both probe and equipment.

5. Wide Operating Range and High Stability
Operating temperatures from -52°C to +177°C and low supply sensitivity (<2 mV/V) ensure accurate, stable readings in harsh environments, outperforming many competing proximity probes in industrial automation applications.
