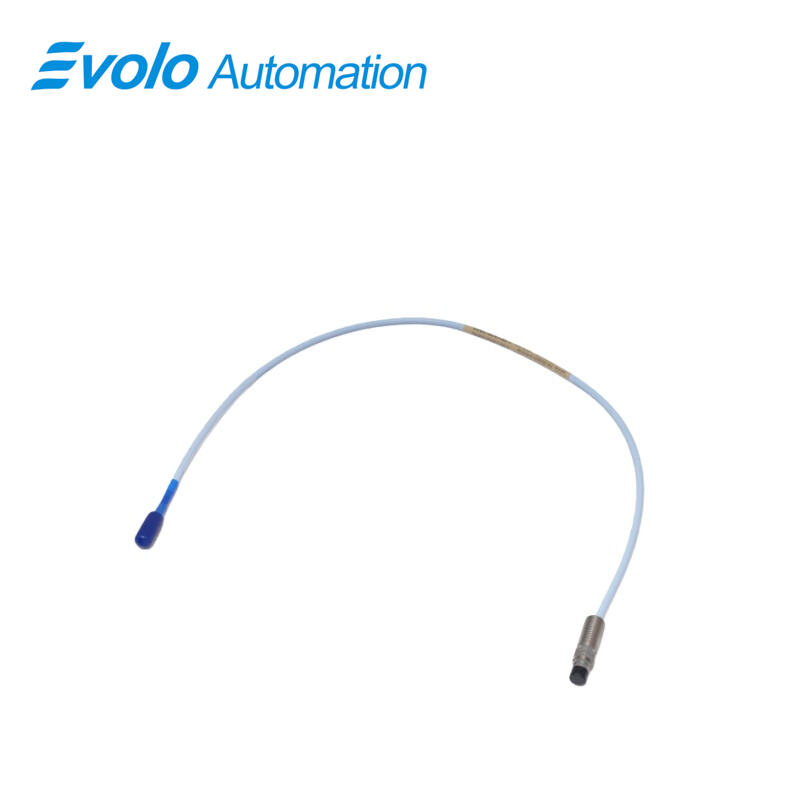

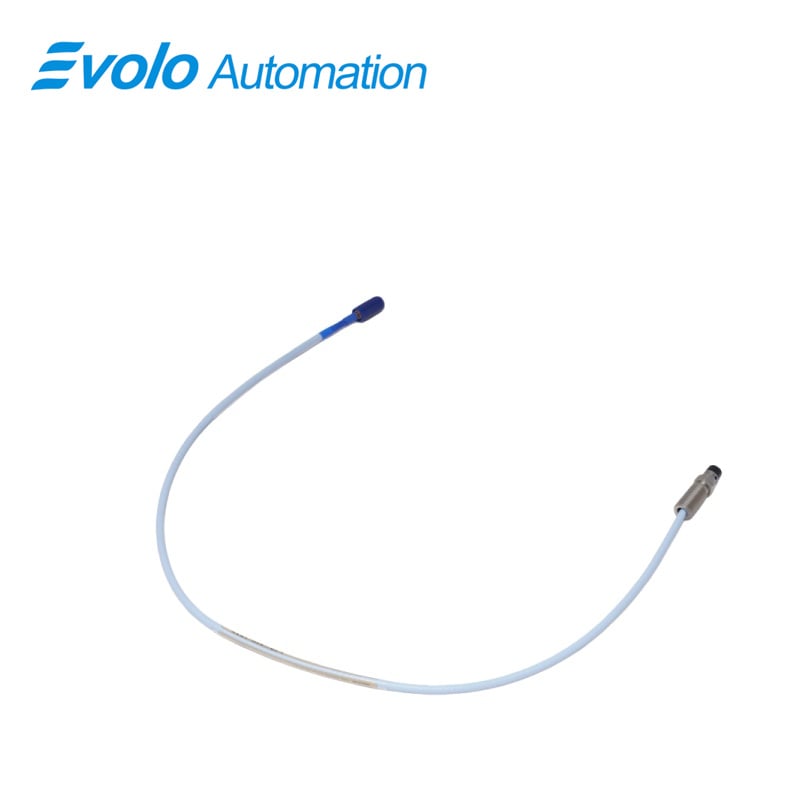

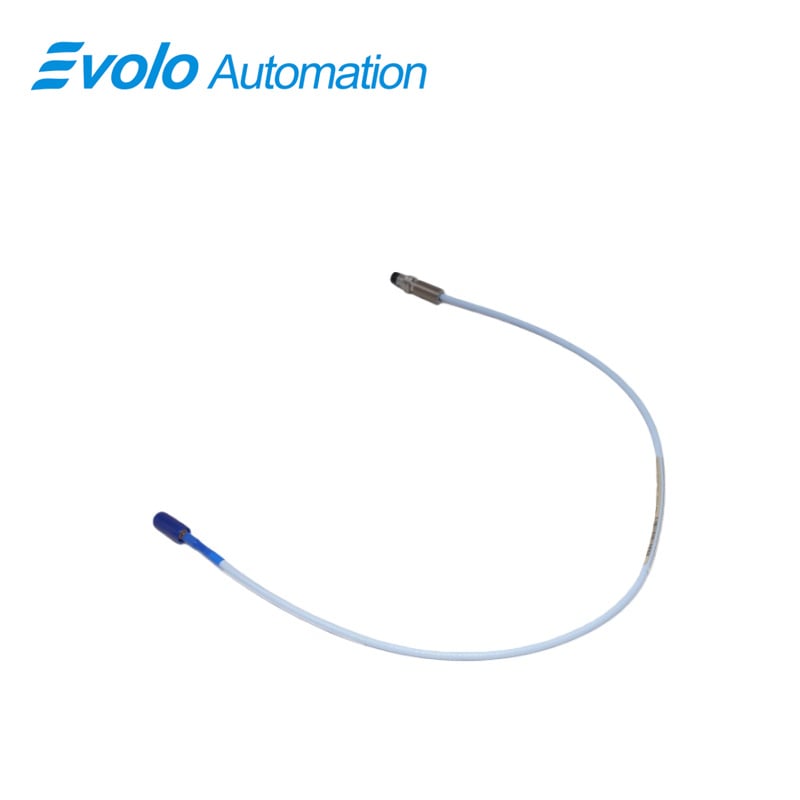

330106-05-30-05-02-CN 3300 XL 8 mm Reverse Mount Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-05-30-05-02-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330106-05-30-05-00-00 is a specialized and highly engineered 3300 XL 8 mm Reverse Mount Probe, designed to overcome the stringent space limitations encountered in modern, compact rotating machinery. As an integral part of Bently Nevada's premier 3300 XL monitoring platform, this Reverse Mount Probe employs precise eddy-current technology to deliver a reliable, linear voltage signal that is directly proportional to the distance between its probe tip and a conductive target. This fundamental capability enables accurate measurement of both dynamic vibration and static axial position, providing critical data for protecting vital assets such as compressors, turbines, and high-speed pumps where conventional sensor installation is not feasible.

The 330106-05-30-05-02-CN 3300 XL 8 mm Reverse Mount Probe is a high-performance, precision-engineered eddy current proximity sensor designed for space-constrained industrial machinery. This reverse mount configuration enables installation from the opposite side of a mounting surface, making it ideal for compact rotating equipment, tight bearing housings, or internal machine components where standard forward-mounted probes cannot be deployed. The probe generates a linear voltage output proportional to the distance between its Polyphenylene Sulfide (PPS) tip and the conductive target, enabling accurate measurements of both static axial positions and dynamic vibration.

Built to operate reliably in extreme conditions, this probe withstands temperatures ranging from -54°C to +177°C (-65°F to +350°F), delivering stable and repeatable performance in high-temperature, high-vibration, and chemically challenging environments. Its robust AISI 303/304 stainless steel (SST) case provides corrosion resistance and mechanical strength, while the PPS probe tip ensures dimensional stability and durability over prolonged operation.

The 330106-05-30-05-02-CN comes factory-terminated with a 0.5-meter integrated standard cable and a secure Miniature coaxial ClickLoc connector. This combination provides a vibration-resistant, reliable connection that simplifies installation in tight spaces and reduces potential signal loss. With a total weight of just 0.08 kg and compact dimensions of 20×22×3 mm, the probe is easy to handle and route even in highly confined machinery interiors.

Applications

1.Space-Constrained Machinery Monitoring

The 330106-05-30-05-02-CN probe is optimized for equipment with limited axial or radial space. It allows accurate vibration and axial position measurement in compact centrifugal compressors, high-speed pumps, and gearbox assemblies where traditional forward-mounted probes cannot fit.

2.Internal and Bulkhead Installations

This reverse mount configuration enables mounting through bulkheads or within sealed housings, protecting sensitive electronics while allowing the probe tip to extend to the measurement point. Typical applications include bearing housings, pressure vessels, and other confined internal components.

3.Retrofit and System Upgrade

With a 0.5-meter factory-terminated cable and full 3300 XL compatibility, the probe is ideal for replacing older reverse-mount transducers in legacy systems. It improves measurement reliability and signal integrity without modifying existing equipment, extending the operational life and monitoring capabilities of critical assets.

Specifications

Competitive Advantage

1.Innovative Reverse-Mount Design

The probe’s unique reverse-mount configuration solves installation challenges in tight machinery spaces, enabling deployment in locations inaccessible to standard probes, such as internal compressor cavities and compact gearbox assemblies.

2.Factory-Integrated Short Cable

Equipped with a 0.5-meter integrated Miniature coaxial ClickLoc cable, the probe provides a secure, vibration-resistant connection for close-proximity installations, reducing installation complexity and eliminating the need for additional splices.

3.Guaranteed 3300 XL Compatibility

As a genuine 3300 XL series component, it ensures plug-and-play integration with existing monitoring systems, maintaining high signal accuracy and system reliability for industrial condition monitoring.

4.Durable Construction for Harsh Environments

With a stainless steel case and PPS probe tip, the probe withstands high temperatures, chemical exposure, and vibration in confined machinery spaces, providing long-term operational reliability and minimizing maintenance requirements.
