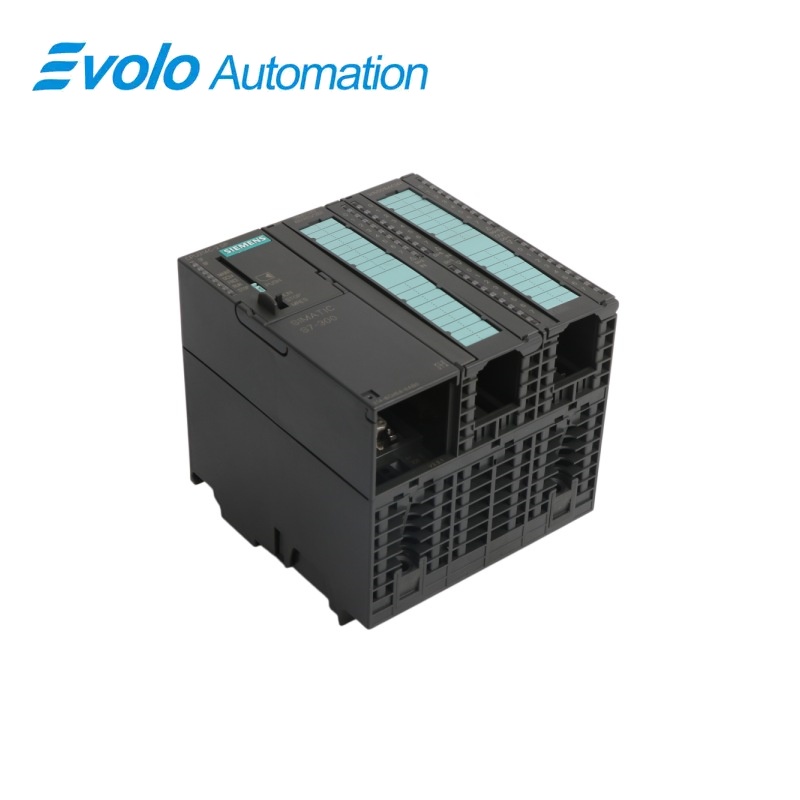

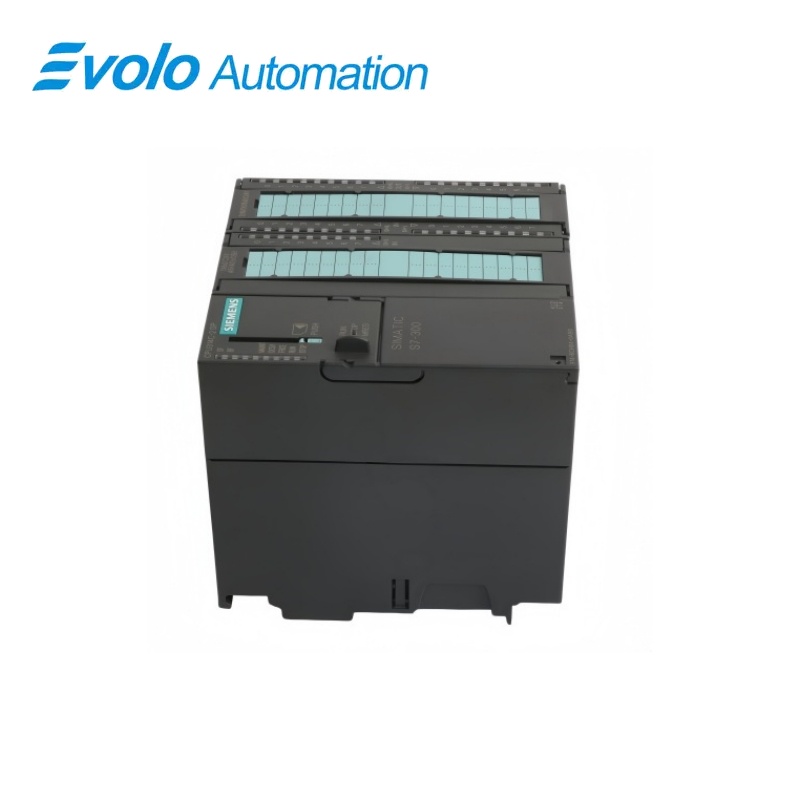

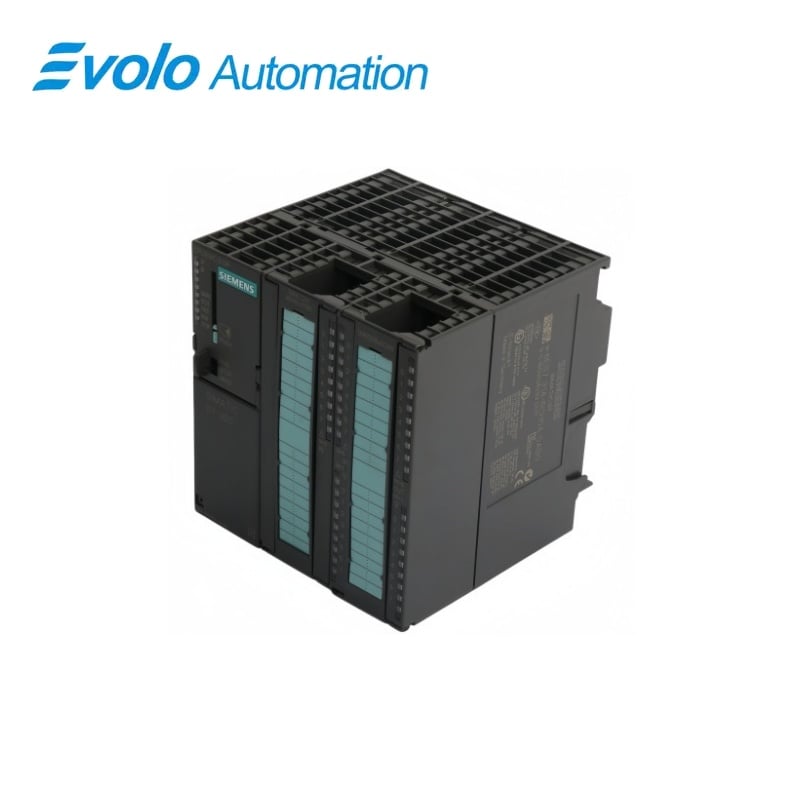

Siemens SIMATIC S7-300 6ES7314-6CF01-0AB0 CPU 314C-2 DP
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7314-6CF01-0AB0 CPU 314C-2 DP
Siemens S7-300 compact CPU combining integrated I/O, technology functions and a configurable PROFIBUS DP interface.
At a Glance
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7314-6CF01-0AB0 |
| Product Type | SIMATIC S7-300 CPU 314C-2 DP |
| Core Function | Controls local signals and exchanges data over PROFIBUS DP |
| Application / Compatible Series | SIMATIC S7-300 compact-control installations |
Match the complete article number and installed hardware version.
Confirm the installed interfaces, connectors and wiring.
Back up and verify the matching engineering project before replacement.
Product Overview
6ES7314-6CF01-0AB0 is officially identified by Siemens as SIMATIC S7-300, CPU 314C-2DP COMPACT CPU WITH MPI, 24 DI/16 DO, 4AI, 2AO, 1 PT100, 4 FAST COUNTERS (60 KHZ), INTEGRATED DP INTERFACE, INTEGRATED 24V DC POWER SUPPLY, 48 KBYTE WORKING MEMORY, FRONT CONNECTOR ( X 40PIN) AND MICRO MEMORY CARD REQUIRED.
The complete article number 6ES7314-6CF01-0AB0 should be matched against the installed SIMATIC S7-300 hardware, nameplate and project documentation. Similar CPU or PS307 revisions can differ in memory, interfaces, I/O or lifecycle status.
Key Functions
Model-Specific Configuration
6ES7314-6CF01-0AB0: Integrated I/O: 24 DI / 16 DO / 4 AI / 2 AO.
System Interface
6ES7314-6CF01-0AB0: 4 high-speed COUNTERS (60 KHZ).
Replacement Control
6ES7314-6CF01-0AB0: Interfaces: MPI, PROFIBUS DP.
Official Specifications
| Working Memory | 48 KB |
|---|---|
| Firmware Version | V2.0.11 |
| Instruction Processing | 0.1 ms per 1,000 instructions |
| Integrated Digital Inputs | 24 |
| Integrated Digital Outputs | 16 |
| Integrated Analog Inputs | 4 channels plus 1 Pt100 input |
| Integrated Analog Outputs | 2 |
| High-Speed Counters | 4 channels, up to 60 kHz |
| Pulse Outputs | 4 channels, up to 2.5 kHz |
| Controlled Positioning | 1 channel |
| Integrated Controller | PID control function |
| Communication Interfaces | MPI and PROFIBUS DP |
| PROFIBUS DP Role | Master or slave |
| Direct Data Exchange | Send and receive supported |
| Multi-Tier Expansion | Up to 31 modules |
| Mounting Dimensions | 120 x 125 x 130 mm |
| Rated Supply Voltage | 24 V DC |
| Power Loss | 14 W typical |
Frequently Asked Questions
What project software is required for 6ES7314-6CF01-0AB0?
Use STEP 7 V5.2 SP1 or later support that includes this CPU revision and its firmware entry.
How should a memory card be handled when servicing 6ES7314-6CF01-0AB0?
Isolate power before removing media, preserve the original project and confirm that the replacement card contains the correct load memory.
What memory difference matters when upgrading from 6ES7314-6CF01-0AB0 to the next revision?
The installed version provides 48 KB of working memory, while the following revision provides 64 KB, so the compiled project should be checked before migration.
How can engineers use the analog channels of 6ES7314-6CF01-0AB0?
Configure the four standard analog inputs, the additional Pt100 input and the two analog outputs according to the selected measuring ranges.
Which motion-related functions are integrated in 6ES7314-6CF01-0AB0?
The technology functions include high-speed counting, pulse generation and one controlled-positioning channel.
What communication checks are needed after replacing 6ES7314-6CF01-0AB0?
Verify the MPI parameters, DP station role, bus address and direct-data-exchange configuration before returning the network to operation.
How should technicians diagnose an I/O fault on 6ES7314-6CF01-0AB0?
Compare the configured onboard addresses with the wiring, read the diagnostic buffer and test the affected digital or analog channel individually.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7314-6CF01-0AB0
- Match the complete article number 6ES7314-6CF01-0AB0 without shortening the suffix.
- Confirm the installed SIMATIC S7-300 CPU or PS307 family and hardware revision.
- Verify Integrated I/O: 24 DI / 16 DO / 4 AI / 2 AO.
- Confirm included front connectors, memory card and accessories in the written quotation.
