330102-00-20-10-02-05

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-20-15-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

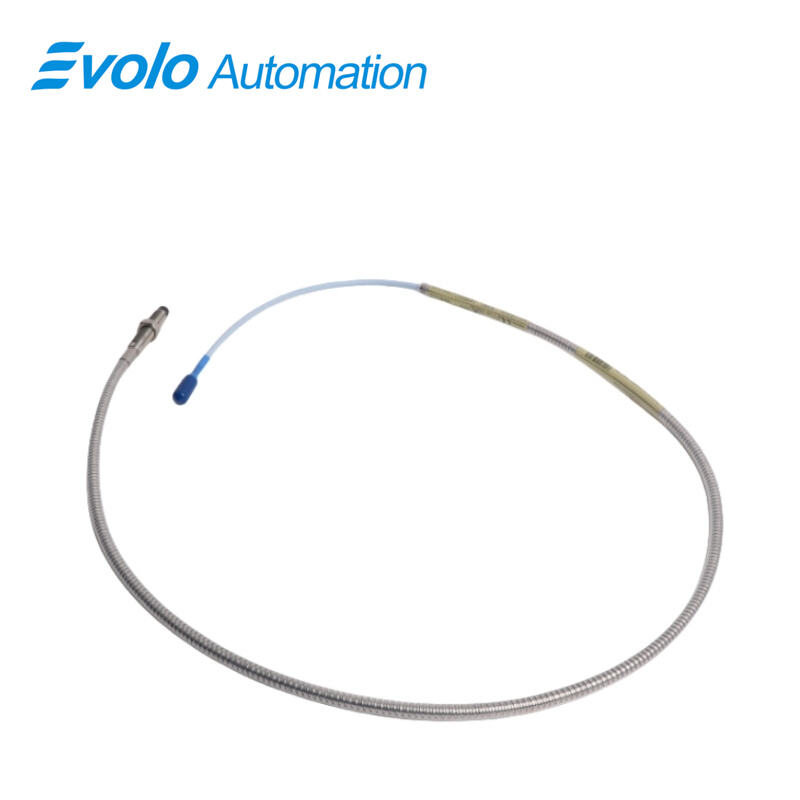

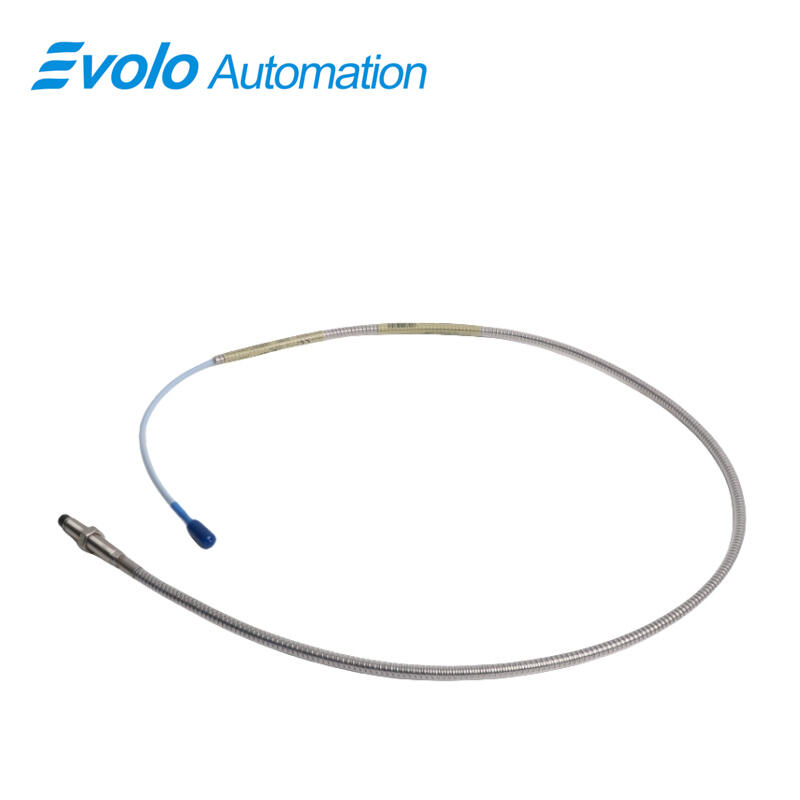

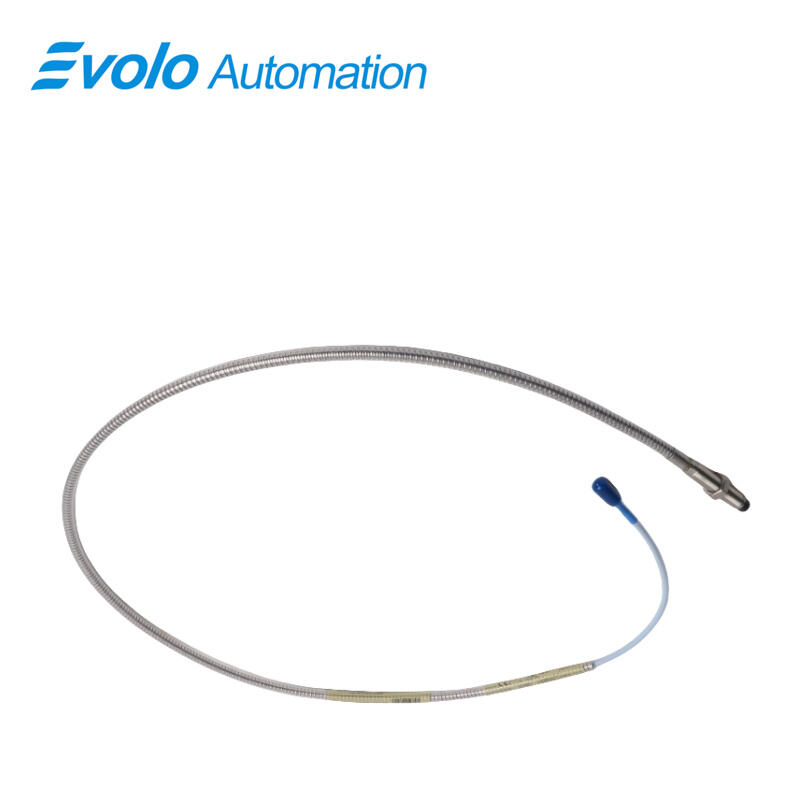

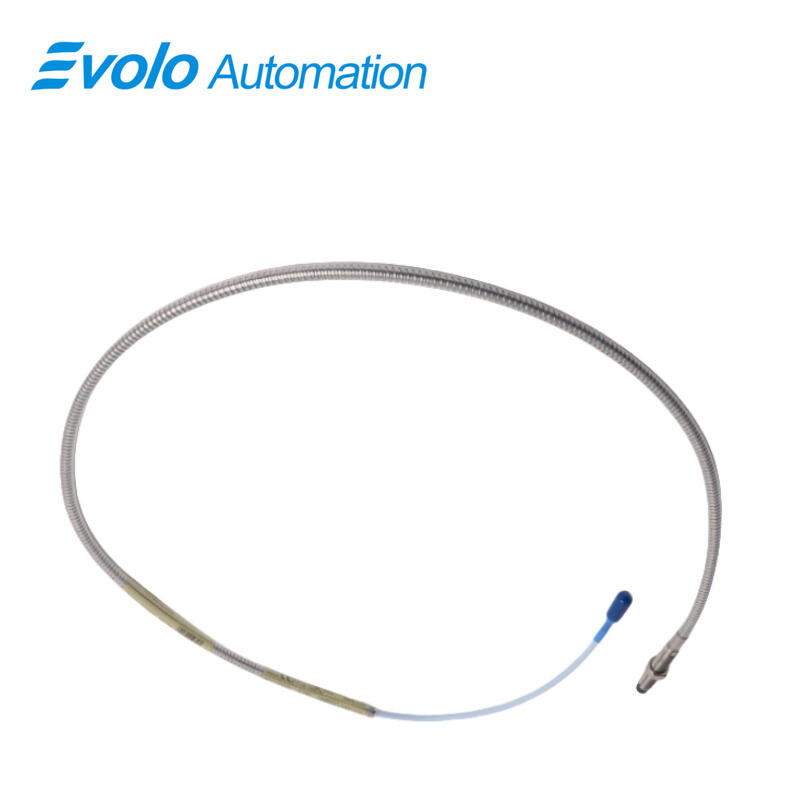

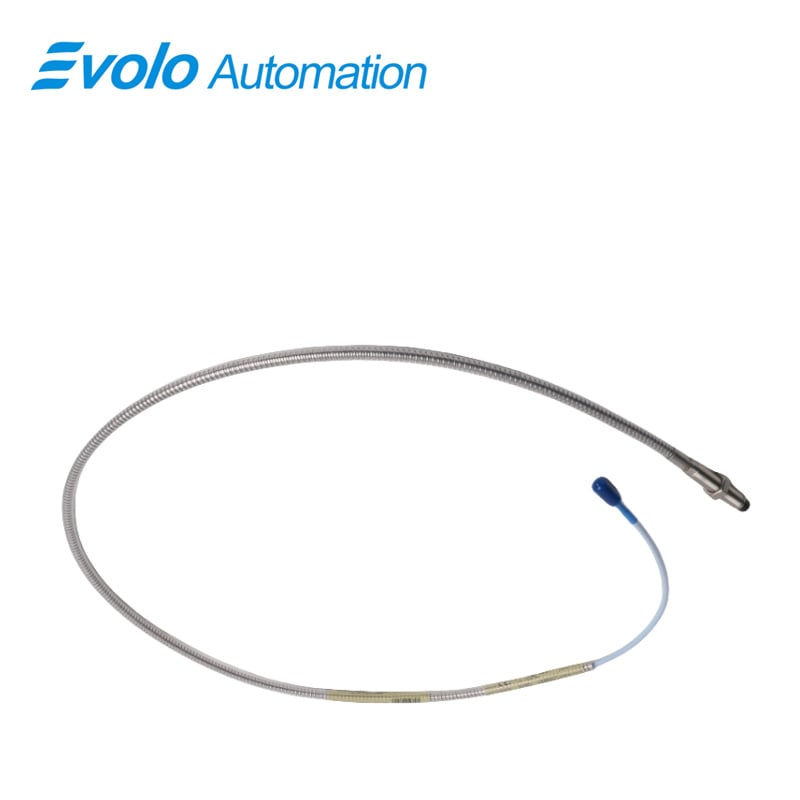

The 330102-00-20-15-02-00 3300 XL 8 mm Proximity Probe is a precision eddy current sensor designed for industrial automation and machinery condition monitoring. Featuring a 3/8-24 UNF threaded stainless steel case, a 1.5-meter standard cable, and a miniature coaxial ClickLoc connector, this probe measures both static (position) and dynamic (vibration) values with a linear range of 2 mm (80 mils). Operating over a wide temperature range from -52°C to +177°C (-62°F to +350°F), the probe maintains output voltage stability with less than 2 mV variation per volt of input voltage. Patented TipLoc and CableLoc designs enhance mechanical robustness, providing 330 N (75 lbf) pull strength to secure the cable connection. Optional FluidLoc cables prevent oil or fluid ingress, making it ideal for lubricated machinery environments. Fully backward compatible with 3300 XL systems and other 5 mm and 8 mm 3300 series components, this probe simplifies system upgrades, reduces calibration needs, and ensures reliable performance in critical machinery monitoring applications.

Applications

Vibration Monitoring in Pumps and Compressors
Delivers high-resolution radial and axial vibration measurements for predictive maintenance and early fault detection in centrifugal compressors, pumps, and motors.

Shaft Position and Alignment Measurement
Accurately tracks shaft displacement and rotor deflection in rotating machinery, minimizing misalignment-related wear and optimizing operational efficiency.

Keyphasor Phase Reference Signals
Generates precise phase reference signals for rotor balancing, speed monitoring, and diagnostic analytics in compliance with API 670 standards.

Speed and Zero-Speed Detection
Provides reliable speed detection and zero-speed verification to ensure safe startup and shutdown procedures in automated machinery systems.

Hazardous Environment Monitoring
Compatible with CSA, ATEX, and IECEx standards, the probe can be deployed in chemical, petrochemical, and refinery environments for safe and accurate monitoring.

Specifications

Competitive Advantage

High Accuracy and Reliability
Maintains linear output over a 2 mm range with minimal sensitivity drift (less than 2 mV per volt input variation), ensuring precise vibration and displacement measurements.

Mechanical Robustness
TipLoc and CableLoc technologies provide 330 N (75 lbf) pull strength, preventing accidental cable disconnection under high vibration or mechanical stress.

Wide Temperature Range
Operates reliably in extreme conditions from -52°C to +177°C, suitable for high-temperature compressors, turbines, and industrial machinery.

System Compatibility
Backward compatible with existing 3300 XL probes, extension cables, and Proximitor sensors, simplifying system integration and reducing downtime during upgrades.

Fluid Protection
Optional FluidLoc cable ensures no fluid ingress into the probe or machine internals, maintaining performance and prolonging equipment life in oil-rich environments.
