330101-00-53-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-53-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

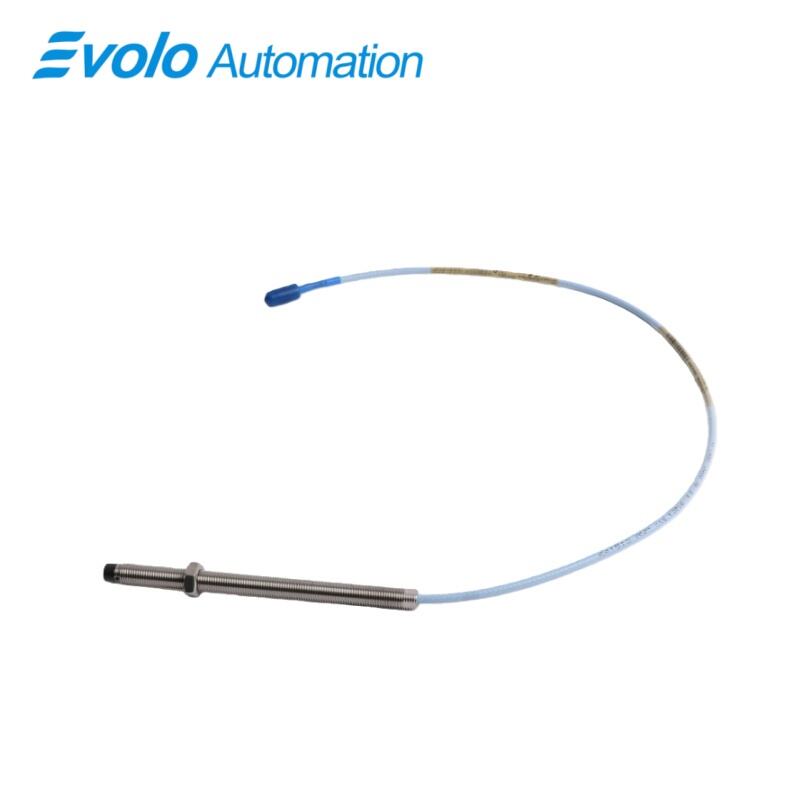

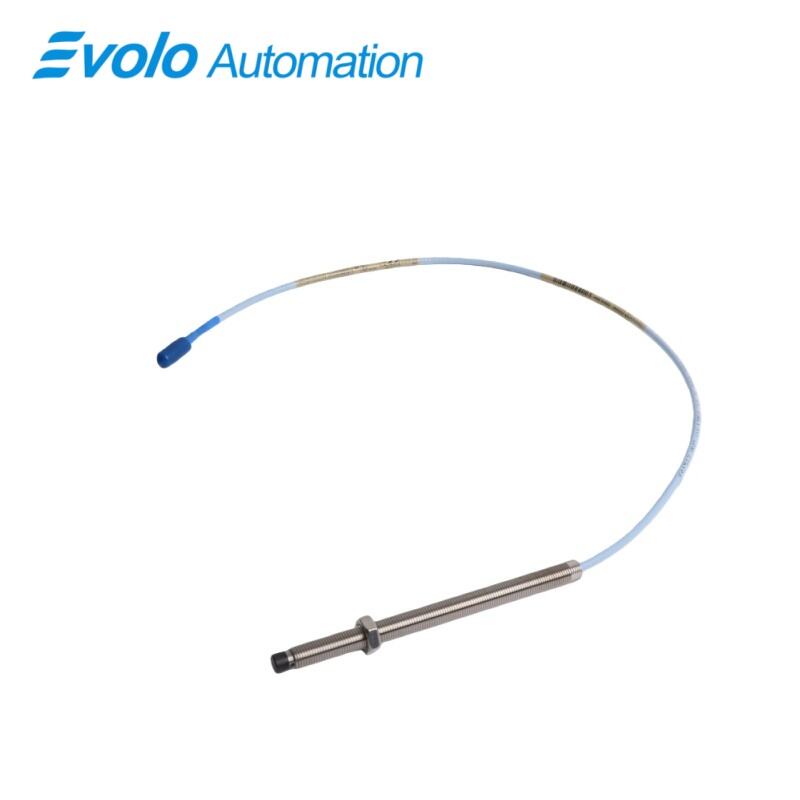

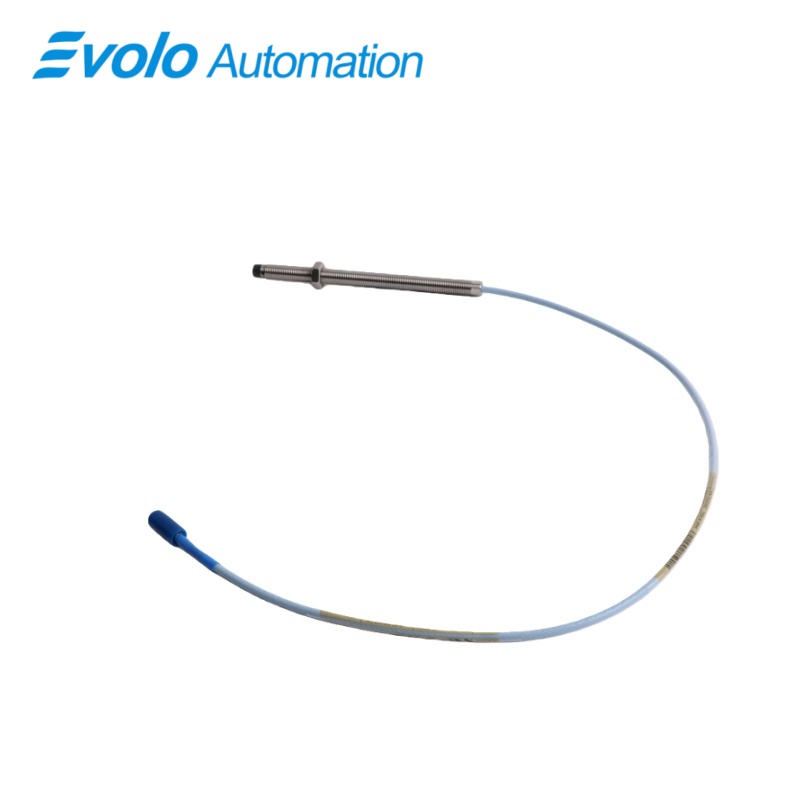

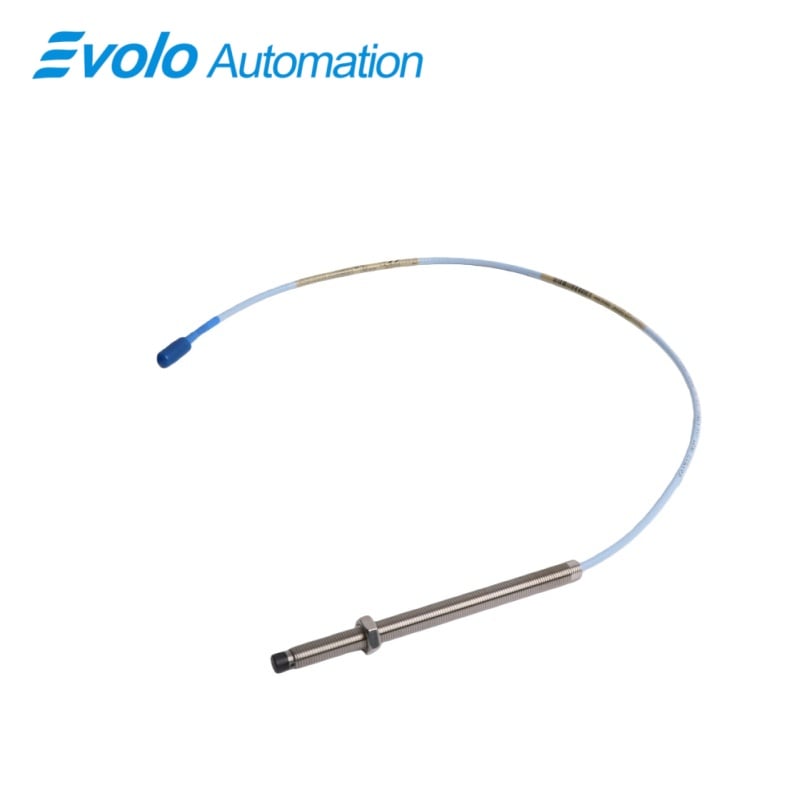

The 330101-00-53-10-02-05 3300 XL 8 mm Proximity Probe is a precision-engineered non-contact displacement sensor designed for continuous machinery condition monitoring in demanding industrial environments. As part of the advanced 3300 XL transducer family, this 8 mm proximity probe delivers highly stable and repeatable measurements of shaft vibration, radial displacement, and axial position across a wide range of rotating equipment applications. The probe is optimized for use in critical assets such as steam turbines, gas turbines, compressors, pumps, motors, and gearboxes where accurate real-time data is essential for equipment protection and predictive maintenance strategies.

This model features a 1.0 meter total length with a miniature coaxial ClickLoc connector and standard cable configuration, ensuring secure mechanical connection and consistent electrical performance even under high vibration conditions. The ClickLoc interface minimizes signal loss and reduces installation errors, making the 330101-00-53-10-02-05 proximity probe suitable for both new installations and retrofit projects. The probe’s compact 8 mm sensing tip allows it to be installed in confined spaces while maintaining excellent linearity and sensitivity within its specified measurement range.

Designed for harsh operating conditions, the 3300 XL 8 mm Proximity Probe demonstrates outstanding resistance to temperature extremes, electrical noise, and environmental contamination. With an operating and storage temperature range from -53°C to +173°C, it maintains stable output characteristics in both cold-start and high-temperature operating scenarios. The probe operates with a supply voltage of -15.5 Vdc to -23 Vdc and exhibits a supply sensitivity of less than 2 mV per volt, ensuring accurate signal output even when minor power fluctuations occur in industrial power systems.

Applications

The 330101-00-53-10-02-05 proximity probe is widely used for continuous shaft vibration and radial displacement monitoring in turbines, compressors, and high-speed rotating machinery, where precise non-contact measurement is required to detect imbalance, misalignment, or bearing wear at an early stage.

In harsh industrial environments such as oil & gas facilities, power generation plants, and heavy manufacturing sites, this 3300 XL 8 mm proximity probe provides stable and reliable performance under high temperatures, electrical noise, and mechanical vibration, ensuring uninterrupted condition monitoring and machinery protection.

The probe is well suited for integration into machinery protection and condition monitoring systems, supporting predictive maintenance programs by delivering accurate real-time displacement data that enables trend analysis, alarm configuration, and automated shutdown functions when abnormal operating conditions are detected.

Specifications

Competitive Advantage:

1. High Measurement Stability and Accuracy

The 330101-00-53-10-02-05 proximity probe offers excellent linearity, low supply sensitivity, and controlled output resistance, ensuring highly stable displacement measurements even in environments with fluctuating power conditions and strong electromagnetic interference.

2. Robust Design for Harsh Industrial Conditions

With an operating temperature range of -53°C to +173°C and durable mechanical construction, this 3300 XL 8 mm proximity probe is engineered for long-term operation in high-temperature zones, high-vibration machinery, and continuous-duty industrial applications.

3. Easy Integration and Installation Reliability

The miniature coaxial ClickLoc connector and standard cable configuration simplify installation and maintenance, reduce the risk of connection errors, and ensure consistent signal transmission, making the probe suitable for both new systems and retrofit monitoring projects.
