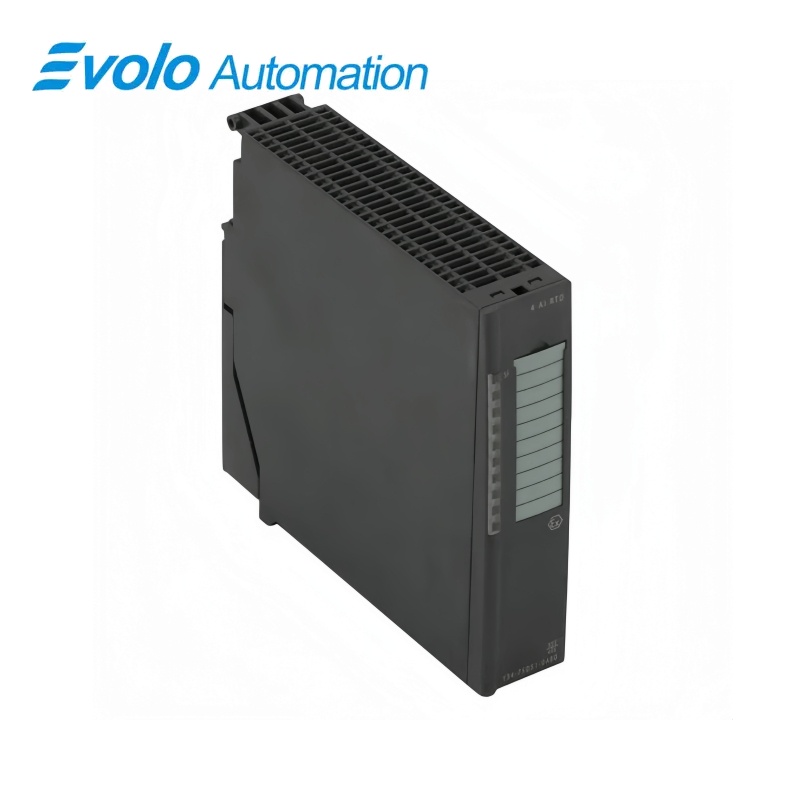

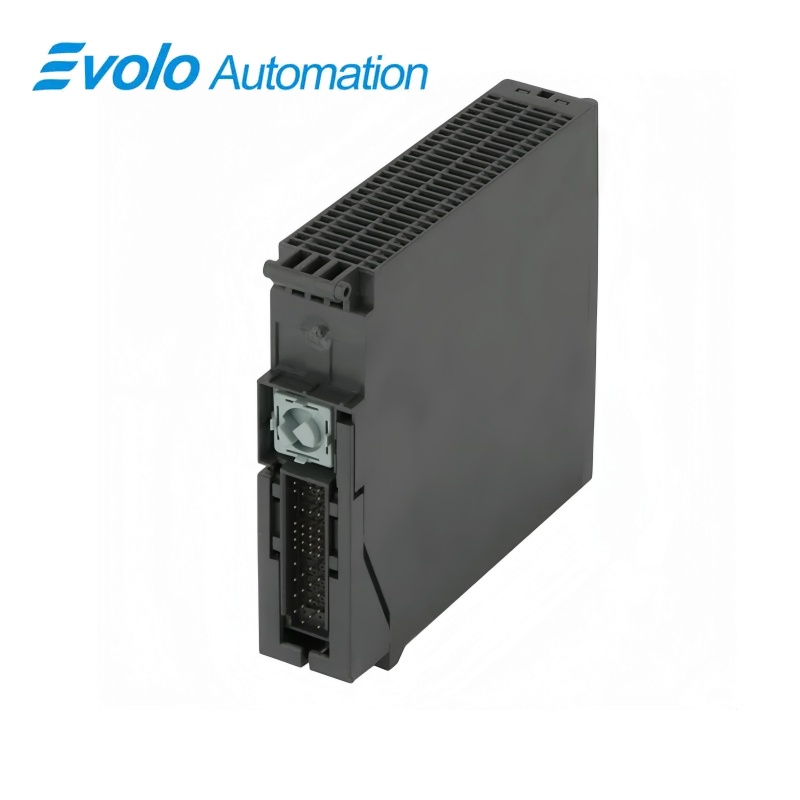

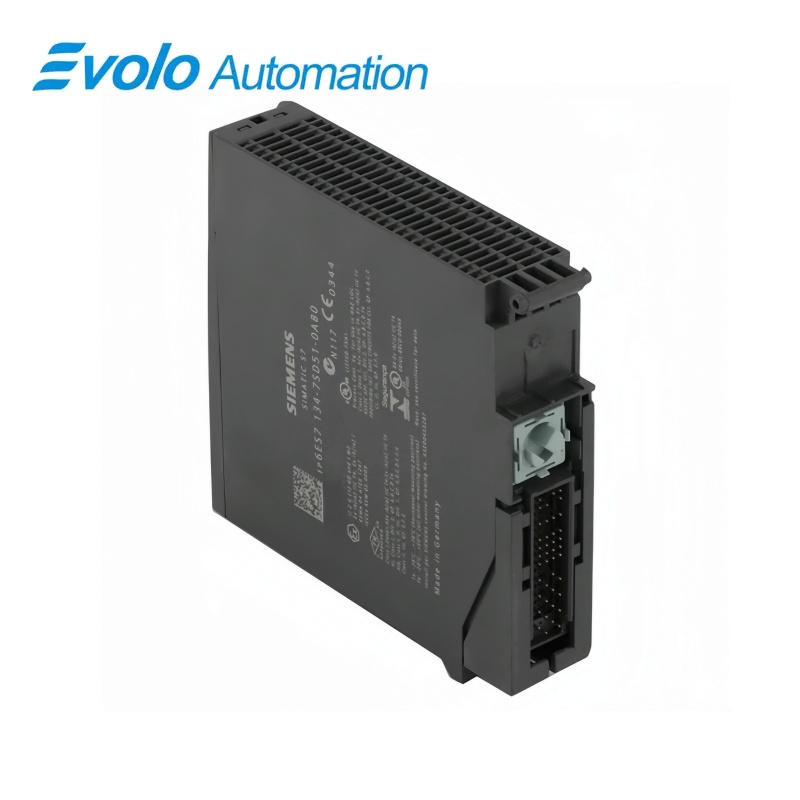

Siemens SIMATIC ET 200iSP 4 AI RTD Electronic Module 6ES7134-7SD51-0AB0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SIMATIC ET 200iSP
6ES7134-7SD51-0AB0 SIMATIC ET 200iSP 4 AI RTD Electronic Module
The ET 200iSP electronic module provides four analog RTD inputs for PT100 and NI100 resistance thermometers with the documented intrinsic-safety approvals.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7134-7SD51-0AB0 |
| Product Type | Intrinsically safe four-channel RTD analog input module |
| Core Function | Acquires PT100 and NI100 resistance-temperature signals in hazardous-area distributed I/O |
| Application or Compatible Series | SIMATIC ET 200iSP stations with the approved terminal module and Ex installation design |
Exact Identification
Match 6ES7134-7SD51-0AB0 character by character and confirm the complete SIMATIC ET 200iSP 4 AI RTD Electronic Module designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The ET 200iSP electronic module provides four analog RTD inputs for PT100 and NI100 resistance thermometers with the documented intrinsic-safety approvals.
Four channels connect supported resistance thermometers. The module is specified for ET 200iSP intrinsically safe applications. PT100 and NI100 sensor types are identified for this exact article.
Key Functions
Four RTD Inputs
Four channels connect supported resistance thermometers.
Hazardous-Area Integration
The module is specified for ET 200iSP intrinsically safe applications.
Sensor Support
PT100 and NI100 sensor types are identified for this exact article.
Official Specifications
| I/O System | SIMATIC ET 200iSP |
|---|---|
| Module Type | Analog input electronic module |
| Input Channels | 4 |
| Sensor Principle | Resistance thermometer |
| Supported Sensor Type 1 | PT100 |
| Supported Sensor Type 2 | NI100 |
| Intrinsic-Safety Marking | Ex ib (ia Ga) IIC T4 Gb |
| Dust Marking | Ex ib [ia IIIC Da] IIC T4 Gb |
| Mining Marking | Ex ib [ia] I Mb |
| Net Weight | 0.302 kg |
| Packaging Dimensions | 13.9 x 16.3 x 4.1 cm |
| Product Family | Analog electronic modules |
Frequently Asked Questions
Which temperature sensors are specified for RTD module 6ES7134-7SD51-0AB0?
Use the supported PT100 or NI100 resistance thermometers within the approved Ex circuit design.
How many measurement channels are available on RTD module 6ES7134-7SD51-0AB0?
Four analog input channels are available.
Which installed configuration should be recorded before replacing RTD module 6ES7134-7SD51-0AB0?
Record the configured addresses, wiring assignments, parameters, firmware and neighboring hardware before removal.
What identification must match when selecting RTD module 6ES7134-7SD51-0AB0?
Match the complete article number, hardware revision and every option used by the installed system.
How should technicians handle RTD module 6ES7134-7SD51-0AB0?
Isolate the affected equipment and use grounded electrostatic-discharge precautions throughout the exchange.
Which checks are required after installing RTD module 6ES7134-7SD51-0AB0?
Verify power, diagnostics, communication, field signals and the complete approved machine or plant function.
When should a visually similar unit replace RTD module 6ES7134-7SD51-0AB0?
Use a visually similar unit only after engineering confirms identical electrical, mechanical and software compatibility.
Compatibility & Ordering Notes
Compatibility Checklist
- Use only in an approved ET 200iSP station.
- Match the sensor and hazardous-area circuit design exactly.
- Validate all four channels after replacement.
