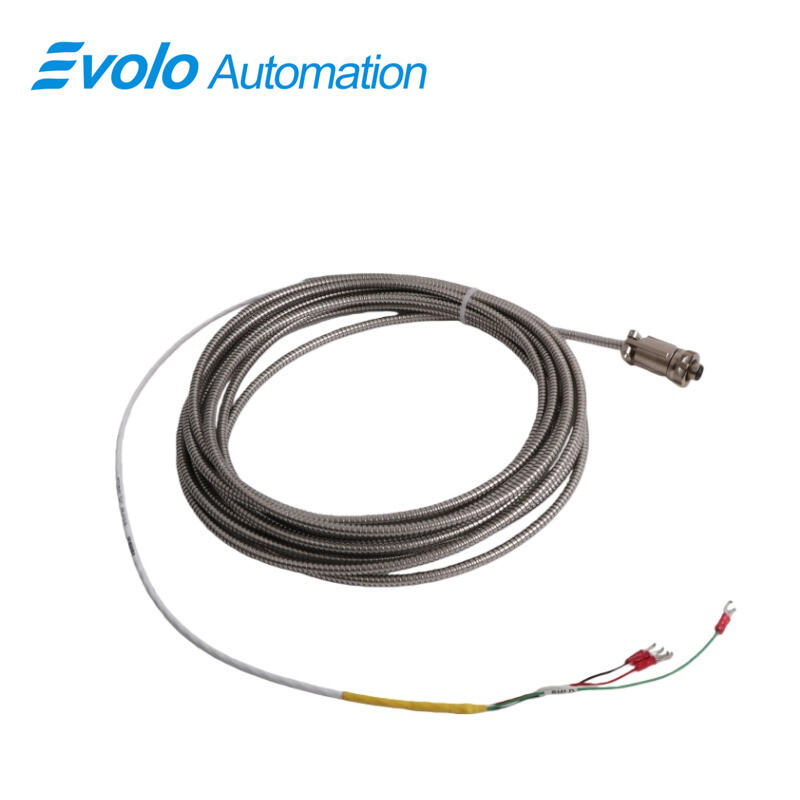

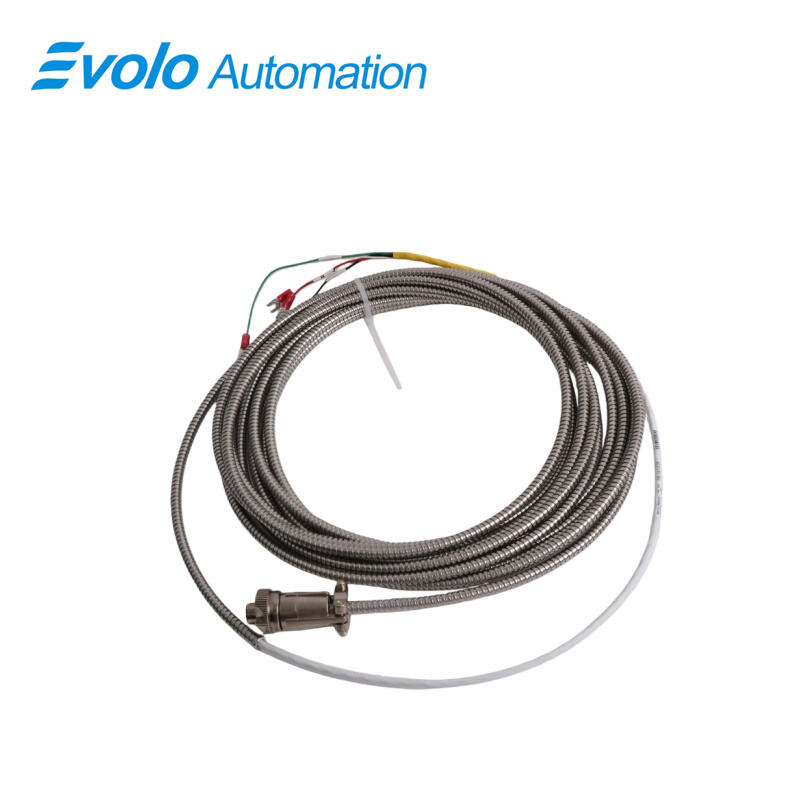

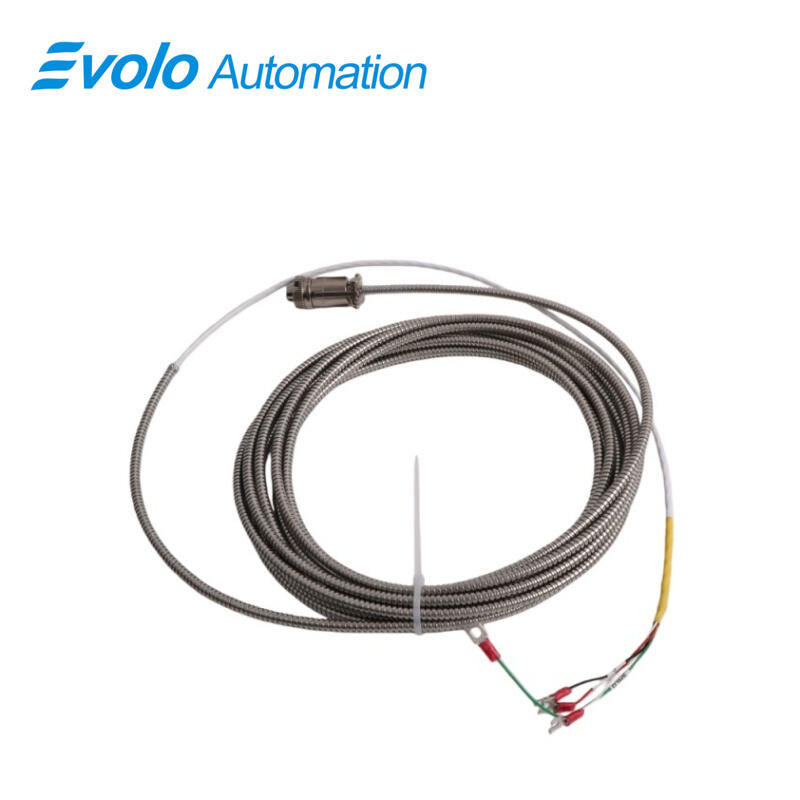

16710-27 Interconnect Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	16710-27
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 16710-27 Interconnect Cable is a high-performance industrial-grade signal transmission cable, tailored for seamless integration with precision measurement systems—especially the 3300 XL series proximity probes. It delivers reliable, low-noise data transfer in harsh industrial environments, addressing the critical need for stable signal transmission between probes, signal conditioners, and monitoring systems (e.g., 3500 Monitoring System). With rugged construction, advanced shielding, and optimized electrical properties, this 16710-27 Interconnect Cable ensures accurate displacement, vibration, and position data transmission, becoming indispensable in power generation, oil & gas, manufacturing, and aerospace sectors.​

At the core of the 16710-27 Interconnect Cable’s performance is its low-capacitance design (55 pF/m, 16.8 pF/ft typical at 1 kHz), minimizing signal attenuation and distortion even over long-distance runs (customizable up to 30 meters). This critical parameter preserves high-precision signals from 3300 XL 11 mm proximity probes, enabling monitoring systems to receive accurate real-time machinery condition data. Complemented by a fixed 50 Ω characteristic impedance, the 16710-27 Interconnect Cable perfectly matches paired probes and conditioners, eliminating signal reflection for consistent system-wide transmission performance.​

The 16710-27 Interconnect Cable features double-layer shielding (aluminum foil + 85% coverage braided copper mesh) with ≥85 dB shielding effectiveness at 1 GHz, robustly resisting electromagnetic interference (EMI) from variable frequency drives, motors, and high-voltage cables. This is vital in crowded industrial settings where EMI can disrupt signal integrity and cause measurement errors or malfunctions. Its flame-retardant PVC outer jacket (UL94 V-0 rating) offers exceptional oil and chemical resistance, withstanding mineral oil, diesel, and most industrial solvents—making the 16710-27 Interconnect Cable ideal for refineries, chemical plants, and offshore platforms.​

Versatility and durability define the 16710-27 Interconnect Cable. Its wide temperature range (-40°C to +125°C operating, -50°C to +150°C storage) ensures reliable performance in extreme environments, from frigid outdoor setups to high-heat machinery rooms. The flexible design (10× static/15× dynamic bend radius) enables easy routing in tight spaces and withstands repeated bending in moving equipment. Compatible with 0.2–1.5 mm² (16–24 AWG) industrial wiring, it supports crimp and screw terminal connections, facilitating seamless integration with existing systems and reducing installation time.​

Applications

The 16710-27 Interconnect Cable is a high-performance, non-contact measurement solution designed for seamless condition monitoring in critical applications across industries such as power generation, oil and gas, manufacturing, aerospace, defense, and marine. Built to withstand harsh environments and space-restricted installations, this cable ensures reliable operation even in extreme conditions. With an operating temperature range of -40°C to +125°C and a storage temperature range of -50°C to +150°C, the 16710-27 cable delivers consistent performance, whether exposed to high temperatures in turbine enclosures and steel mill furnaces or to cold temperatures in outdoor and aerospace storage settings.

Designed with ≥85 dB shielding effectiveness at 1 GHz, it efficiently blocks electromagnetic interference (EMI) from sources such as high-voltage equipment, motors, and avionics systems. The 16710-27 cable features compact dimensions, with a length of 5 meters, and offers a flexible routing solution with a 10× static and 15× dynamic bend radius, making it ideal for installation in narrow or tight spaces like turbine casings, robotic joints, and marine engine rooms.

The cable is constructed with a tinned copper conductor (24 AWG) and has a 50 Ω output resistance with 55 pF/m capacitance for low-noise signal transmission. It is compatible with 0.2–1.5 mm² (16–24 AWG) field wiring, enabling smooth integration with existing monitoring systems.

Certified by multiple agencies, the 16710-27 Interconnect Cable plays a crucial role in ensuring optimal performance in critical equipment by facilitating the transmission of displacement, vibration, and positional data from rotating shafts, gear teeth, and other vital components. This makes it an indispensable part of predictive maintenance systems, helping to avoid operational disruptions, misalignment, and costly failures across mission-critical environments.

Specifications

Competitive Advantage

1.Industry-Leading Anti-Interference Performance

The 16710-27 Interconnect Cable provides superior anti-interference, ensuring stable signal transmission in noisy industrial environments. Its double-layer shielding (aluminum foil + 85% braided copper mesh) and ≥85 dB shielding effectiveness at 1 GHz block electromagnetic interference from variable frequency drives, high-voltage equipment, and motors. With a 50 Ω output resistance and low capacitance (55 pF/m), the cable minimizes signal loss and preserves high-precision data from 3300 XL probes, outperforming standard cables that suffer from signal distortion.

2.Extreme Environment Adaptability

Built for extreme environments, the 16710-27 cable operates within a wide temperature range of -40°C to +125°C, with storage capabilities from -50°C to +150°C. It resists corrosion thanks to its 24 AWG tinned copper conductor and a flame-retardant PVC jacket (UL94 V-0), ideal for use in refineries, chemical plants, and harsh conditions. Unlike standard cables, it maintains stability in both high-heat and frigid settings, ensuring long-term reliability.

3.Installation Flexibility & Global Compliance

The 16710-27 cable offers flexibility for tight installations, with a 0 mm minimum unthreaded length and compact dimensions (2.5 cm × 10 cm × 18.2 cm). Its flexible design (10× static/15× dynamic bend radius) makes it easy to route in confined spaces. Compatible with 0.2–1.5 mm² (16–24 AWG) field wiring, it supports plug-and-play integration, and its global certifications (CE, UL, CSA, RoHS) simplify international deployments.

4.Compliance with Global Industrial Standards

With certifications from CE, UL, CSA, and RoHS, the 16710-27 meets international industrial standards, ensuring seamless access to global markets and hassle-free deployment across regions.
