Overview
Siemens · ET 200PA SMART+

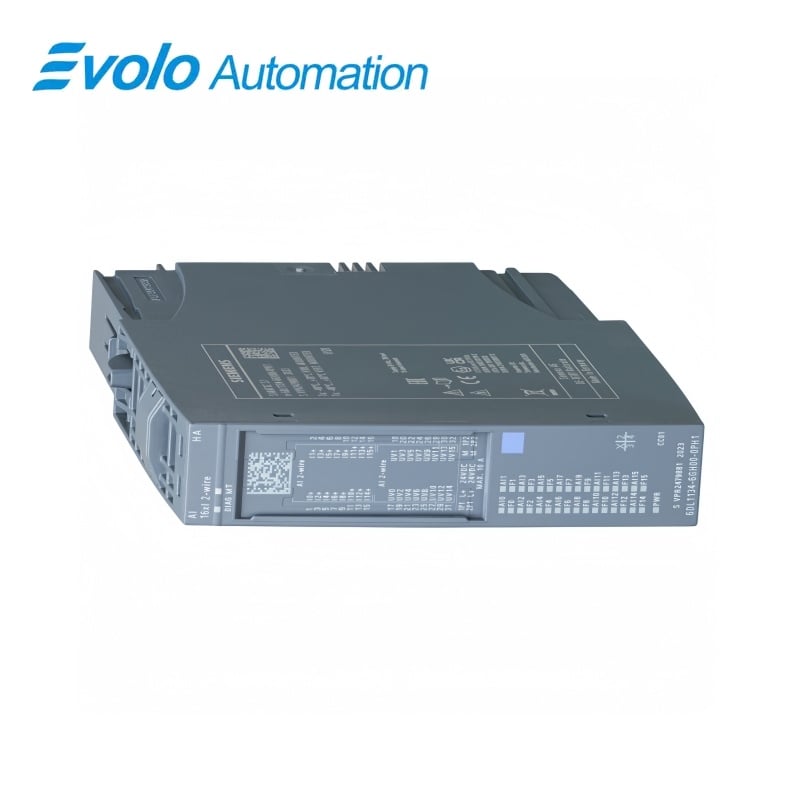

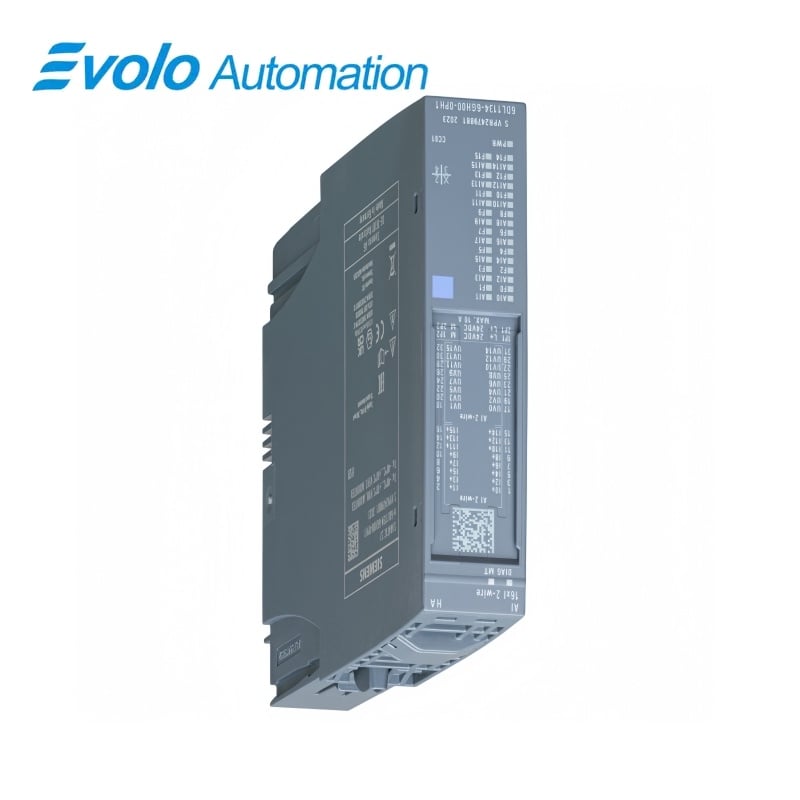

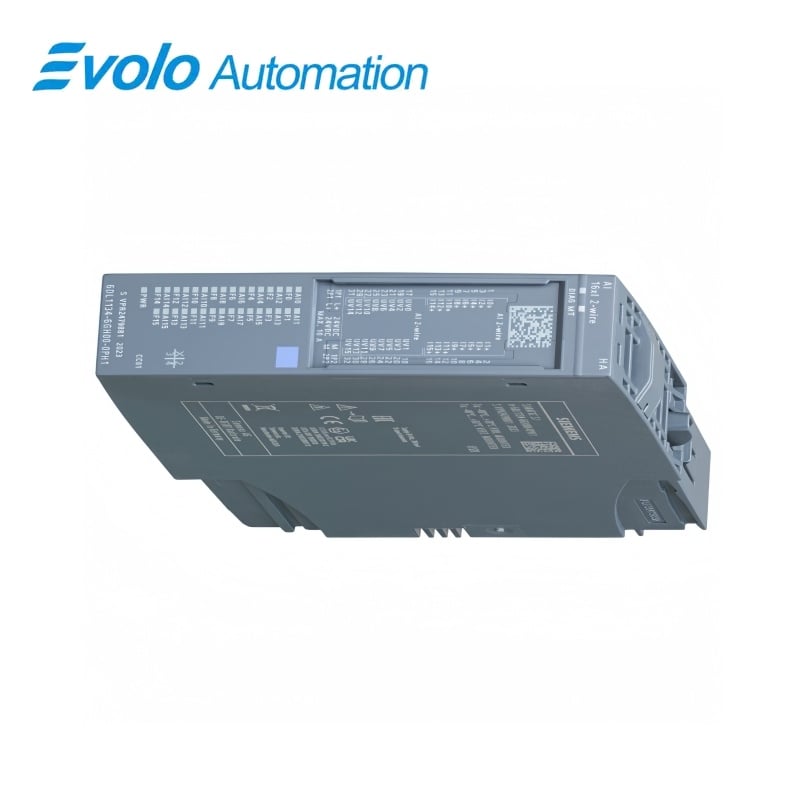

6DL1164-6GH00-0PH1 ET 200PA SMART+ AI 16xI 2-Wire PA Module
The AI 16xI 2-wire PA module provides sixteen current-measurement inputs for ET 200PA SMART+, integrated protected sensor supplies, I&M identification data and reparameterization during RUN.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6DL1164-6GH00-0PH1 |
| Product Type | 16-channel analog input module |
| Core Function | Acquires sixteen two-wire current signals and supplies protected 24 V sensor power |
| Application or Compatible Series | ET 200PA SMART+ process instrumentation using sixteen two-wire current transmitters |
Exact Identification
Match 6DL1164-6GH00-0PH1 character by character and confirm the complete ET 200PA SMART+ AI 16xI 2-Wire PA Module designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The AI 16xI 2-wire PA module provides sixteen current-measurement inputs for ET 200PA SMART+, integrated protected sensor supplies, I&M identification data and reparameterization during RUN.
The module acquires sixteen two-wire analog current signals. Each channel receives a protected 24 V transmitter supply. Channel parameters can be changed during RUN within the supported system configuration.
Key Functions
Sixteen Current Inputs
The module acquires sixteen two-wire analog current signals.
Integrated Sensor Supply
Each channel receives a protected 24 V transmitter supply.
RUN Reparameterization
Channel parameters can be changed during RUN within the supported system configuration.
Official Specifications
| Analog Inputs | 16 |
|---|---|
| Measurement Type | Current, two-wire transmitters |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Range | 19.2 to 28.8 V DC |
| Reverse-Polarity Protection | Yes |
| Rated Current Consumption | 350 mA |
| Sensor-Supply Outputs | 16 |
| Minimum Sensor-Supply Voltage | 19.2 V DC |
| Maximum Output Current per Channel | 46 mA |
| Short-Circuit Protection | Thermal, per output |
| Typical Power Loss | 0.6 W |
| Maximum Address Space | 34 bytes |
| Input Data | 32 bytes |
| Quality Information | 2 bytes |
| Firmware Update | Supported |
| I&M Data | I&M0 supported |
| Reparameterization in RUN | Supported |
| Oversampling | Not supported |
Frequently Asked Questions
How many two-wire transmitters can connect to 6DL1164-6GH00-0PH1?
The module provides sixteen current-measurement channels with integrated transmitter supplies.
Which supply voltage is required by 6DL1164-6GH00-0PH1?
Provide 24 V DC within the specified 19.2 to 28.8 V range.
Are the sensor supplies of 6DL1164-6GH00-0PH1 protected against short circuits?
Yes; each output has thermal short-circuit protection.
Can parameters of 6DL1164-6GH00-0PH1 be changed while the station is running?
Yes; supported channel parameters can be reparameterized during RUN.
Does 6DL1164-6GH00-0PH1 support oversampling?
No; design acquisition timing without relying on oversampling.
How much process-image space should be reserved for 6DL1164-6GH00-0PH1?
Reserve 34 bytes, comprising 32 bytes of input data and 2 bytes of quality information.
What should be checked after replacing 6DL1164-6GH00-0PH1?
Verify the terminal block, channel ranges, sensor wiring, quality status, diagnostics and measured loop currents.
Compatibility & Ordering Notes
Compatibility Checklist
- Use the approved ET 200PA SMART+ system and terminal block.
- Match every two-wire transmitter range and channel assignment.
- Preserve the station configuration and verify quality information after replacement.
