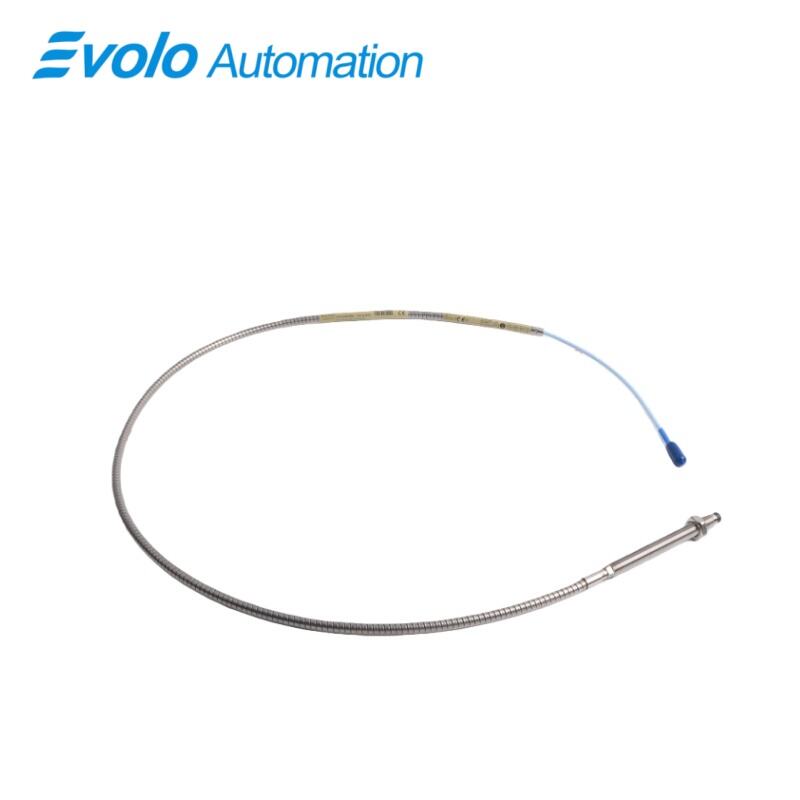

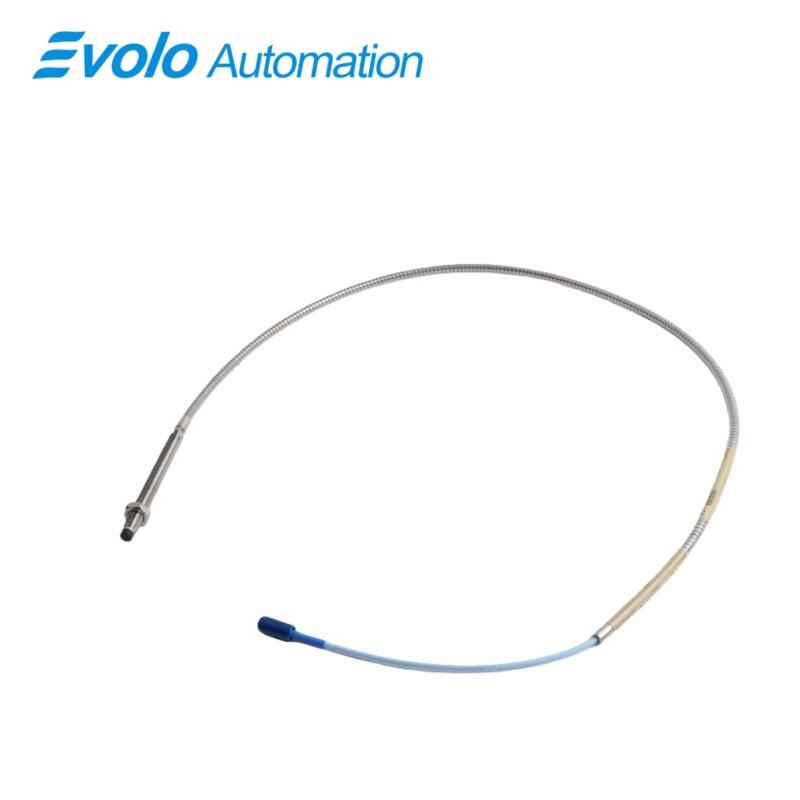

330104-00-10-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-10-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-10-10-02-05 is a high-performance member of the 3300 XL 8 mm Proximity Probes series, specifically engineered to meet the rigorous demands of industrial vibration monitoring and machinery protection. As a non-contacting eddy current sensor, this probe is vital for capturing real-time data from rotating shafts in critical equipment such as steam turbines, centrifugal compressors, and large-scale industrial motors. The 330104-00-10-10-02-05 functions by generating a high-frequency electromagnetic field, allowing the 3300 XL 8 mm Proximity Probes to accurately determine the gap between the probe tip and the target surface with exceptional linearity and resolution.

The technical configuration of the 330104-00-10-10-02-05 features a 100 mm overall case length with 0 mm of unthreaded length, providing a specialized physical footprint for deep-insertion or specific mounting bracket requirements. Like other 3300 XL 8 mm Proximity Probes, it delivers a standard 2 mm (80 mils) linear range, converting physical displacement into a proportional voltage signal. This eddy current sensor technology is highly immune to environmental interference, ensuring that the 330104-00-10-10-02-05 maintains signal integrity even in the presence of lubricants, steam, or high-pressure cooling fluids.

Applications

Precision Radial Vibration Analysis: The 330104-00-10-10-02-05 is primarily deployed to monitor the radial vibration of high-speed rotating shafts. By utilizing its 2 mm linear range, the probe detects minute shaft oscillations within the bearing housing, providing critical data for diagnosing imbalance, misalignment, or shaft cracks in turbines and pumps. The use of a ClickLoc connector ensures a stable electrical path for these sensitive vibration signals.

Axial Thrust Position Monitoring: This probe plays a crucial role in safeguarding machinery against excessive axial movement. By measuring the gap between the probe face and the thrust collar, the 330104-00-10-10-02-05 helps prevent metal-to-metal contact within thrust bearings. Its stable output resistance and low supply sensitivity make it a reliable component for trip logic in machinery protection systems where axial safety is paramount.

Phase Reference and Speed Sensing: In many industrial configurations, the 330104-00-10-10-02-05 is utilized as a Keyphasor sensor to detect a timing mark on a shaft. This allows the monitoring system to determine rotational speed and provide a phase reference for vibration signals. The 1.0-meter total length and miniature coaxial cable design facilitate easy routing in complex machine geometries to capture these high-frequency pulses accurately.

Specifications

Competitive Advantage

Enhanced Connection Reliability with ClickLoc Technology: The 330104-00-10-10-02-05 features the patented ClickLoc connector system, which provides a secure, vibration-resistant connection between the probe and the extension cable. Unlike traditional threaded connectors that can loosen over time, this mechanism ensures long-term signal stability and simplifies installation in high-vibration environments, reducing the risk of intermittent data loss.

Superior Material Integrity and Chemical Resistance: Featuring a PPS (Polyphenylene Sulfide) tip and AISI 304 stainless steel case, these 3300 XL 8 mm Proximity Probes are built to withstand corrosive industrial atmospheres. The probe is hermetically sealed to prevent moisture or oil ingress, which significantly extends the service life of the eddy current sensor compared to lower-tier alternatives, leading to a lower total cost of ownership.

Global Compliance and Certification Standards: This specific model comes with comprehensive agency approvals, including CSA, ATEX, and IECEx. This global certification ensures that the 330104-00-10-10-02-05 can be safely integrated into hazardous area locations worldwide. Its standardized -16.5 Vdc to -25.2 Vdc power requirement and 2 mm linear range ensure 100% compatibility with existing Bently Nevada 3300 XL series monitoring hardware, allowing for "plug-and-play" replacements without recalibration.
