Overview

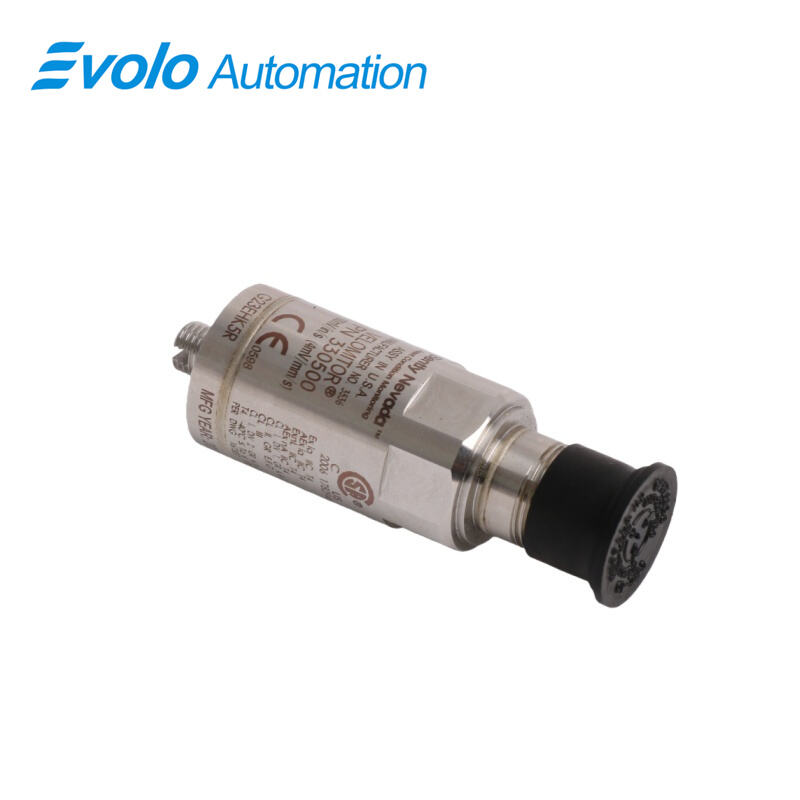

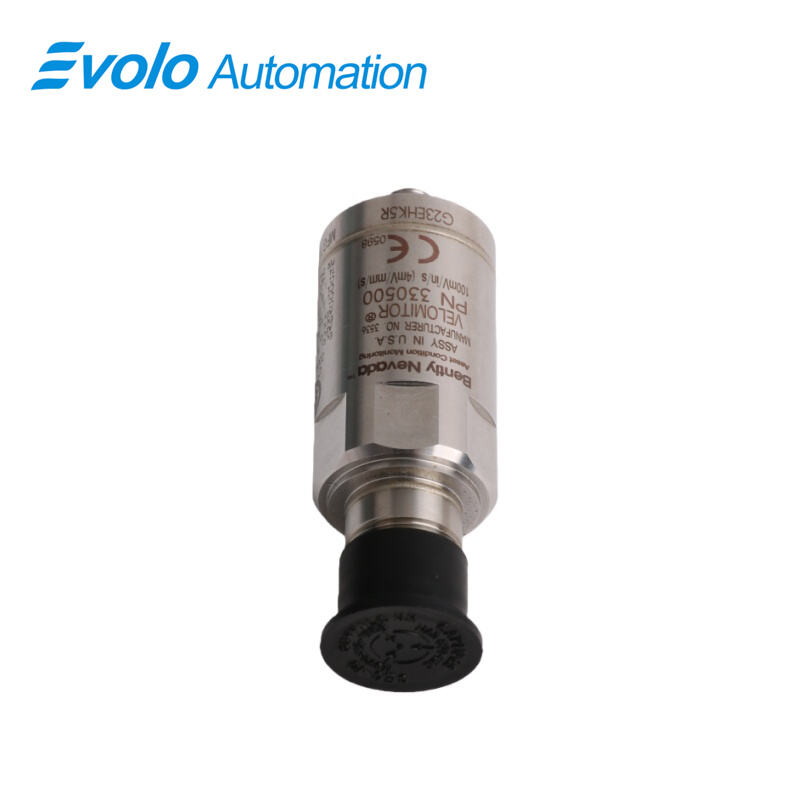

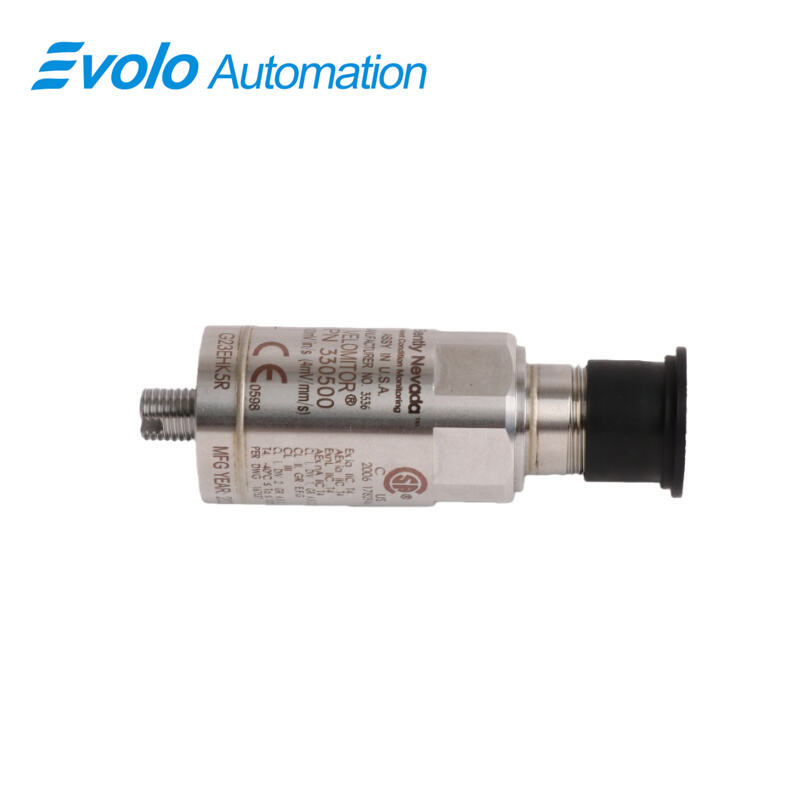

330500-02-04 Velomitor Piezo-velocity Sensor
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330500-02-04 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330500-02-04 Velomitor Piezo-velocity Sensor is a specialized, industrial-grade vibration transducer engineered by Bently Nevada for high-precision machinery protection. As a core component of the 330500-02-04 Velomitor Piezo-velocity Sensor series, this device is designed to measure absolute casing vibration on rotating machinery. Unlike traditional moving-coil transducers, the 330500-02-04 Velomitor Piezo-velocity Sensor utilizes advanced piezoelectric technology, which incorporates an internal solid-state electronic circuit to eliminate moving parts. This robust design ensures that the 330500-02-04 Velomitor Piezo-velocity Sensor provides superior reliability and an extended service life, even when exposed to continuous high-vibration industrial environments.
The internal architecture of the 330500-02-04 Velomitor Piezo-velocity Sensor integrates a sensing element with a charge amplifier, enabling the sensor to perform signal integration internally. This process converts the raw acceleration data into a high-fidelity velocity signal. The 330500-02-04 Velomitor Piezo-velocity Sensor provides a standardized sensitivity of 3.94 mV/mm/s (100 mV/in/s), ensuring seamless compatibility with various monitoring systems. Because the 330500-02-04 Velomitor Piezo-velocity Sensor generates a low-impedance voltage output, the signal remains clear and accurate over long distances, resisting the electromagnetic interference (EMI) often found in power generation and petrochemical facilities.
This specific 330500-02-04 Velomitor Piezo-velocity Sensor configuration includes the "02" mounting thread option (M8 x 1) and the "04" agency approval option, which signifies Multi-Approvals (including ATEX, IECEx, and CSA) for hazardous locations. The 330500-02-04 Velomitor Piezo-velocity Sensor is housed in 316L stainless steel, providing exceptional corrosion resistance.
Key Functions
Applications
1.Monitoring General Rotating Machinery
The 330500-02-04 Velomitor is primarily used to measure the absolute vibration of machine casings. It is the gold standard for identifying common mechanical faults such as unbalance, shaft misalignment, and mechanical looseness. By providing a velocity-based output, it allows operators to assess machine health according to ISO 10816 standards.
2.Hazardous Area Deployments
With its 04 Multi-Approval rating (ATEX/IECEx/CSA), the 330500-02-04 is specifically designed for use in explosive atmospheres. It is widely applied in oil and gas refineries, chemical processing plants, and offshore platforms where safety certifications are mandatory for electronic instrumentation.
3.Remote Monitoring Systems
Thanks to its low-impedance output (less than 2300 Ω), this sensor is perfect for facilities where the monitoring room is located far from the actual machinery. It can drive signals over long cable runs (up to the included 5.0 meters and beyond) without significant signal loss or susceptibility to industrial noise.
Official Specifications
Quick Detail
|
Agency Approval Option: |
Multiple approvals (CSA, ATEX) |
|
Mounting Thread Adaptor Option : |
M8 x 1 |
|
Overall Case Length Option : |
40 mm |
|
Total Length Option: |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with protector, standard industrial cable |
|
Dimension: |
7.3x2.5x2.5cm |
|
Weight: |
0.16kg |
Specifications
|
Sensitivity: |
3.90mV/mm/s (100 mV/in/s)±5% |
|
Temperature Sensitivity: |
-14% to +7.5% typical over the operating temperature range |
|
Power Requirements: |
DC Voltage: -22 to -30 VDC Bias Current: 2.5 to 6.0 mA |
|
Dynamic Output Impedance: |
Less than 2300 Ω |
|
Operating Temperature Range: |
-50 °C to +120 °C (-60°F to+235°F) |
|
Case Material: |
316L stainless steel |
Frequently Asked Questions
What is the model number?
The listed model number is 330500-02-04.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1.Solid-State Piezoelectric Technology
The 330500-02-04 outperforms older electro-mechanical sensors by utilizing a completely solid-state design. With no moving coils or springs to wear out or "stick," this sensor provides virtually infinite mechanical life and maintains its calibration accuracy far longer than moving-coil alternatives.
2.Integrated Internal Electronics
A key advantage is the internal integration of the signal conditioner. By converting acceleration to velocity inside the 316L stainless steel housing, the sensor outputs a robust, low-impedance signal. This prevents the "noise" issues commonly associated with high-impedance cables, ensuring that the 100 mV/in/s sensitivity remains precise from the sensor head to the control system.
3.Global Certification Compliance
The "04" option provides a "Triple Crown" of hazardous area approvals (North American CSA, European ATEX, and International IECEx). This allows global engineering firms to standardize on one specific model (330500-02-04) for projects worldwide, significantly reducing spare parts inventory and simplifying international safety documentation.
4.Exceptional Environmental Durability
Constructed with a 316L stainless steel case and capable of operating in temperatures ranging from -50 °C to +120 °C, the Velomitor is built for the harshest environments. Its hermetic sealing and rugged connector options ensure that moisture, oil, and dust do not compromise vibration data.
