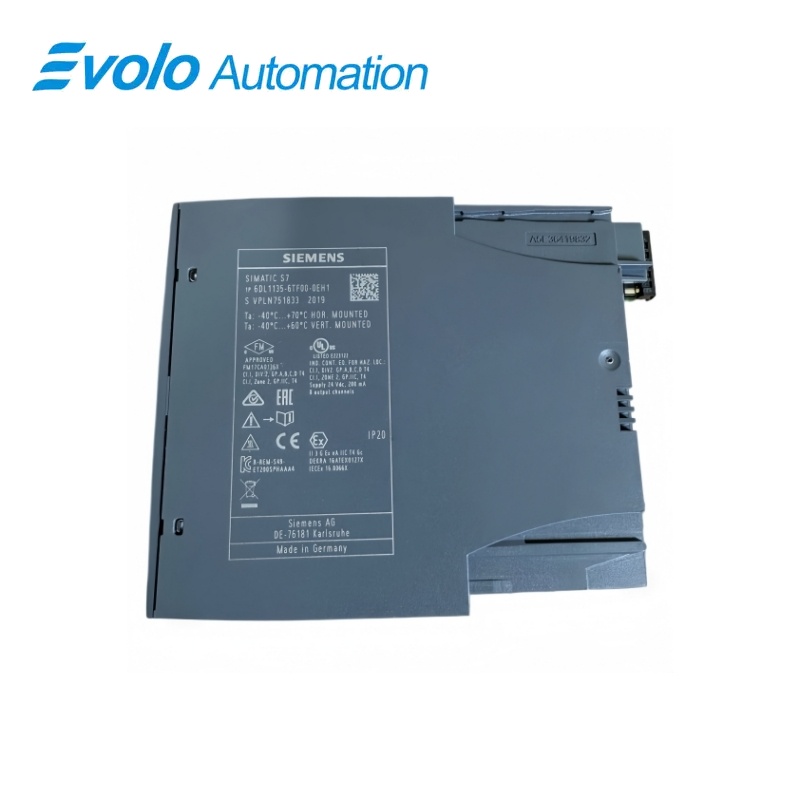

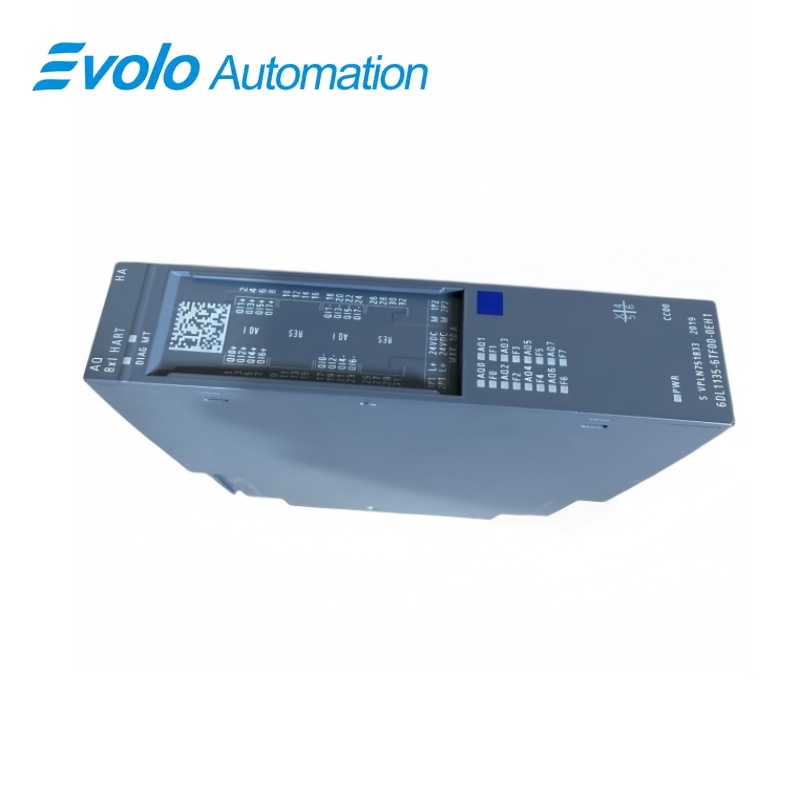

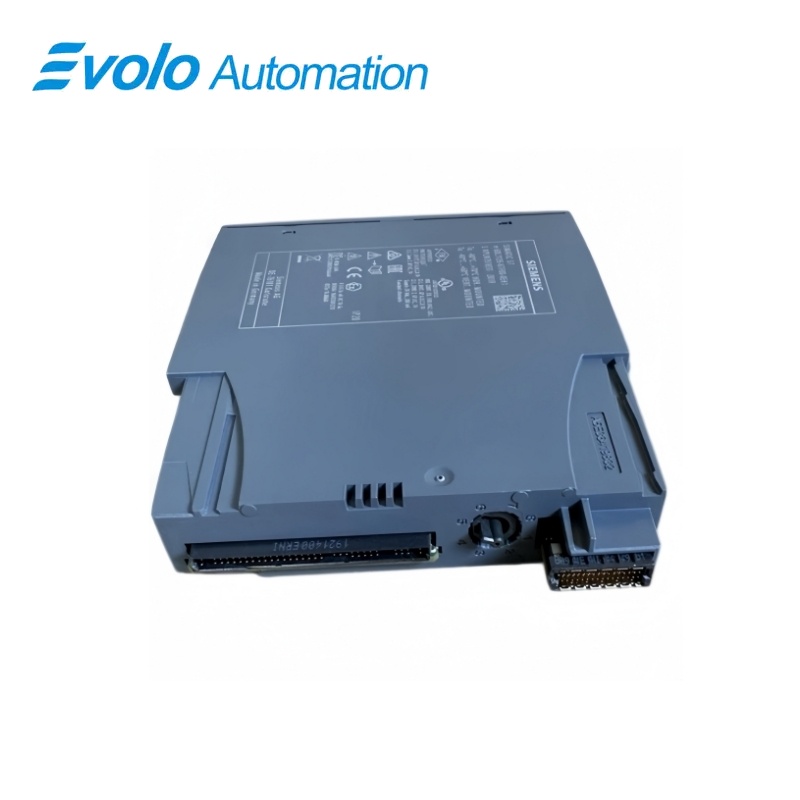

Siemens SIMATIC ET 200SP HA AQ 8xI HART Analog Output Module 6DL1135-6TF00-0EH1
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SIMATIC ET 200SP HA / SPPA-T3000
6DL1135-6TF00-0EH1 SIMATIC ET 200SP HA AQ 8xI HART Analog Output Module
The AQ 8xI HART HA module provides eight analog current outputs with HART communication, 24 V DC operation, 16-bit current representation, channel diagnostics and redundant use on an M1 terminal block for SPPA-T3000 applications.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6DL1135-6TF00-0EH1 |
| Product Type | Eight-channel HART analog current output module |
| Core Function | Outputs precision current signals with HART communication and per-channel diagnostics |
| Application or Compatible Series | SPPA-T3000 ET 200SP HA stations using H1 or M1 terminal blocks |
Exact Identification
Match 6DL1135-6TF00-0EH1 character by character and confirm the complete SIMATIC ET 200SP HA AQ 8xI HART Analog Output Module designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The AQ 8xI HART HA module provides eight analog current outputs with HART communication, 24 V DC operation, 16-bit current representation, channel diagnostics and redundant use on an M1 terminal block for SPPA-T3000 applications.
Eight channels provide current control for compatible field actuators with HART communication. The module is configurable in supported SPPA-T3000 engineering environments from the documented baseline. Channel diagnostics and M1 terminal-block redundancy support high-availability process applications.
Key Functions
Eight Precision Current Outputs
Eight channels provide current control for compatible field actuators with HART communication.
SPPA-T3000 Integration
The module is configurable in supported SPPA-T3000 engineering environments from the documented baseline.
Diagnostic and Redundant Operation
Channel diagnostics and M1 terminal-block redundancy support high-availability process applications.
Official Specifications
| Product Type | AQ 8xI HART HA |
|---|---|
| Firmware Version | V1.0, updateable |
| Analog Outputs | 8 current channels |
| Output Ranges | 0–10 mA, 0–20 mA and 4–20 mA |
| 4–20 mA Representation | 16 bit including sign |
| Rated Supply Voltage | 24 V DC |
| Permitted Supply Range | 19.2 to 28.8 V DC |
| Typical Current Consumption | 230 mA at 8 x 20 mA and 750 Ω |
| Maximum Current Consumption | 350 mA at 8 x 24 mA and 750 Ω |
| Typical Power Loss | 3.2 W |
| Maximum Load Resistance | 750 Ω |
| Maximum Shielded Cable Length | 1000 m |
| Basic Accuracy at 25 °C | ±0.1% |
| Terminal Blocks | H1 and M1 |
| Redundancy | Supported with M1 terminal block |
| SPPA-T3000 Integration | V8.0 or later |
| Operating Temperature, Horizontal | -40 to +70 °C |
Frequently Asked Questions
Which engineering system baseline supports 6DL1135-6TF00-0EH1?
Use a supported SPPA-T3000 configuration from version 8.0 onward.
Which terminal blocks can be used with 6DL1135-6TF00-0EH1?
The module supports H1 and M1 terminal blocks, with M1 required for redundancy.
What current ranges are available on 6DL1135-6TF00-0EH1?
Configure 0 to 10 mA, 0 to 20 mA or 4 to 20 mA for each supported output channel.
Can 6DL1135-6TF00-0EH1 report a wire break or short circuit?
Yes; wire-break and short-circuit diagnostics are available by channel.
What supply range is permitted for 6DL1135-6TF00-0EH1?
Provide 19.2 to 28.8 V DC with correct polarity.
How long can a shielded field cable be for 6DL1135-6TF00-0EH1?
The specified maximum shielded cable length is 1000 metres.
What should be saved before replacing 6DL1135-6TF00-0EH1?
Preserve channel ranges, HART data, diagnostics, substitute values, redundancy assignment and the SPPA-T3000 project.
Compatibility & Ordering Notes
Compatibility Checklist
- Use the module in the supported SPPA-T3000 hardware catalog and preserve the existing engineering baseline.
- Choose the M1 terminal block only where the approved redundant arrangement is required.
- Verify all actuator loads, HART settings and channel diagnostics before commissioning.
