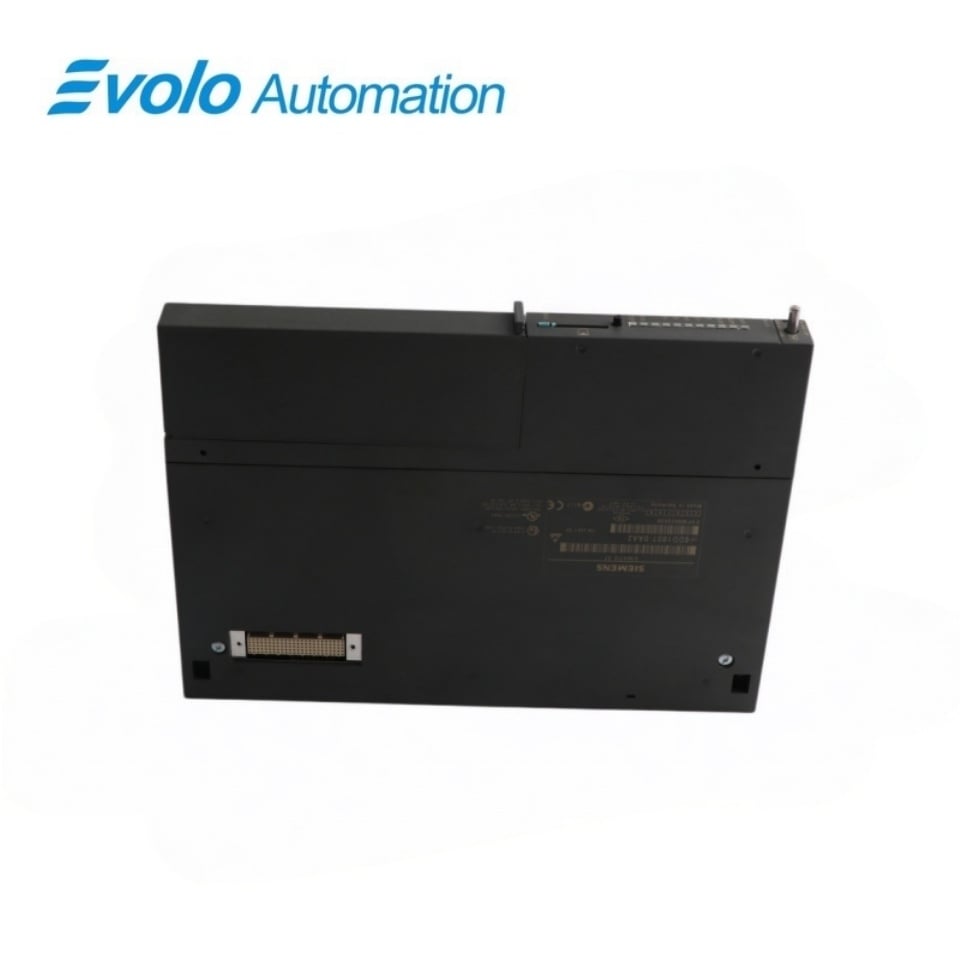

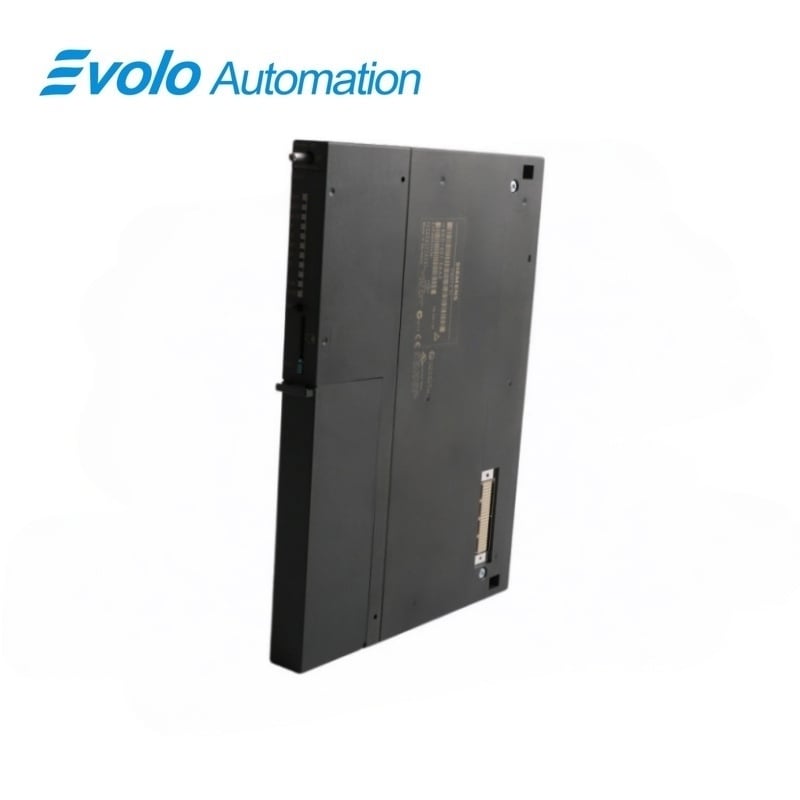

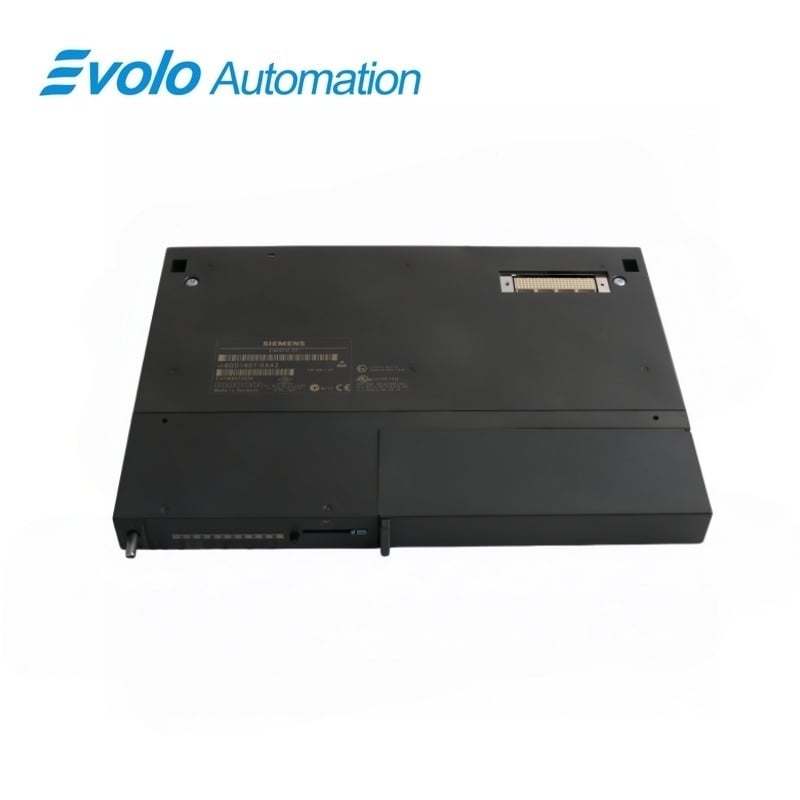

Siemens SIMATIC S7-400 6DD1607-0AA2 FM458-1 DP Application Module
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6DD1607-0AA2 SIMATIC S7-400 FM458-1 DP
Official Siemens identification and technical data, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6DD1607-0AA2 |
| Manufacturer | Siemens |
| Platform | SIMATIC S7-400 |
| Product Type | FM458-1 DP application module |
| Official Source | Siemens Industry Mall / SiePortal |
Match the complete 6DD1607-0AA2 article number and installed hardware.
Verify connectors, ports and communication configuration.
Confirm firmware, project data and required accessories.
Product Overview
6DD1607-0AA2 is officially identified by Siemens as FM458-1 DP application module for computing, closed-loop control and open-loop control tasks in SIMATIC S7-400.
The full article number should be matched against the installed device, hardware revision and official Siemens project documentation before replacement or ordering.
Key Functions
High-Performance Application Processing
Supports computing, closed-loop control and open-loop control tasks in S7-400 systems.
PROFIBUS DP Communication
Provides an integrated PROFIBUS DP interface for distributed automation communication.
Local Signal Connection
Provides eight 24 V digital inputs through connector X2.
Official Specifications
| Compatible MMC Capacities | 2 MB, 4 MB or 8 MB |
|---|---|
| Service Interface | RS232 / V.24 at X1 |
| Service Protocol | DUST1 |
| Service Data Rate | 19.2 kbaud |
| Binary Inputs | 8 at X2 |
| Input Electrical Isolation | No; isolation possible through optional interface modules |
| Nominal Input Voltage | 24 V DC |
| Signal 0 Input Range | -1 to +6 V or open circuit |
| Signal 1 Input Range | +13.5 to +33 V |
| Maximum Input Delay | 100 µs per channel |
| PROFIBUS DP Data Rate | Up to 12 Mbaud at X3 |
| 5 V Current Drain | 1.5 A typical; 2.2 A maximum |
| Power Loss | 7.5 W typical; 11 W maximum |
| Maximum Ambient Temperature | 40 °C; 50 °C in documented stand-alone configuration |
| Required Slots | 1 |
| Dimensions | 260 × 197 × 20.32 mm |
| Approximate Weight | 1.0 kg |
Official source: Siemens Industry Mall product data for 6DD1607-0AA2. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
Which memory cards are supported by 6DD1607-0AA2?
Use an MMC with a documented usable capacity of 2 MB, 4 MB or 8 MB and preserve the validated application data before replacement.
How is the service connection made to 6DD1607-0AA2?
Connect through the X1 RS232/V.24 interface using the DUST1 service protocol at 19.2 kbaud.
What input levels should be used for 6DD1607-0AA2?
The eight binary inputs are rated for 24 V DC; observe the documented signal-zero and signal-one voltage ranges.
Can 6DD1607-0AA2 connect to a PROFIBUS DP network?
Yes. Use interface X3, match the configured address and baud rate, and verify the cable termination at the segment ends.
What cooling check is important when installing 6DD1607-0AA2?
Verify the permitted ambient temperature and installation arrangement; the higher temperature limit applies only to the documented stand-alone setup.
What should be recorded before removing 6DD1607-0AA2?
Record the slot, connector positions, interface modules, memory-card contents, DP parameters and application configuration.
How should 6DD1607-0AA2 be tested after replacement?
Check the 5 V supply, binary-input states, serial service access, PROFIBUS diagnostics and application startup before returning the machine to operation.
Compatibility & Ordering Notes
Compatibility checklist for 6DD1607-0AA2
- Match the complete article number without shortening the suffix.
- Confirm the installed SIMATIC S7-400 system and hardware revision.
- Verify interface, power, connector and mounting requirements.
- Confirm the engineering project, firmware and memory requirements.
