Overview

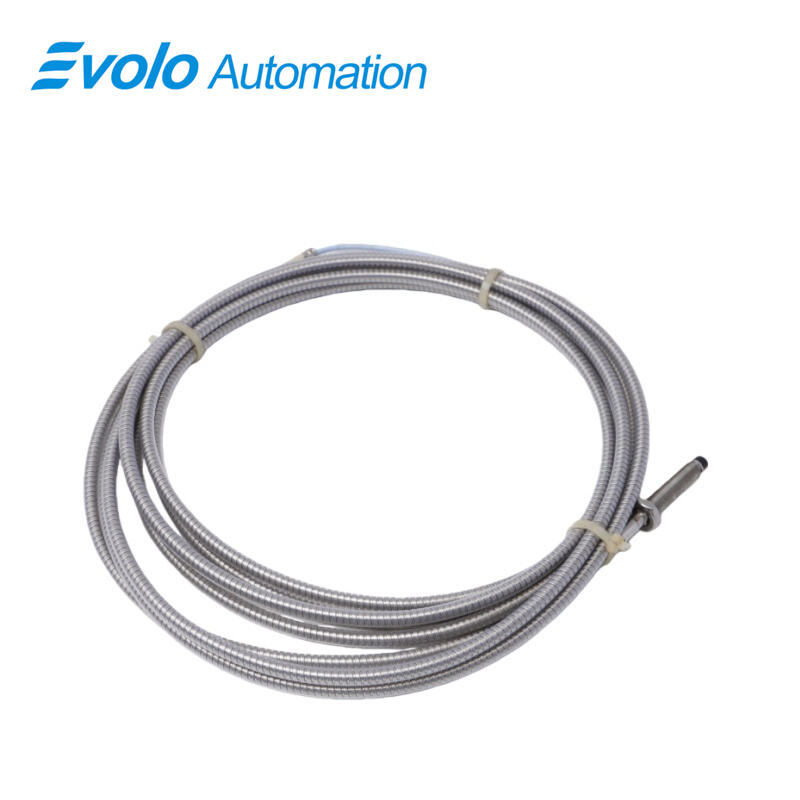

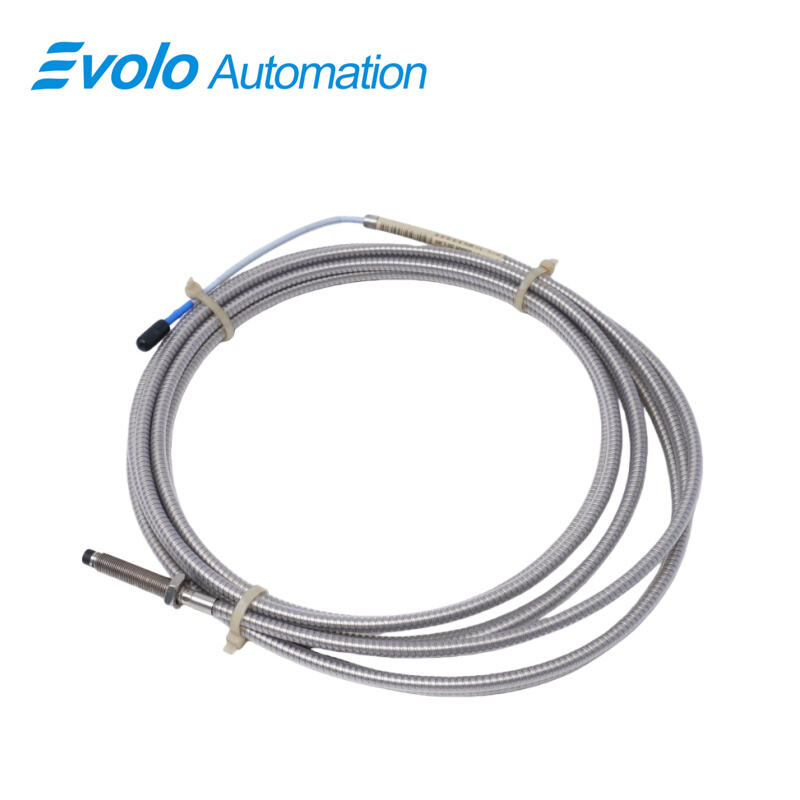

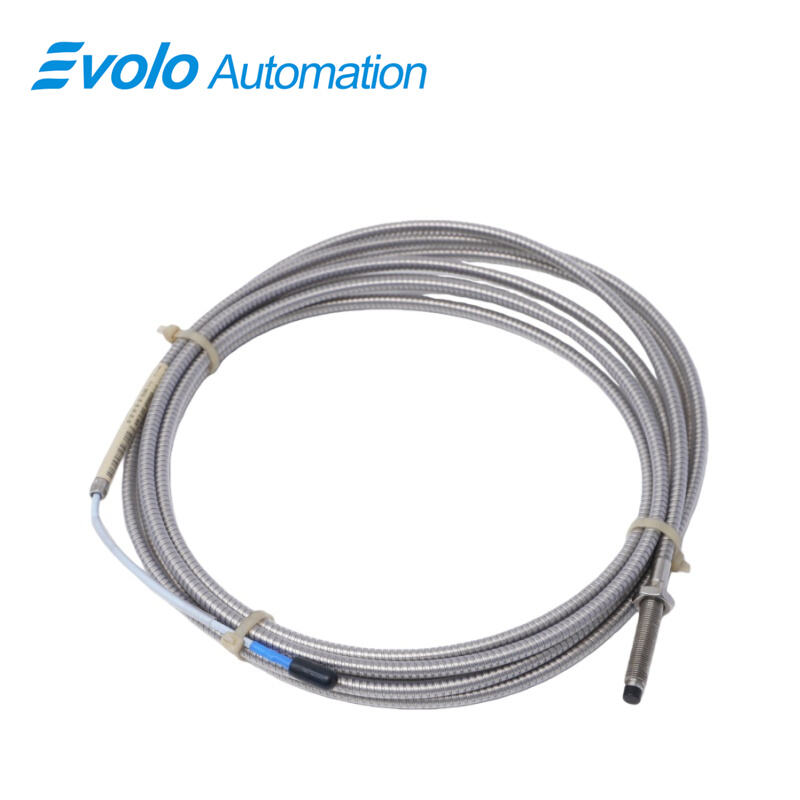

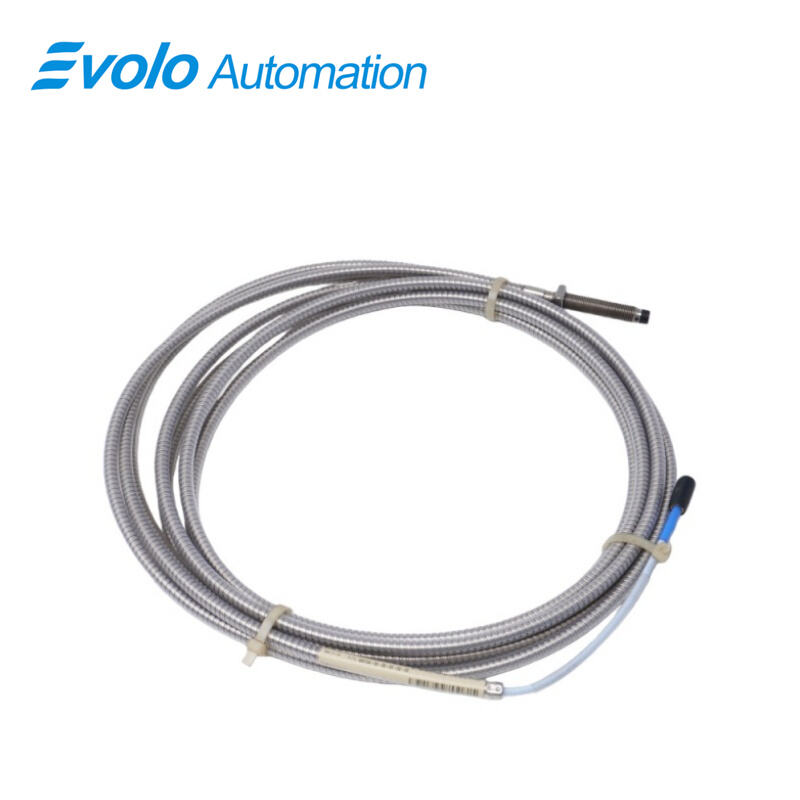

330104-00-05-50-02-05 3300 XL 8 mm Proximity Probe
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-05-50-02-05 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 3300 XL 8 mm Proximity Probe (model 330104-00-05-50-02-05) is a high-precision eddy current transducer system designed for non-contact vibration and displacement measurements in industrial automation environments. This 8 mm probe delivers an output voltage directly proportional to the distance between the probe tip and the target conductive surface, enabling accurate measurement of both static positions and dynamic vibration values. The 3300 XL 8 mm system is widely used for monitoring fluid-film bearing machinery, providing reliable Keyphasor reference signals, speed measurements, and machine condition diagnostics. Fully compliant with API 670 standards, the standard 5-meter 3300 XL 8 mm system ensures linearity, accuracy, and thermal stability for critical process control. All components, including probes, extension cables, and Proximitor sensors, are fully interchangeable and backward compatible with existing 3300 series 5 mm and 8 mm systems, simplifying upgrades and maintenance. The probe features a patented TipLoc molding for a robust tip-body bond and a CableLoc design providing 330 N pull strength to secure the probe cable. Optional FluidLoc cabling prevents leakage of oil or fluids, making the 3300 XL 8 mm Proximity Probe an ideal solution for automated industrial systems requiring long-term reliability, precise monitoring, and enhanced operational safety.
Key Functions
Applications
The 3300 XL 8 mm Proximity Probe is designed for precise non-contact measurement of both vibration and static positions in automated industrial machinery. Its 8 mm probe tip enables accurate monitoring of fluid-film bearing machines, providing essential Keyphasor reference signals, speed measurements, and rod or shaft displacement readings. The probe’s 5-meter cable option allows flexible installation in large machinery and complex systems, while its compliance with API 670 standards ensures reliable linearity, accuracy, and temperature stability under extreme operational conditions. Typical application scenarios include vibration monitoring of turbines, compressors, and motors, predictive maintenance programs, and high-precision process control in petrochemical, power generation, and heavy manufacturing environments. Its compact size and backward compatibility with existing 3300 series components allow easy integration and upgrades in automated systems without extensive retrofitting.
Official Specifications
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
50 mm |
|
Total Length Option: |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Dimension: |
24x24x3cm |
|
Weight: |
0.56kg |
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Frequently Asked Questions
What is the model number?
The listed model number is 330104-00-05-50-02-05.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
The 3300 XL 8 mm Proximity Probe offers robust performance and durability that exceed previous 3300 series designs. Its patented TipLoc molding ensures a secure bond between the probe tip and body, while the CableLoc design provides 330 N pull strength for reliable cable attachment. Optional FluidLoc cabling prevents leakage of oil or other process fluids, enhancing operational safety in harsh industrial environments. Miniature coaxial ClickLoc connectors guarantee stable electrical connections, and the system supports interchangeability with other 3300 series probes, extension cables, and Proximitor sensors, eliminating the need for component-specific calibration. CSA, ATEX, and IECEx approvals certify suitability for hazardous locations, while its wide operating temperature range (-52°C to +177°C) ensures consistent performance in extreme conditions. Together, these features make the 3300 XL 8 mm Proximity Probe a reliable and versatile solution for automated industrial monitoring and precise machinery diagnostics.
