Overview
Siemens • SIMATIC Industrial Automation

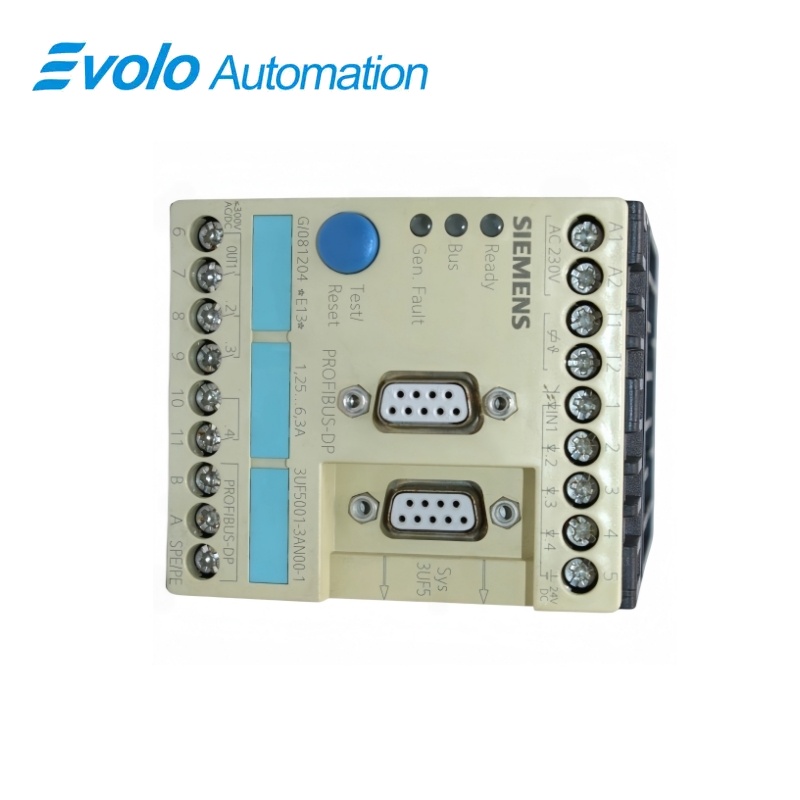

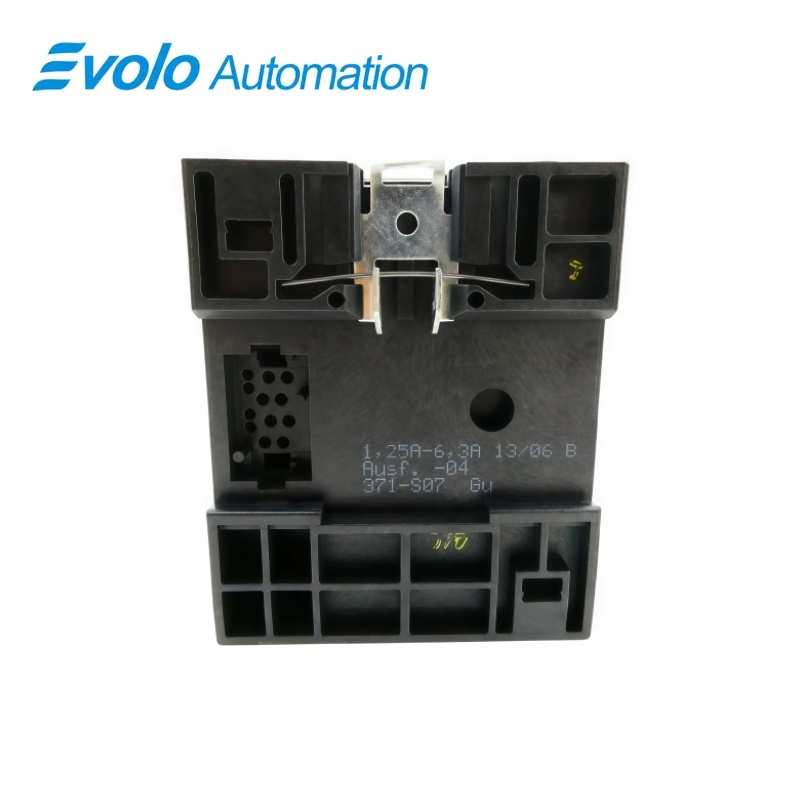

3UF5001-3AB00-1 SIMOCODE-DP Basic Unit
The Siemens SIMOCODE-DP Basic Unit 3UF5001-3AB00-1 is a motor-management basic unit identified in Siemens migration and system documentation.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 3UF5001-3AB00-1 |
| Product Type | Motor-management basic unit |
| Core Function | Provides SIMOCODE-DP motor-management functions with adjustable current detection |
| Application or Compatible Series | SIMOCODE-DP motor-control systems using PROFIBUS DP and compatible current transformers |
Exact Identification
Match 3UF5001-3AB00-1 character by character and confirm the complete SIMOCODE-DP Basic Unit designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The Siemens SIMOCODE-DP Basic Unit 3UF5001-3AB00-1 is a motor-management basic unit identified in Siemens migration and system documentation.
The 3UF5001 basic-unit range supports current detection through its three pass-through openings. The official system manual describes 1 A and 5 A secondary-current transformer connections for the 1.25 to 6.3 A setting range. Siemens maps this exact model to SIMOCODE pro component 3UF7020-1AB01-0.
Key Functions
Adjustable Current Detection

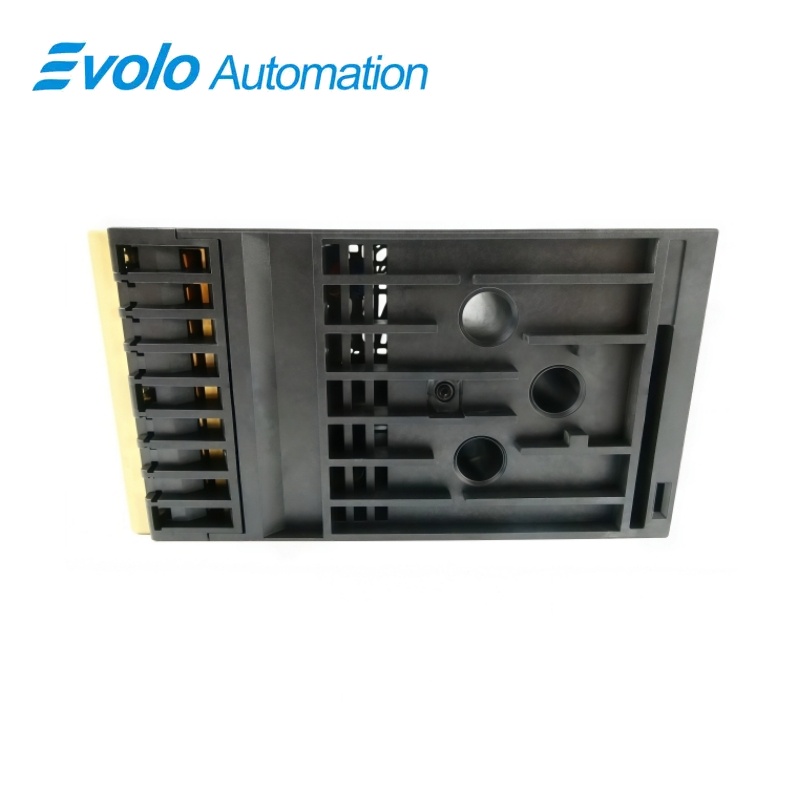

The 3UF5001 basic-unit range supports current detection through its three pass-through openings.
External Current Transformer Use
The official system manual describes 1 A and 5 A secondary-current transformer connections for the 1.25 to 6.3 A setting range.
System Migration Reference
Siemens maps this exact model to SIMOCODE pro component 3UF7020-1AB01-0.
Official Specifications
| Product Family | SIMOCODE-DP |
|---|---|
| Module Type | Basic unit |
| Supply Voltage | 24 V DC |
| Adjustable Current Range | 1.25 to 6.3 A |
| Current-Transformer Secondary Current | 1 A or 5 A |
| Pass-Through Openings | 3 |
| Recommended Current-Transformer Frequency | 50 or 60 Hz |
| Recommended Transformer Output | At least 2.5 VA; dependent on secondary current and cable length |
| Recommended Transformer Accuracy Class | 1 |
| SIMOCODE pro Migration Target | 3UF7020-1AB01-0 |
Frequently Asked Questions
Which motor-management system uses 3UF5001-3AB00-1?
Use the basic unit within a compatible SIMOCODE-DP motor-control arrangement.
What current range is available on 3UF5001-3AB00-1?
The relevant 3UF5001 configuration has an adjustable range from 1.25 to 6.3 A.
Can external current transformers be used with 3UF5001-3AB00-1?
Yes; the supported arrangements use 1 A or 5 A transformer secondary current through the module openings.
How many pass-through openings does 3UF5001-3AB00-1 have?
The basic unit uses three pass-through openings for current detection.
Which transformer frequency is recommended for 3UF5001-3AB00-1?
Use a suitable 50 Hz or 60 Hz current transformer with the documented secondary-current arrangement.
What should be saved before replacing 3UF5001-3AB00-1?
Back up the PROFIBUS configuration, motor parameters, protection settings, control logic and current-transformer setup.
What should be checked after commissioning 3UF5001-3AB00-1?
Verify current detection, motor protection, communication, control outputs and the intended motor sequence.
Compatibility & Ordering Notes
Compatibility Checklist
- Use a matching SIMOCODE-DP system configuration.
- Match the current transformer and conductor routing to the approved settings.
- Restore motor parameters and fieldbus configuration before commissioning.
