330104-00-07-90-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-07-90-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

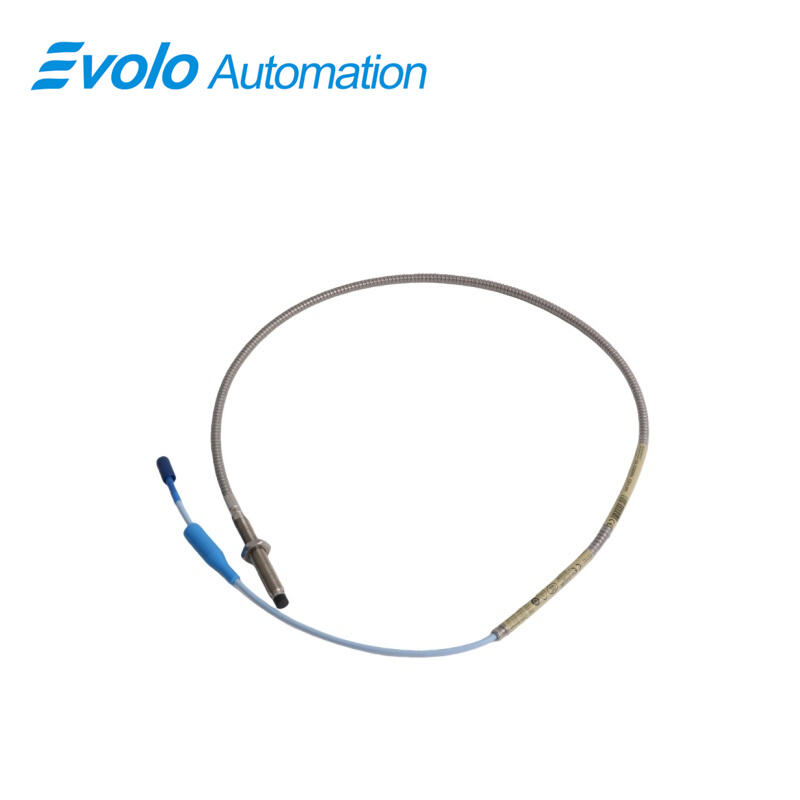

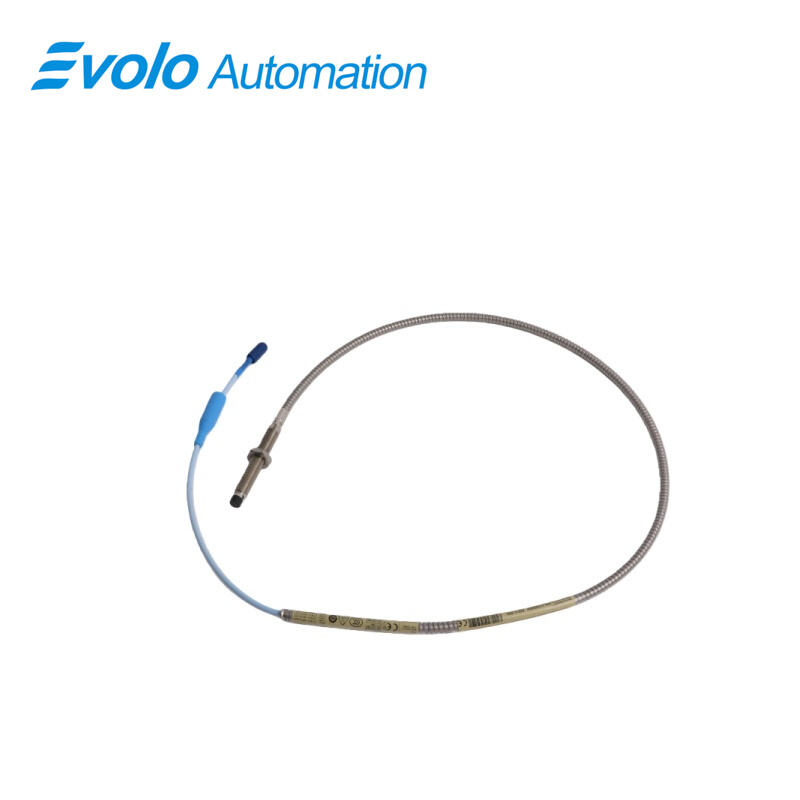

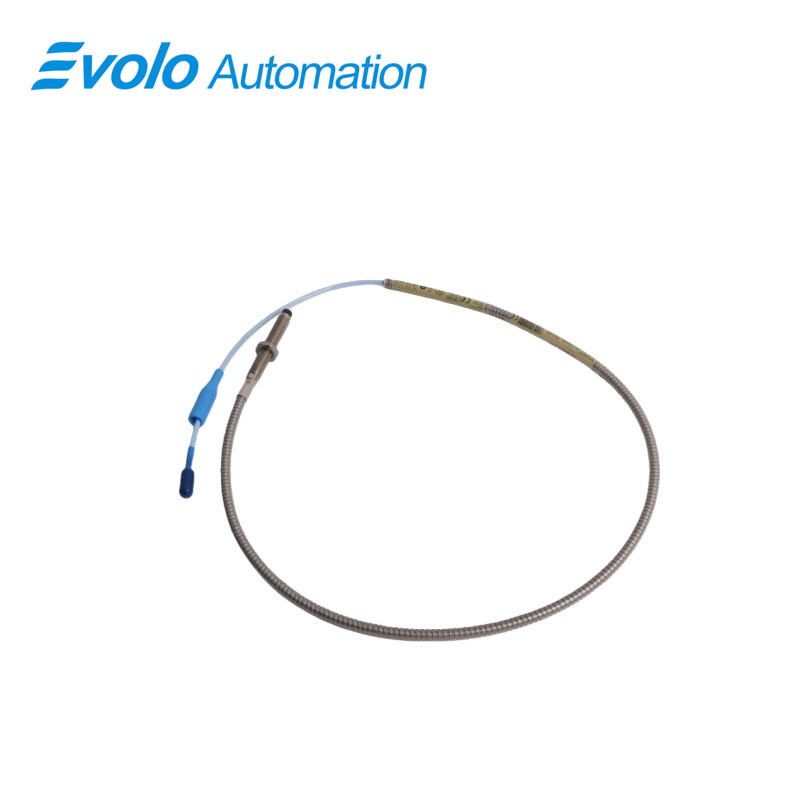

The 330104-00-07-90-02-05 3300 XL 8 mm Proximity Probe is a sophisticated eddy current sensor engineered for high-performance machinery protection in the most challenging industrial environments. As a primary transducer in the Bently Nevada 3300 XL ecosystem, the 330104-00-07-90-02-05 3300 XL 8 mm Proximity Probe excels at measuring radial vibration and axial position with microscopic precision. This specific 330104-00-07-90-02-05 3300 XL 8 mm Proximity Probe configuration features a 70 mm metric M10 x 1 threaded case and a 9.0-meter (29.5 feet) total length, eliminating the need for separate extension cables in many installations.

A distinguishing characteristic of the 330104-00-07-90-02-05 3300 XL 8 mm Proximity Probe is its integrated stainless steel armor, which provides superior physical protection for the coaxial cable against mechanical abrasion and sharp debris. Internally, the 330104-00-07-90-02-05 3300 XL 8 mm Proximity Probe utilizes patented TipLoc technology to create an unbreakable bond between the Polyphenylene Sulfide (PPS) tip and the AISI 304 stainless steel body. Furthermore, the 330104-00-07-90-02-05 3300 XL 8 mm Proximity Probe incorporates the CableLoc design, ensuring the cable remains securely attached even under extreme tension or constant vibration.

With a linear range of 2.0 mm (80 mils), the 330104-00-07-90-02-05 3300 XL 8 mm Proximity Probe delivers a highly stable voltage output proportional to shaft movement. The "05" Agency Approval ensures the 330104-00-07-90-02-05 3300 XL 8 mm Proximity Probe is certified for global use in hazardous areas, including ATEX, IECEx, and CSA environments.

Applications

Integral Stainless Steel Armor for Maximum Durability The 330104-00-07-90-02-05 features a factory-installed flexible 304 stainless steel armor that shields the delicate coaxial cable. This provides a significant competitive edge in harsh industrial environments where cables are prone to being crushed, cut, or damaged by flying debris. The armor extends the sensor's lifespan and eliminates the need for external conduits, reducing overall installation costs and complexity.

Single-Cable 9-Meter Configuration By providing a continuous 9.0-meter total length, this probe eliminates the connection point between a standard 1-meter probe and an extension cable. This "single-piece" approach reduces potential failure points, prevents moisture ingress at the connector, and ensures a cleaner signal path with less impedance mismatch. It is the most reliable solution for long-reach applications where signal integrity is paramount.

Global Hazardous Area Certifications The "05" Agency Approval option provides the 330104-00-07-90-02-05 with a comprehensive suite of safety ratings, including CSA, ATEX, and IECEx certifications. This allows multinational companies to standardize their spare parts inventory across different geographic regions with a single part number. This universality, combined with the probe's resistance to temperatures up to +177°C, ensures it can be deployed in the most stringent chemical and power plant environments worldwide.

Specifications

Competitive Advantage

1.Proven Measurement Accuracy and Signal Stability

The 3300 XL 8 mm Proximity Probes offer a defined 2 mm linear range, low supply sensitivity, and stable 50 Ω output resistance. These characteristics ensure consistent, low-noise signal output, enabling accurate vibration analysis and long-term trend monitoring even under fluctuating power and environmental conditions.

2.Robust Mechanical Design for Industrial Environments

Constructed with a stainless steel probe case and PPS probe tip, the probes exhibit strong resistance to corrosion, heat, oil, and mechanical stress. This durability extends service life, reduces replacement frequency, and lowers overall maintenance costs in demanding industrial applications.

3.Compact Structure for Flexible Installation

With a short 50 mm case length and zero unthreaded length, the 3300 XL 8 mm Proximity Probes can be installed in confined spaces without modifying existing machinery. The compact design allows precise probe positioning in tight bearing housings and compact machine layouts.

4.Seamless Integration into Monitoring Systems

Standardized electrical characteristics and connector design allow the probes to integrate smoothly into existing proximity transducer and monitoring systems. This simplifies system configuration, shortens installation time, and minimizes downtime during maintenance or probe replacement.
