SDCS-POW-1 10012279F Power Supply

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	SDCS-POW-1 10012279F
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

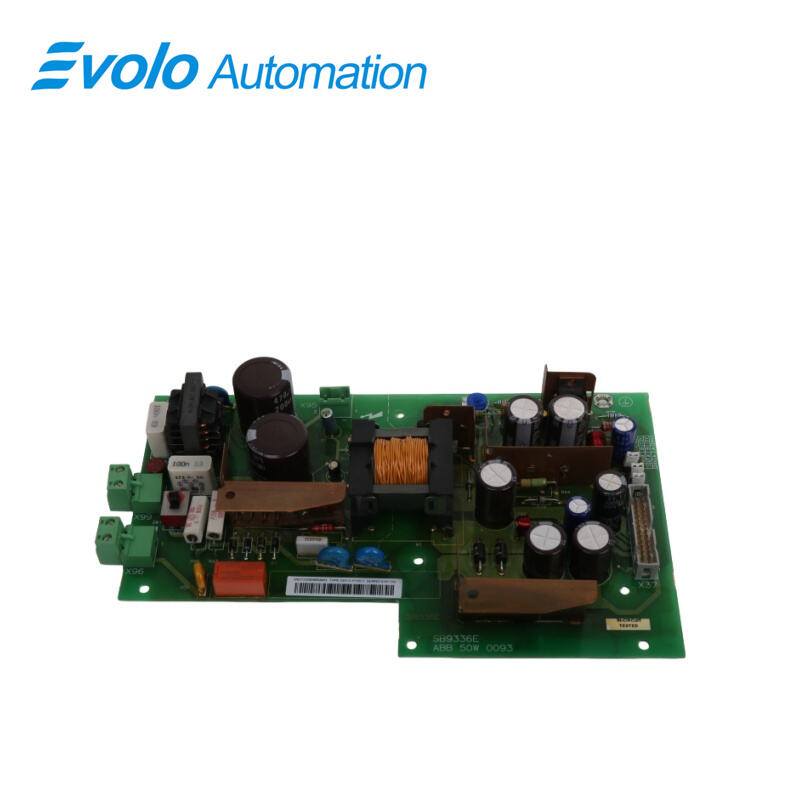

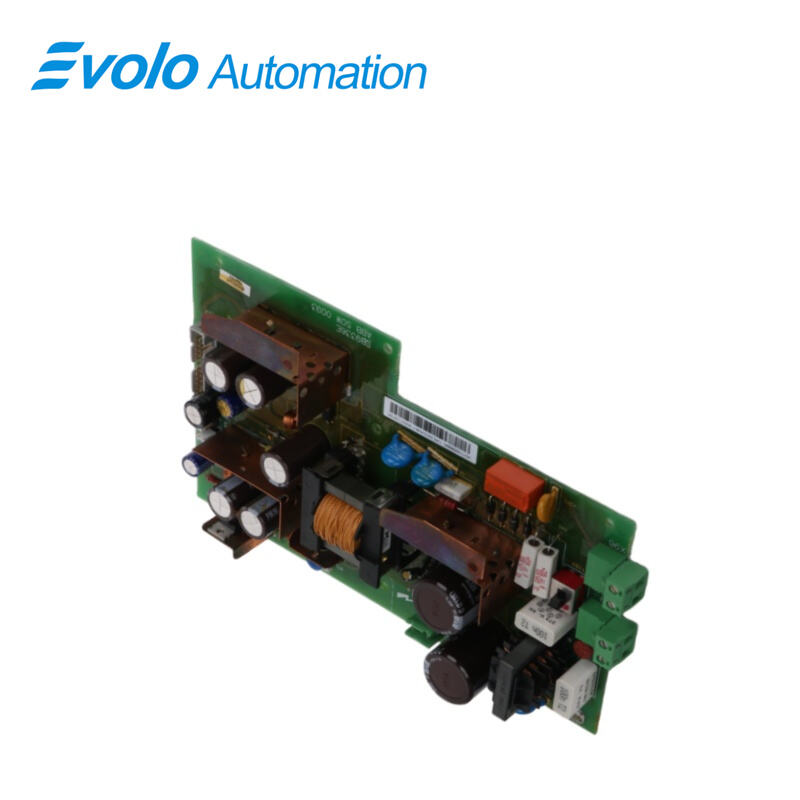

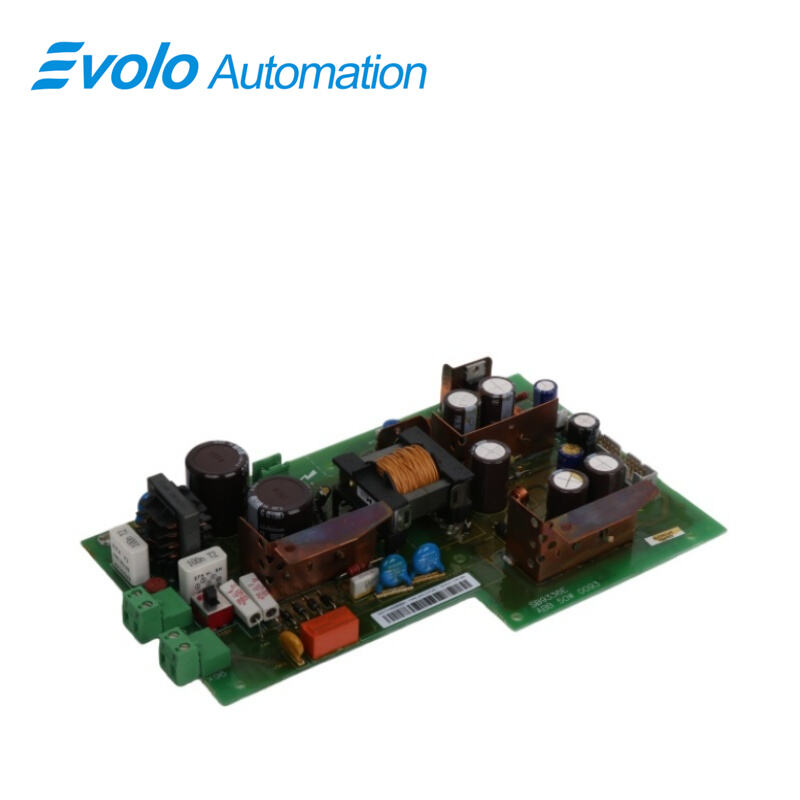

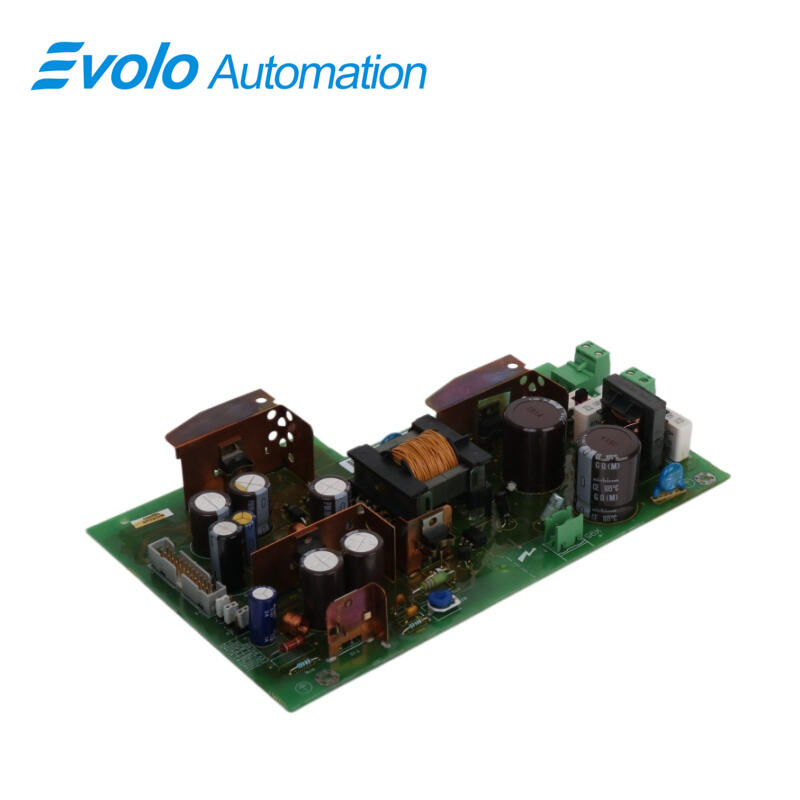

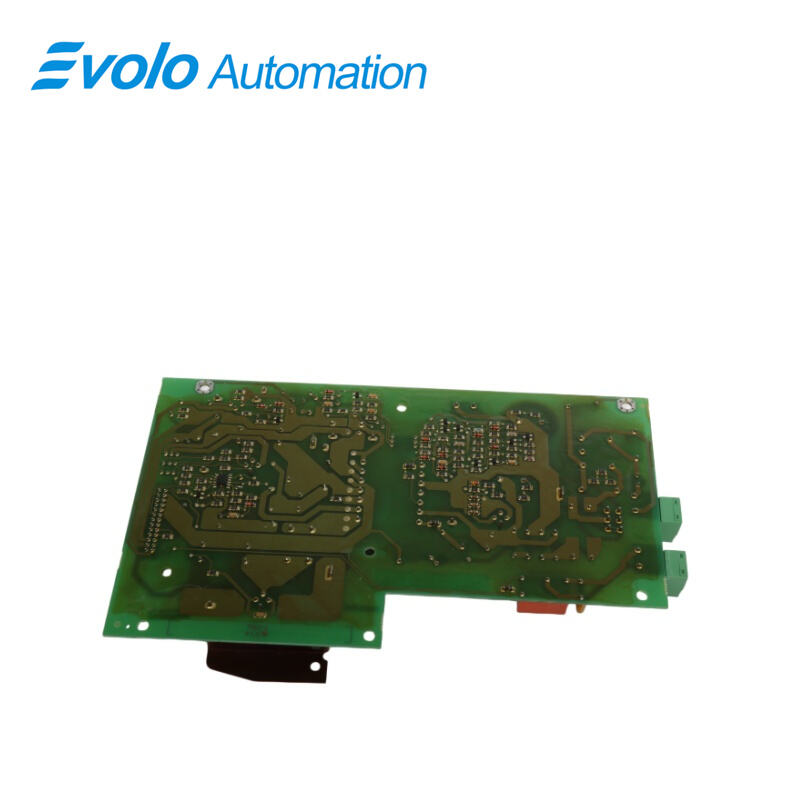

The SDCS-POW-1 10012279F is a high-performance power supply board designed for ABB DCS500 series DC drives, providing essential multi-voltage regulation (+5V, ±15V, +24V) for control electronics and fan operations. Featuring wide-range input voltage and built-in protection against industrial noise, this module ensures system stability and protects internal components in demanding environments.

Applications

Precision machining plants: Provide stable control power for DC drives of high-precision CNC machine tools.

Textile fiber mills: Ensure control systems in high-speed spinning equipment are unaffected by power grid fluctuations.

Automated packaging plants: Support logic power supply for palletizing robots and conveyor line drives.

Metal calendering plants: Suitable for auxiliary energy management of speed control systems in small and medium-sized plate rolling machines.

Plastics blow molding plants: Ensure efficient power supply for internal components of extruder control cabinets in high-temperature environments.

Maintenance

Troubleshooting: If the output current is less than 10A or the voltage is abnormal, check if the 230V AC input is stable. If efficiency decreases or overheating occurs, clean the dust from the IP20 chassis ventilation holes.

Maintenance Recommendations: It is recommended to check the input current annually to ensure it is within the normal range of below 2.5A. Regularly tighten the wiring terminals to prevent localized overheating caused by loosening.

FAQ

Q1: Does SDCS-POW-1 10012279F power board support 110V AC input?
A1: No. This model is designed for standard 230V AC industrial voltage to ensure a full 500W output.

Q2: Can the 10A output current of SDCS-POW-1 10012279F drive multiple modules?
A2: Yes. As long as the total current demand of the parallel loads does not exceed 10A, it can power multiple control boards simultaneously.

Q3: What are the practical benefits of 95% efficiency for SDCS-POW-1 10012279F in a factory?
A3: It means less energy is wasted on heat, reducing the control cabinet's reliance on cooling systems such as air conditioners or fans.

Q4: How is SDCS-POW-1 10012279F installed?
A4: It is mounted using standard DIN rails or screws and can be easily integrated into compact spaces due to its compact size.

Q5: Does SDCS-POW-1 10012279F support direct outdoor installation?
A5: No. Its protection rating is IP20, and it must be installed in a dry, ventilated, and protected distribution cabinet.
