330104-10-23-10-01-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-10-23-10-01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

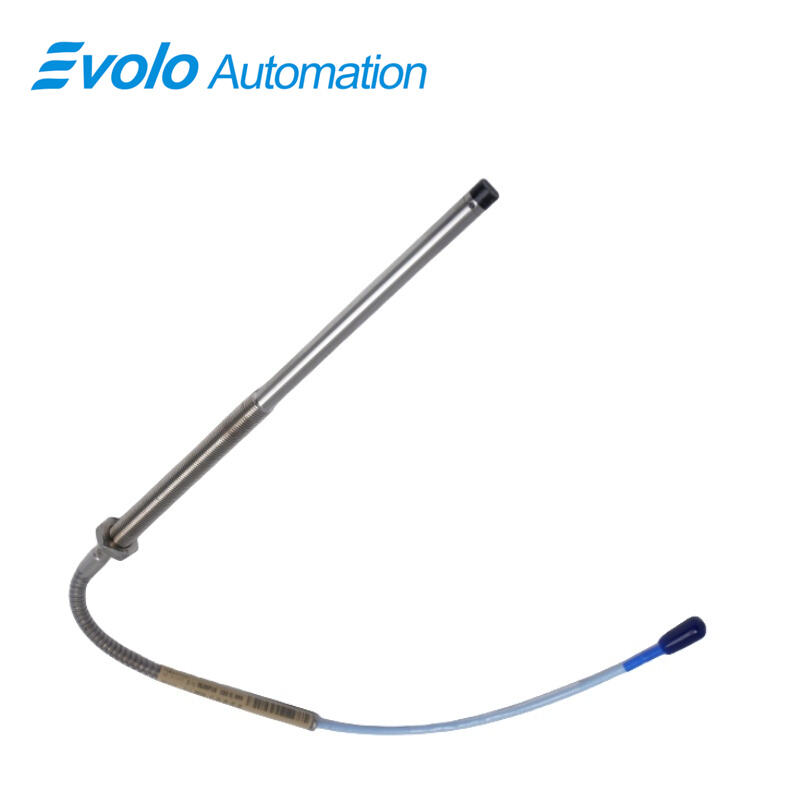

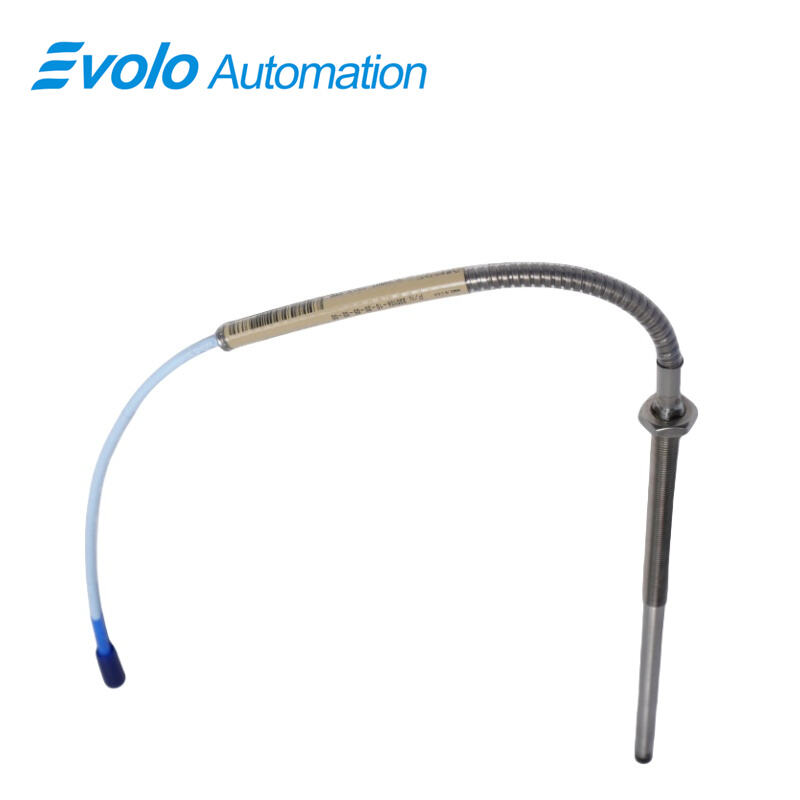

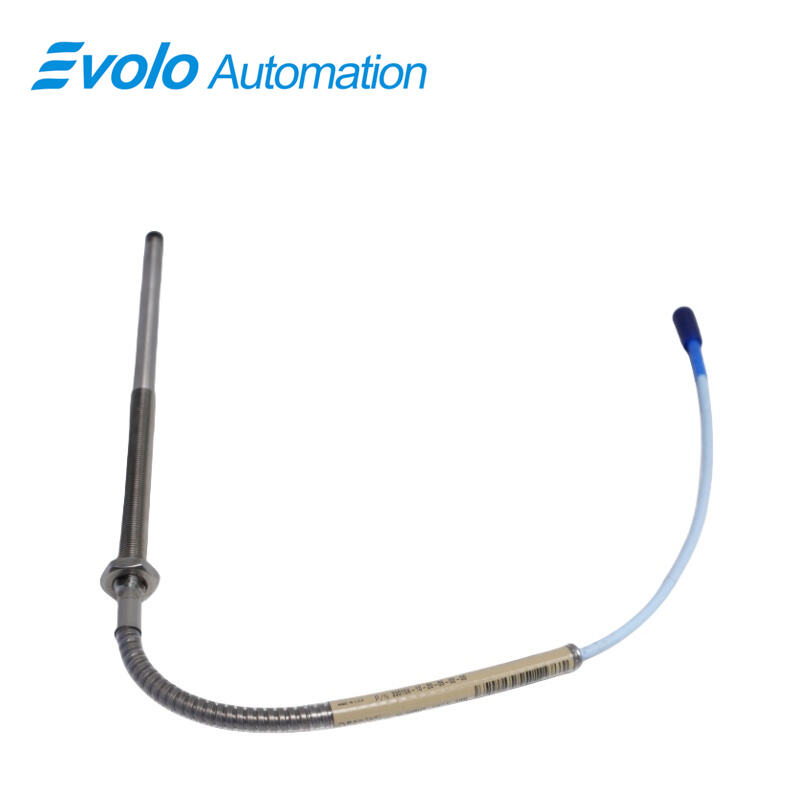

The 330104-10-23-10-01-00 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer designed for precise measurement of both static positions and dynamic vibrations in industrial automation environments. Featuring a 2 mm (80 mils) linear range, the probe provides an analog voltage output proportional to the distance between the probe tip and the target surface, ensuring accurate monitoring of rotor and shaft displacement. Constructed with a robust M10x1 threaded stainless steel housing and a miniature coaxial ClickLoc connector with protector, the probe is engineered for extreme reliability in harsh operating conditions, supporting temperatures from –52°C to +177°C (–62°F to +350°F). Its extension cable features low capacitance (69.9 pF/m) and supports standard 16–24 AWG field wiring, allowing seamless integration with 3300 XL Proximitor Sensors and other system components. The patented TipLoc molding and CableLoc designs provide superior mechanical integrity, with 330 N (75 lbf) pull strength, while the optional FluidLoc cable prevents fluid ingress, ensuring long-term system stability. The probe is fully backward compatible with standard 3300 5 mm and 8 mm systems, supporting flexible upgrades without the need for bench calibration or component matching.

Applications

Fluid-Film Bearing Vibration Monitoring
Accurately measures radial vibration and shaft displacement on fluid-film bearings in turbines, compressors, and pumps, providing early fault detection.

Position Sensing for Rotating Machinery
Monitors axial and radial shaft positions for precise control in high-speed industrial rotors and machinery.

Keyphasor and Speed Measurement
Provides accurate Keyphasor reference signals for speed measurement and phase monitoring of rotating equipment.

Harsh Environment Industrial Automation
Operates reliably under extreme temperatures (–52°C to +177°C) and in oil-laden or high-vibration environments, suitable for heavy industry.

Predictive Maintenance and Condition Monitoring
Integrates with 3300 XL Proximitor Sensors to provide continuous real-time data for predictive maintenance programs, minimizing downtime.

Specifications

Competitive Advantage

High Linear Accuracy
2 mm linear range with precise analog voltage output enables detailed monitoring of small displacements in critical machinery.

Robust Mechanical Design
M10x1 stainless steel housing, TipLoc molding, and CableLoc technology provide exceptional durability and resistance to mechanical stress.

Extreme Temperature Operation
Supports –52°C to +177°C operation, allowing deployment in steam turbines, compressors, and high-temperature industrial systems.

Flexible Integration
ClickLoc connectors, low-capacitance extension cable, and full backward compatibility enable easy integration with existing 3300 series systems.

Optional Fluid Protection
FluidLoc cable option prevents oil and liquid ingress, extending probe life and maintaining measurement reliability in challenging industrial environments.
