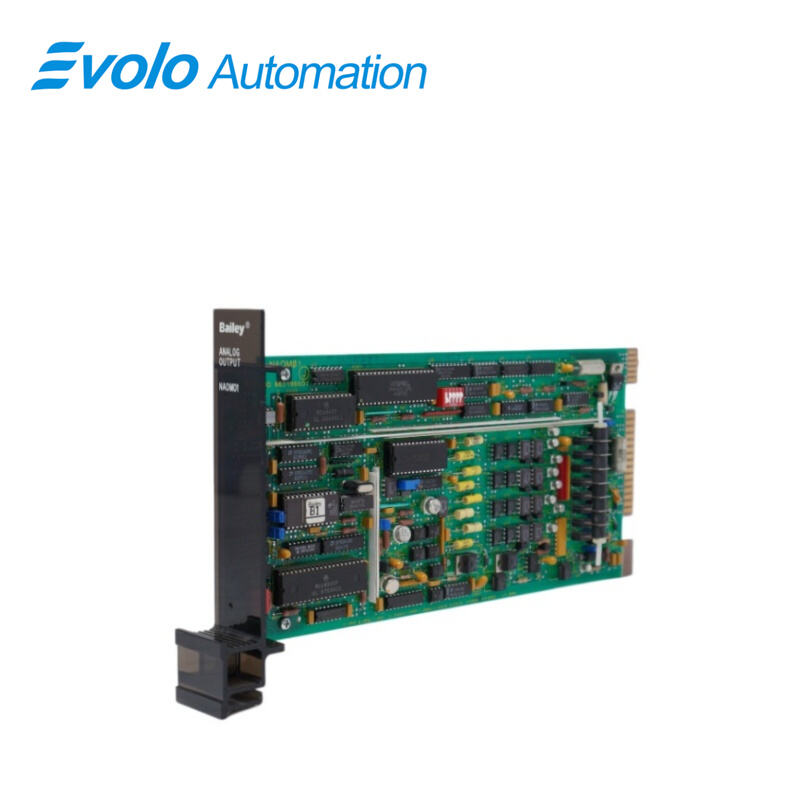

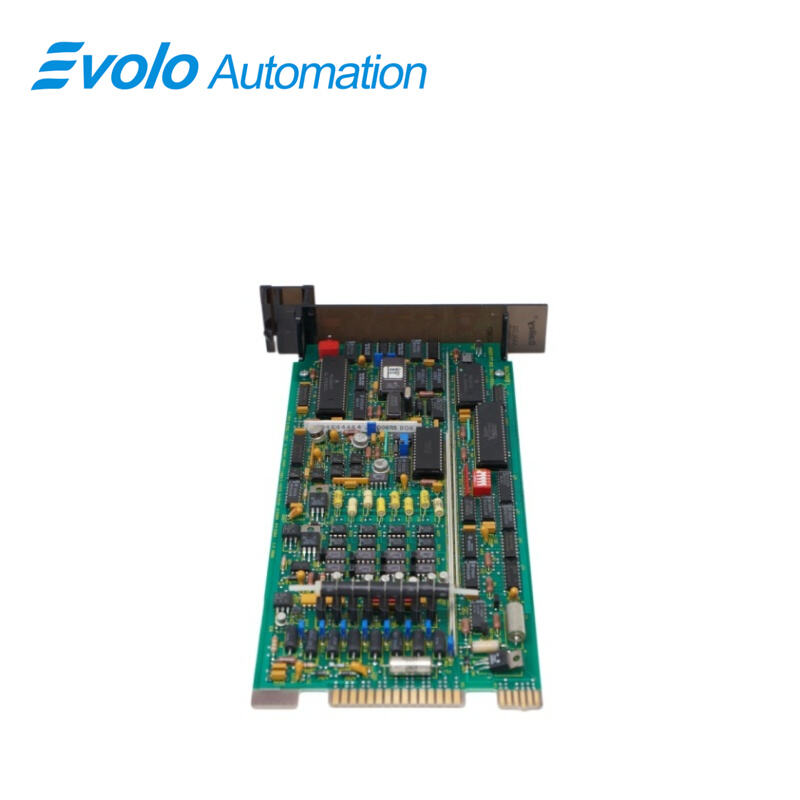

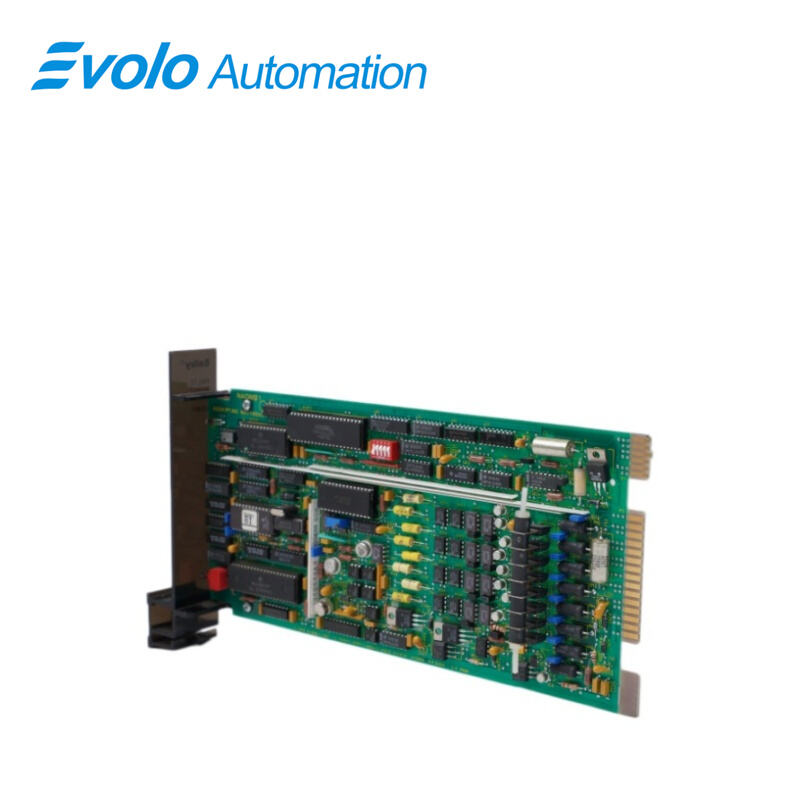

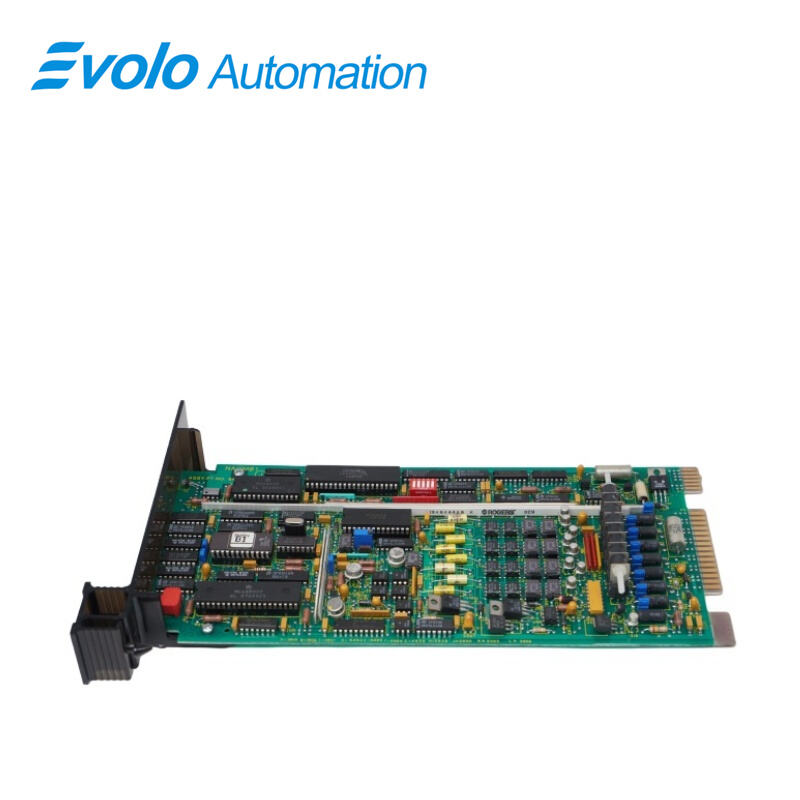

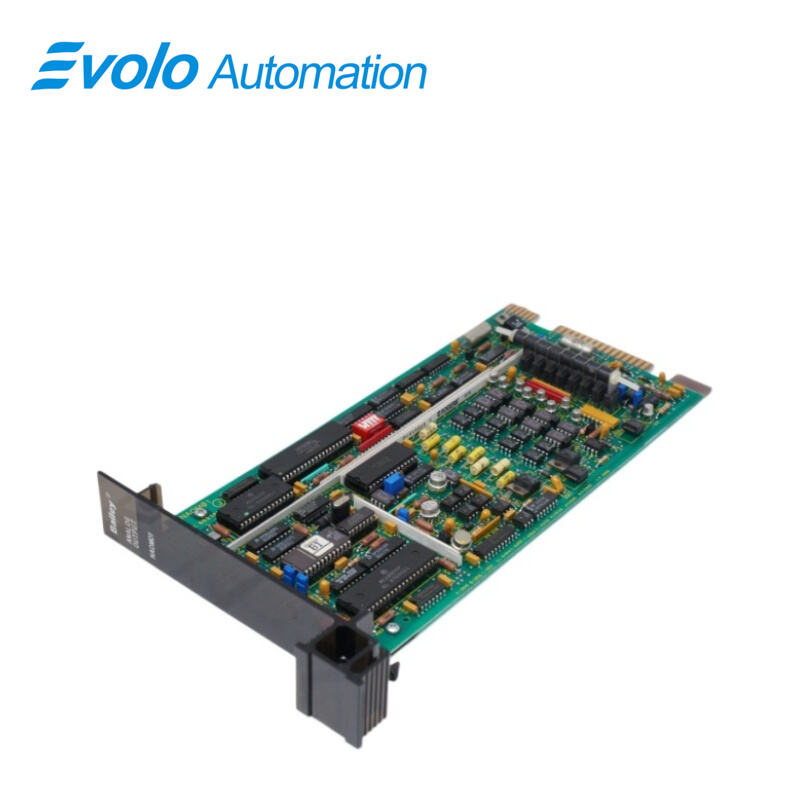

NAOM01 Bailey Network 90 Analog Output Module, China NAOM01 Bailey Network 90 Analog Output Module Manufacturers, Suppliers, Factory

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	NAOM01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Part Number	NAOM01
Product Type	Bailey Network 90 Analog Output Module
Channels	4 channels
Output Range	0–20 mA / 0–10 V
Accuracy	±0.1%
Operating Voltage	24 VDC
Protection Rating	IP65
Interface Type	M12 connector
Dimensions	15.2×10.5×5.3 cm
Weight	0.8 kg

Description

The ABB NAOM01 analog output module is a high-performance industrial automation device suitable for various complex industrial environments. It provides accurate analog signal output, ensuring high precision and stability in signal transmission. Furthermore, this module boasts excellent anti-interference capabilities, enabling it to operate normally even in environments with severe electromagnetic interference.

Applications

Precision Chemical Plants: Used for remote control of proportional control valves, utilizing ±0.1% precision to ensure stringent consistency in chemical reaction ratios.

Coal Power Plants: Deployed in harsh, low-level equipment rooms, directly controlling the frequency commands of inverters for feedwater pumps and blowers.

Oil Processing Plants: Monitor and regulate pressure regulating valves on long-distance pipelines, utilizing IP65 protection to withstand complex outdoor environments.

Large Paper Mills: Precisely drive paper machine drive systems, maintaining high-speed synchronization of paper tension through stable analog output.

Troubleshooting and Maintenance

Troubleshooting:
Loop fluctuation: Check M12 connector contacts for contamination or looseness and verify grounding of shielding layer.

Channel load issue: If output current is insufficient, check whether loop impedance exceeds rated drive capacity.

Maintenance:
Sealing check: Inspect M12 sealing rings regularly to maintain IP65 protection in dusty environments.

Calibration: Use a standard signal calibrator to verify zero and full-scale accuracy of all four channels during overhaul.

FAQ

Q: Does NAOM01 support mixing current and voltage signals?
A: Yes. Its four channels can be set independently or in groups for different output modes.

Q: How does the M12 interface help NAOM01 maintenance in Network 90 systems?
A: M12 locking reduces wiring errors and vibration-induced signal interruption.

Q: Is NAOM01 safe above 24 VDC?
A: No. It is designed for 24 VDC; voltage regulation is recommended to avoid damage.

Q: Can NAOM01 drive high-impedance long-distance loads?
A: Yes, in current mode if loop resistance stays within rated limits to maintain ±0.1% accuracy.

Q: Does NAOM01 replacement require special software licensing?
A: No. Match DIP switch and hardware settings for seamless replacement.
