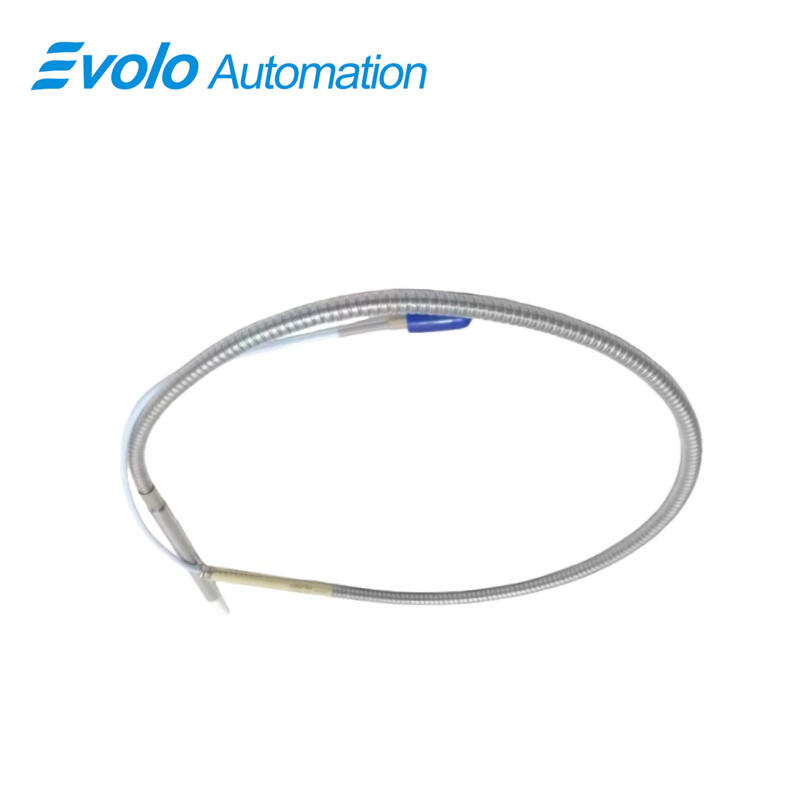

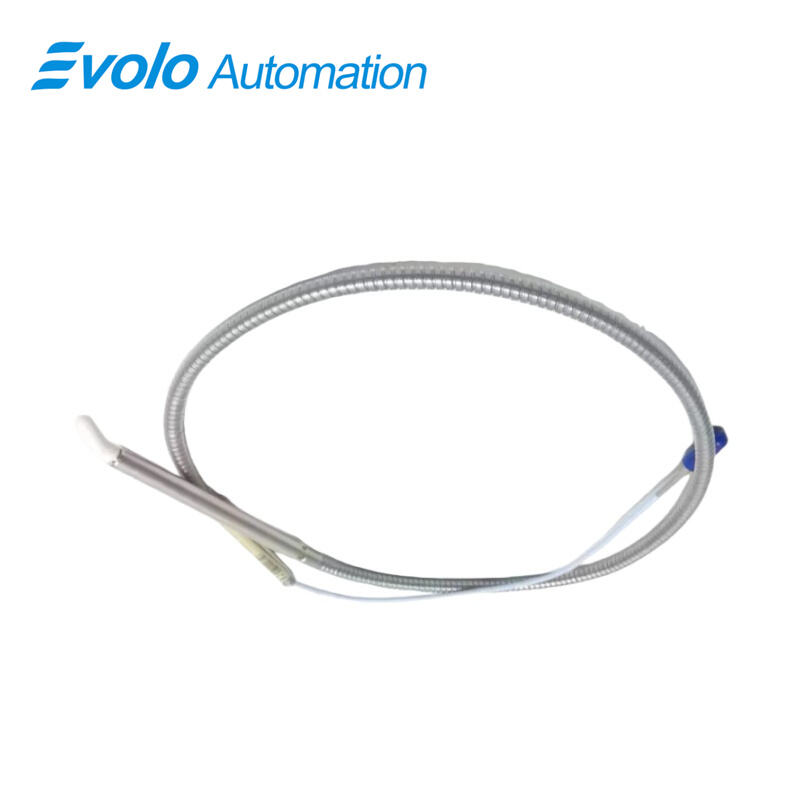

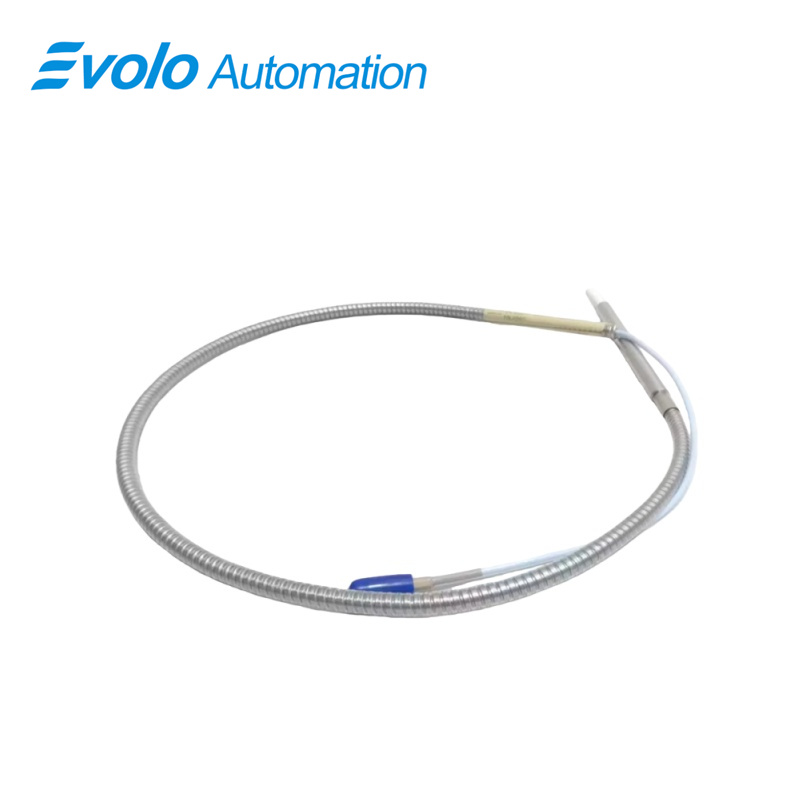

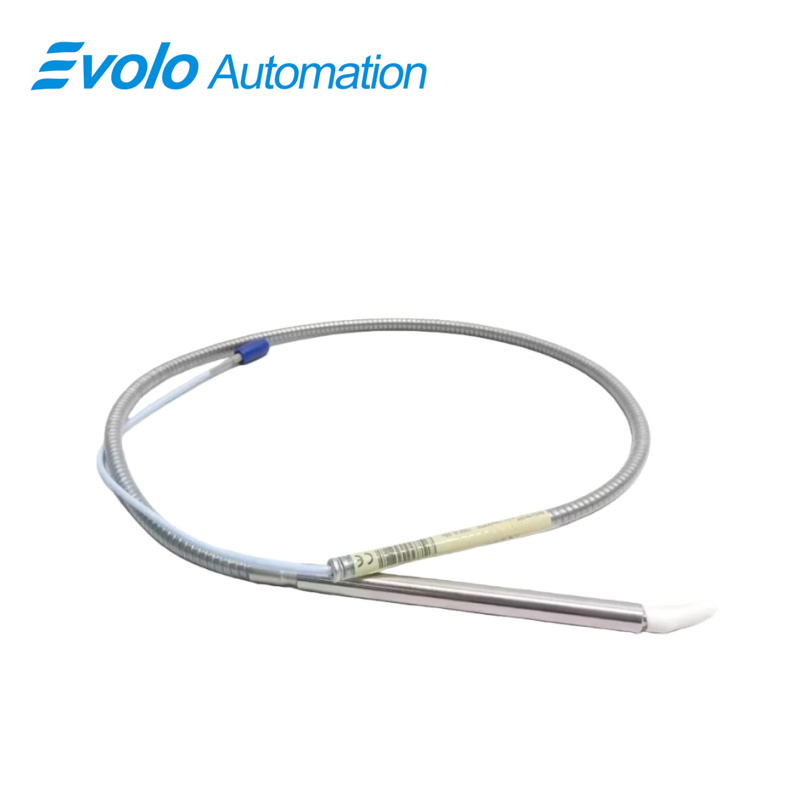

109549-01 3300 Xl Nsv Photoelectric Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	109549-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 109549-01 3300 XL NSv Photoelectric Probe is a high-performance, industrial-grade photoelectric sensor designed for precise non-contact position, displacement, and motion detection in automated systems. With a measurement range of 0–50 mm and sub-millisecond response time (<1 ms), this probe delivers fast and accurate feedback for both analog and digital control systems. It operates reliably across a temperature range of -40°C to +120°C and withstands shock up to 50 g and vibration from 10–500 Hz at 5 g, ensuring robust performance in harsh industrial environments. Housed in stainless steel with IP67 protection, the probe resists dust and moisture ingress, while flexible mounting options including threaded or flange mount enable easy installation on a variety of machinery. A shielded twisted-pair cable with optional M12 or DIN 43650 connector ensures noise-resistant signal transmission. Fully compliant with CE and RoHS standards, the 3300 XL NSv Photoelectric Probe integrates seamlessly into rotating machinery, conveyors, and automated inspection systems, providing reliable, high-speed measurement and contributing to predictive maintenance and operational efficiency.

Applications

Precision Position Monitoring
Accurately measures the linear or angular displacement of machine components with a 0–50 mm range, critical for servo-driven systems and robotic actuators.

High-Speed Automation Control
Fast response time of <1 ms enables real-time feedback for conveyor systems, packaging lines, and pick-and-place robots, enhancing cycle efficiency.

Harsh Environment Sensing
IP67-rated housing and stainless steel construction allow deployment in dusty, wet, or vibration-prone environments like mining, pulp, and chemical processing plants.

Rotating Machinery Feedback
Monitors rotor or shaft displacement on turbines, motors, or pumps, supporting Keyphasor reference signals and predictive maintenance analytics.

Integration with Industrial Networks
Analog or digital output, combined with optional M12/DIN 43650 connectors, allows seamless integration into PLC, DCS, or SCADA systems for automated monitoring and control.

Specifications

Competitive Advantage

Rapid Response Time
With a <1 ms response, it provides immediate feedback for high-speed automation and motion control, minimizing process delays.

Wide Operating Temperature
Operates between -40°C to +120°C, outperforming many standard photoelectric probes in extreme industrial conditions.

High Durability
Certified for 50 g shock and 5 g vibration, ensuring reliable operation in high-impact or rotating machinery applications.

Flexible Installation
Supports threaded and flange mounting with optional connector types, simplifying integration into existing automation systems.

Signal Integrity and Protection
Shielded twisted-pair cable and stainless steel IP67 housing reduce electromagnetic interference, ensuring stable and accurate analog/digital outputs in challenging industrial environments.
