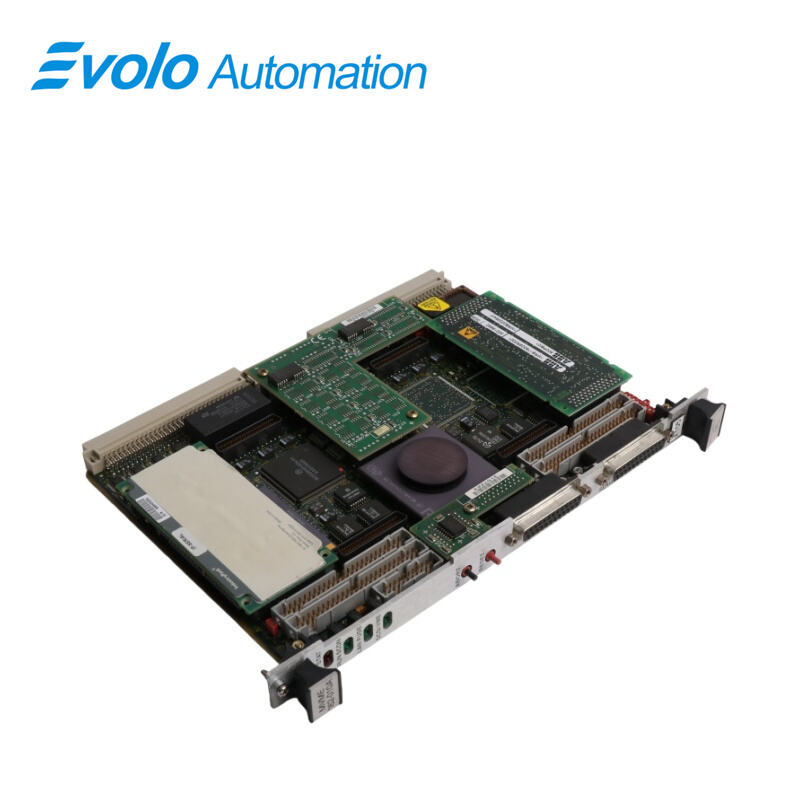

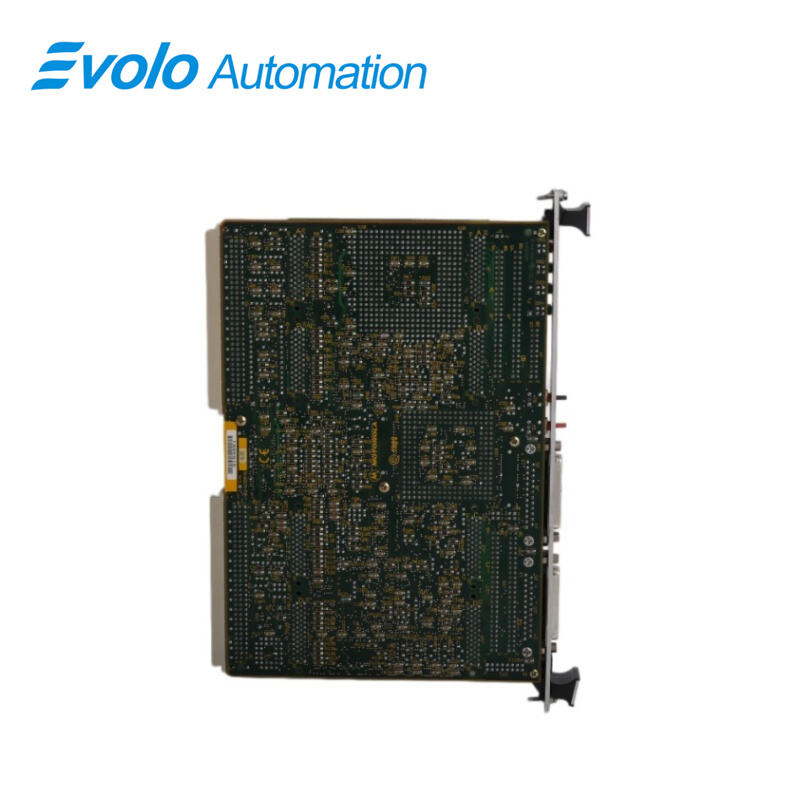

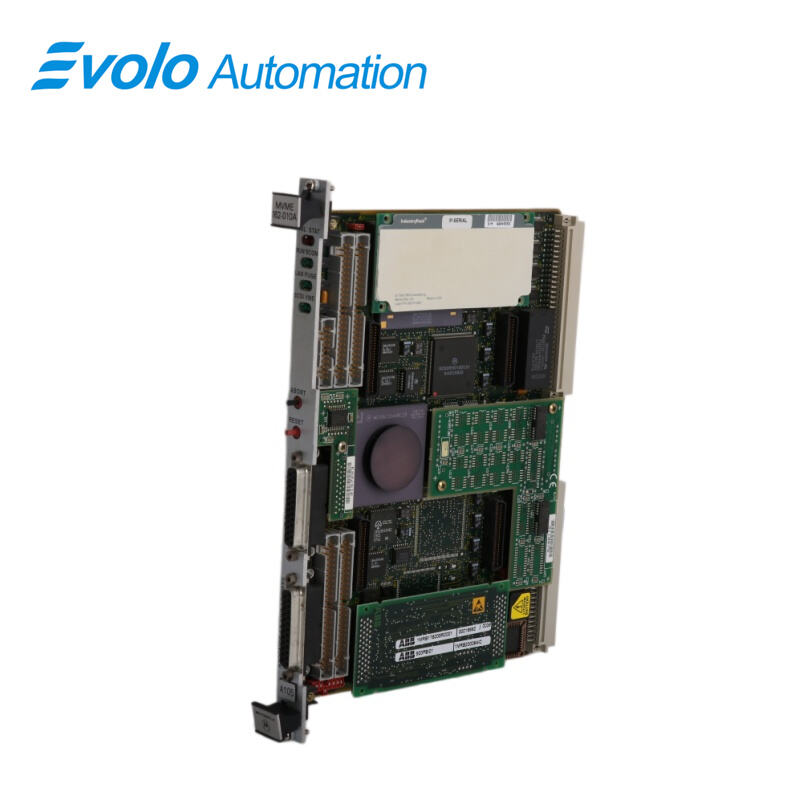

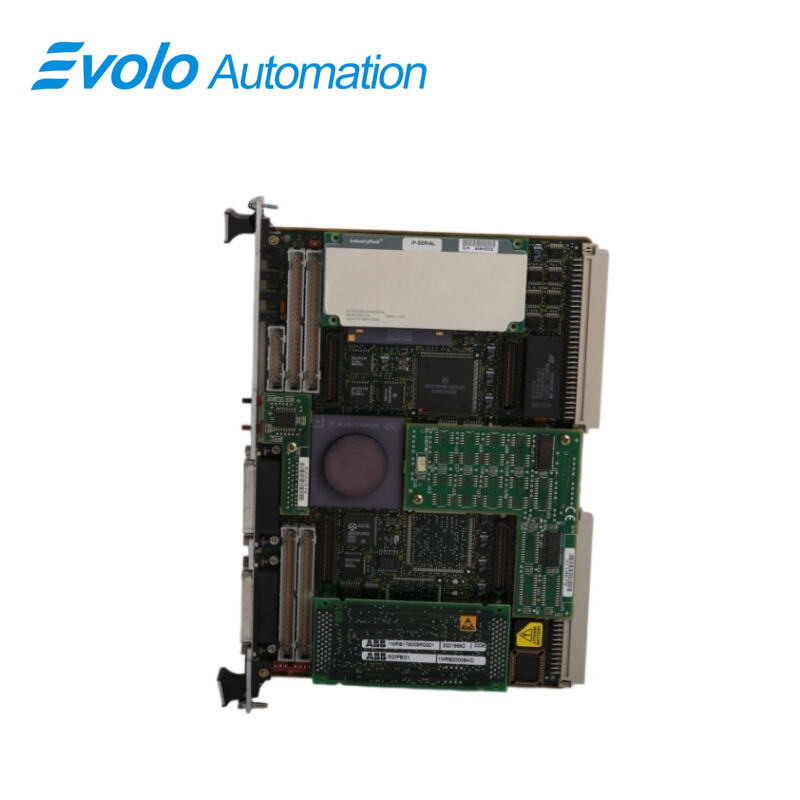

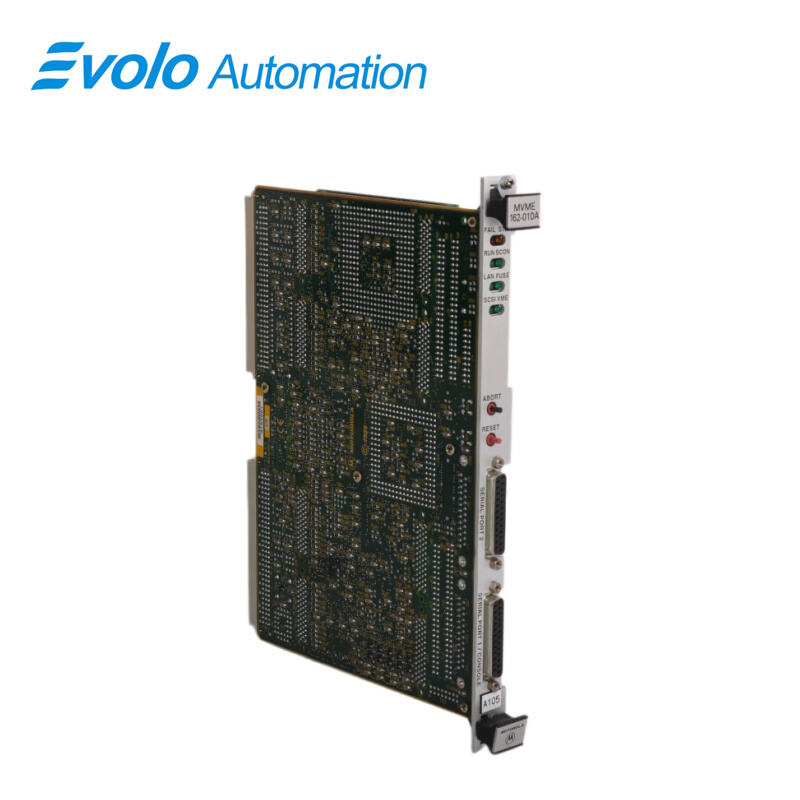

Overview
Place of Origin: |
USA |
Brand Name: |
MOTOROLA |
Model Number: |
MVME162-522A |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Processor Microprocessor: |
MC68040 / MC68LC040 |
|
Clock Frequency: |
32 MHz / 25 MHz |
|
Memory Type: |
Dynamic RAM, Flash, Static RAM |
|
Memory Capacity: |
4MB, 8MB, 16MB, 512KB, 1MB |
|
Read/Write Burst Mode: |
4-1-1-1 / 3-2-2-2 / 4-2-2-2 / 5-3-3-3 |
|
Parity: |
No |
|
Shared: |
VMEbus and local bus (except Flash) |
|
Battery Type: |
Lithium |
|
Battery Life (40° C): |
200 days |
|
EPROM: |
One 1M x 8 (32-pin PLCC socket) |
|
VMEbus Standard: |
ANSI/VITA 1-1994 VME64 (IEEE STD 1014) |
|
DTB Master: |
A16–A32; D08–D64, BLT, UAT + MBLT |
|
DTB Slave: |
A24–A32; D08–D64, BLT, UAT + MBLT |
|
Arbiter: |
RR/PRI |
|
Interrupt Handler: |
IRQ 1–7 |
|
Interrupt Generator: |
Any 1 of 7 |
|
System Controller: |
Yes, jumperable |
|
Location Monitor: |
Four, LMA32 |
|
SCSI Controller: |
NCR 53C710 |
|
SCSI Local Bus DMA: |
Yes, with local bus burst |
|
SCSI Speed: |
5.0 MB/s async, 10.0 MB/s sync |
|
Ethernet Controller: |
82596CA |
|
Ethernet Local Bus DMA: |
Yes |
|
IndustryPack Data Width: |
16/32-bit |
|
IndustryPack Interrupts: |
Two levels |
|
IndustryPack DMA: |
Four channels |
|
IndustryPack Clock Speed: |
8 or 32 MHz |
|
IndustryPack Module Types: |
Four single-high, two double-high |
|
Power +5V: |
3.5 A typical, 4.5 A max |
|
Power +12V: |
— typical, 100 mA max |
|
Power –12V: |
100 mA typical, — max |
|
Serial Controller: |
85230 |
|
Console Port: |
EIA-232-D DCE |
|
Second Serial Port: |
User configurable EIA-232 / EIA-530 / EIA-485 |
|
Max Baud Rate: |
38.4K bps Sync/Async |
|
Multiprocessing Support: |
4 mailbox interrupts, RMW, shared RAM |
|
Debug/Monitor: |
MVME162FW, boot and diagnostics |
|
Transition Module (Optional): |
MVME712 Series |
|
Board Size Height: |
233.4 mm (9.2 in) |
|
Board Size Depth: |
160.0 mm (6.3 in) |
|
Front Panel Height: |
261.8 mm (10.3 in) |
|
Board Width: |
19.8 mm (0.8 in) |
|
Serial Connectors: |
DB-25 female connectors and P2 |
|
Ethernet/SCSI Connectors: |
P2 |
|
IndustryPack I/O Connectors: |
Four 50-pin connectors on planar |
|
Operating Temperature: |
0° C to +70° C (forced air cooling) |
|
Nonoperating Temperature: |
–40° C to +85° C |
|
Operating Altitude: |
5,000 m |
|
Nonoperating Altitude: |
15,000 m |
|
Operating Humidity (NC): |
5% to 90% |
|
Nonoperating Humidity (NC): |
5% to 90% |
|
Operating Vibration: |
2 Gs RMS, 20–2000 Hz random |
|
Nonoperating Vibration: |
8 Gs RMS, 20–2000 Hz random |
Description
The MVME162 family provides OEMs and solutions developers an ideal platform for embedded monitoring and control applications. It allows an OEM to minimize engineering expenses while integrating value-added hardware and software applications onto an off-the-shelf product. In order to provide this wide range of solutions, the MVME162 allows a variety of MPU, memory, and interface options such as floating-point, Ethernet, SCSI, and VME. The result is a variation of the MVME162 which most closely fits the application requirement.
Applications
Industrial Automation & Robotics:
Production Line Controllers: Used as core PLCs or process controllers in automotive manufacturing and heavy industrial plants, managing multi-axis motion control and robotic arm operations.
CNC Machine Control: Used for back-end computing processing of precision CNC machine tools.
Energy & Utilities:
High-Voltage Variable Frequency Systems: Used as the control core in power frequency regulation and large motor drive systems.
Water and Water Treatment: Used for data acquisition to monitor large pumping stations and environmental treatment facilities.
Transportation & Aerospace:
Traffic Signal Management: Applied to real-time signal processing in urban rail transit or railway systems.
Aerospace Electronics Simulation: Some VME systems have supported aerospace electronics simulation projects for NASA and the military.
Oil & Gas: Used as nodes in distributed control systems (DCS) in petrochemical plants, handling critical logic protection in refining processes.
Feature
• 32 MHz MC68040 enhanced 32-bit microprocessor with 8KB of cache, and MMU and FPU
• Optional 25 MHz MC68040 32-bit microprocessor with 8KB of cache, MMU, and FPU
• Optional 25 MHz MC68LC040 enhanced 32-bit microprocessor with 8KB of cache and MMU
• A32/D64 VMEbus master/slave interface with system controller function
• High-performance DMA support for VMEbus D64 and local bus memory burst cycles
• 4, 8 or 16MB of shared DRAM
• 512KB SRAM with battery backup
• 1MB Flash memory for on-board monitor/debugger or user installed firmware
• 8K x 8 NVRAM and time-of-day clock with battery backup
• Two serial communication ports, console port as EIA-232-D DTE and second port user configurable for EIA-232-D/EIA-422 (V.36) DTE/DCE
• Four 16- or 32-bit IndustryPack® ports with one DMA channel per port
• Six 32-bit timers (four without VMEbus) and watchdog timer
• Optional SCSI bus interface with 32-bit local bus burst DMA
• Optional Ethernet transceiver interface with 32-bit local bus DMA
• One 32-pin PLCC EPROM socket
• Four-level requester, seven-level interrupter, and seven-level interrupt handler for VMEbus
• Remote RESET/ABORT/STATUS control functions
• On-board debugger and diagnostic firmware
Software Support
The MVME162 is supported by a wide range of realtime kernels and embedded operating systems.
Emerge Systems Inc.: RTUX™
Eyring Corporation: PDOS®
Integrated Systems, Inc.: pSOS+ ™
Industrial Programming, Inc.: MTOS ™
JMI Software Systems, Inc.: C EXECUTIVE®
Microware Systems Corporation: OS-9®/OS-9000™
Microtec: VRTX32 ™
Wind River Systems, Inc.: VxWorks®
