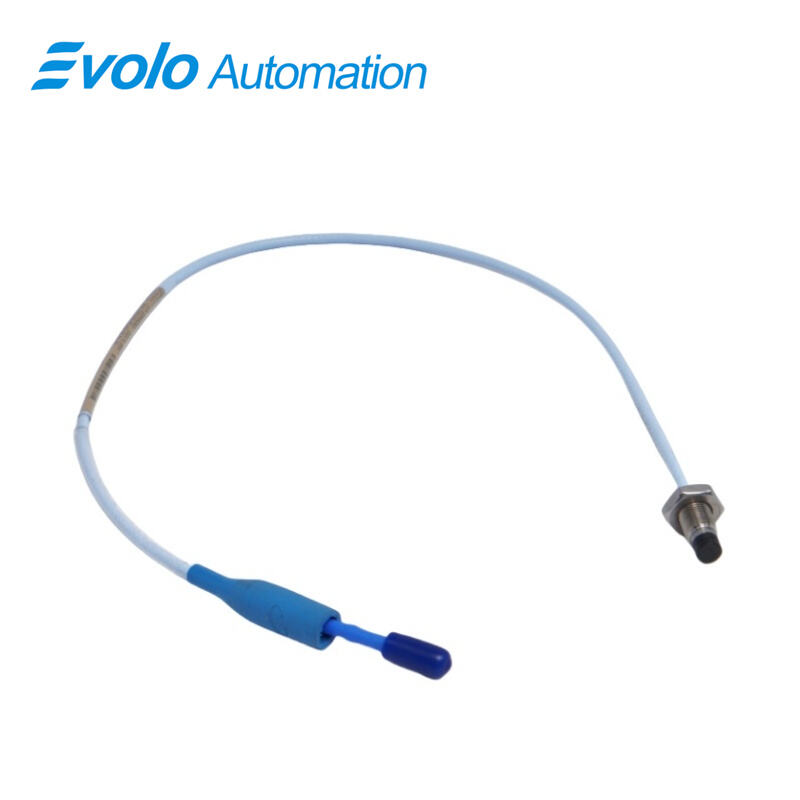

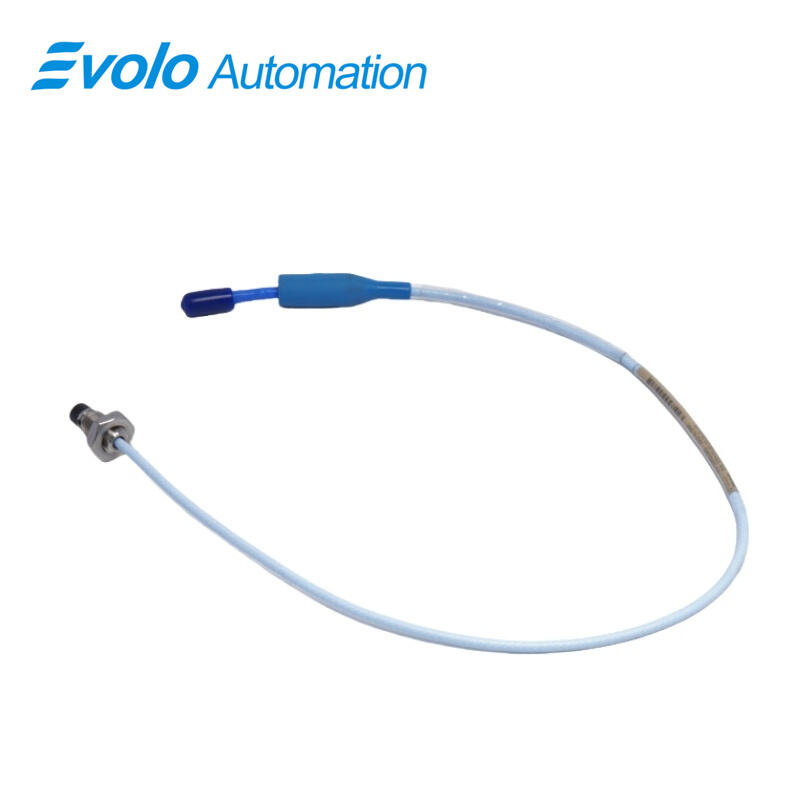

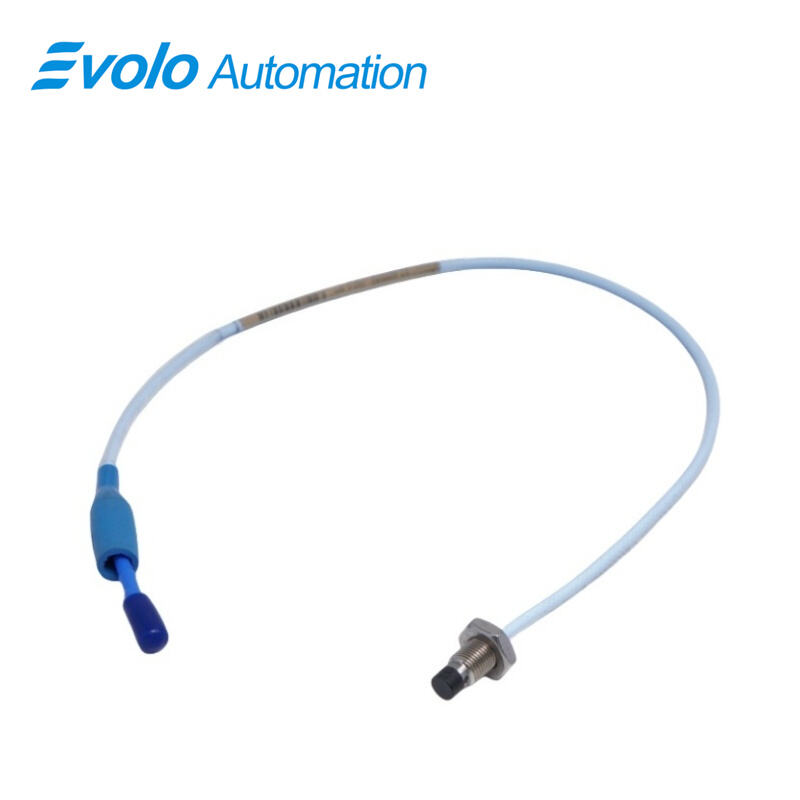

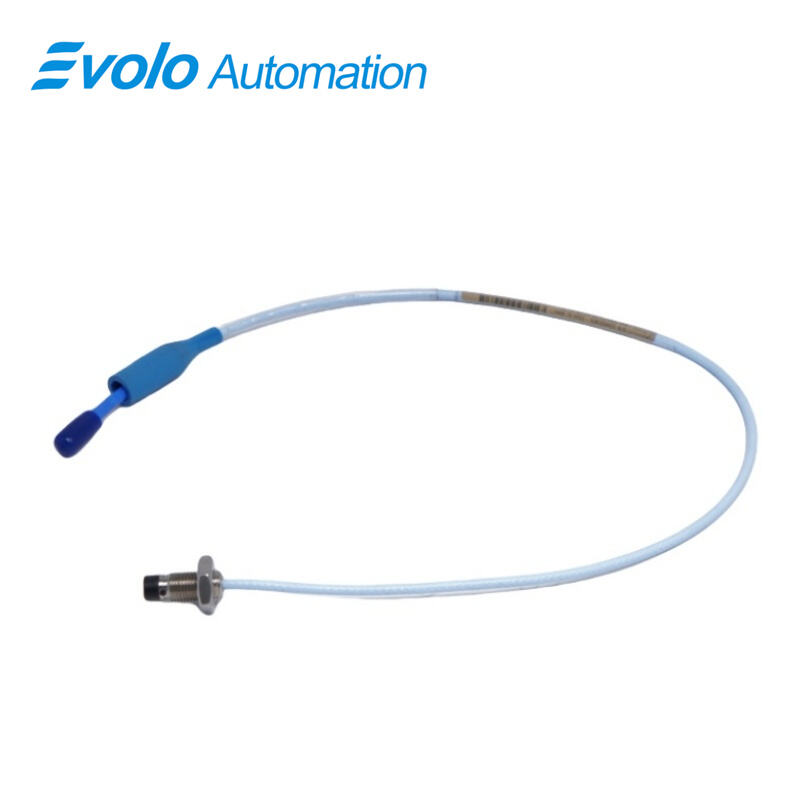

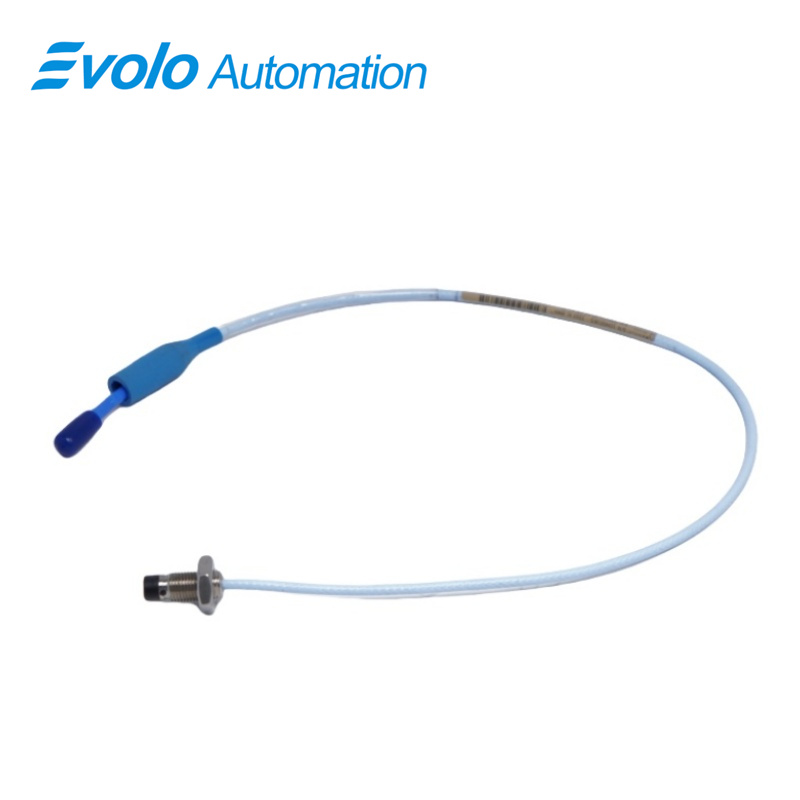

330103-00-02-05-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-02-05-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-02-05-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for advanced industrial automation applications, providing accurate monitoring of both static position and dynamic vibration on critical machinery. Featuring an M10x1 threaded probe case with a maximum 15 mm thread engagement, this probe ensures robust mechanical installation. The system operates across an extended temperature range from -52°C to +177°C (-62°F to +350°F) and demonstrates exceptional supply sensitivity, with less than 2 mV change in output voltage per volt of input variation. The probe includes a 2 mm linear range, a standard 50 Ω output resistance, and a low extension cable capacitance of 69.9 pF/m, supporting precise signal transmission over distances up to 0.5 meters (1.6 feet) with the miniature coaxial ClickLoc connector. Certified with CSA, ATEX, and IECEx approvals, the 3300 XL 8 mm system complies fully with API 670 standards for mechanical configuration, temperature stability, and accuracy. The patented TipLoc probe tip molding and CableLoc cable attachment deliver enhanced durability and 330 N pull strength, ensuring secure attachment and long-term reliability. Optional FluidLoc cable provides leak-proof operation in oil-rich or industrial fluid environments, making the 3300 XL 8 mm Proximity Probe an ideal solution for high-performance condition monitoring in modern automated systems.

Applications

Vibration Monitoring
The 3300 XL 8 mm probe captures precise vibration signals on fluid-film bearings, enabling predictive maintenance and reducing unplanned downtime. Linear range of 2 mm ensures accurate measurement of small amplitude vibrations.

Position Measurement
Accurate static position detection of rotating shafts and machinery components in automated industrial systems. Temperature stability from -52°C to +177°C maintains reliable readings under harsh conditions.

Keyphasor Reference
Generates a Keyphasor signal for shaft speed synchronization and phase analysis in high-speed turbines, compressors, and generators. Output resistance of 50 Ω supports robust signal integration.

Speed Sensing
Measures rotational speed directly via the proximity transducer system, supporting real-time process automation and control loops with ±2 mV supply sensitivity.

Fluid-Rich Environments
Optional FluidLoc cables prevent fluid leakage in oil-lubricated machinery, enabling safe and reliable operation in industrial automation setups with hydraulic or lubricated systems.

Specifications

Competitive Advantage

High Temperature Tolerance
Operates reliably from -52°C to +177°C, outperforming many conventional proximity probes in extreme industrial environments.

Enhanced Durability
TipLoc and CableLoc designs increase mechanical robustness, supporting 330 N pull strength, reducing cable and probe failures.

API 670 Compliance
Meets industry-standard requirements for linearity, accuracy, and temperature stability, ensuring compatibility in critical automation systems.

Interchangeable Components
Backward-compatible with non-XL 3300 series 5 mm and 8 mm probes and extension cables, simplifying maintenance and reducing inventory complexity.

Low Signal Distortion
Minimal extension cable capacitance (69.9 pF/m) and 50 Ω output resistance ensure high-fidelity vibration and position signal transmission for precise industrial monitoring.
