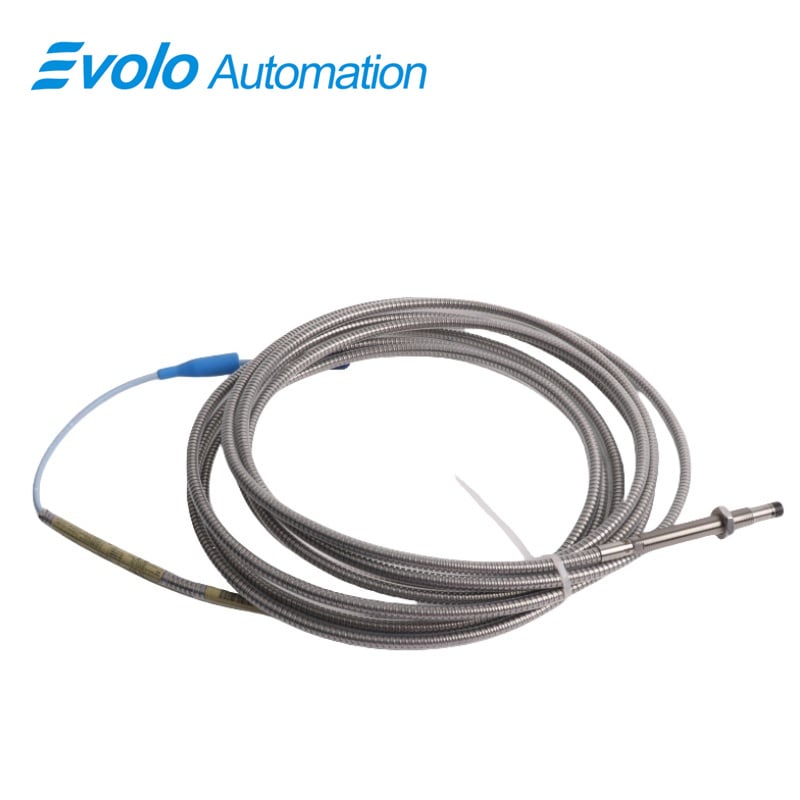

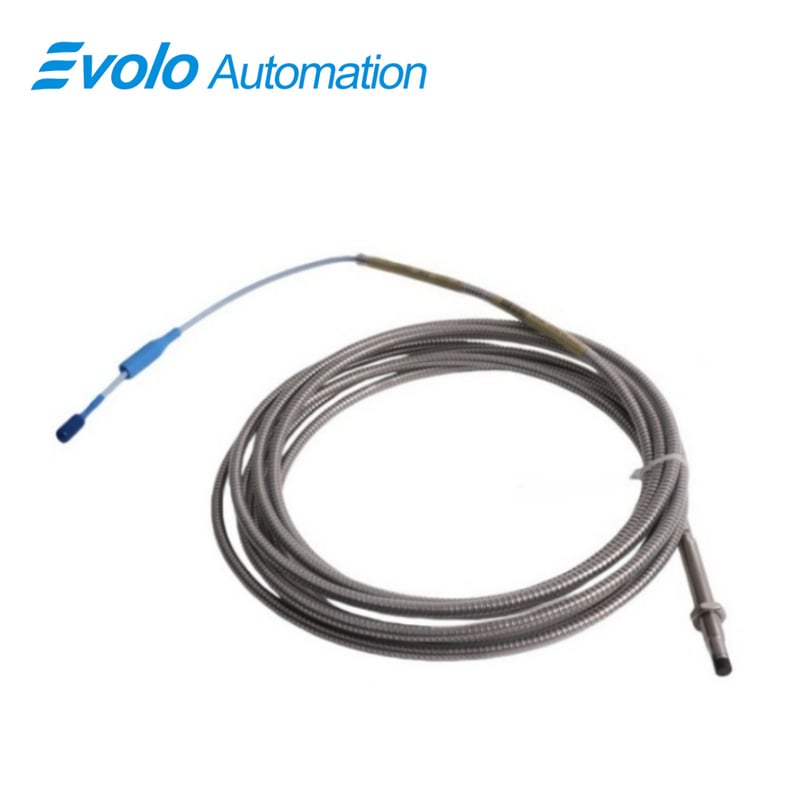

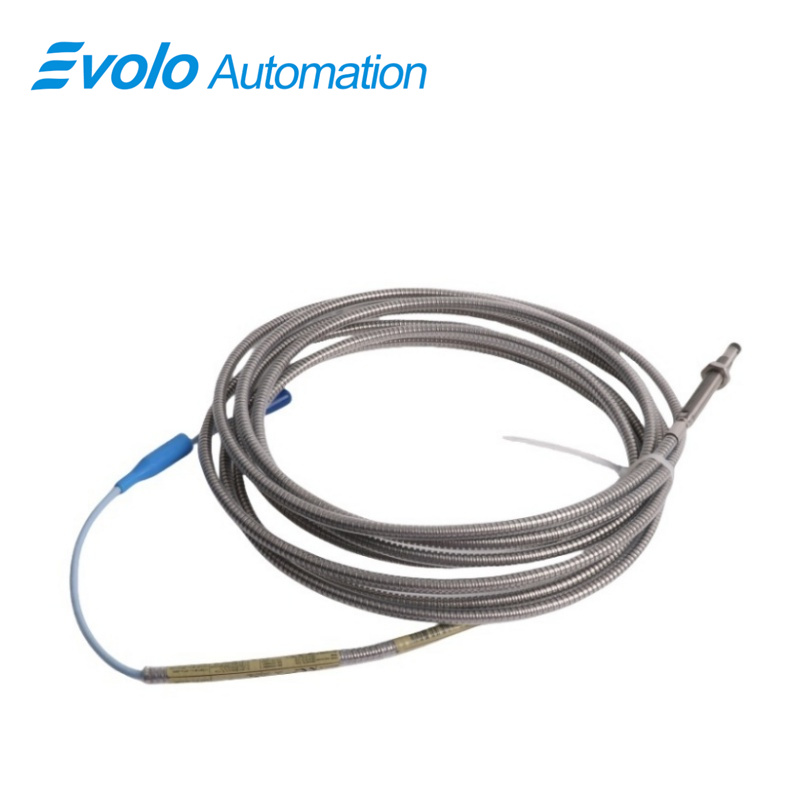

330104-01-12-05-01-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-01-12-05-01-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

-7 days

Payment Terms: T/T

Supply Ability: In stock

Quick Detail

Description

The 330104-01-12-05-01-05 3300 XL 8 mm Proximity Probe is a precision eddy current transducer designed for advanced automation and predictive maintenance applications. With a 120 mm overall case length and 10 mm unthreaded length, it features an M10x1 threaded probe capable of accurately measuring static position and dynamic vibration with a linear range of 2 mm (80 mils). The probe outputs a voltage directly proportional to the distance between the probe tip and the conductive surface, enabling real-time condition monitoring of turbines, compressors, motors, and fluid-film bearings in industrial systems.

Equipped with a Miniature coaxial ClickLoc connector with protector and 0.5-meter standard cable, the probe ensures reliable signal transmission and low electrical noise. Operating across extreme temperatures from -52°C to +177°C (-62°F to +350°F), it maintains high accuracy and stability. The probe’s patented TipLoc molding ensures a strong bond between the probe tip and body, while the CableLoc design provides 330 N (75 lbf) pull strength, securing the probe cable even in high-vibration environments. Fully CSA, ATEX, and IECEx certified, the probe is API 670 compliant and interchangeable with all 3300 XL and standard series components, reducing calibration and maintenance requirements. Optional FluidLoc cabling prevents oil and fluid ingress, extending operational life in lubricated systems.

Applications

Application 1: Turbine Vibration Monitoring

Monitors turbine shaft vibrations in real time with high resolution, enabling early detection of misalignment and unbalance, which can reduce unscheduled downtime by 12–15%.

Application 2: Axial and Radial Shaft Position Measurement

Provides ±2 μm accuracy in measuring shaft displacement, ensuring optimal rotor alignment in pumps, compressors, and motors for reliable automation control.

Application 3: Keyphasor Signal Generation

Generates precise Keyphasor reference pulses for speed and phase measurements, supporting advanced machinery control systems and improving diagnostic reliability.

Application 4: Bearing Condition Assessment

Evaluates fluid-film and hydrodynamic bearings for early signs of wear or lubrication issues, allowing preventive maintenance and extending bearing life by up to 15%.

Application 5: Hazardous Environment Operation

With CSA, ATEX, and IECEx approvals, the probe can safely operate in explosive or flammable zones, providing accurate position and vibration readings without compromising safety.

Specifications

Competitive Advantage

Competitive Advantage 1: Extreme Temperature Reliability

Operates consistently from -52°C to +177°C, maintaining high linearity and stability in turbines, compressors, and motors under harsh industrial conditions.

Competitive Advantage 2: Mechanical Integrity

Patented TipLoc and CableLoc designs provide 330 N pull strength, ensuring probe and cable attachment in high-speed, high-vibration machinery.

Competitive Advantage 3: Interchangeable Components

Compatible with all 3300 XL and standard series probes, extension cables, and Proximitor sensors, eliminating custom calibration and simplifying inventory management.

Competitive Advantage 4: High Signal Accuracy

With 50 Ω output resistance and 69.9 pF/m cable capacitance, the probe delivers low-noise, highly accurate signals, ideal for automation systems and real-time monitoring.

Competitive Advantage 5: Optional Fluid Protection

The FluidLoc cable option prevents oil or liquid ingress, reducing maintenance cycles and protecting sensitive components, enhancing reliability in lubricated industrial machinery.
