Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MU-TAMT02 51401491-100 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MU-TAMT02 51401491-100 |
|
Product Type: |
Low Level Analog Input Multiplexer |
|
Supported Signal Types: |
Thermocouple (TC) |
|
Terminal Type: |
Compression terminals |
|
Architecture: |
Non-redundant |
|
Conformal Coating: |
None |
|
CE Compliance: |
Not CE certified |
|
Dimensions: |
30.7 × 12 × 6.8 cm |
|
Weight: |
1.16 kg |
Description

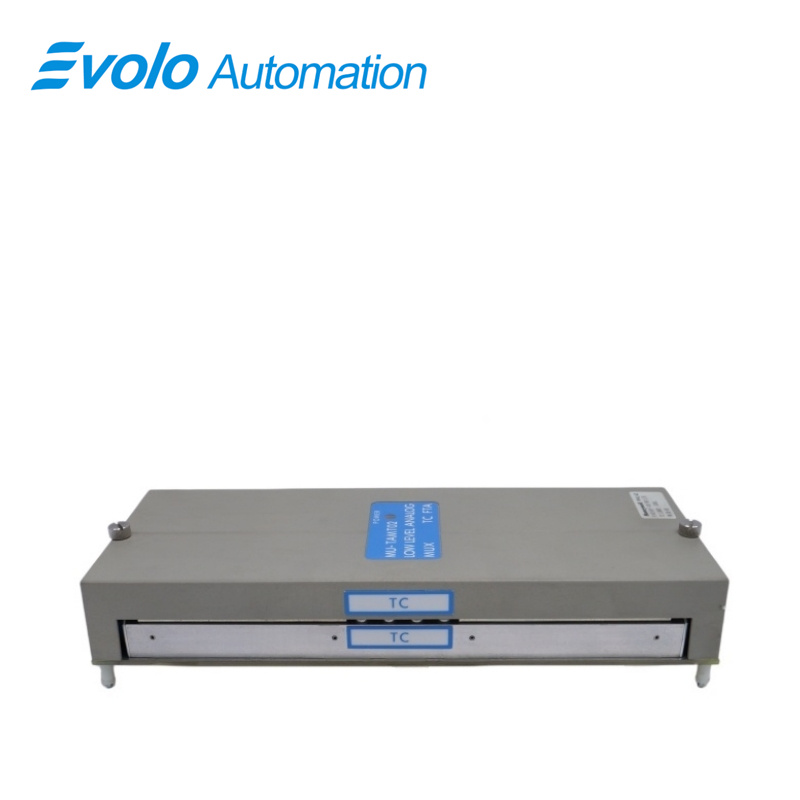

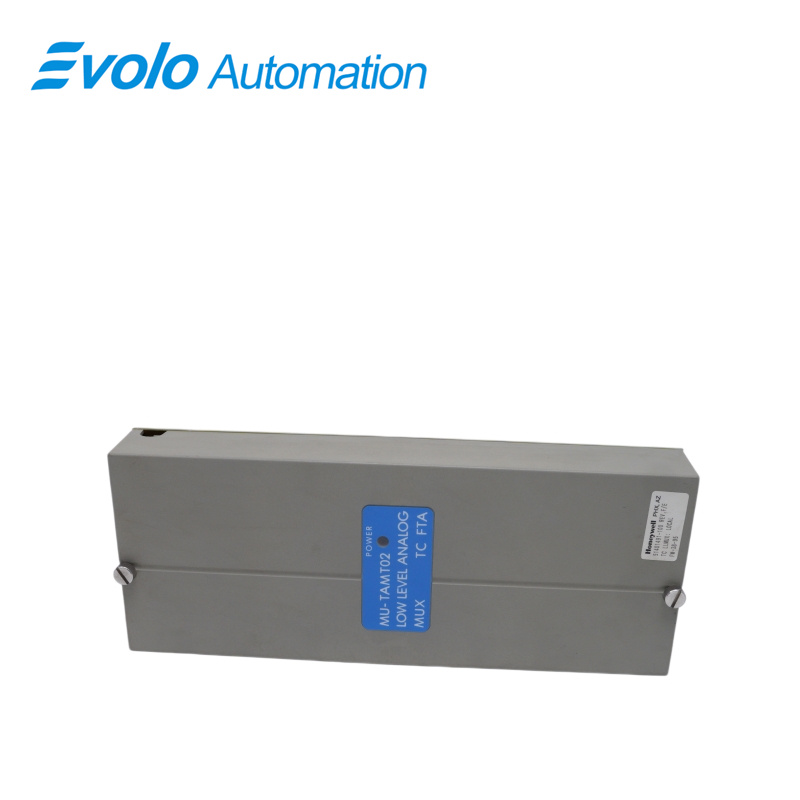

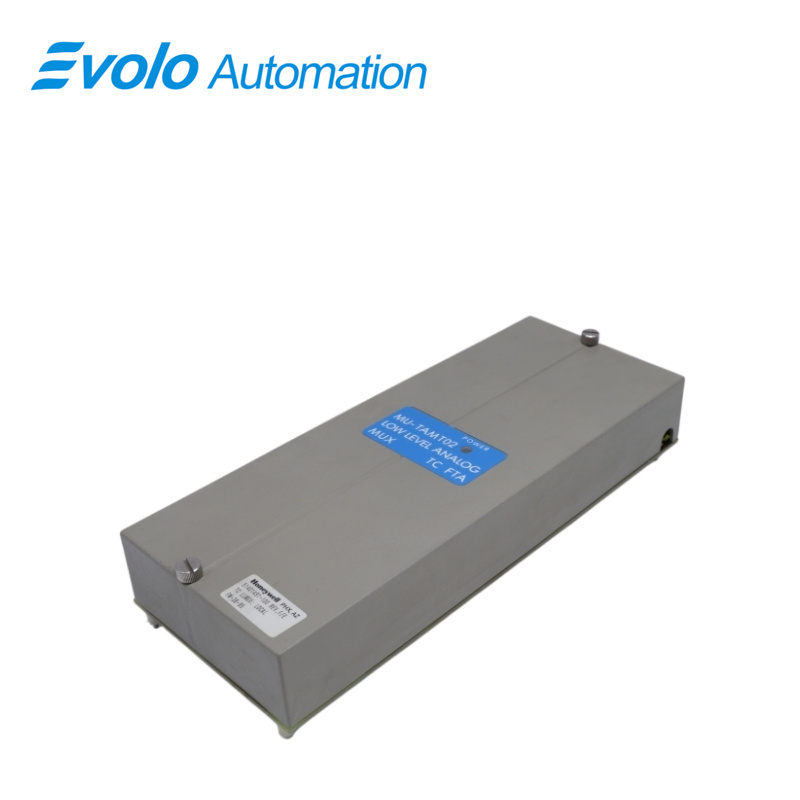

The Honeywell MU-TAMT02 51401491-100 is a low-level analog input multiplexer. This multiplexer connects production equipment in the factory field to a central controller at the upper level, and is used to receive weak electrical signals from various industrial sensors.
Applications
Thermal power plant: Collects multi-point thermocouple signals from boiler ducts, steam pipelines, and bearing components for time-division temperature monitoring.
Synthetic fiber plant: Monitors dense thermocouple points in polymer reactors and spinning units, providing cost-efficient high-density temperature data.
Glass manufacturing plant: Receives millivolt thermocouple signals from furnace and annealing zones to ensure stable melting temperature control.
Coking and steel plant: Aggregates multiple high-grade thermocouple inputs from coke ovens and hot blast furnaces for centralized control.
Petrochemical refinery: Scans multi-point thermocouples in heater tubes and reforming reactors, delivering basic control data from clean cabinet rooms.
Troubleshooting
CJC drift: Check if the cold junction compensation thermistor in the thermocouple FTA is damaged and ensure no local heat sources affect the cabinet.
Single channel open/max reading: Inspect compression terminals for looseness; measure thermocouple loop impedance to detect wire breakage.
Common-mode interference: Verify proper grounding of thermocouple sheath and ensure shield is grounded at one end at the FTA.
FAQ
Q: What type of input signal does MU-TAMT02 51401491-100 support?
A: It supports Thermocouple signals.
Q: What type of terminal does MU-TAMT02 51401491-100 use?
A: It uses compression terminals.
Q: What system architecture does MU-TAMT02 51401491-100 use?
A: It uses a non-redundant architecture.
Q: Does MU-TAMT02 51401491-100 have conformal coating?
A: No, this model does not have conformal coating.
Q: Is MU-TAMT02 51401491-100 CE certified?
A: No, this model is not CE certified.
