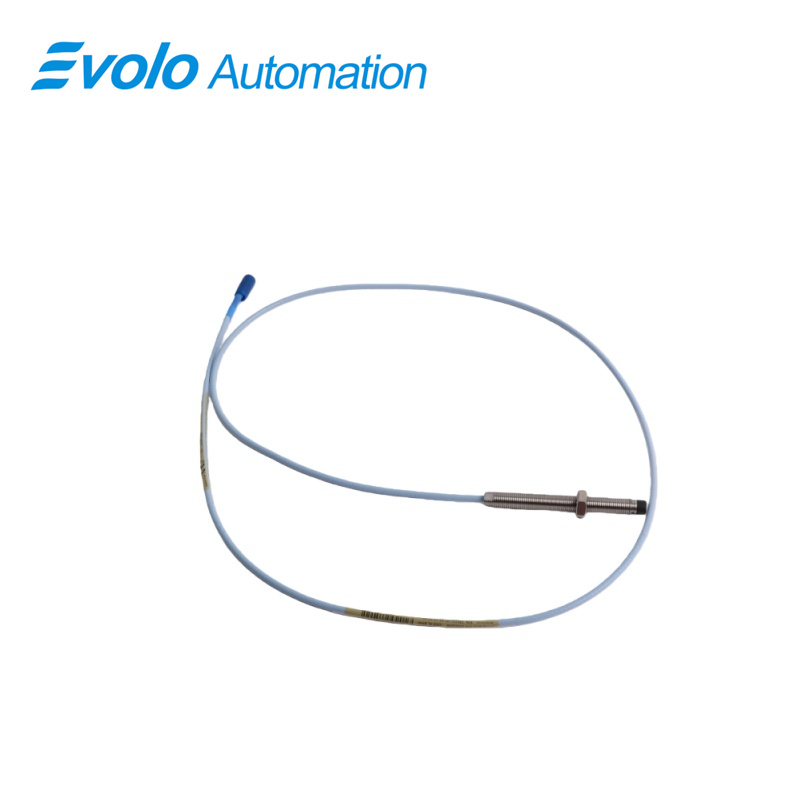

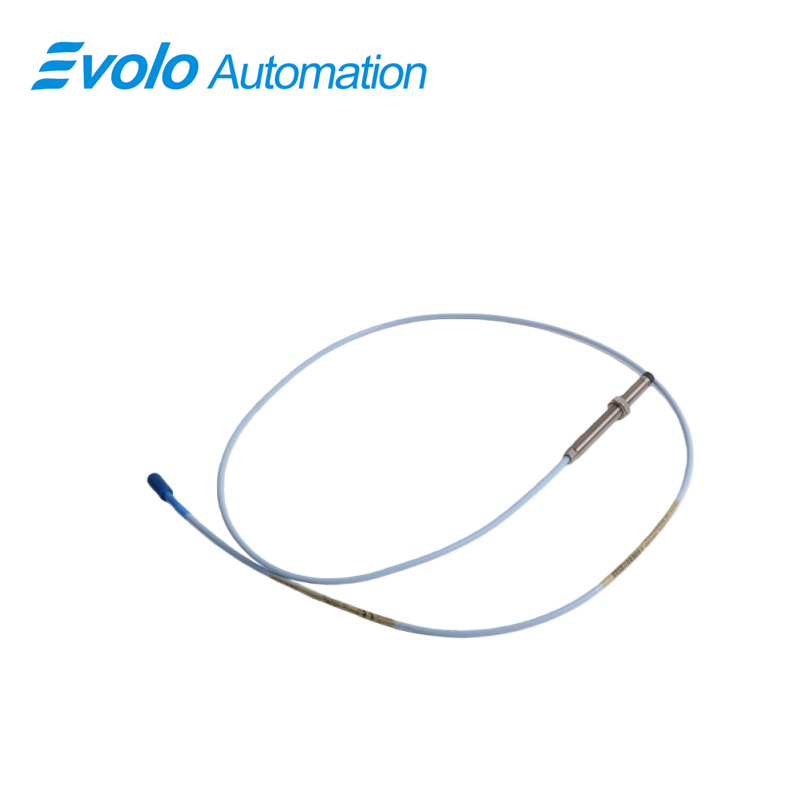

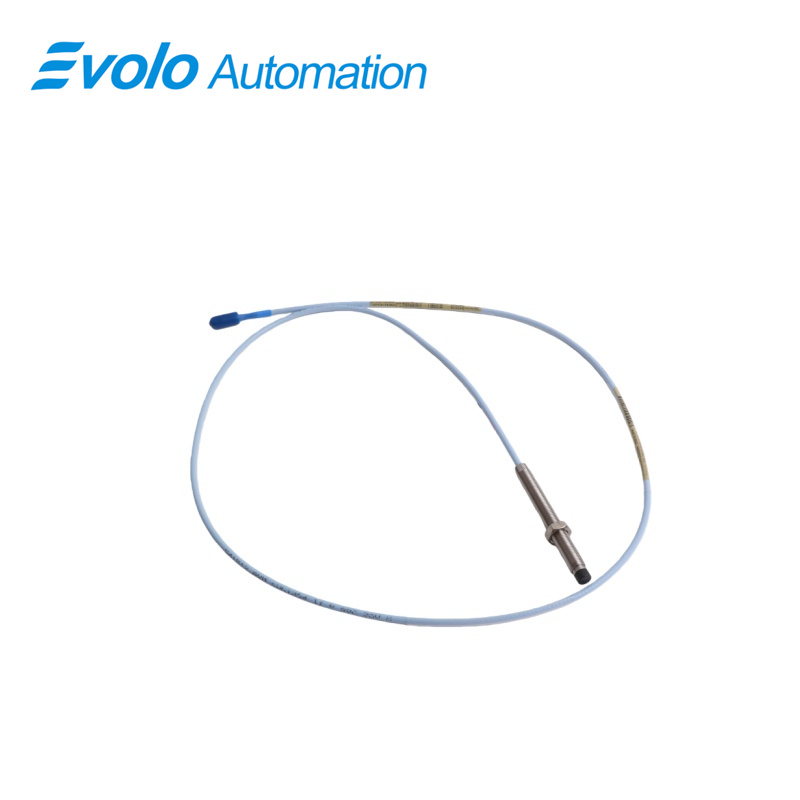

330101-00-32-05-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-32-05-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-32-05-02-00 3300 XL 8 mm Proximity Probes represent the gold standard in eddy current sensing technology, specifically engineered to translate the physical distance between the sensor's tip and a metallic target into a highly accurate output voltage. As a core component of the 3300 XL 8 mm Proximity Probes family, this device is uniquely capable of capturing both static displacement (position) and high-frequency dynamic motion (vibration). This dual-sensing capability makes the 330101-00-32-05-02-00 indispensable for monitoring fluid-film bearing machines, where it provides critical data for radial vibration analysis, axial thrust positioning, and Keyphasor timing for speed measurements.

When utilizing the 3300 XL 8 mm Proximity Probes, operators benefit from the most sophisticated performance available in modern transducer systems. The 330101-00-32-05-02-00 is designed to fully satisfy the rigorous American Petroleum Institute (API) 670 Standards. These standards mandate strict adherence to mechanical configuration, linear range precision, and extreme temperature stability—areas where the 3300 XL 8 mm Proximity Probes consistently excel. One of the primary advantages of the 330101-00-32-05-02-00 is its total interchangeability. Within the 3300 XL 8 mm Proximity Probes series, probes, extension cables, and Proximitor sensors can be swapped without the need for manual matching or time-consuming bench calibration.

Furthermore, the 330101-00-32-05-02-00 offers exceptional versatility through its backward compatibility with legacy non-XL 3300 series 5 mm and 8 mm components. This ensures that the 3300 XL 8 mm Proximity Probes can be integrated into existing infrastructure with minimal friction. For instance, if an 8 mm probe is too large for a specific mounting environment, the system allows for the seamless use of a 3300 5 mm probe.

Applications

The 330101-00-50-10-01-00 3300 XL 8 mm Proximity Probes serve as a high-precision diagnostic cornerstone for critical industrial machinery, converting the physical gap between the probe tip and a rotating shaft into a proportional voltage signal. Primarily applied in the power generation and petrochemical sectors, the 330101-00-50-10-01-00 excels at monitoring radial vibration and axial thrust position within fluid-film bearings, allowing operators to detect shaft instability or bearing wear before mechanical failure occurs. With its extensive CSA, ATEX, and IECEx approvals, these 3300 XL 8 mm Proximity Probes are ideal for hazardous area deployments, such as monitoring centrifugal compressors in refineries or offshore oil platforms. The robust mechanical design of the 330101-00-50-10-01-00, featuring a 5.0-inch overall case length and a fully threaded body, enables deep-mount installations in thick-walled machine housings where precise shaft access is required.

Operating with exceptional stability across a temperature range of -53°C to +177°C, the 3300 XL 8 mm Proximity Probes are perfectly suited for the high-heat environments of steam turbines and large-scale generators. The 330101-00-50-10-01-00 also functions as a highly accurate Keyphasor sensor, providing the once-per-turn timing pulse necessary for rotational speed tracking and phase angle analysis in predictive maintenance. Signal integrity is safeguarded by the Miniature coaxial ClickLoc connector with connector protector, which maintains a secure, vibration-proof electrical path even in the most turbulent industrial conditions. Furthermore, the 3300 XL 8 mm Proximity Probes utilize a high-performance PPS tip and stainless steel casing, ensuring the 330101-00-50-10-01-00 remains resistant to corrosive lubricants and process fluids. By providing a 2 mm linear range and maintaining low supply sensitivity, this probe ensures that critical machinery protection systems receive clear, noise-free data for real-time decision-making.

Specifications

Competitive Advantage

1.Dynamic Vibration Monitoring

The primary application for the 330101-00-32-05-02-00 is the real-time measurement of radial vibration in high-speed machinery. It is installed on fluid-film bearing machines—such as turbines, compressors, and pumps—to detect shaft instability. The probe's 2 mm (80 mils) linear range and high supply sensitivity ensure that minute vibrations are captured accurately, allowing operators to identify imbalances or misalignments before they lead to catastrophic equipment failure.

2.Static Position and Thrust Sensing

Beyond dynamic vibration, this probe is essential for measuring static axial position (thrust). Because it can detect the precise DC gap, the 330101-00-32-05-02-00 monitors the longitudinal movement of a shaft within its bearings. This is a critical safety application, as it prevents "metal-to-metal" contact between the rotating shaft and stationary housing. The 3.2-inch overall case length allows for versatile mounting through machine casings to reach internal shafts.

3.High-Temperature and Harsh Environment Deployment

With an operating temperature range of -50°C to +175°C, this probe is applied in environments where standard sensors would degrade. The Polyphenylene sulfide (PPS) tip and Stainless Steel (AISI 303/304) case provide the chemical and thermal resilience required for steam turbines and chemical processing equipment. The 0.5-meter total length and ClickLoc connector make it ideal for compact installations where the probe connects to an extension cable immediately outside the machine housing.
