Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MU-PLAM02 51304362-100 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MU-PLAM02 51304362-100 |
|
Product Type: |
Low Level Analog Input Multiplexer Processor |
|
Input Channels: |
32 (galvanically isolated) |
|
Input Types: |
Thermocouple; RTD; linear millivolts |
|
A/D Converter Resolution: |
14-bit |
|
TC Resolution: |
10 µV/bit (J, K, E, T, B, S, R, RP) |
|
RTD Resolution (100 Ω / 120 Ω): |
64 mΩ/bit |
|
RTD Resolution (10 Ω): |
8 mΩ/bit |
|
Linear mV Resolution: |
20 µV/bit |
|
Common Mode Voltage (CMV): |
250 VAC peak or ±250 VDC |
|
Dielectric Strength: |
1500 VAC RMS or ±1500 VDC (channel-to-channel and system) |
|
Crosstalk: |
120 dB (DC to 60 Hz) |
|
Input Impedance: |
≥2 MΩ @ 100 mV |
|
Maximum Continuous Input (no damage): |
-1 V to +10 V |
|
Input Scan Rate: |
32 samples/sec (each channel once per second) |
|
Line Frequency Sync: |
50/60 Hz configurable |
|
Hardware Accuracy: |
±40 µV or ±160 mΩ @ 23.5°C ±2°C |
|
Software Accuracy: |
±0.1°C typical; ±0.5°C max |
|
Surge Withstand Capability: |
ANSI/IEEE C37.90.1-1978 |
|
Voltage Input Range: |
0–100 mV |
|
CMRR: |
120 dB min (with 500 Ω lead imbalance) |
|
NMRR: |
60 dB min at line frequency |
|
Filter Response: |
-3 dB @ 4.3–6.4 Hz |
|
Temperature Stability (Voltage/TC): |
20–30 ppm/°C |
|
Temperature Stability (RTD): |
30–40 ppm/°C |
|
RTD Max Lead Resistance: |
15 Ω |
Description

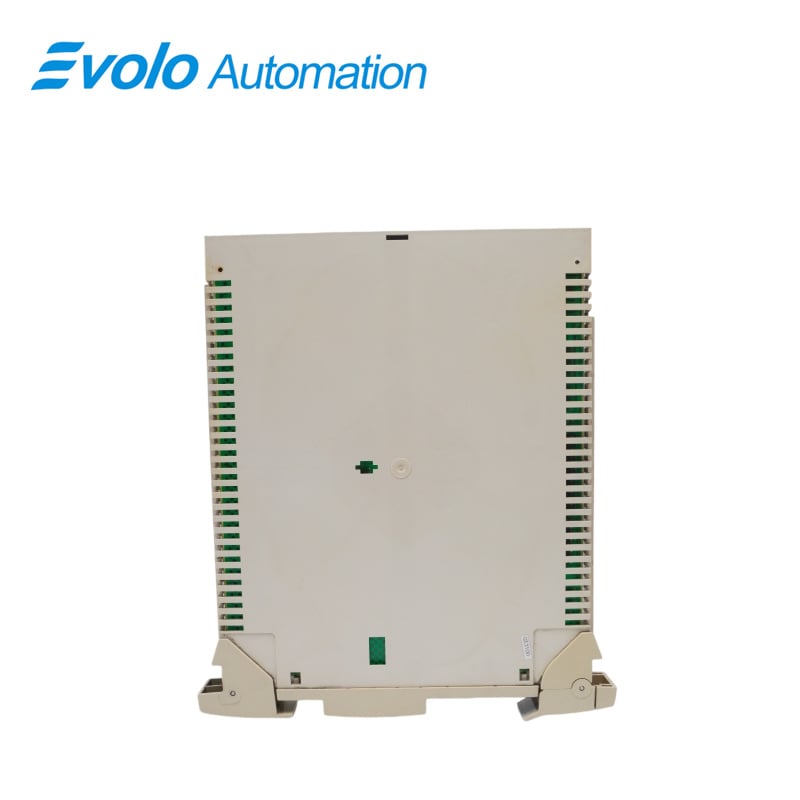

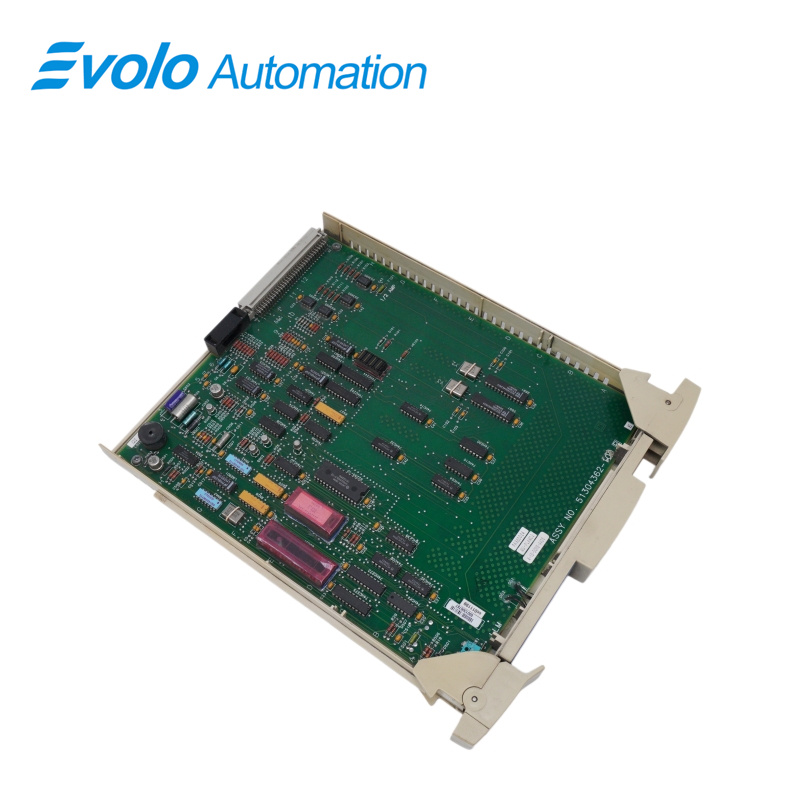

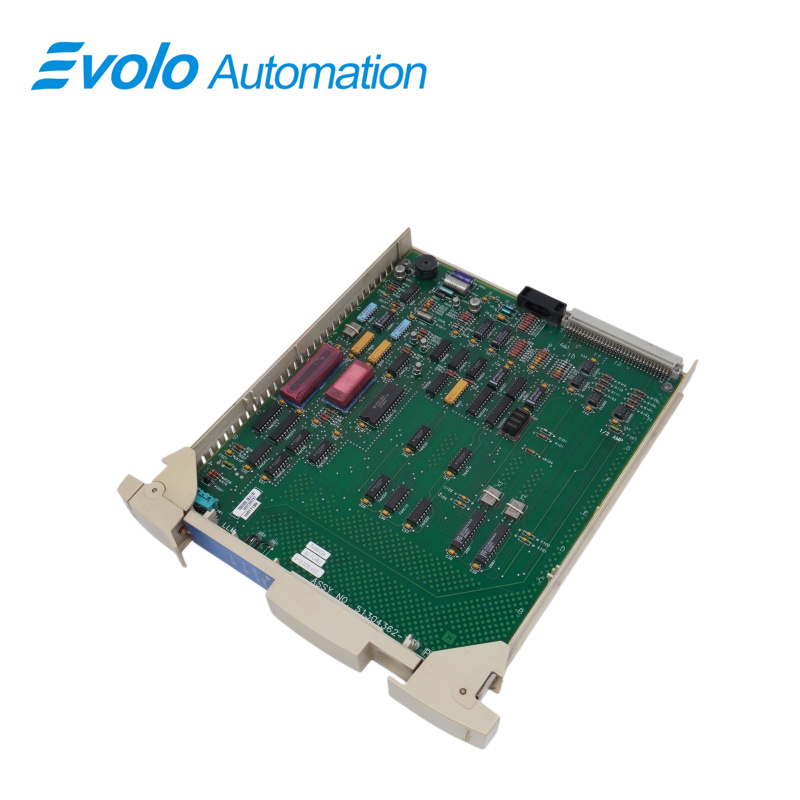

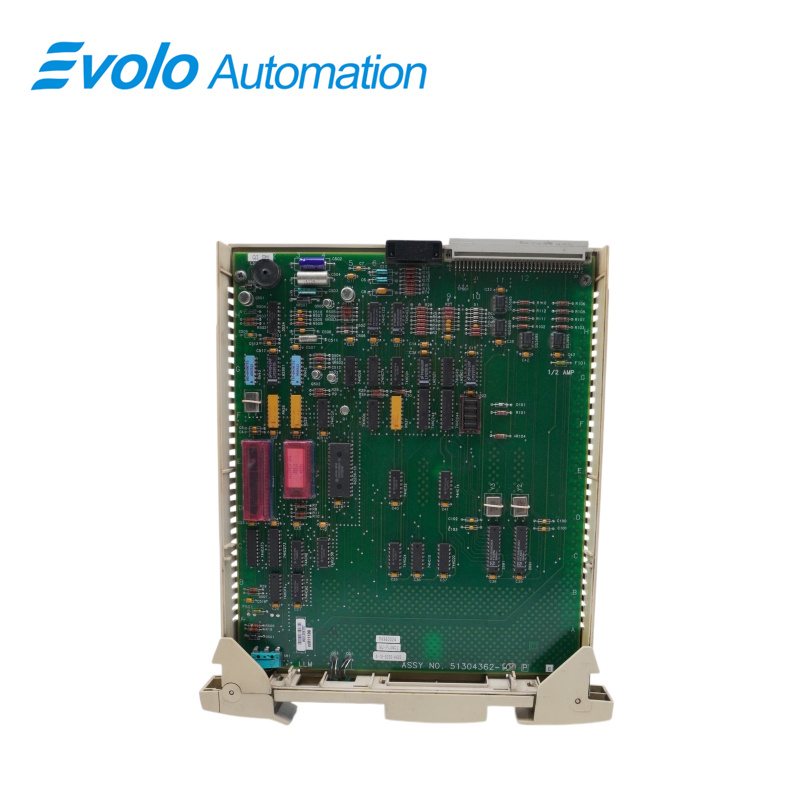

The MU-PLAM02 51304362-100 is a low level analog input multiplexer processor used for sophisticated distributed control systems. It provides native engineering unit conversion and signal conditioning functions directly at the subsystem level, minimizing processing overhead on primary controller logic.
Applications
Petrochemical plant: Monitors multi-point reactor and catalyst bed temperatures with high isolation to prevent grounding faults.
Thermal power plant: Measures boiler, turbine, and generator temperatures with strong anti-interference capability.
Chemical fiber plant: Collects precise low-level temperature signals to maintain stable melt viscosity and process control.
Glass manufacturing plant: Monitors furnace and annealing temperatures using high-temperature thermocouple inputs for stable production.
Fine chemical plant: Tracks multi-reactor temperature with fast scanning and accurate correction for safe process control.
Features
Process Manager (PM), Advanced Process Manager (APM) and High Performance Process Manager (HPM)
Common Set of IOPs and FTAs
All IOPs and FTAs are Usable by All (3) Controllers
FAQ
Q: How many input channels does MU-PLAM02 51304362-100 have?
A: This model has 32 isolated input channels.
Q: What input types does MU-PLAM02 51304362-100 support?
A: It supports Thermocouple, RTD (Resistance Temperature Detector), and linear millivolt signals.
Q: What is the A/D converter resolution of MU-PLAM02 51304362-100?
A: Its A/D converter resolution is 14 bits.
Q: What is the voltage input range of MU-PLAM02 51304362-100?
A: Its voltage input range is 0–100 mV.
Q: What is the maximum RTD lead resistance of MU-PLAM02 51304362-100?
A: Its maximum RTD lead resistance is 15 Ω.
