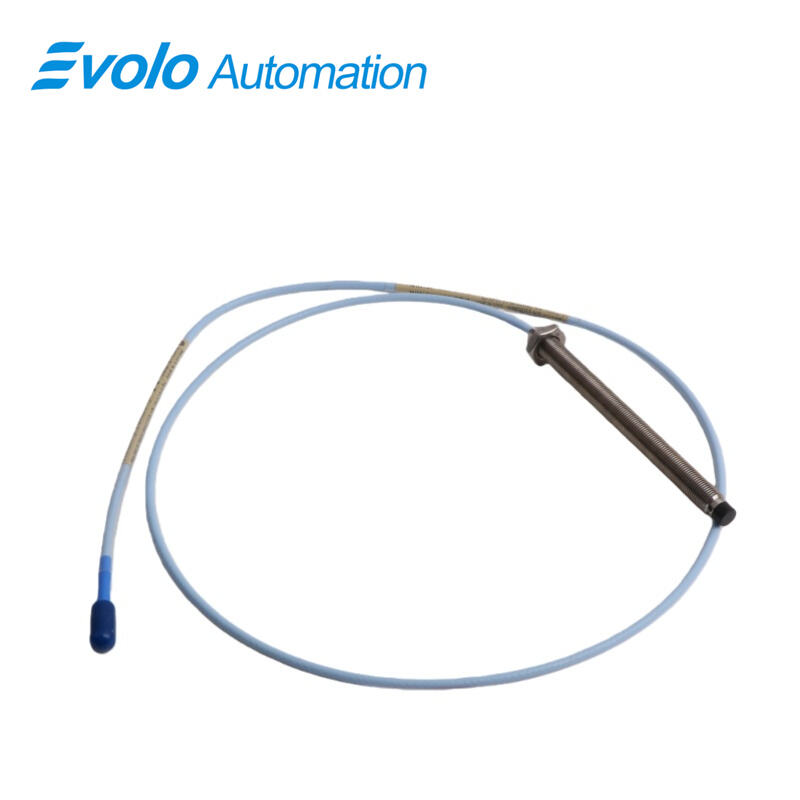

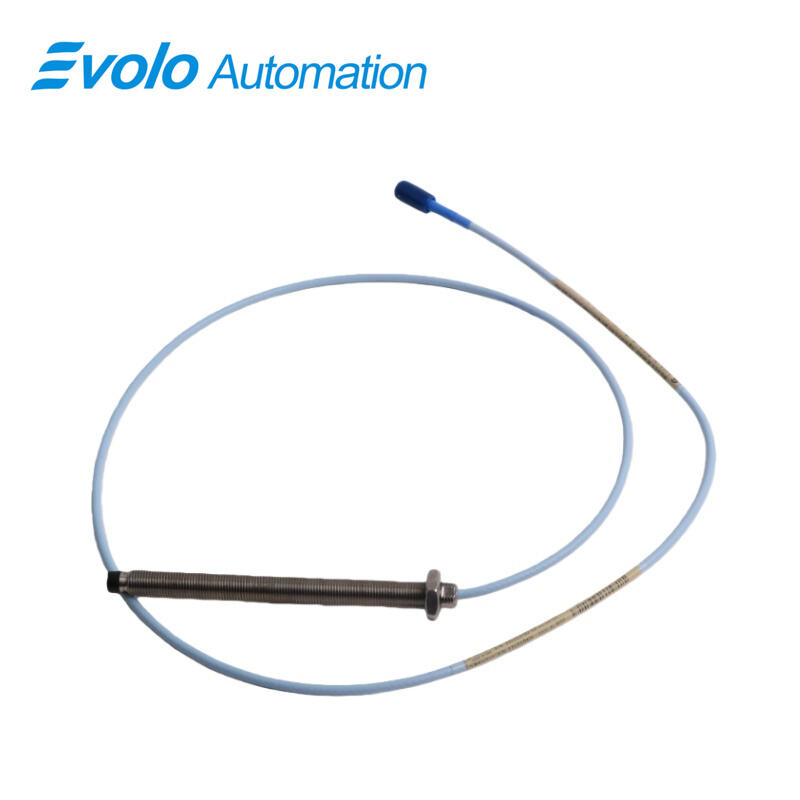

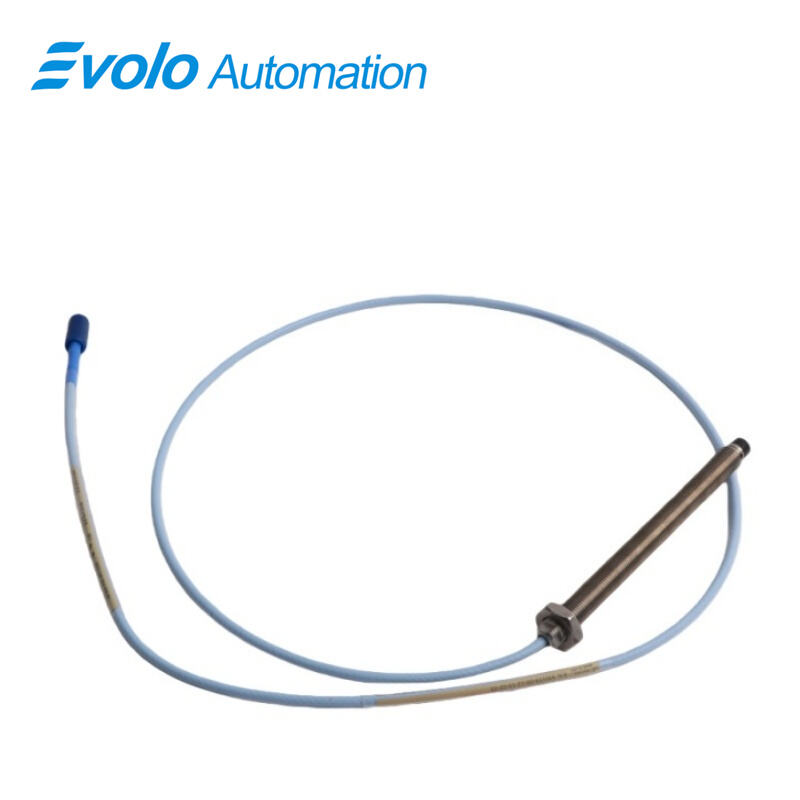

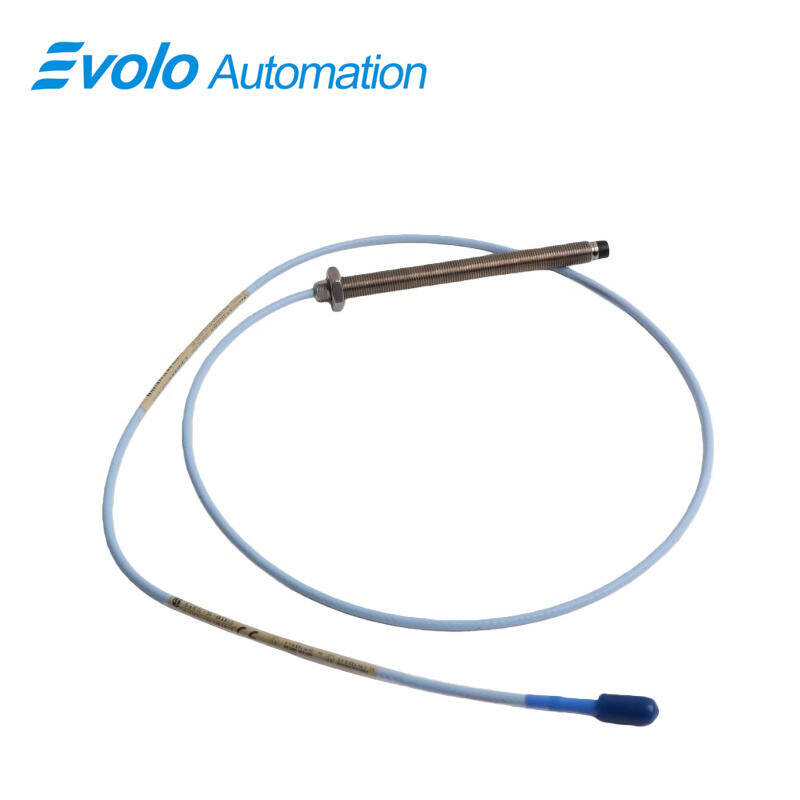

330103-00-12-10-12-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-12-10-12-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 3300 XL 8 mm Proximity Probe, model 330103-00-12-10-12-00, is a high-precision eddy current sensor designed for advanced industrial automation applications, providing reliable vibration and position measurement in critical machinery. With a 120 mm overall case length and M10x1 probe threading, this transducer ensures robust installation and superior signal integrity. The probe delivers an output voltage directly proportional to the distance between the probe tip and the monitored conductive surface, enabling accurate measurement of both static positions and dynamic vibrations. Operating over a wide temperature range from -52°C to +177°C (-62°F to +350°F), the 3300 XL 8 mm Proximity Probe maintains less than 2 mV variation in output per volt change in supply, with a linear measurement range of 2 mm (80 mils) and an output resistance of 50 Ω. The miniature coaxial ClickLoc connector and optional FluidLoc cable enhance durability and environmental sealing, while the patented TipLoc and CableLoc designs provide a secure 330 N (75 lbf) attachment of the probe tip to the cable. Fully compatible with API 670 standards and backward-compatible with other 3300 series components, this probe ensures seamless integration into existing monitoring systems and delivers unmatched performance in vibration analysis, speed sensing, and Keyphasor reference applications in fluid-film bearing machinery.

Applications

1. Vibration Monitoring in Turbo-Generators
The 3300 XL 8 mm probe measures shaft vibrations with high precision, allowing detection of axial and radial movement down to micrometer levels. The 2 mm linear range ensures accurate dynamic monitoring to prevent mechanical failures in high-speed turbo-generators.

2. Position Sensing on Fluid-Film Bearings
Ideal for monitoring bearing clearance in rotating machinery, the probe provides real-time position data to optimize load distribution and reduce wear. Operating reliably at temperatures up to +177°C ensures functionality under extreme conditions.

3. Keyphasor Reference for Rotating Equipment
The probe generates precise Keyphasor signals for phase reference in machinery monitoring systems. Its 50 Ω output resistance ensures signal integrity for high-speed vibration and speed analysis, critical for condition-based maintenance strategies.

4. Speed Measurement of Centrifugal Compressors
With its miniature ClickLoc connector and robust FluidLoc cable, the probe captures rotational speed in harsh industrial environments. The system supports extension cables up to 1 meter, facilitating remote measurement points without signal degradation.

5. Integration in Automated Monitoring Systems
The 3300 XL 8 mm probe is fully compatible with existing 3300 series Proximitor sensors, extension cables, and transducers, enabling rapid deployment in automated monitoring frameworks. Its backward compatibility allows for flexible system upgrades without replacing legacy equipment.

Specifications

Competitive Advantage

1. Superior Temperature Stability
The probe operates between -52°C and +177°C, maintaining high measurement accuracy under extreme thermal conditions, making it suitable for oil, gas, and petrochemical applications.

2. High Mechanical Reliability
Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, preventing probe detachment during intense vibration and enhancing system longevity.

3. API 670 Compliance
Fully compliant with API 670 standards, ensuring reliability in safety-critical applications and providing confidence in industrial automation environments.

4. Exceptional Signal Linearity
The 2 mm linear range provides consistent output proportional to displacement, supporting precise vibration and position analysis in advanced machinery diagnostics.

5. Interchangeability and Backward Compatibility
Supports full interchangeability with 3300 series probes, extension cables, and sensors. This reduces downtime and simplifies inventory management while allowing flexible integration with existing systems.
