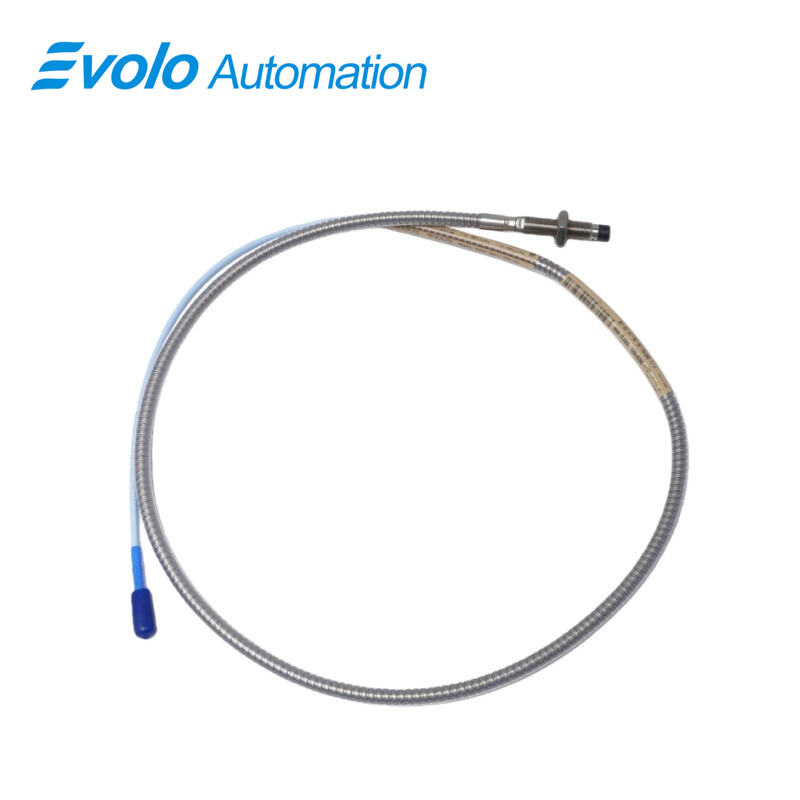

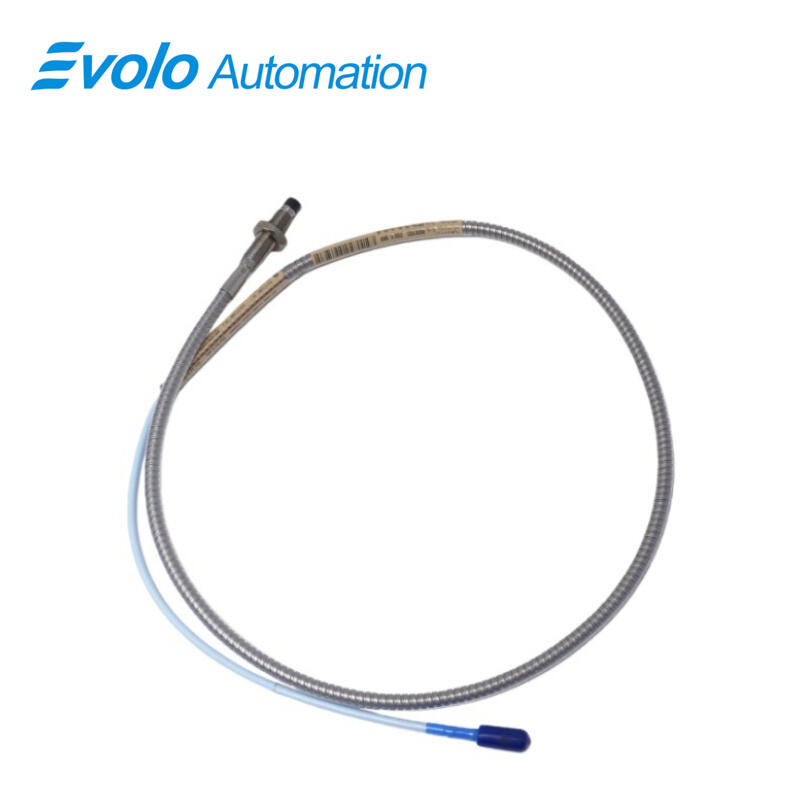

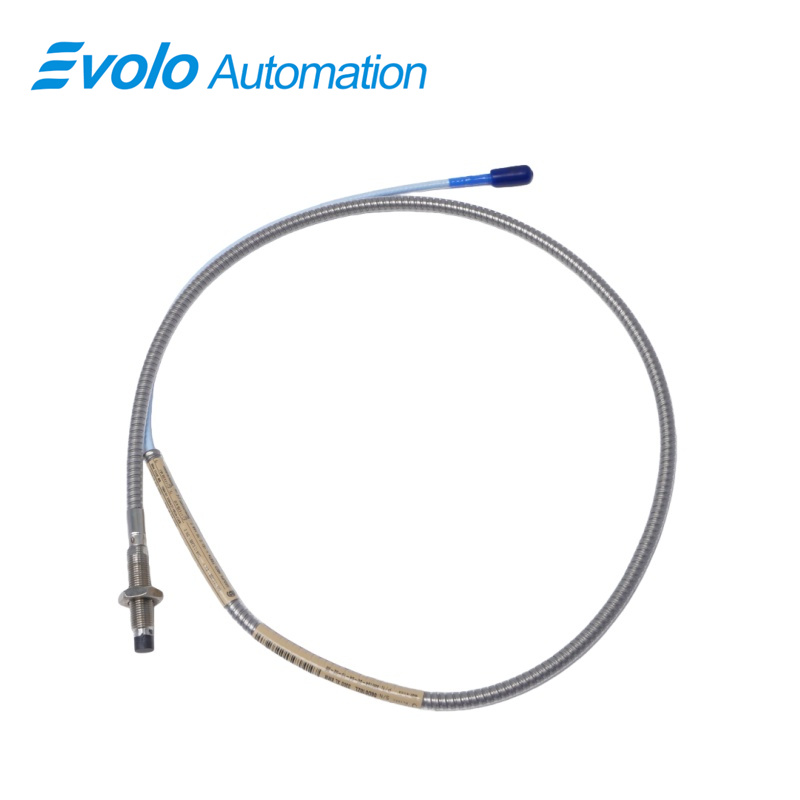

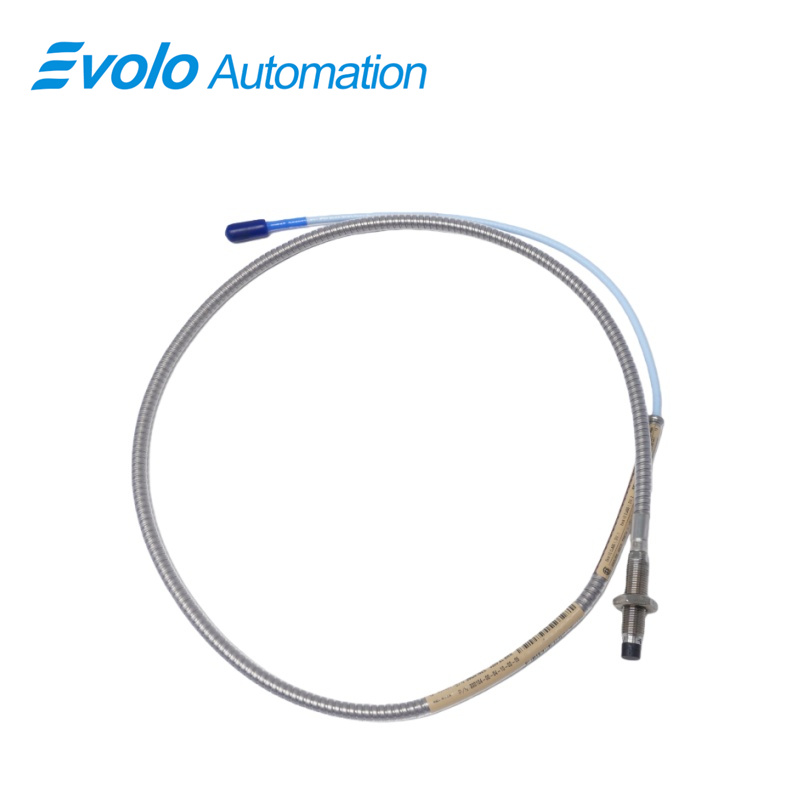

330104-00-04-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-04-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-04-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for advanced industrial automation applications. This 8 mm probe provides an output voltage linearly proportional to the distance between the probe tip and a conductive target, enabling precise measurement of both static position and dynamic vibration signals. Featuring a 1.0-meter total length, M10x1 threaded case, and robust miniature coaxial ClickLoc connector with standard cable, the 3300 XL 8 mm probe ensures reliable signal transmission in demanding environments. Rated for operating temperatures from -52°C to +177°C (-62°F to +350°F), the probe maintains less than 2 mV output variation per volt change in input voltage, offering exceptional stability and sensitivity. Its linear range of 2 mm (80 mils), output resistance of 50 Ω, and extension cable capacitance of 69.9 pF/m make it ideal for vibration, position, and Keyphasor measurements on fluid-film bearing machines. The probe supports CSA, ATEX, and IECEx approvals, ensuring global compliance and safe operation in hazardous environments. Advanced features such as the patented TipLoc molding and CableLoc design enhance mechanical durability, providing 330 N pull strength for secure attachment. Optional FluidLoc cables prevent leakage of oil or other liquids, ensuring reliable performance in industrial settings. Fully compatible with all 3300 XL 5 mm and 8 mm components, the system guarantees interchangeability without the need for bench calibration, delivering precise automation measurements and long-term reliability.

Applications

1. Vibration Monitoring on Rotating Equipment
The 3300 XL 8 mm probe accurately detects vibration in turbines, compressors, and pumps, with a linear range of 2 mm and high sensitivity, enabling early fault detection and reducing unscheduled downtime.

2. Shaft Position Sensing in Fluid-Film Bearings
Utilizing precise distance measurement to the rotor surface, the probe supports fluid-film bearing monitoring with output stability of less than 2 mV per input voltage change, critical for predictive maintenance.

3. Keyphasor Signal Generation
The probe provides accurate Keyphasor reference signals for speed and phase monitoring in rotating machinery, supporting real-time automated control and diagnostics.

4. High-Temperature Industrial Environments
Operating reliably from -52°C to +177°C, the 3300 XL 8 mm probe is suitable for steam turbines, petrochemical compressors, and other high-temperature processes requiring continuous monitoring.

5. Hazardous Location Measurements
With CSA, ATEX, and IECEx approvals, the probe can be deployed in explosive atmospheres, ensuring safe vibration and position measurement for chemical plants and refineries.

Specifications

Competitive Advantage

1. Enhanced Mechanical Durability
Patented TipLoc and CableLoc designs improve probe-tip bonding and cable retention, providing 330 N pull strength for industrial robustness and reduced maintenance costs.

2. High Signal Stability
Supply sensitivity below 2 mV per volt change ensures consistent output in electrically noisy environments, outperforming traditional proximity probes in precision automation applications.

3. Universal Interchangeability
Fully backward compatible with all 3300 XL and standard 5 mm/8 mm transducer components, allowing quick replacement and reduced system downtime without recalibration.

4. Extended Operating Temperature Range
Supports -52°C to +177°C (-62°F to +350°F), enabling deployment in harsh industrial environments where standard probes fail.

5. Optional FluidLoc Protection
The FluidLoc cable option prevents oil and fluid leakage through the cable interior, ensuring reliable long-term operation in lubrication-rich machinery and automated monitoring systems.
