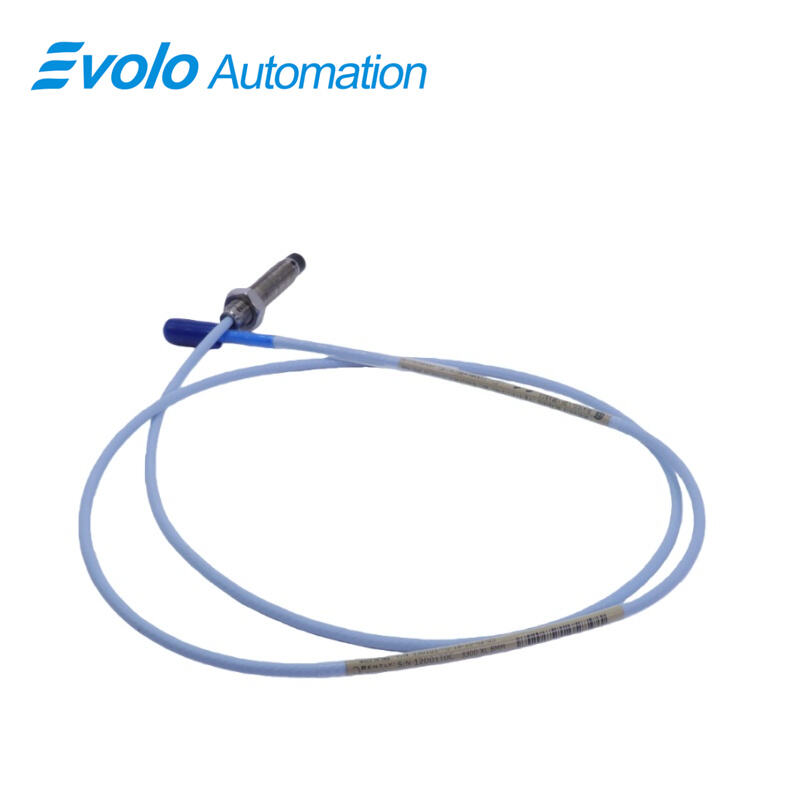

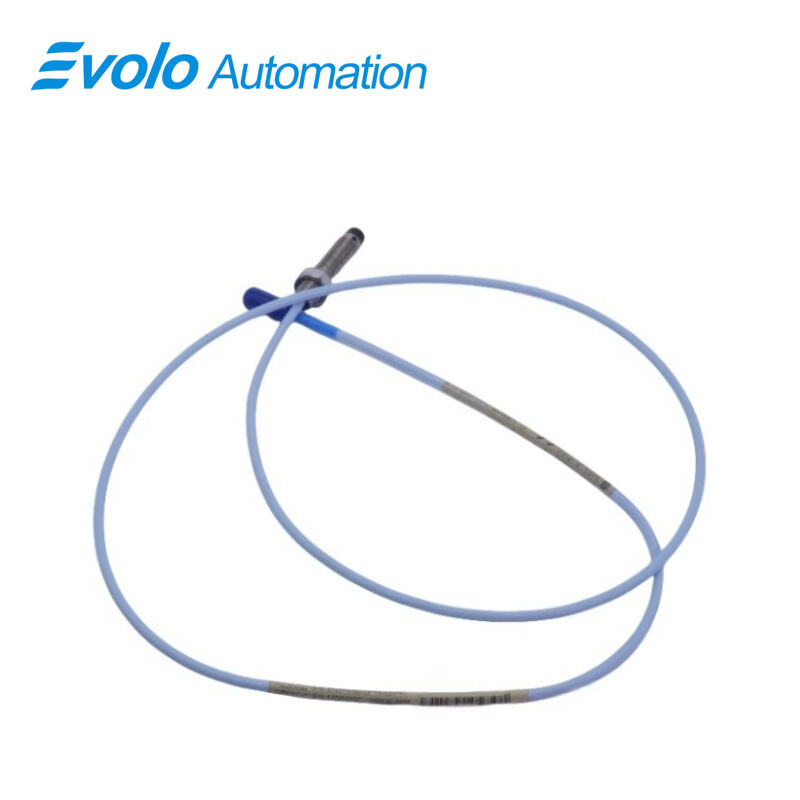

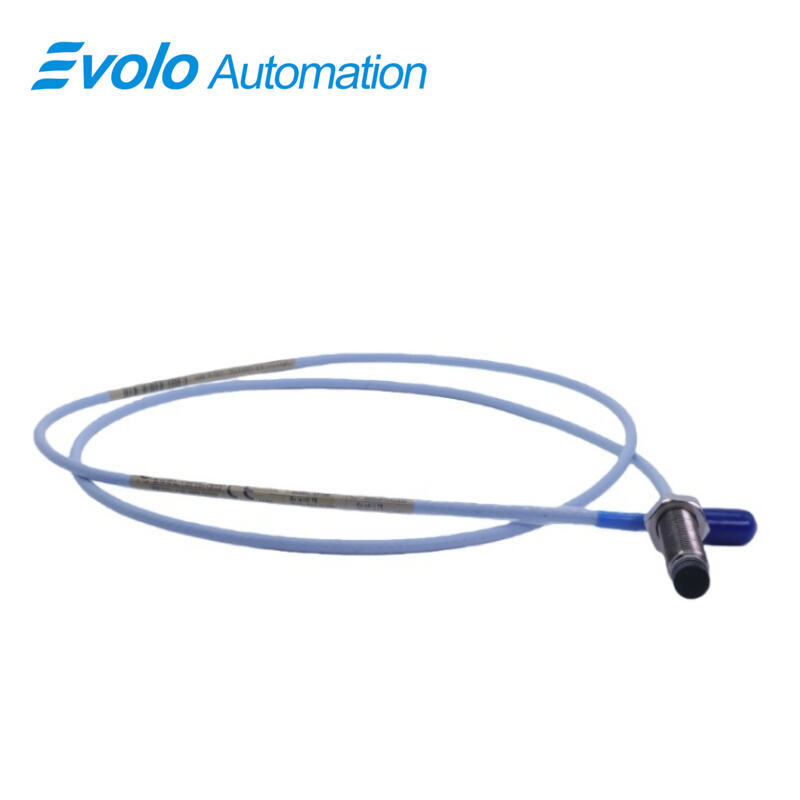

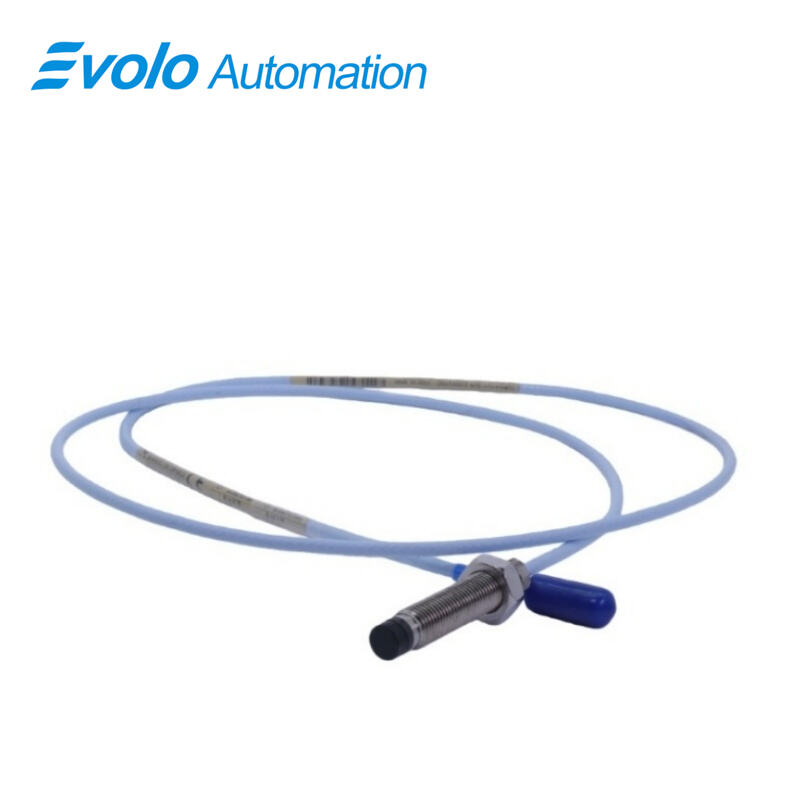

330101-00-18-20-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-18-20-12-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-18-20-12-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current displacement sensor designed for advanced industrial automation and rotating machinery protection systems. This 3300 XL 8 mm Proximity Probe converts the distance between its sensing tip and a conductive target into a stable, proportional voltage signal, enabling accurate monitoring of both static shaft position and dynamic vibration. With a 2 mm (80 mils) linear range, the probe is ideally suited for fluid-film bearing machines used in automated power generation, oil and gas processing, petrochemical plants, and heavy industrial equipment.

The 330101-00-18-20-12-05 proximity probe features a compact 3/8-24 UNF threaded probe case, a 2.0 meter FluidLoc cable, and a Miniature coaxial ClickLoc connector that ensures secure and vibration-resistant electrical connections. Designed for harsh automation environments, the probe operates reliably across an extended temperature range of -52°C to +177°C while maintaining 50 ohm output resistance and supply sensitivity below 2 mV/V for excellent signal stability. The controlled 69.9 pF/m cable capacitance supports long-distance signal transmission without degradation. Certified with CSA, ATEX, and IECEx approvals, the 3300 XL 8 mm Proximity Probe is suitable for hazardous-area automation applications where safety, accuracy, and long-term reliability are essential.

Applications

Application 1: Radial Vibration Monitoring in Steam and Gas Turbines

In automated turbine monitoring systems, the 3300 XL 8 mm Proximity Probe measures radial shaft vibration with high resolution. The 2 mm linear range enables accurate detection of imbalance and bearing wear, supporting automated alarms and shutdown logic.

Application 2: Shaft Position Measurement in Centrifugal Compressors

The 330101-00-18-20-12-05 proximity probe provides precise shaft position feedback in compressor automation systems. Its low supply sensitivity ensures consistent position data despite voltage fluctuations, improving protection system reliability.

Application 3: Keyphasor and Phase Reference Signal Generation

Used as a Keyphasor sensor, the 3300 XL 8 mm Proximity Probe generates accurate phase reference signals. This supports speed calculation and phase analysis for advanced vibration diagnostics in automated condition monitoring platforms.

Application 4: Speed and Overspeed Protection Systems

Integrated into machinery protection systems, the 3300 XL 8 mm Proximity Probe supports tachometer and speed measurement. Its stable output improves overspeed protection accuracy for critical rotating assets.

Application 5: Predictive Maintenance in Process Automation

The 330101-00-18-20-12-05 3300 XL 8 mm Proximity Probe supplies continuous vibration and displacement data to predictive maintenance systems. Trend analysis based on this data helps extend equipment life and reduce unplanned downtime.

Specifications

Operating and Storage Temperature:

-52°C to +177°C (-62°F to +350°F)

Supply Sensitivity:

Less than 2 mV change in output voltage per volt change in input voltage

Output Resistance:

50 Ω

Extension Cable Capacitance:

69.9 pF/m (21.3 pF/ft) typical

Field Wiring:

0.2 to 1.5 mm2 (16 to 24 AWG)

Linear Range:

2 mm (80 mils)

Competitive Advantage

Competitive Advantage 1: Hazardous Area Certification Support

With CSA, ATEX, and IECEx certifications, the 3300 XL 8 mm Proximity Probe enables safe deployment in hazardous automation environments, simplifying compliance and global project execution.

Competitive Advantage 2: FluidLoc Cable Technology

The 2.0 meter FluidLoc cable prevents oil and process fluids from migrating through the cable core. This significantly improves long-term signal integrity and reduces maintenance effort.

Competitive Advantage 3: Excellent Temperature Stability

Operating reliably from -52°C to +177°C, the 330101-00-18-20-12-05 proximity probe maintains accuracy under extreme thermal conditions without frequent recalibration.

Competitive Advantage 4: Robust Mechanical Design and Secure Connections

Patented TipLoc and CableLoc technologies provide up to 330 N pull strength, ensuring mechanical durability in high-vibration automation applications. The ClickLoc connector prevents loosening during operation.

Competitive Advantage 5: API 670 Performance Compliance and Interchangeability

The 3300 XL 8 mm Proximity Probe meets API 670 performance expectations and remains fully interchangeable with legacy 3300 series components, reducing retrofit costs while enhancing overall automation system performance.
