Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
MTL 8851-LC-MT |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Dimensions: |
7x14x13cm |
|
Weight: |
1.24 kg |
|
LAN Interface: |
|
|
Transmission Medium: |
100BaseTX or 10BaseT Ethernet |
|
Transmission Protocol: |
SafetyNet P2P |
|
Transmission Rates: |
10 – 100 Mbits/s |
|
LAN Connector Type: |
RJ45 (8-pin) ×2 |
|
LAN Isolation (Dielectric Withstand): |
1500 V |
|
Serial Interfaces: |
|
|
Interfaces: |
COM1 and COM2 |
|
Transmission Rates: |
1.2 – 115.2 kbits/s (asynchronous) |
|
Transmission Standard: |
RS485 half-duplex |
|
COM1 Connector: |
9-pin D-type connector (Female) |
|
COM2 Connector: |
9-pin D-type connector (Male) |
Description

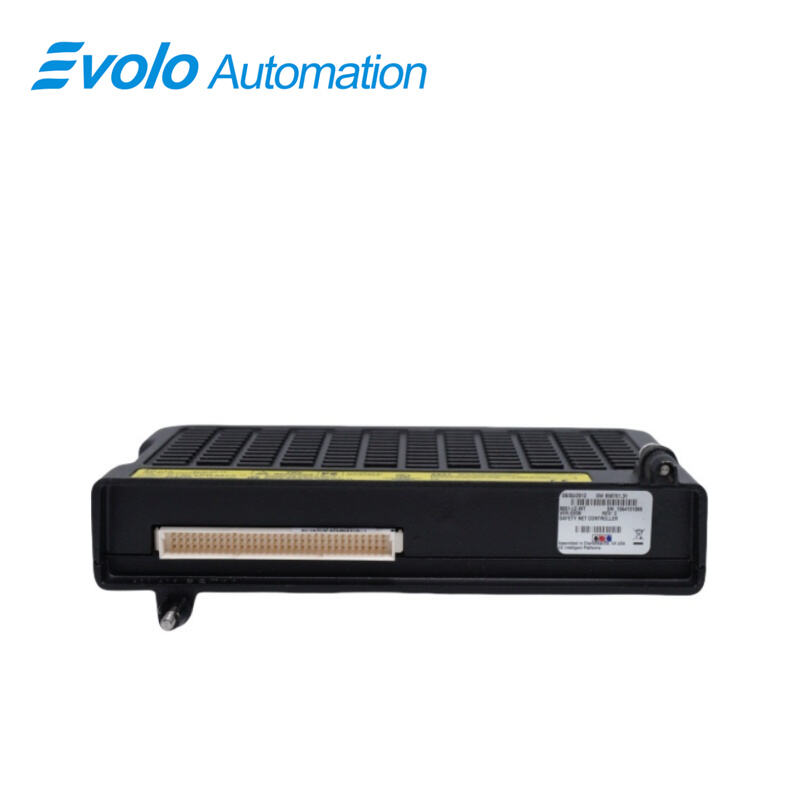

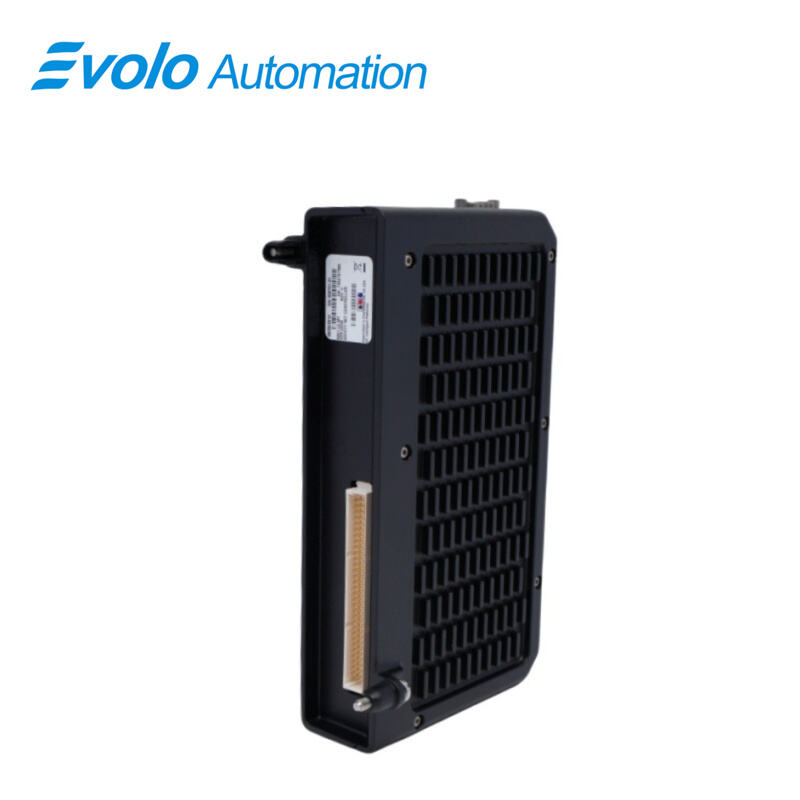

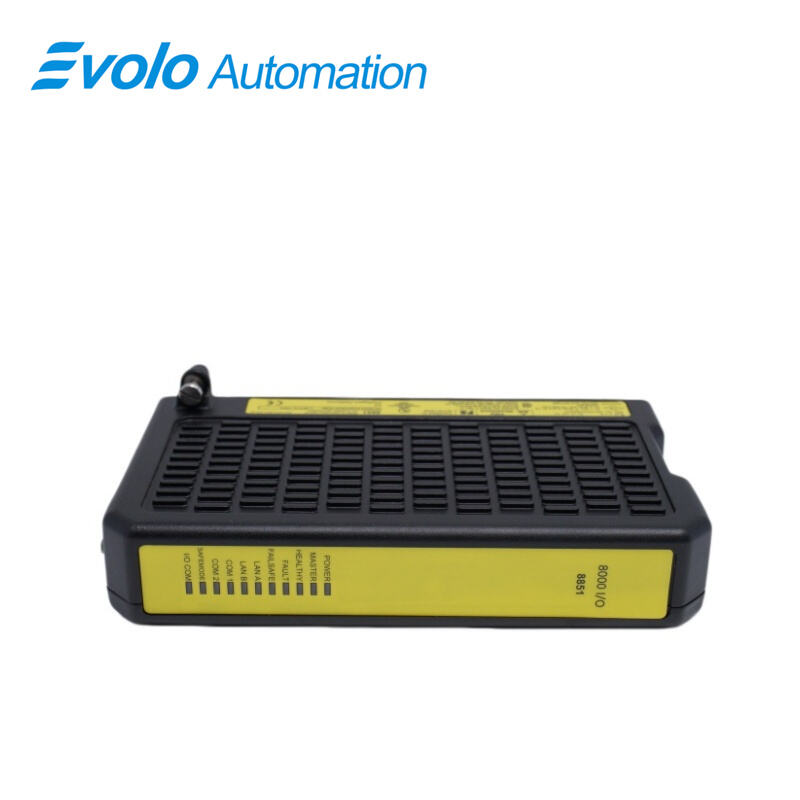

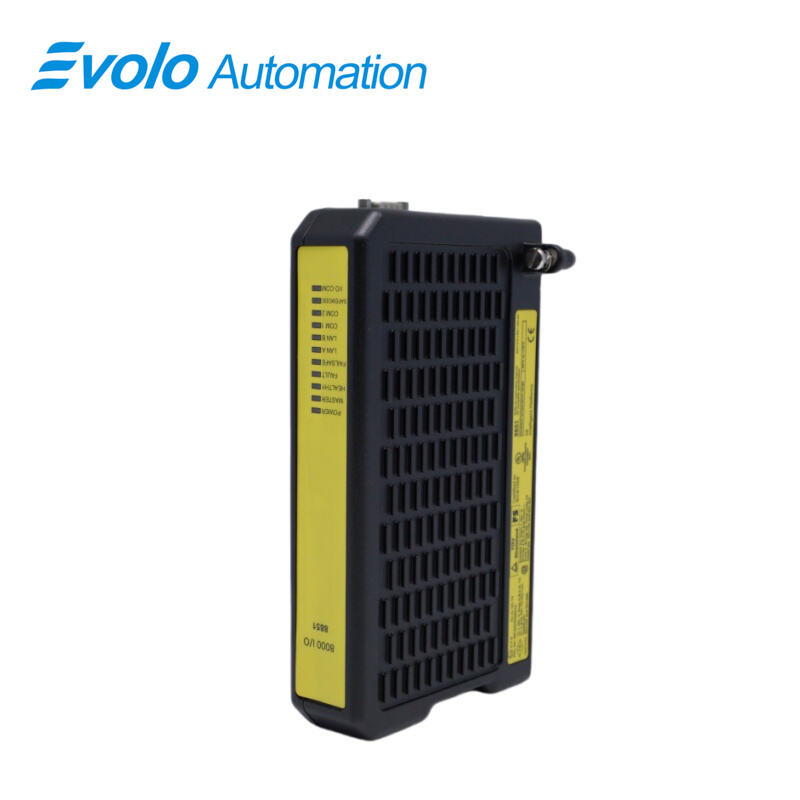

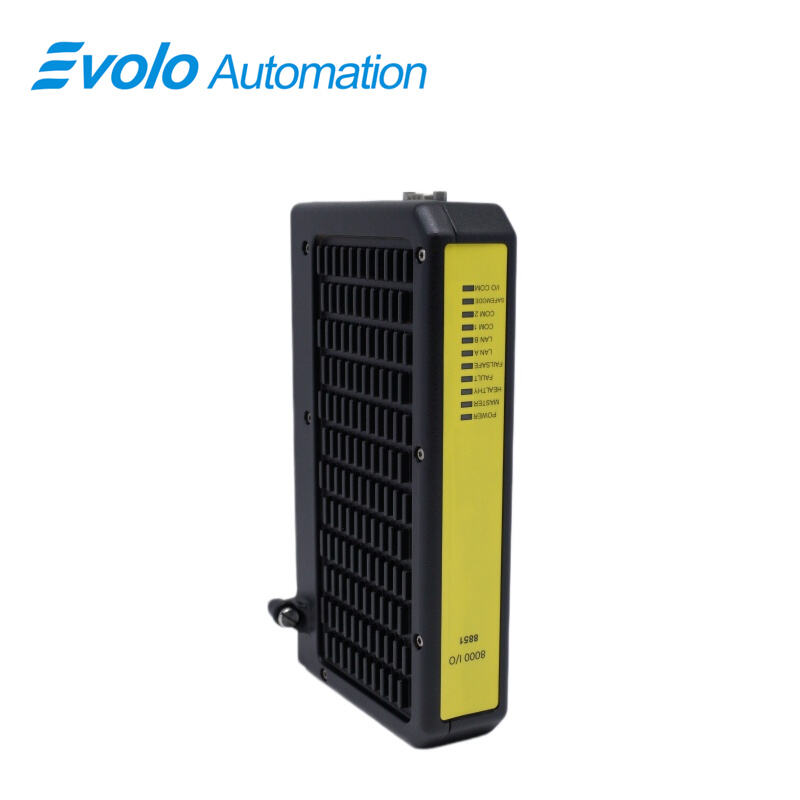

The 8851-LC-MT SafetyNet Controller stores and runs the SafetyNet application program which is downloaded from the Workbench.It manages a number of communication paths: with the IO Modules mounted on the local node via the internal Railbus;with other entities on the Ethernet LAN(other MOST nodes,PCs running the Workbench programming tools,HMI,historian packages and asset management tools) and with remote mounted serial devices.The SafetyNet Controller also manages the implementation of the redundancy strategy either as master or standby.The SafetyNet Controller has a number of LED’s that indicate the status and mode of operation of the Controller.
Applications
Oil & Gas: Signal conditioning for transmitters in explosive atmospheres.
Chemical/Petrochemical: Safe signal transmission from hazardous zones.
Power Plants: Isolation of 4-20mA loops in critical processes.
Specifications
|
Action on Software Malfunction: |
Halt CPU / Reset CPU |
|
Protection Technique: |
EEx nL IIC T4 |
|
Location Rating: |
Class 1, Div.2, Groups A, B, C, D T4 (FM / CSA) |
|
Controller Power Voltage: |
12 V DC (from 8913-PS-AC) |
|
Controller Power Consumption: |
0.4 A typical, 0.5 A maximum |
|
System Power Supply Current: |
15 mA maximum |
Features
High-Resolution LcD Display
Multiple Measurement Modes
Automatic Shut-off Function
Easy-to-Use Interface
Durable and Long-Lasting Design
Safety Certification: Certified according to IEC 61508 for SIL 2 safety applications
Internal Diagnostics: Provides comprehensive internal diagnostics for safe architecture 1oo1D.
Redundancy options: Optional redundancy for non-disruptive transmission.
Dual Redundant High-Speed Ethernet LAN: Supports two redundant high-speed Ethernet LAN connections.
Connectivity: Provides connections to both serial devices and other SafetyNet and standard controllers.
Configurable: Can be configured and reconfigured online.
Maintenance: Hot-swappable and maintainable even during operation in hazardous areas.
Process Variable Monitoring: Supports HART process and status variable transmission.
Event Logging: Can record up to 800o events for fault diagnosis and analysis.
