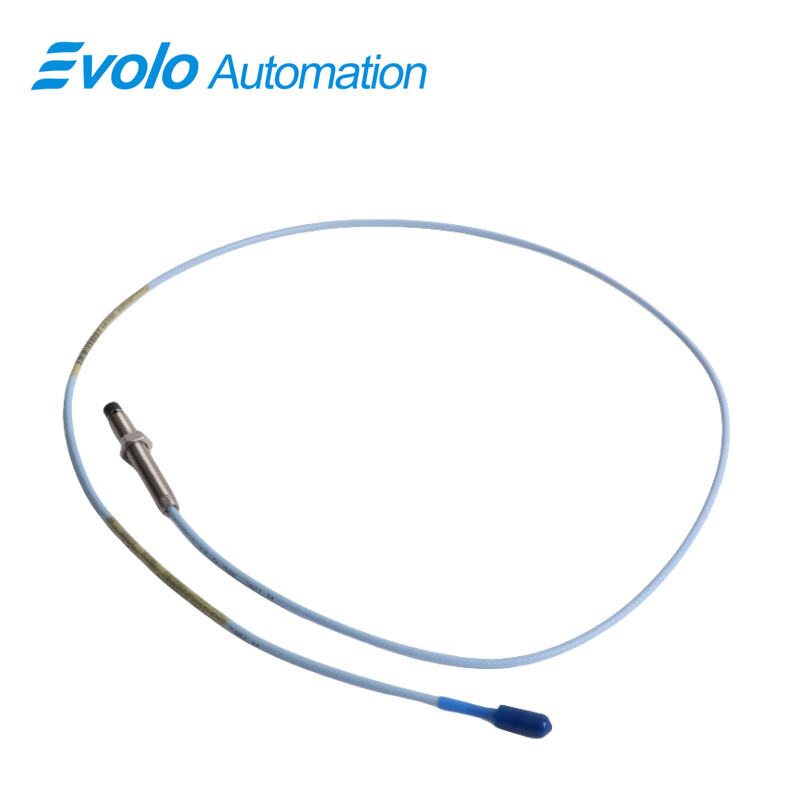

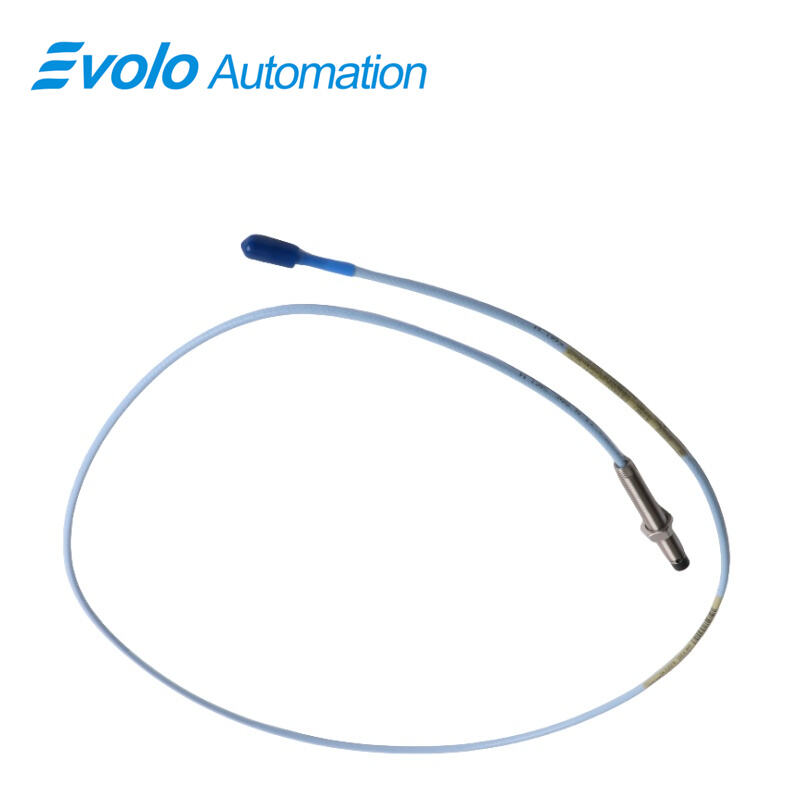

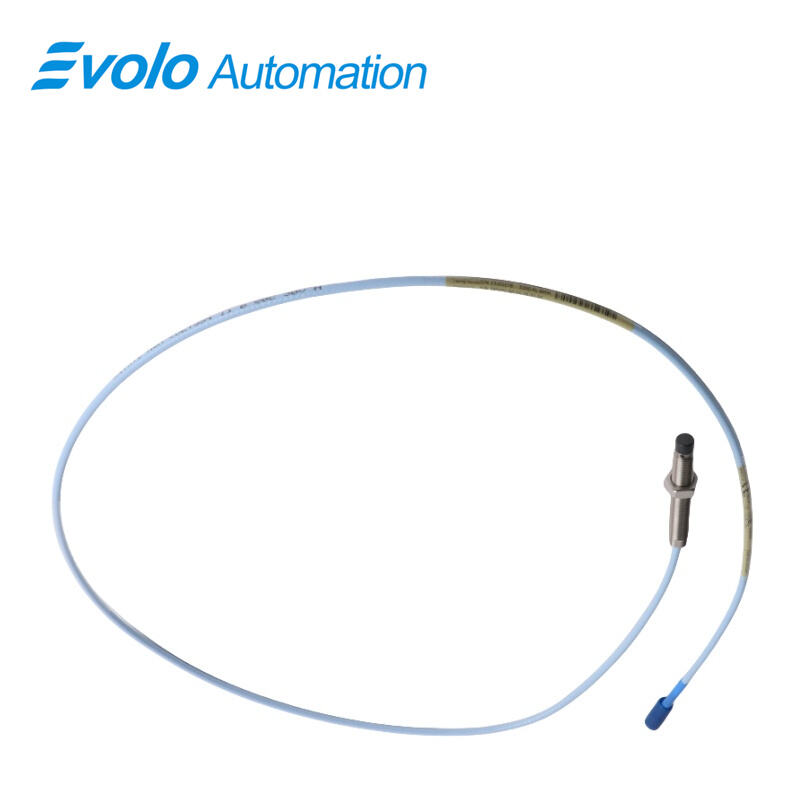

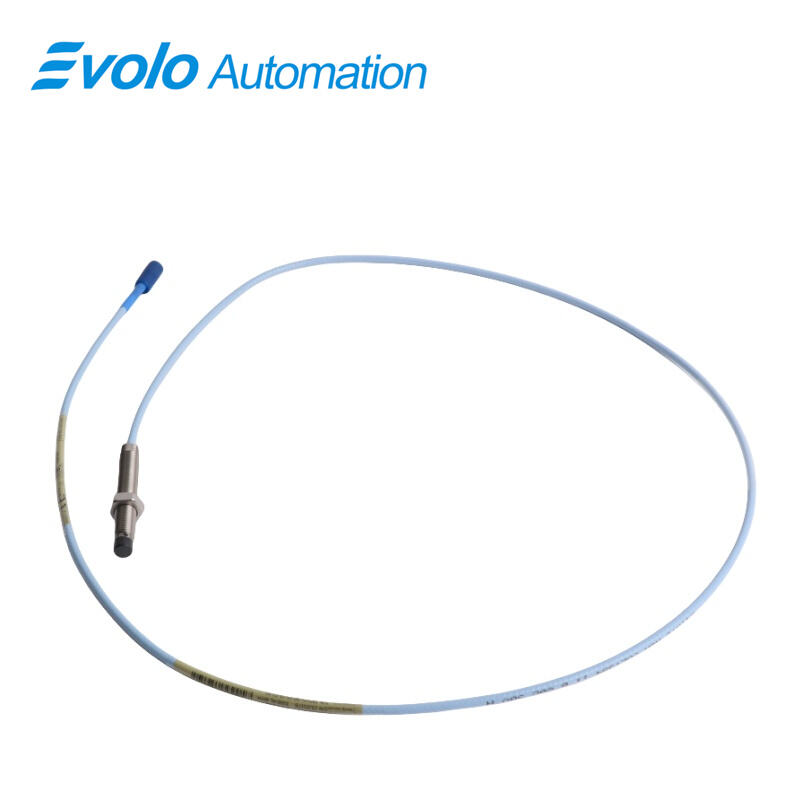

330101-00-24-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-24-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-24-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision, eddy-current sensor designed for industrial automation and machinery monitoring applications. Equipped with a 3/8-24 UNF probe thread and Miniature coaxial ClickLoc connector, this probe provides reliable, non-contact measurement of both static position and dynamic vibration on fluid-film bearing machines. The probe delivers a linear range of 2 mm (80 mils) and an output proportional to shaft displacement, ensuring accurate shaft vibration and position monitoring. Operating and storage temperatures from -52°C to +177°C (-62°F to +350°F), along with CSA, ATEX, and IECEx approvals, allow deployment in harsh and hazardous industrial environments. The system’s output resistance of 50 Ω and supply sensitivity of less than 2 mV per volt change maintain signal integrity for high-speed, real-time condition monitoring. The probe incorporates Bently Nevada’s patented TipLoc and CableLoc designs, providing a robust bond between the probe tip and body, and 330 N (75 lbf) pull strength for secure cable attachment. Optional FluidLoc cable sealing prevents oil or liquid ingress, making it ideal for lubrication-heavy machinery, compressors, turbines, and other critical rotating equipment. Full compatibility with 3300 XL 5 mm and 8 mm transducer components ensures seamless integration, retrofits, and upgrades while maintaining API 670 compliance for mechanical configuration, accuracy, and temperature stability.

Applications

1. Vibration Monitoring on Turbomachinery
The 3300 XL 8 mm probe accurately measures shaft vibration on turbines and compressors with a 2 mm linear range, supporting predictive maintenance and early fault detection.

2. Axial and Radial Position Tracking
Used for axial thrust and radial shaft position measurements, the probe maintains signal stability across operating temperatures from -52°C to +177°C, providing reliable real-time data.

3. Keyphasor and Speed Measurement
This probe is compatible with Keyphasor systems for zero-speed and tachometer signals, facilitating synchronization and speed monitoring of rotating machinery.

4. Harsh Industrial Environments
Rated for IP67 and CSA/ATEX/IECEx approvals, the probe withstands chemical exposure, high humidity, and extreme temperatures, ensuring consistent operation in severe conditions.

5. System Upgrades and Retrofits
Backward compatible with older 3300 series 5 mm and 8 mm components, the probe simplifies retrofits, reducing downtime and maintaining API 670 compliance for monitoring system upgrades.

Specifications

Competitive Advantage

1. High Accuracy and Signal Integrity
With 50 Ω output resistance and <2 mV/V supply sensitivity, the probe delivers precise, noise-resistant measurements suitable for high-speed rotating machinery.

2. Robust Mechanical Design
The patented TipLoc molding and CableLoc system provides 330 N pull strength and a secure probe-cable connection, ensuring longevity in dynamic industrial environments.

3. Extreme Environmental Tolerance
Operating from -52°C to +177°C and IP67 rated, the probe tolerates extreme temperatures, dust, and water ingress, enabling deployment in harsh industrial settings.

4. Seamless Integration and Compatibility
Fully compatible with existing 3300 XL 5 mm and 8 mm transducer systems, the probe allows flexible system design, easy upgrades, and component interchangeability.

5. Compliance with Global Standards
CSA, ATEX, and IECEx approvals ensure safe use in explosive or hazardous atmospheres, while API 670 compliance guarantees adherence to industrial standards for measurement accuracy and reliability.
