MR-DPD-021 Connector Box, China MR-DPD-021 Connector Box Manufacturers, Suppliers, Factory

Overview

Place of Origin:	Italy
Brand Name:	MADOKA
Model Number:	MR-DPD-021
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Input Control: DC24V	Input Control: DC24V
Input Current: 125mA (Max)	Input Current: 125mA (Max)
Output Contact AC: 250V 50/60Hz	Output Contact AC: 250V 50/60Hz
Output Contact DC: 30V=5A	Output Contact DC: 30V=5A

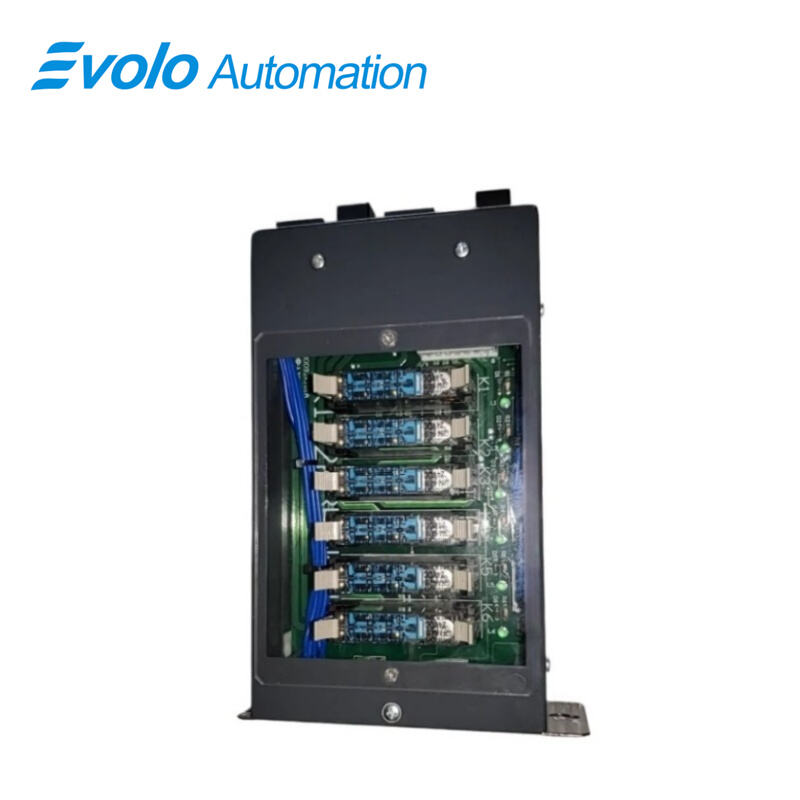

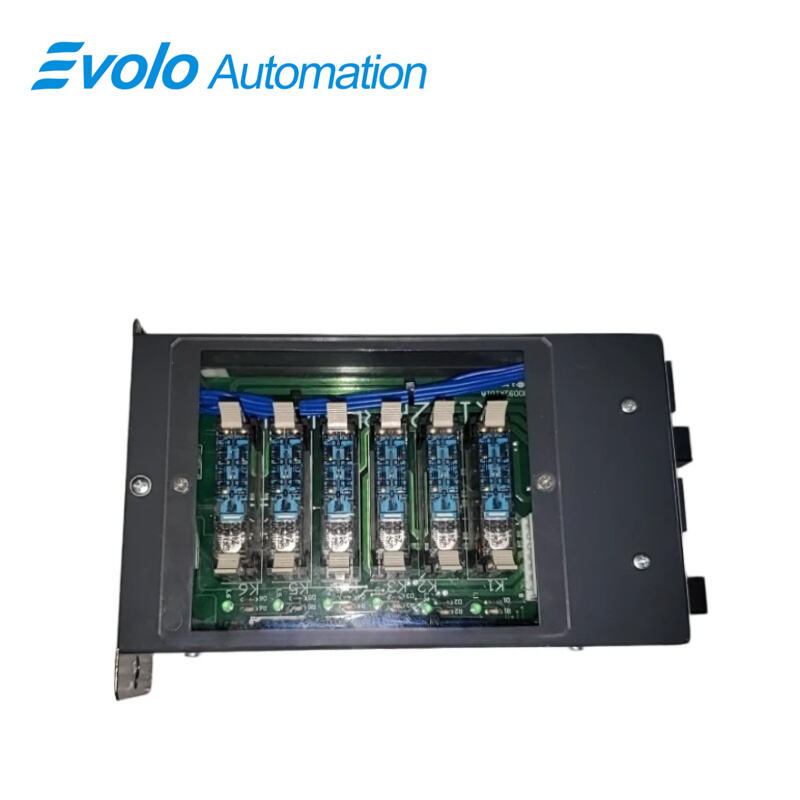

Cover Material: Transparent acrylic	Cover Material: Transparent acrylic
Relay Replacement: Accessible through housing opening	Relay Replacement: Accessible through housing opening
Relays Used: K1-K6	Relays Used: K1-K6
Relay Model: G7SA-5A1B DC24V (Omron)	Relay Model: G7SA-5A1B DC24V (Omron)
Integrated Structure: SPT-THR 1.5/4-V-5.0 P26 (Phoenix)	Integrated Structure: SPT-THR 1.5/4-V-5.0 P26 (Phoenix)
Terminal Type AWG18 and below: Insulating sleeve terminal, conductive length 8mm	Terminal Type AWG18 and below: Insulating sleeve terminal, conductive length 8mm
Terminal Type AWG16: Insulating sleeve terminal, conductive length 10mm	Terminal Type AWG16: Insulating sleeve terminal, conductive length 10mm

Description

The MADOKA MR-DPD-021 Connector Box is designed for industrial automation control. It operates with DC24V input control, 125mA maximum, and provides output contacts rated AC250V 50/60Hz and DC30V=5A. The transparent acrylic cover allows visual inspection, while relays K1-K6, including G7SA-5A1B DC24V (Omron), can be replaced through the housing opening. The integrated structure uses SPT-THR 1.5/4-V-5.0 P26 (Phoenix) for compact assembly. Terminals support AWG18 and below with 8mm conductive length and AWG16 with 10mm conductive length. The MADOKA MR-DPD-021 Connector Box ensures easy installation and maintenance in automation panels and control systems, making it suitable for signal distribution, relay control, and modular automation setups.

Applications

Distribute control signals across automation panels
The MADOKA MR-DPD-021 Connector Box enables routing of DC24V control signals and relay outputs to multiple devices, ensuring precise signal delivery in industrial control systems.
Replace relays without panel disassembly
With accessible housing openings, the MADOKA MR-DPD-021 allows quick replacement of relays K1–K6, reducing maintenance time in automation setups.
Integrate modular relay control systems
The MADOKA MR-DPD-021 supports AC250V and DC30V=5 A outputs, making it suitable for modular relay control in machine automation or process panels.
Provide visual inspection of relays and terminals
The transparent acrylic cover on the MADOKA MR-DPD-021 allows operators to monitor relay status and wiring integrity without removing the box, improving operational efficiency.
Support multiple wiring configurations
The MADOKA MR-DPD-021 accommodates AWG18 and AWG16 conductors with proper insulating sleeves, facilitating flexible integration into existing automation networks.

Specifications

Operating Temperature:	-10°C to +55°C
Storage Temperature:	-20°C to +85°C
Humidity Range:	5–95% RH non-condensing
Relay Switching Life:	≥100,000 operations at rated load
Contact Bounce Time:	<3 ms
Input-Output Response Time:	<10 ms

Competitive Advantage

Reduce downtime for relay replacement
The MADOKA MR-DPD-021 allows relays to be swapped through the housing opening without disassembling the panel, saving maintenance time.
Ensure reliable current handling
The MADOKA MR-DPD-021 supports DC24V input at 125 mA and output contacts up to AC250V 50/60 Hz or DC30V=5 A, allowing safe operation of connected devices.
Simplify panel integration
With compact integrated structure SPT-THR 1.5/4-V-5.0 P26 (Phoenix) and standard terminal types, the MADOKA MR-DPD-021 is easy to mount and wire in automation panels.
Allow quick visual verification
The transparent acrylic cover of the MADOKA MR-DPD-021 provides operators with a clear view of relay and wiring conditions, improving inspection speed and reducing errors.
Support flexible wiring
The MADOKA MR-DPD-021 accommodates multiple wire gauges (AWG18/16) with adequate conductive lengths, enabling versatile installation in industrial automation systems.
