330130-040-02-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-040-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

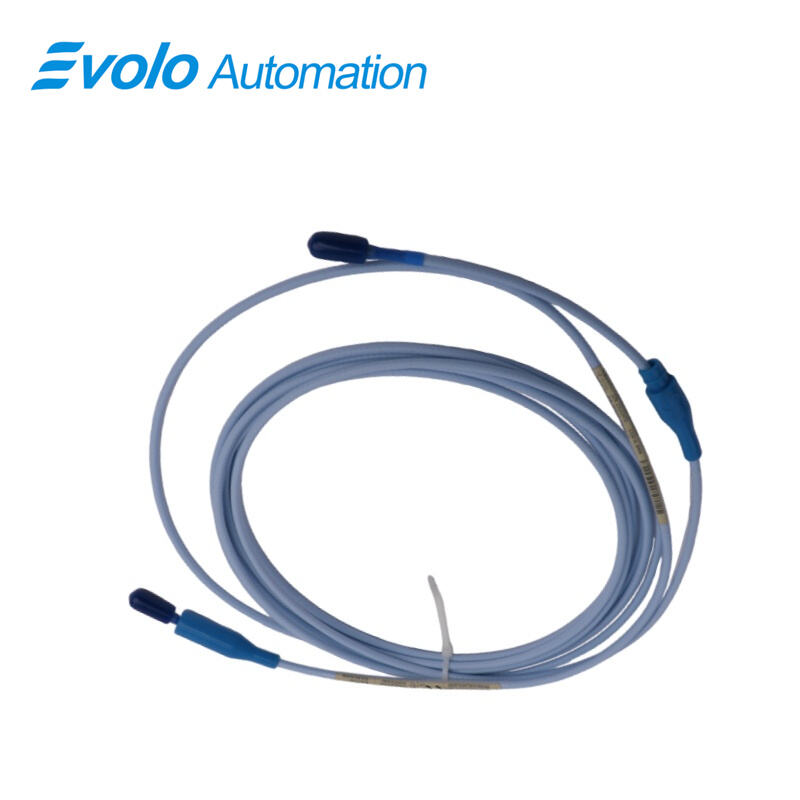

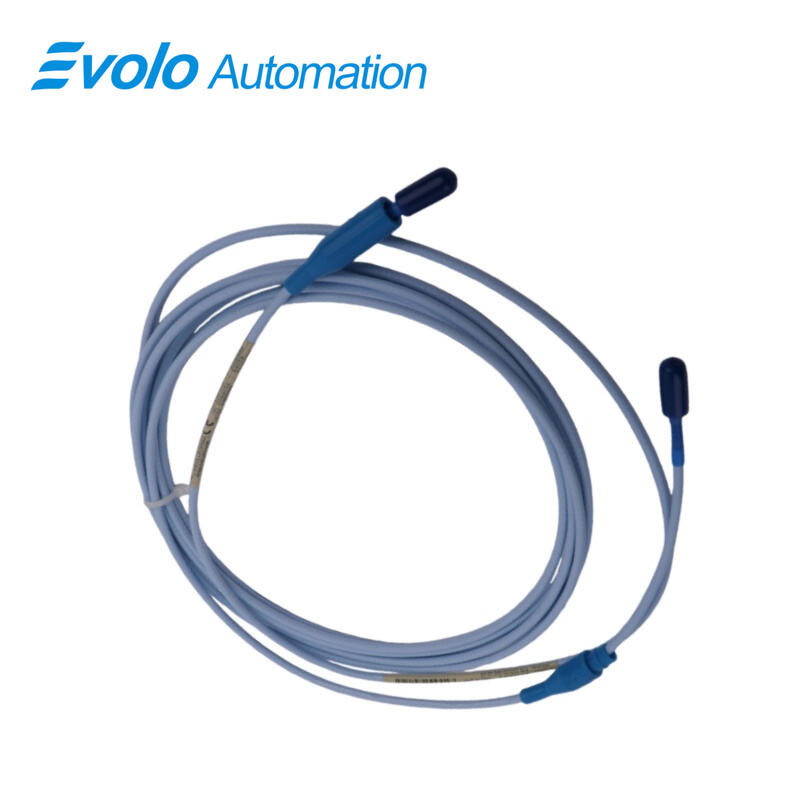

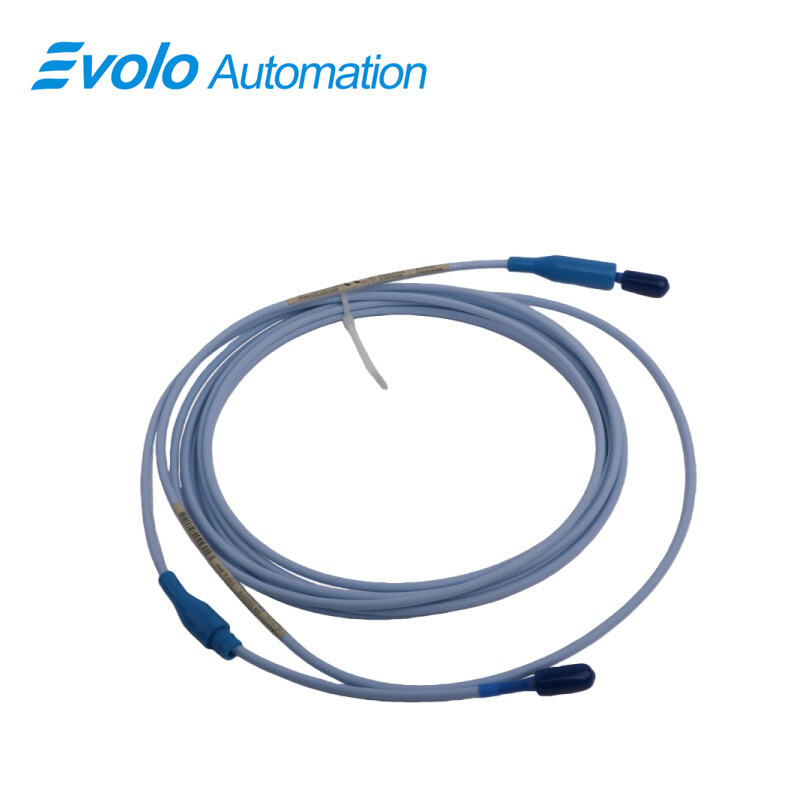

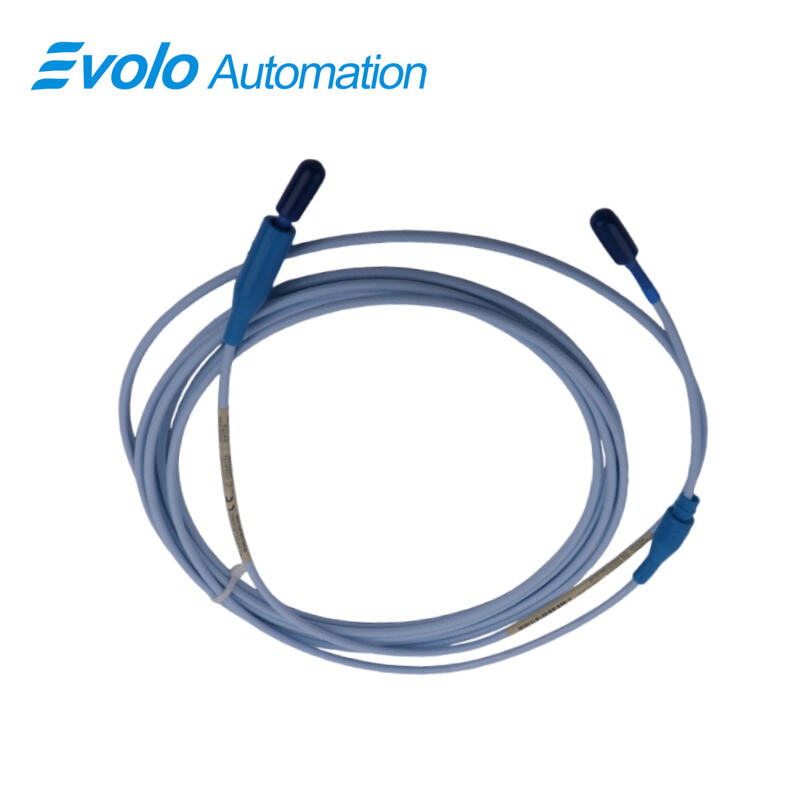

The 330130-040-02-05 3300 XL Standard Extension Cable is a high-performance, 4.0-meter (11.5 feet) extension cable designed specifically for use with the 3300 XL 8 mm Proximity Transducer System. Engineered for industrial automation applications, this cable ensures precise transmission of voltage signals from the probe to the Proximitor sensor, supporting accurate measurement of both static (position) and dynamic (vibration) data. The cable is constructed from 75 Q triaxial, fluoroethylene propylene (FEP) insulated materials, providing exceptional chemical and temperature resistance. With a typical capacitance of 69.9 pF/m (21.3 pF/ft) and an output resistance of 50 Ω, the 3300 XL extension cable guarantees minimal signal loss and high-frequency response up to 10 kHz, even with field wiring lengths up to 305 meters (1000 feet).

This extension cable incorporates a connector protector for enhanced durability and is CSA, ATEX, and IECEx certified, meeting stringent industrial safety and reliability standards. The design supports field wiring from 0.2 to 1.5 mm² (16 to 24 AWG), with a linear range of 2 mm (80 mils) and sensitivity to voltage changes below 2 mV per volt. Fully compatible and interchangeable with all 3300 XL probes and Proximitor sensors, this cable eliminates the need for bench calibration and ensures seamless integration within existing 3300 XL Proximity Transducer Systems, offering unmatched reliability in vibration and position monitoring for fluid-film bearing machines and Keyphasor reference systems.

Applications

Vibration Monitoring
The 3300 XL extension cable enables accurate vibration detection on fluid-film bearings. Its high-frequency response up to 10 kHz ensures even small dynamic fluctuations are captured, supporting predictive maintenance in turbines, pumps, and compressors.

Position Sensing
Used in industrial automation for precise shaft and rotor position measurement, the extension cable maintains a linear range of 2 mm, allowing the system to detect subtle positional changes and ensure machinery alignment and balance.

Speed Measurement
Paired with Keyphasor reference probes, the cable facilitates speed monitoring in rotating machinery. Accurate voltage transmission allows for precise RPM calculations, critical for optimizing equipment efficiency.

Retrofit and Upgrades
The cable’s backward compatibility with non-XL 3300 series components makes it ideal for upgrading legacy systems without extensive reconfiguration, providing a cost-effective solution for modernizing automation systems.

Harsh Environment Operations
Designed with FEP insulation and a connector protector, the cable resists exposure to oil, moisture, and industrial chemicals, ensuring consistent performance in extreme conditions, such as petrochemical plants or high-temperature environments.

Specifications

Competitive Advantage

High Signal Integrity
With 50 Ω output resistance and low capacitance of 69.9 pF/m, the extension cable minimizes voltage drop and maintains high-fidelity signal transmission over long distances up to 305 meters, supporting accurate process monitoring.

Patented CableLoc Design
The cable incorporates a patented CableLoc system, providing 330 N (75 lbf) pull strength for secure attachment to the probe, reducing maintenance downtime caused by accidental disconnections.

Interchangeable System Components
Compatible with all 3300 XL and legacy 3300 series probes and Proximitor sensors, this extension cable enables seamless system integration and eliminates the need for individual component matching.

Certified for Industrial Safety
The cable meets CSA, ATEX, and IECEx certifications, ensuring safe operation in hazardous locations, including petrochemical and energy industries.

Durability in Extreme Conditions
Constructed from FEP-insulated triaxial cable and fitted with a connector protector, the extension cable withstands harsh industrial environments, maintaining performance under high temperatures, exposure to fluids, and mechanical stress.
