330703-000-100-10-02-05 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330703-000-100-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

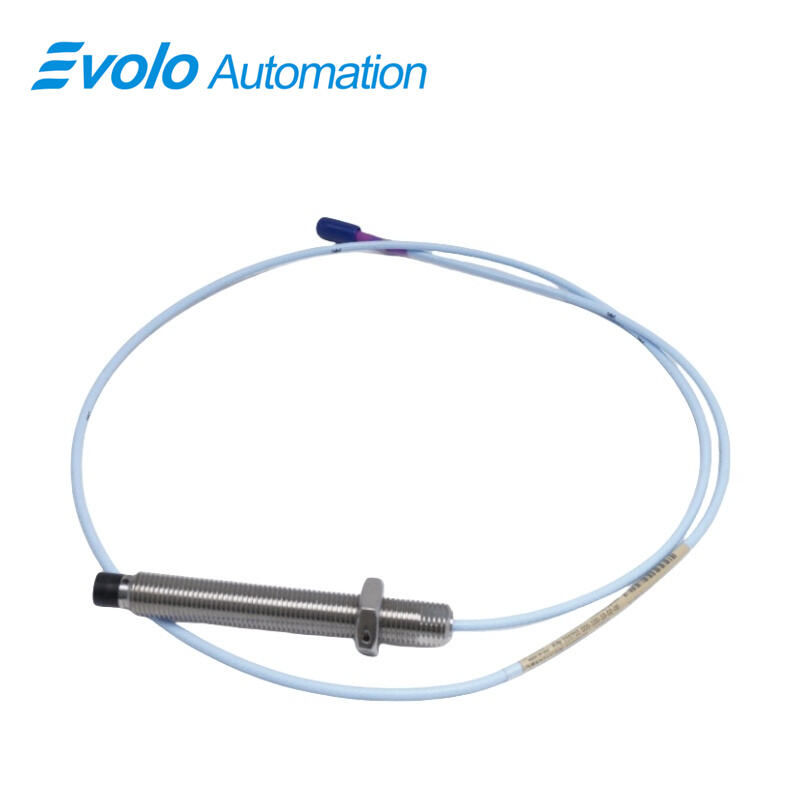

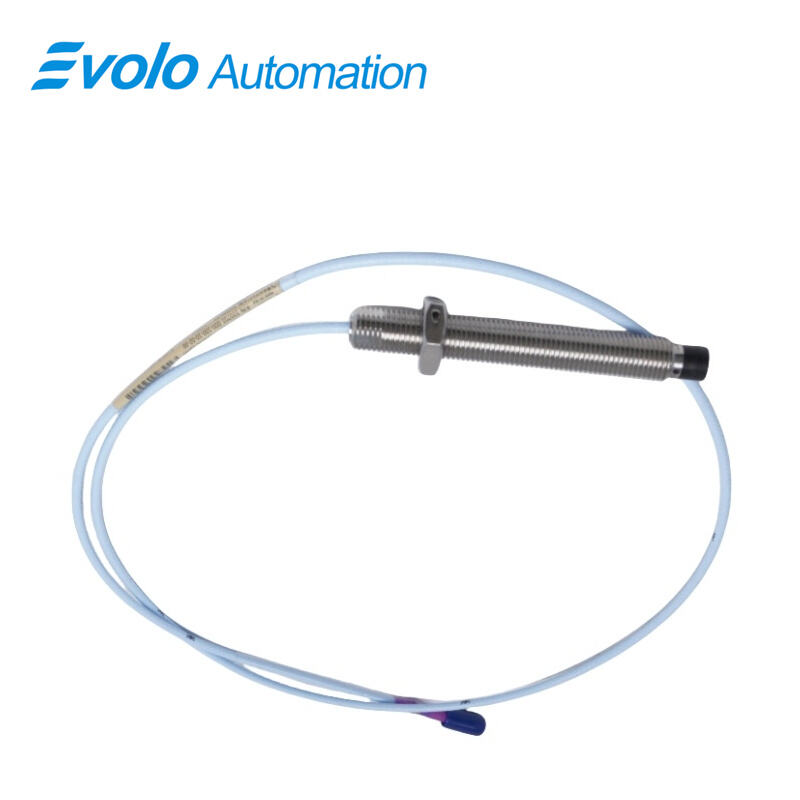

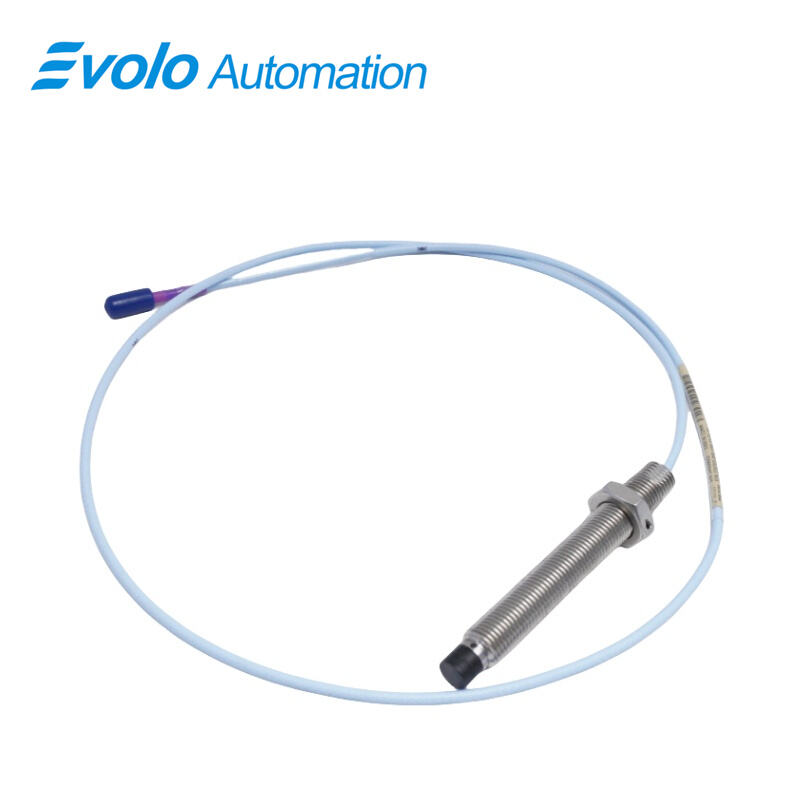

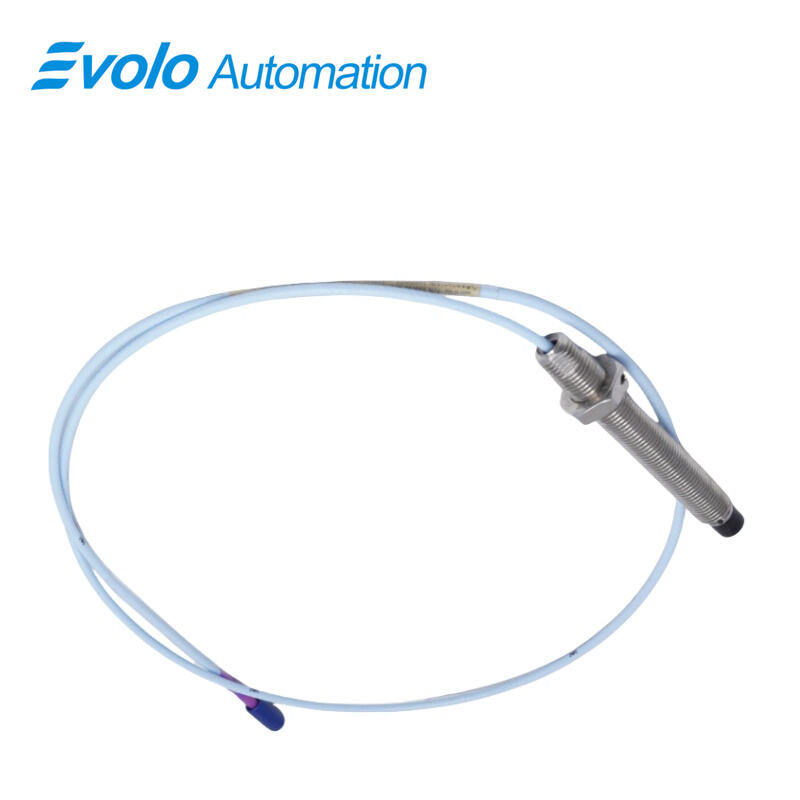

The 3300 XL 11 mm Proximity Probe (330703-000-100-10-02-05) is a high-precision, non-contacting transducer specifically designed for advanced vibration and displacement monitoring in industrial automation and rotating machinery. With an output sensitivity of 3.94 V/mm (100 mV/mil), this probe enables accurate measurement of axial (thrust) positions, ramp differential expansion, rod positions, and phase reference signals on fluid film bearing machines. The large 11 mm probe tip allows a significantly longer linear range than standard 8 mm 3300 XL probes, improving signal reliability and dynamic response across demanding operating conditions.

This probe features a robust M14 x 1.5 threaded case with a maximum thread engagement of 21 mm, an overall case length of 100 mm, and a total cable length of 1.0 meter (3.3 feet). The probe is equipped with a Miniature coaxial ClickLoc connector, providing secure electrical connections, while 99.9% braided copper shielding ensures minimal signal interference. Designed for harsh environments, the 3300 XL 11 mm Proximity Probe carries IP67-rated protection against dust and water and operates in a temperature range of -40°C to +85°C, ensuring durability and reliability in industrial automation systems.

Compatible with upgraded 3500 Monitoring Systems and designed to replace legacy 7200-series 11 mm and 14 mm transducers, the 3300 XL 11 mm Probe requires complete system component replacement during upgrades. Its gold-plated brass ClickLoc connectors, TipLoc molded probe tip, and CableLoc design allow secure connections with a 330 N (75 lb) pull strength, while optional FluidLoc cables prevent oil leakage and connector protectors enhance performance in humid environments. The included locknut with pre-drilled safety wire holes adds an extra layer of installation safety.

Applications

Axial Position Measurement
The 3300 XL 11 mm probe enables precise axial thrust position monitoring on steam and hydro turbines, supporting accurate load balancing and efficiency optimization. Its extended linear range ensures measurement accuracy over ±5 mm displacement.

Ramp Differential Expansion Measurement
In turbines and compressors, the probe monitors thermal growth differences between shaft and casing, providing real-time data critical for preventing mechanical interference and ensuring operational safety.

Rod Position and Rod Drop Detection
For reciprocating compressors, the 11 mm probe accurately measures rod displacement with ±0.01 mm resolution, enabling predictive maintenance and avoiding catastrophic failures.

Tachometer and Zero Speed Detection
The probe generates reliable rotational speed signals, including zero-speed detection, supporting advanced automation control and safe startup/shutdown procedures for critical machinery.

Phase Reference (Keyphasor) Signals
The probe produces high-quality phase reference signals, essential for vibration spectrum analysis, rotor imbalance detection, and automated condition monitoring in industrial environments.

Specifications

Competitive Advantage

Extended Linear Range
Compared to the 8 mm 3300 XL probe, the 11 mm tip provides up to 50% longer linear range, improving measurement precision and system reliability.

High Environmental Resistance
Rated IP67, the probe withstands dust, water, and extreme temperatures (-40°C to +85°C), ensuring dependable operation in industrial automation environments.

Robust Mechanical Design
Featuring M14 threaded case, TipLoc molding, and CableLoc connection, the probe delivers high mechanical stability and resistance to vibration and pull forces of up to 330 N.

Enhanced Signal Integrity
99.9% braided copper shielding and gold-plated ClickLoc connectors minimize electrical interference, ensuring accurate vibration and displacement readings under high-noise conditions.

Seamless System Integration
Designed to replace the 7200-series and integrate with modern 3500 Monitoring Systems, it allows straightforward upgrades with full compatibility and updated software support, ensuring a future-proof automation solution.
