Overview

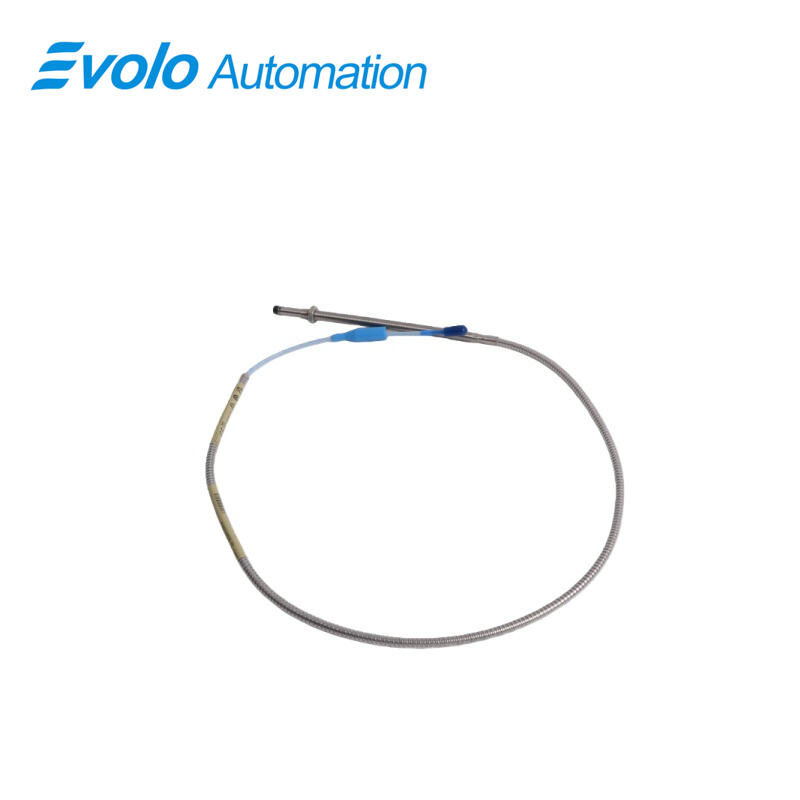

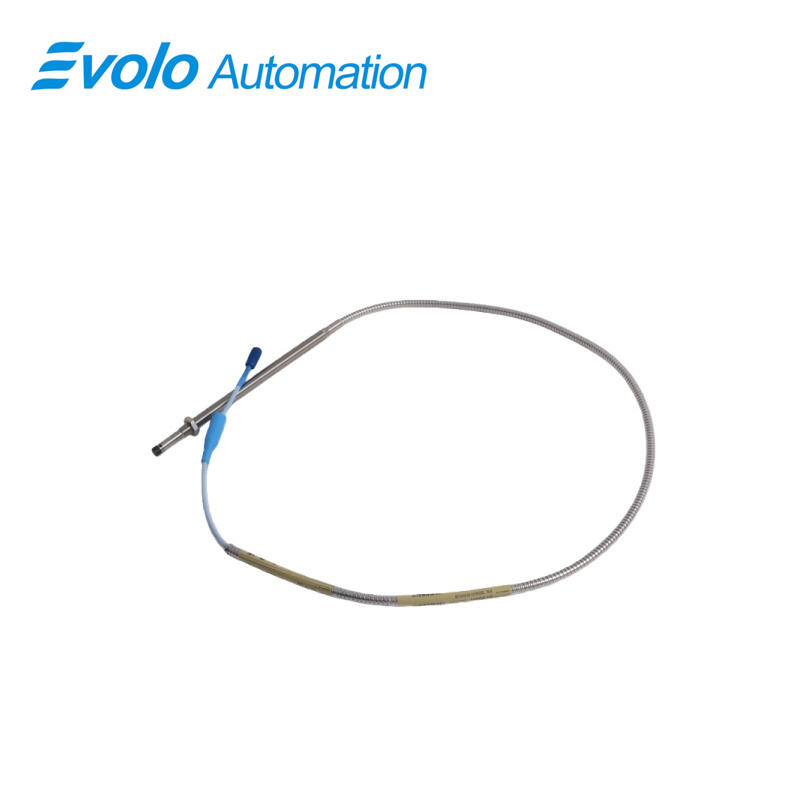

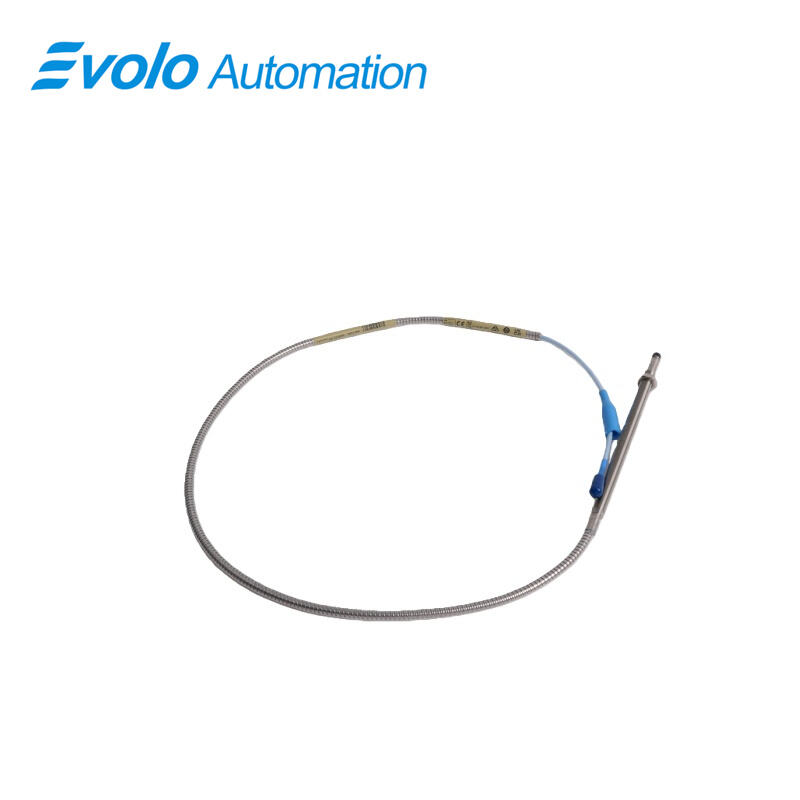

330101-00-50-10-02-00 3300 XL 8 mm Proximity Probes
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-50-10-02-00 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330101-00-50-10-02-00 3300 XL 8 mm Proximity Probes are precision non-contact displacement sensors designed for accurate vibration and position monitoring in critical rotating machinery. As part of the proven 3300 XL 8 mm Proximity Probes family, this model applies advanced eddy current sensing technology to deliver stable, linear, and repeatable measurement performance under continuous industrial operating conditions. The 3300 XL 8 mm Proximity Probes are widely deployed in machinery protection and condition monitoring systems where reliability, accuracy, and long-term stability are essential.
The operating principle of the 3300 XL 8 mm Proximity Probes is based on the interaction between an electromagnetic field generated at the probe tip and a conductive target surface. Variations in the distance between the probe and the target result in proportional changes in output voltage, allowing the 330101-00-50-10-02-00 3300 XL 8 mm Proximity Probes to accurately measure shaft vibration, radial displacement, and relative position. With a defined 2 mm linear range, these 3300 XL 8 mm Proximity Probes provide high-resolution data required for early detection of imbalance, misalignment, shaft runout, and bearing wear.
Key Functions
Applications
The 3300 XL 8 mm Proximity Probes are widely used for non-contact vibration monitoring of rotating shafts in turbines, compressors, motors, and pumps, providing accurate radial displacement data for machinery condition monitoring and protection systems.
The 330101-00-50-10-02-00 3300 XL 8 mm Proximity Probes are suitable for shaft position and relative displacement measurement applications where precise control of clearances is required, supporting axial movement monitoring and shaft runout detection.
In predictive maintenance systems, the 3300 XL 8 mm Proximity Probes deliver stable and repeatable measurement signals that support trend analysis, early fault detection, and maintenance planning in demanding industrial environments.
Official Specifications
Quick Detail
|
Agency Approval Option: |
Not required |
|
Unthreaded Length Option : |
0 in |
|
Overall Case Length Option : |
5.0in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Dimension: |
20.5x22.4x3.3cm |
|
Weight: |
0.14kg |
Specifications
|
Operating Temperature Range: |
-55°C to +175°C (-65°F to+351°F) |
|
Linear Range: |
2 mm |
|
Output Resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage. |
|
Power: |
Requires -17.5 Vdc to -26 Vdc |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 303 or 304 stainless steel(SST) |
Frequently Asked Questions
What is the model number?
The listed model number is 330101-00-50-10-02-00.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1. High Measurement Accuracy and Stability
The 3300 XL 8 mm Proximity Probes provide a defined 2 mm linear range, low supply sensitivity, and stable 50 Ω output resistance, ensuring accurate and repeatable measurement results under continuous operation.
2. Robust Construction for Industrial Environments
With a stainless steel probe case and PPS probe tip, the 330101-00-50-10-02-00 3300 XL 8 mm Proximity Probes offer excellent resistance to corrosion, oil exposure, vibration, and mechanical stress.
3. Easy Installation and System Compatibility
The combination of ClickLoc connector design, standard cable length, and optimized mechanical dimensions allows the 3300 XL 8 mm Proximity Probes to be easily integrated into a wide range of machinery monitoring and protection systems.
