Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
M60K03HKHF8LH4CM8NP6EUXXW5C |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
M60K03HKHF8LH4CM8NP6EUXXW5C |
|
Part name |
Control Module |
|
Operating voltage |
24 V DC |
|
Environmental temperature |
-20°C to +60°C |
|
Communication interfaces |
2×RJ45 (PROFINET IRT supported), 1×RS485 |
|
Dimensions (W×H×D) |
14 x 10 x 3.5 cm |
|
Protection rating |
IP67 |
|
Weight |
0.25 kg |
|
Operating temperature (IP67 condition) |
-10°C to +55°C |
Description

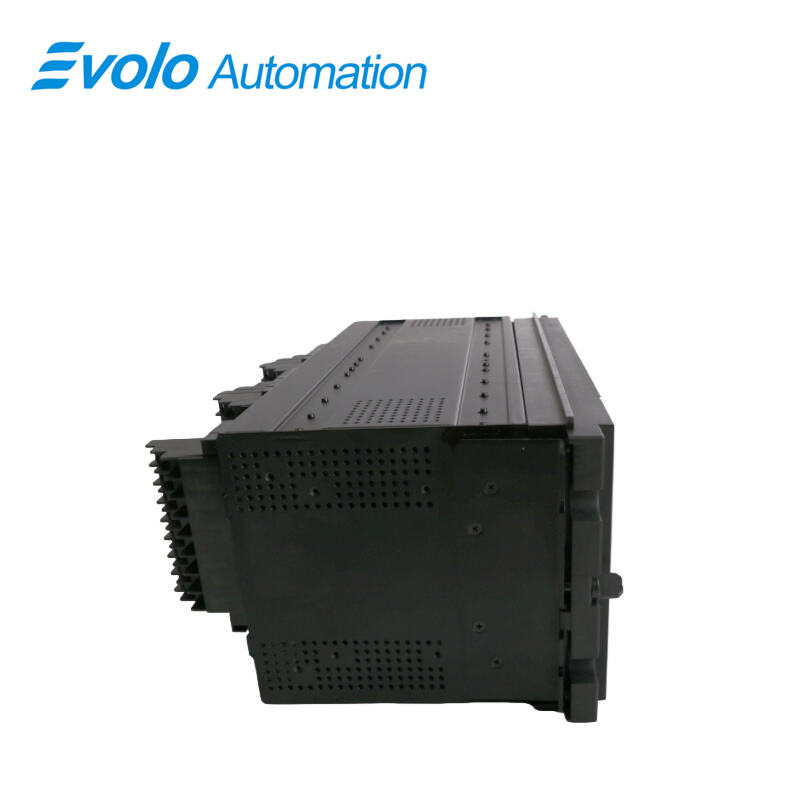

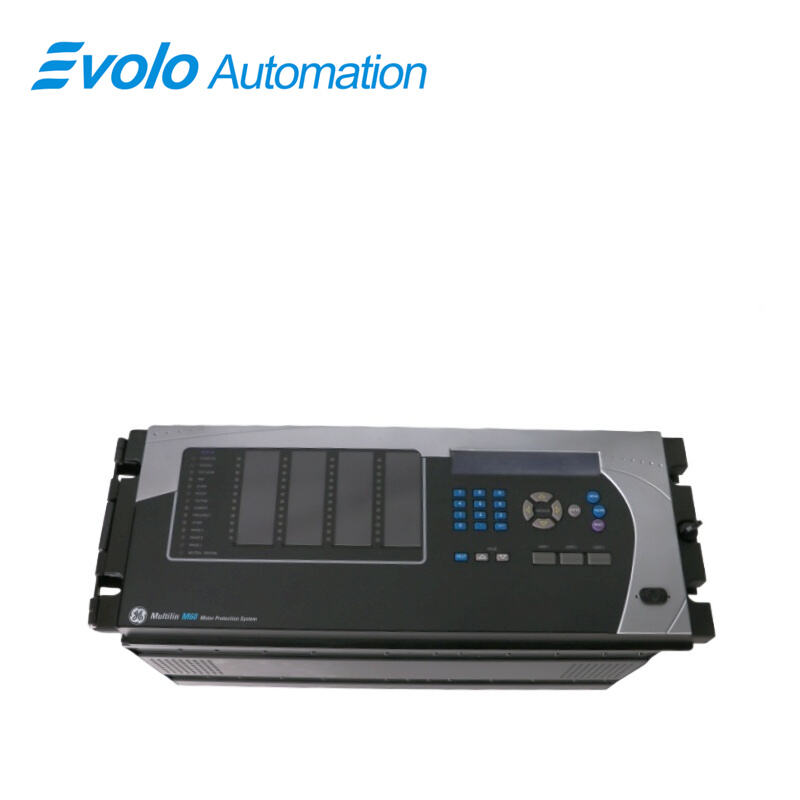

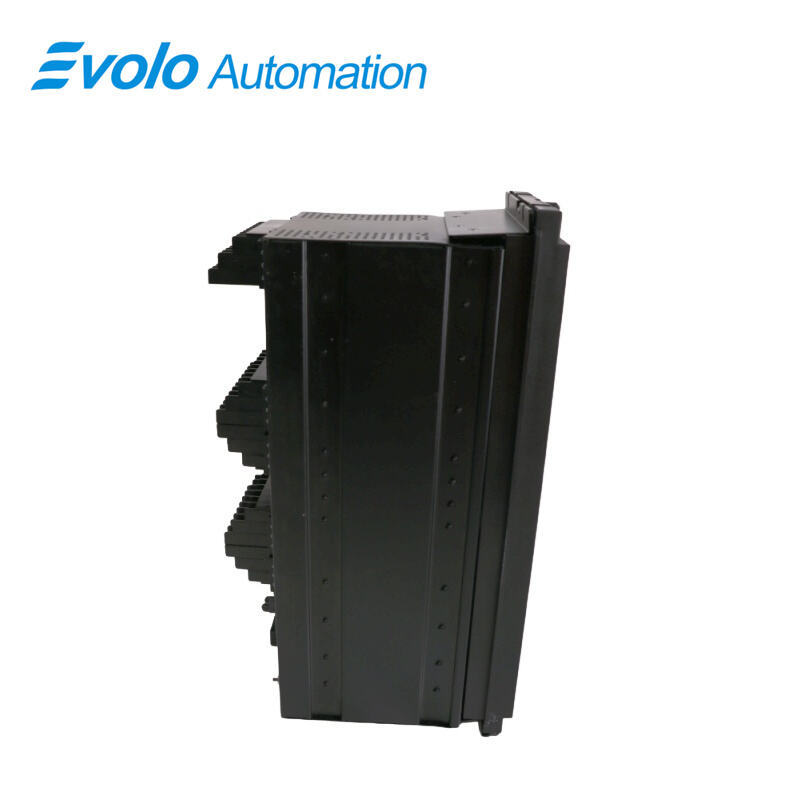

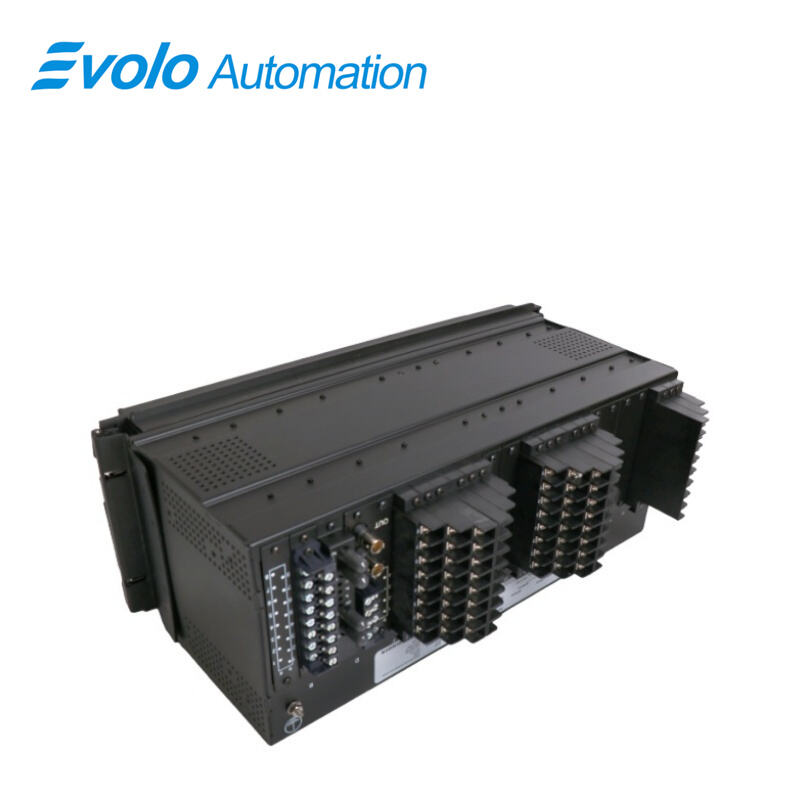

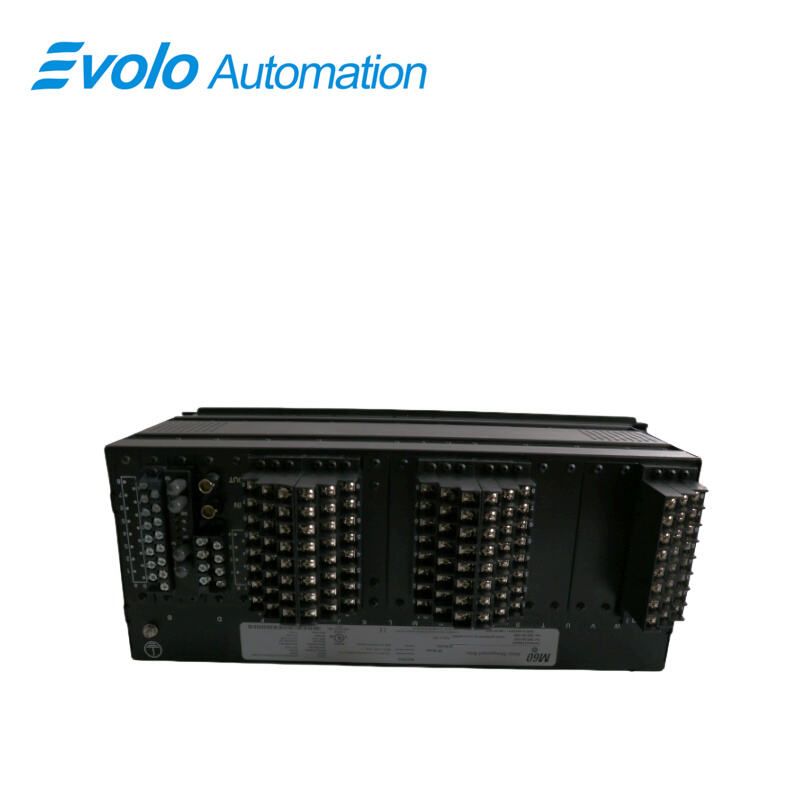

The GE M60K03HKHF8LH4CM8NP6EUXXW5C control module is a key component designed specifically for industrial automation control systems, suitable for data processing and communication tasks in various complex industrial environments.
Applications
Open-Pit Mining: Enable outdoor vehicle control with wide temperature and vibration resistance.
Beverage Bottling: Monitor filling speed and levels in high-wash production lines.
Smart Logistics: Provide servo synchronization for high-speed sorting systems.
Precision Machining: Process high-frequency feedback in multi-axis CNC systems.
Automotive Painting: Protect control circuits in dusty, oil-mist environments with sealed housing.
Competitive Advantage
This control module integrates multiple GE patented technologies. Its dual-redundant power supply design supports dual 24V inputs, ensuring continuous system operation even in the event of a single power supply failure. A unique nano-coating technology gives the module an IP67 protection rating, enabling stable operation in humid and dusty environments. Integrated TSN (Time-Sensitive Networking) technology achieves microsecond-level time synchronization accuracy, meeting the stringent requirements of motion control.
FAQ
Q: Can the M60K03HKHF8LH4CM8NP6EUXXW5C be installed in high humidity or splash environments?
A: It has IP67 protection, fully resistant to water and dust, and requires no extra enclosure.
Q: Which industrial Ethernet standard does the M60K03HKHF8LH4CM8NP6EUXXW5C support?
A: It supports PROFINET IRT with dual RJ45 ports for high-precision time synchronization.
Q: What is the operating temperature range of the M60K03HKHF8LH4CM8NP6EUXXW5C?
A: It operates from -20°C to +60°C, with stable performance between -10°C and +55°C under load.
Q: Does the M60K03HKHF8LH4CM8NP6EUXXW5C support serial communication devices?
A: Yes. It includes an RS485 interface for easy integration with legacy sensors and instruments.
Q: What power supply does the M60K03HKHF8LH4CM8NP6EUXXW5C require?
A: It uses a standard 24V DC industrial power supply compatible with most systems.
