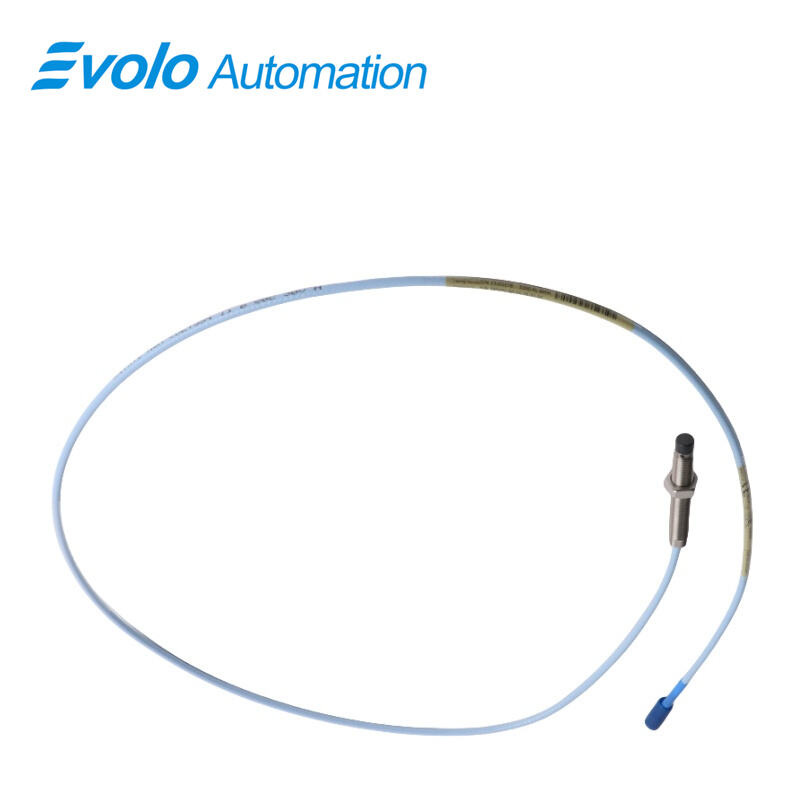

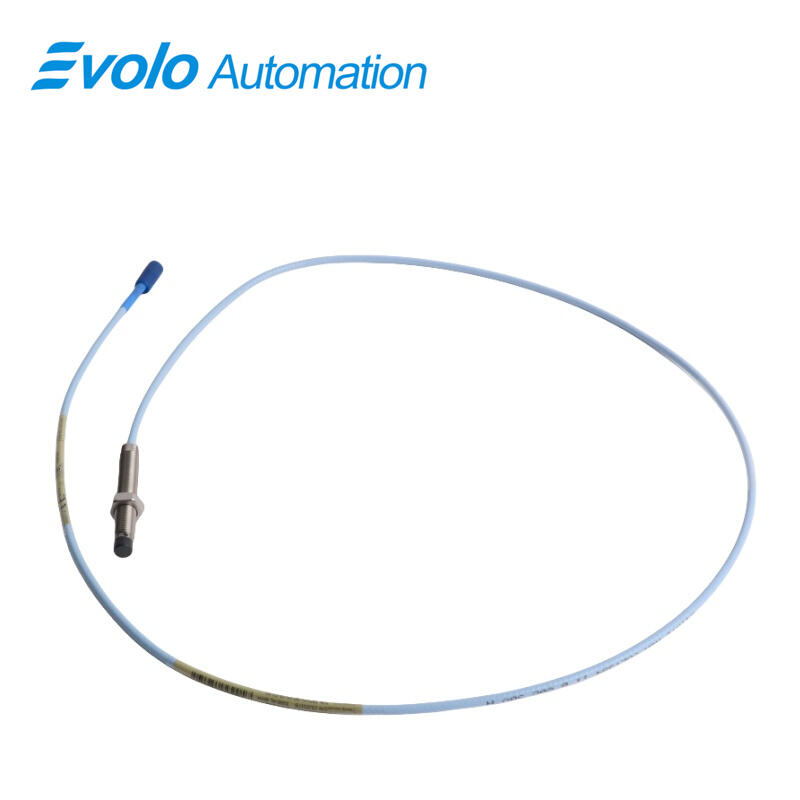

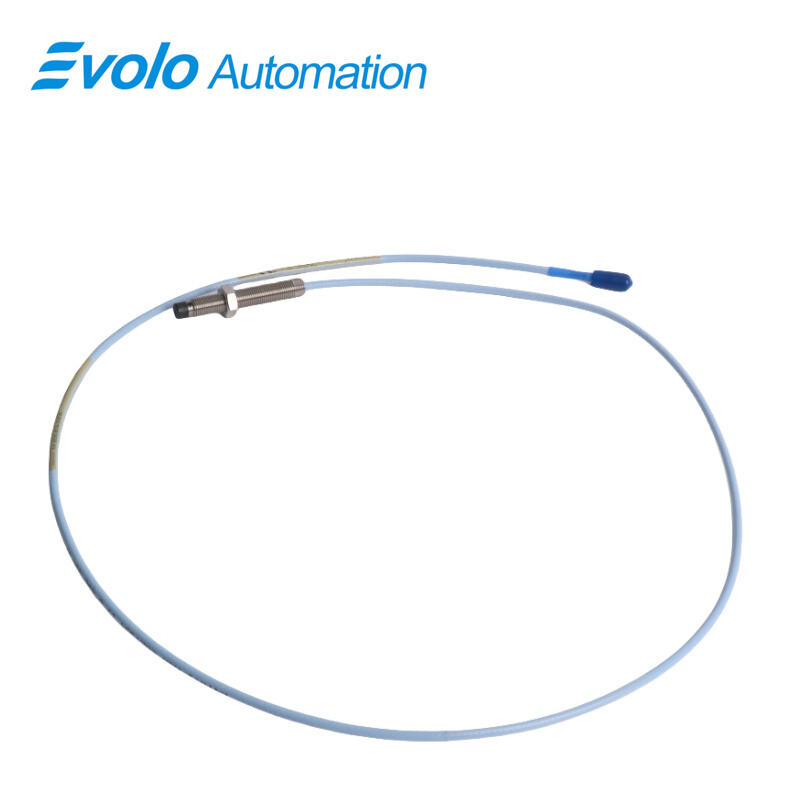

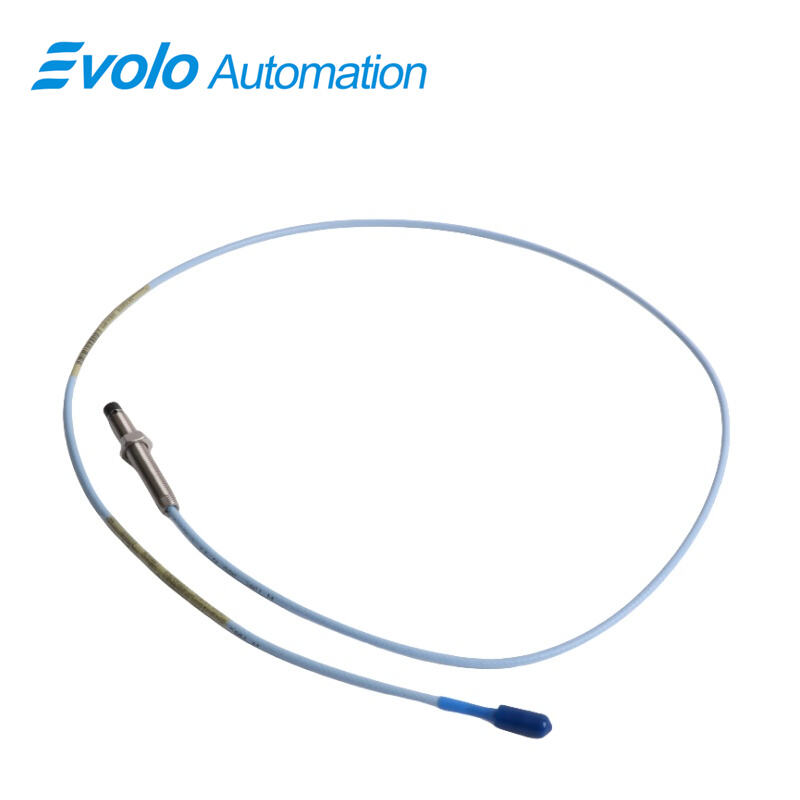

330101-00-23-05-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-23-05-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-23-05-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for advanced industrial automation and vibration monitoring. Featuring a 3/8-24 UNF threaded probe case and a 2 mm linear range, this probe provides a voltage output directly proportional to the distance between the probe tip and the target conductive surface, enabling both static position and dynamic vibration measurements. With a miniature coaxial ClickLoc connector, 0.5-meter standard cable, and operating temperatures from -52°C to +177°C (-62°F to +350°F), it ensures reliable performance in extreme environments. The 3300 XL probe integrates TipLoc molding for robust tip-body bonding and CableLoc technology offering 330 N pull strength, enhancing durability and long-term stability. Fully compatible with 3300 XL transducer systems and backward-compatible with legacy 5 mm and 8 mm 3300 series components, this probe supports interchangeability, eliminating the need for separate bench calibration. Optional FluidLoc cable design prevents leakage of oil or liquids, making it ideal for high-performance industrial machinery and compliance with API 670 standards.

Applications

1. Vibration Monitoring on Fluid-Film Bearings
The 3300 XL 8 mm Proximity Probe accurately captures shaft vibration in fluid-film bearing machines. With a linear range of 2 mm (80 mils) and less than 2 mV supply sensitivity, it detects minute displacements, enabling predictive maintenance and reducing unplanned downtime.

2. Shaft Position Measurement
This probe provides precise static position readings for rotating machinery. Using the 50 Ω output resistance and robust temperature tolerance of -52°C to +177°C, it ensures high-accuracy measurements even in extreme industrial conditions.

3. Keyphasor Reference and Speed Sensing
The probe serves as a Keyphasor sensor for rotational speed measurements in turbines, compressors, and pumps. Its miniature coaxial ClickLoc connector and standard 0.5-meter cable simplify integration with Proximitor electronics while maintaining stable signal quality.

4. High-Temperature Industrial Machinery Monitoring
The 3300 XL probe operates reliably in environments up to 177°C, making it suitable for petrochemical and power generation applications where temperature fluctuations are severe, ensuring consistent performance under thermal stress.

5. Oil-Lubricated Systems with Fluid Containment
Using the optional FluidLoc cable, this probe prevents leakage of lubricants through the cable pathway. This feature is particularly valuable in applications such as pumps, gearboxes, and turbines where oil containment is critical for environmental and operational safety.

Specifications

Competitive Advantage

1. High Durability and Tip Stability
The patented TipLoc molding ensures a strong bond between the probe tip and body, improving probe longevity and maintaining measurement accuracy over prolonged industrial use.

2. Cable Strength and Reliability
CableLoc technology provides 330 N (75 lbf) pull strength, securing the probe cable to the tip and preventing disconnection or signal degradation in high-vibration applications.

3. API 670 Compliance
Fully compliant with API 670 standards for linearity, mechanical configuration, and temperature stability, enabling use in regulated industries such as petrochemical, oil & gas, and power generation.

4. System Interchangeability
Backward compatibility with other 3300 series probes, extension cables, and Proximitor sensors allows operators to upgrade or replace components without requiring bench calibration or complex system matching.

5. Extreme Environment Capability
Operating from -52°C to +177°C, the 3300 XL 8 mm probe delivers reliable measurements under harsh temperature conditions, making it suitable for turbines, compressors, and other industrial machinery in extreme climates.
