Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	KSML92S1450-W-MC1 IEC60945
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Model:	KSML92S1450-W-MC1 IEC60945
Application:	MARINE / ECDIS KEYBOARD
Sealing:	IP67 sealed
Keys:	92 short travel tactile switches, 0.3 mm travel, 2.55 N operating force
Pointing Device:	50 mm optical trackball, epoxy resin ball
Output:	1.6 m USB cable, type A connector
Power Requirements:	Directly from USB port
Operating Temperature:	-15°C to +70°C
Front Layer:	Black polyester, embossed keys, scratch and chemical resistant
Dimensions (L x W x H):	418 x 246 x 70 mm
Weight:	3.5 kg

Description

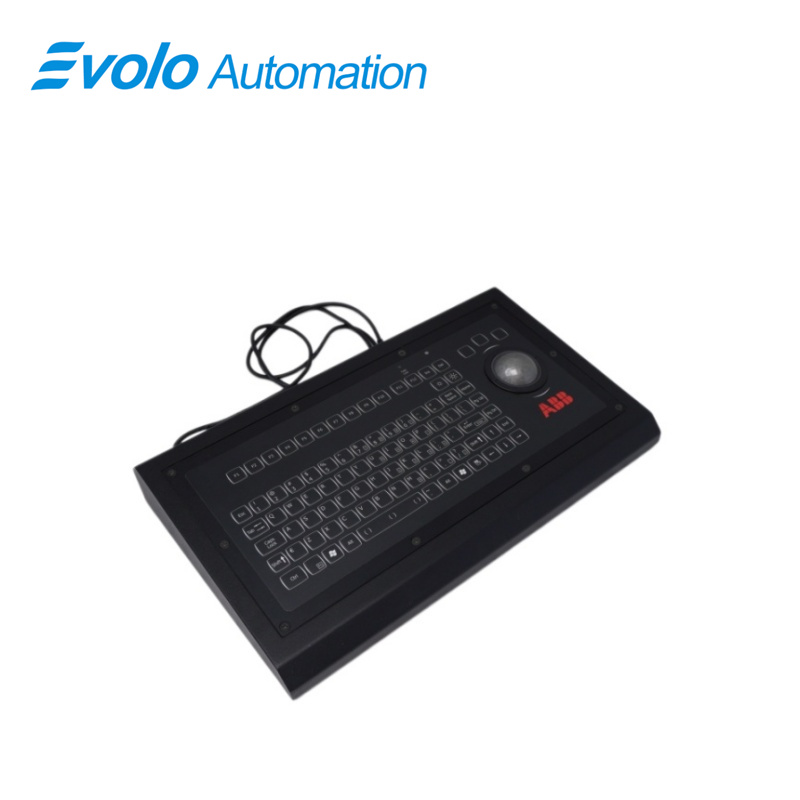

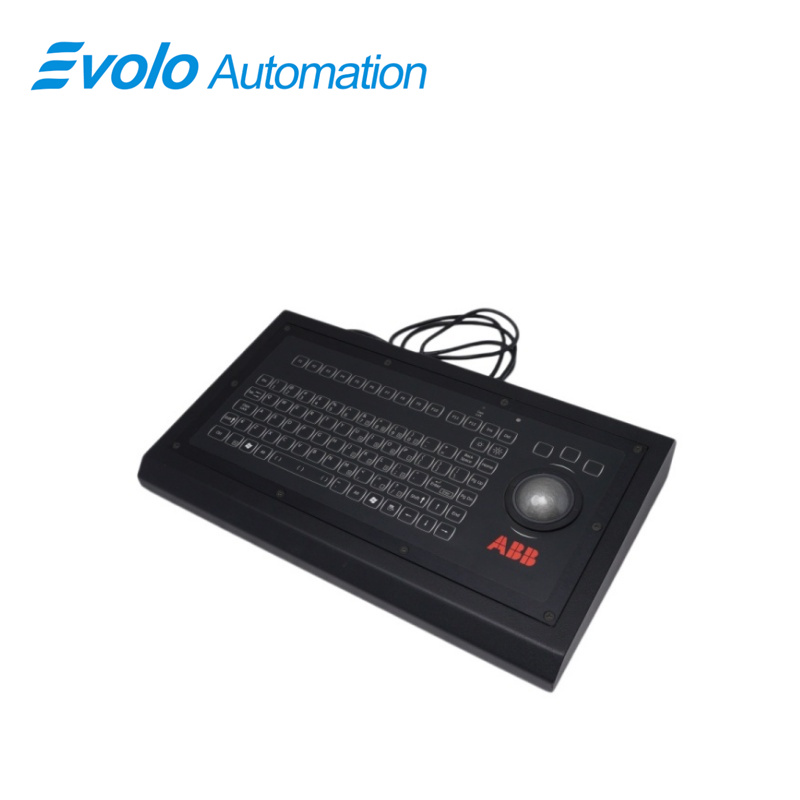

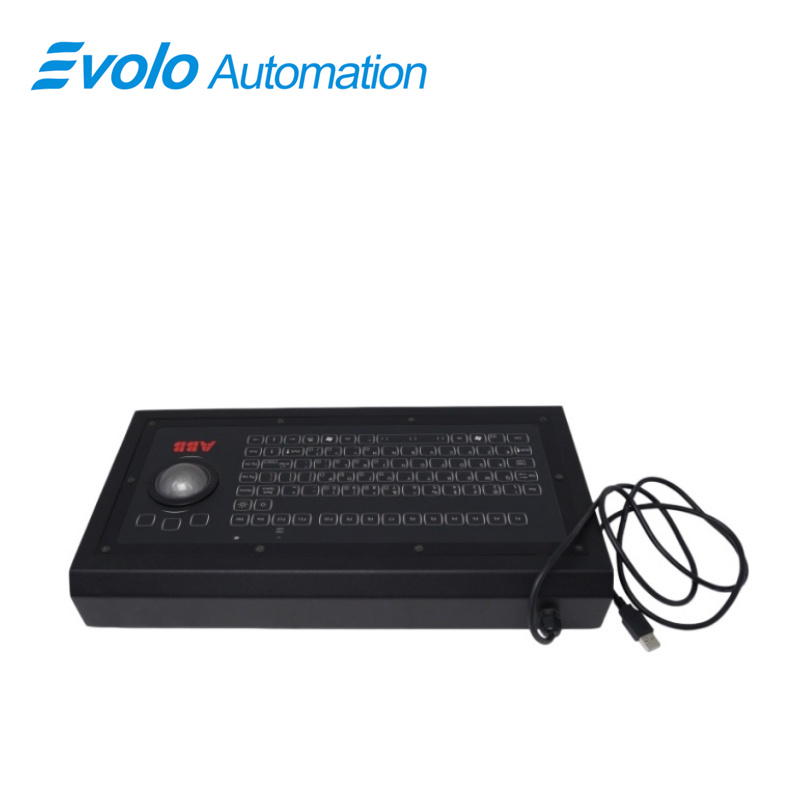

This KSML92S1450-W-MC1 IEC60945 92 key backlit keyboard features a compact full MF keyboard with integrated a large 50 mm waterproof trackball with removable ball. Panel mount and desktop version available.

Applications

Ship Bridge Console:

ECDIS (Electronic Chart Display and Information System): Serves as the core input device for route planning, chart zooming, and navigation data input.

Radar and ARPA System: Works with a trackball for target tracking and parameter setting.

Offshore Platforms: Used as the central control room for drilling platforms, operating in corrosive environments with high humidity and high salinity.

Factory-Fueled Fishing Vessels and Research Vessels: Serves as the control terminal for automated equipment in slippery, low-temperature, or high-vibration laboratories or work areas.

Special Vehicles and Port Machinery: Such as monitoring rooms for quay cranes and mobile control terminals for open-air operations.

MAIN FEATURES

• Certificate of Conformity fully compliant with IEC60945

• Sealing to IP67

• Removable 50 mm optical trackball

• High brightness LED’s with fibre optics

• Dimmable backlighting at 8 levels by two dedicated keys

• Intelligent luminosity setting of “numlock” and “capslock” LED’s

• No external power supply necessary

• Illumination of the key legends and contour, the trackball contour and

even customer logo’s or trademarks

• Low power LED’s warrant for a long life

• White backlighting as standard, other colours on request

Competitive Advantage

Extreme Environment Adaptability: Operates stably in environments ranging from -20°C to +60°C, far exceeding the performance of ordinary industrial keyboards.

ECDIS Compatibility: Its backlight brightness and color are specially calibrated to meet IMO (International Maritime Organization) requirements for the visual performance of navigation equipment.

High-Precision Trackball: The integrated trackball design saves space, and when wave undulations prevent the mouse from moving properly, the trackball is the only reliable solution.

Durability: Button lifespan typically exceeds 1 million clicks, with clear button feedback (tactile feedback), allowing operation even while wearing gloves.
