Overview
DELTAV DCS M-SERIES POWER
KJ1501X1-BC2 12P2186X042 VE5008 DeltaV DC/DC System Power Supply
Official-source product identification, application guidance and ordering checks for KJ1501X1-BC2 12P2186X042 VE5008.
At a Glance
| Brand | Emerson |
|---|---|
| Model | KJ1501X1-BC2 12P2186X042 VE5008 |
| Product Type | DeltaV DC/DC System Power Supply |
| Core Function | Conversion of cabinet bulk DC power for DeltaV controller and I/O electronics. |
| Application / Compatible Series | DeltaV DCS M-series power |
Verified identification

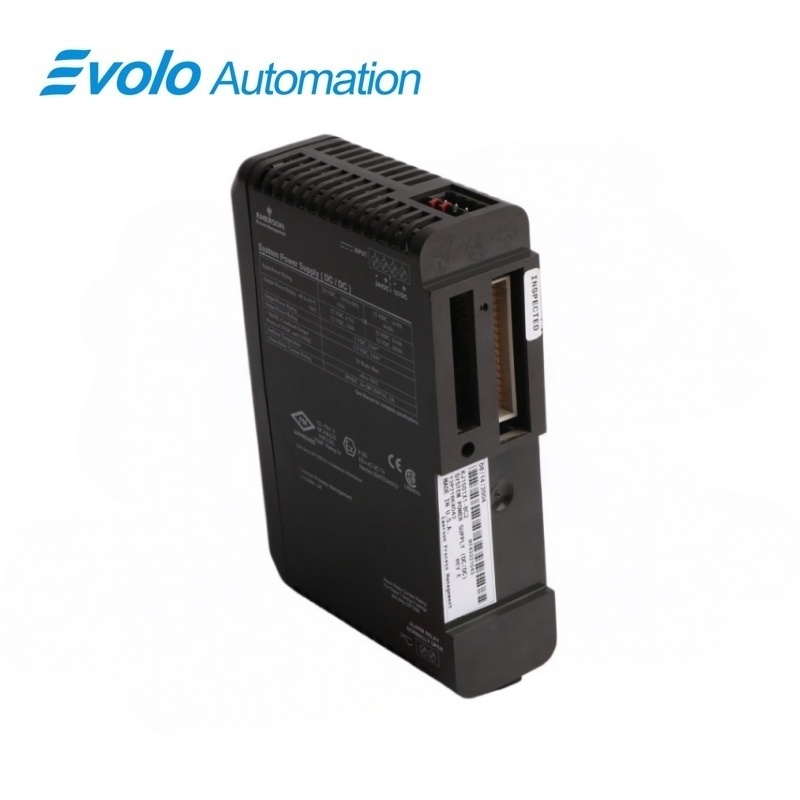

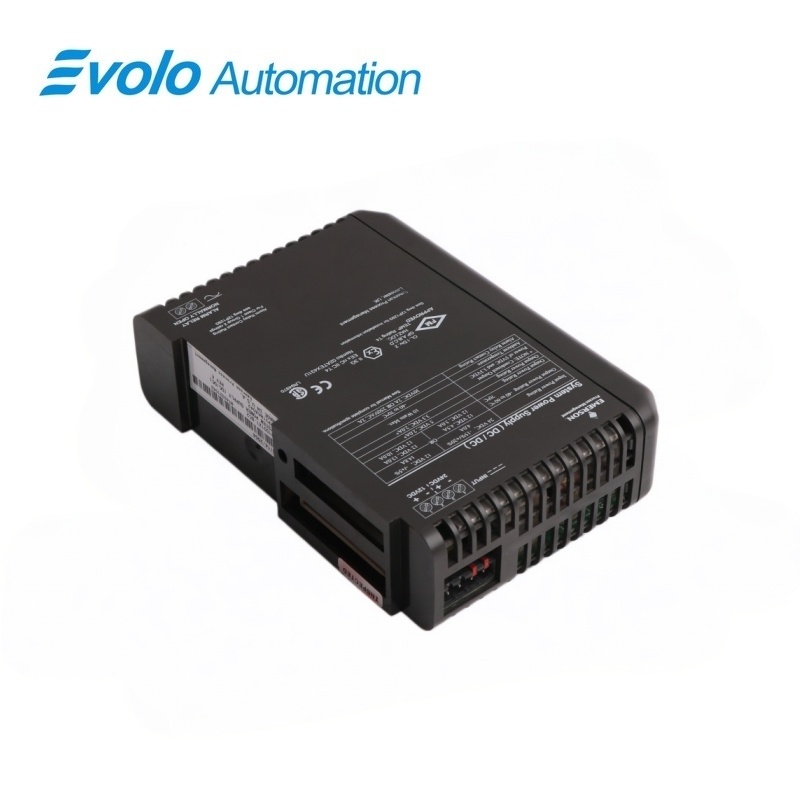

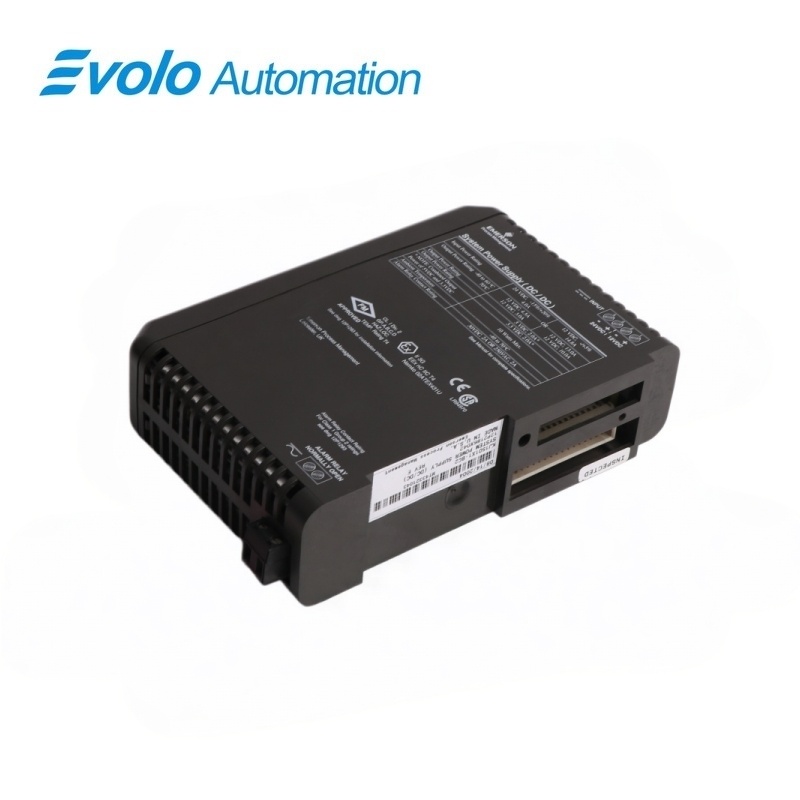

KJ1501X1-BC2 12P2186X042 VE5008 is identified by the complete manufacturer model and the photographed unit.
Application focus
KJ1501X1-BC2 12P2186X042 VE5008 is intended for conversion of cabinet bulk DC power for DeltaV controller and I/O electronics.
Ordering control
KJ1501X1-BC2 12P2186X042 VE5008 should be matched by the full nameplate, hardware revision and installed configuration.
Product Overview
Emerson KJ1501X1-BC2 12P2186X042 VE5008 is a DeltaV M-series DC/DC system supply that connects a 24 VDC bulk source to controller and I/O system electronics.
The official supply data specifies 24 VDC ±20% input, separate 12 V and 5 V system rails, load-sharing capability and temperature-dependent output ratings. Replacement selection must retain the complete BC2 and 12P2186X042 identification.
Key Functions
Bulk DC Conversion
Converts the DeltaV cabinet 24 VDC bulk feed into the regulated 12 VDC and 5 VDC rails required by controller and I/O electronics.
Load Sharing Support
Supports load sharing so properly configured supplies can add capacity or provide power redundancy within the supported M-series arrangement.
Supply Protection
Includes internal non-replaceable fusing, overvoltage protection and power-failure notification described in Emerson documentation.
Official Specifications
| Input | 24 VDC ±20%, 6.1 A |
|---|---|
| Output, −40 to +60 °C | 12 VDC at 8.0 A; 5 VDC at 2.0 A (10 W combined 5 V load) |
| Output, +60 to +70 °C | 12 VDC at 6.0 A; 5 VDC at 2.0 A |
| Mounting | Applicable DeltaV M-series power/controller carrier |
| Bulk DC Conversion | Converts the DeltaV cabinet 24 VDC bulk feed into the regulated 12 VDC and 5 VDC rails required by controller and I/O electronics. |
| Load Sharing Support | Supports load sharing so properly configured supplies can add capacity or provide power redundancy within the supported M-series arrangement. |
| Supply Protection | Includes internal non-replaceable fusing, overvoltage protection and power-failure notification described in Emerson documentation. |
| Input Voltage Limit | 24 VDC |
| Control Strategy Scope | Assigned control modules |
| I/O Assignment Method | Defined by the DeltaV project |
| Control Network Role | DeltaV control-network node |
| Configuration Source | Downloaded DeltaV project |
| Software Compatibility | Supported DeltaV release required |
| Firmware Compatibility | Hardware-revision dependent |
| Carrier Compatibility | Matching controller carrier required |
| Power Interface | Carrier and system-power connection |
| Diagnostic Communication | Operational and diagnostic network data |
| Redundancy Support | Configuration dependent |
| Hardware Identifier Set | KJ, 12P, and VE/SE markings |
| 24 VDC Input Tolerance | ±20% |
Official source: Emerson DeltaV M-series DC/DC System Power Supply Product Data Sheet. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
Which existing DeltaV DCS M-series power environment is intended for KJ1501X1-BC2 12P2186X042 VE5008?
It is intended for DeltaV DCS M-series power.
In which plant application would an engineer use KJ1501X1-BC2 12P2186X042 VE5008 as a DeltaV DC/DC System Power Supply?
Conversion of cabinet bulk DC power for DeltaV controller and I/O electronics.
Which cabinet, carrier and wiring conditions must match before KJ1501X1-BC2 12P2186X042 VE5008 is installed?
Compare the complete nameplate codes against the installed nameplate. Confirm the M-series power/controller carrier and connector arrangement.
What design information about bulk DC conversion is required for KJ1501X1-BC2 12P2186X042 VE5008?
Converts the DeltaV cabinet 24 VDC bulk feed into the regulated 12 VDC and 5 VDC rails required by controller and I/O electronics.
Which load sharing support details should engineers confirm for KJ1501X1-BC2 12P2186X042 VE5008?
Supports load sharing so properly configured supplies can add capacity or provide power redundancy within the supported M-series arrangement.
How does KJ1501X1-BC2 12P2186X042 VE5008 handle supply protection?
Includes internal non-replaceable fusing, overvoltage protection and power-failure notification described in Emerson documentation.
How can buyers confirm the correct hardware version of KJ1501X1-BC2 12P2186X042 VE5008?
The unit should be matched by the full nameplate, hardware revision and installed configuration.
Compatibility & Ordering Notes
Compatibility checklist for KJ1501X1-BC2 12P2186X042 VE5008
- Compare KJ1501X1-BC2 and 12P2186X042 against the installed nameplate.
- Confirm the M-series power/controller carrier and connector arrangement.
- Verify available 24 VDC bulk power and the required 12 V/5 V load.
- Check the redundancy or load-sharing arrangement before energizing.
