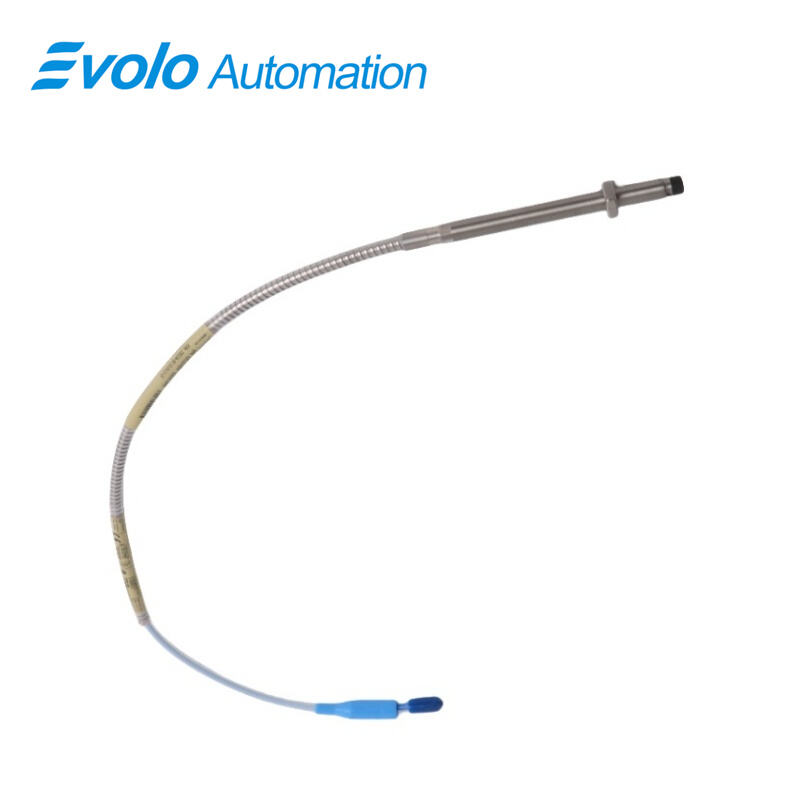

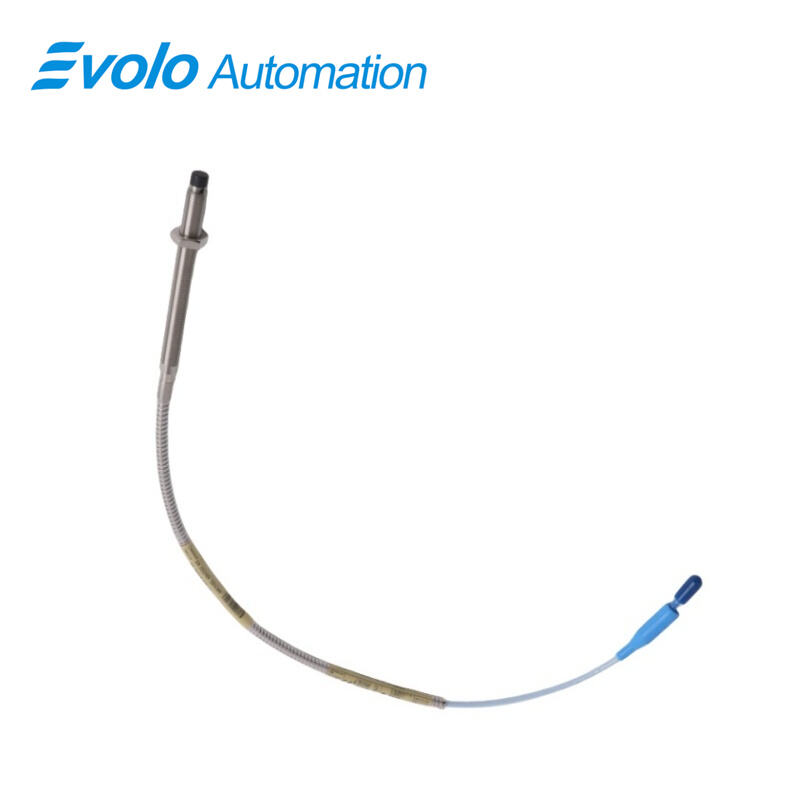

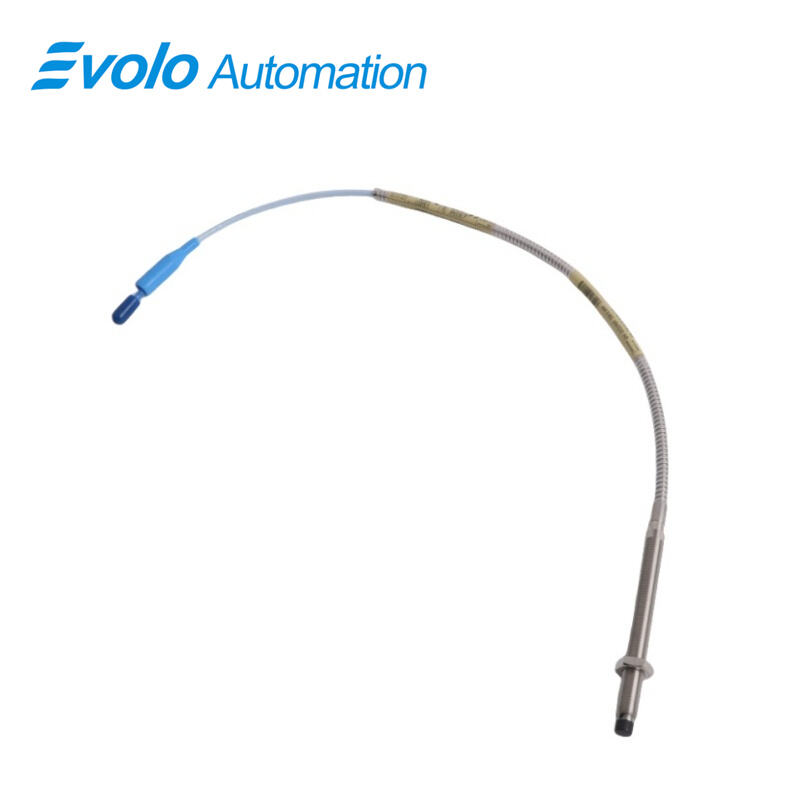

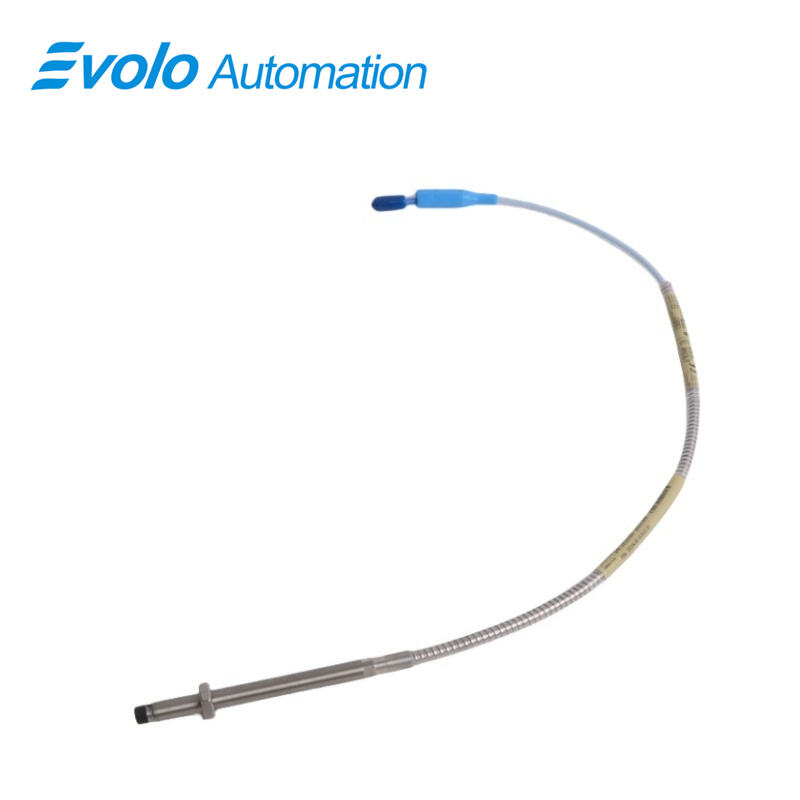

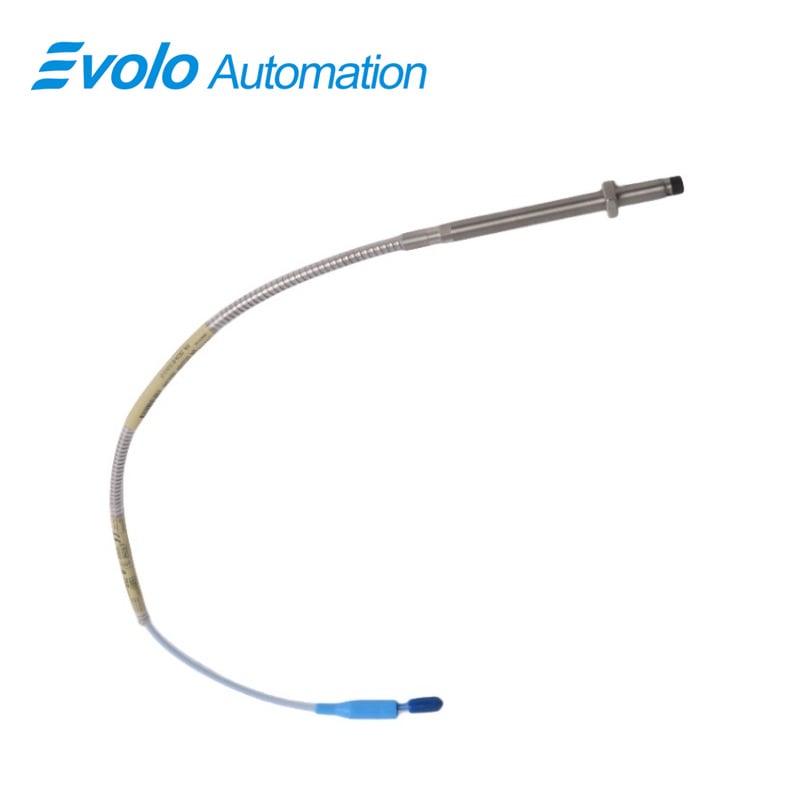

330104-00-10-05-01-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-10-05-01-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-10-05-01-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer specifically engineered for advanced industrial automation applications. This probe delivers a voltage output directly proportional to the distance between the probe tip and the monitored conductive surface, allowing accurate measurement of both static positions and dynamic vibrations. In automated industrial machinery, the 3300 XL 8 mm Proximity Probe is widely employed for monitoring fluid-film bearing machinery, rotor positioning, Keyphasor speed signals, and vibration analysis, making it essential for predictive maintenance and operational reliability.

Designed with industry-leading performance in mind, the 3300 XL 8 mm system meets and exceeds the requirements of the API 670 Standard, providing exceptional linearity, temperature stability, and measurement accuracy. Its robust design ensures reliable operation across a wide range of industrial environments, from high-speed turbines to critical rotating equipment in manufacturing and energy facilities. Each 3300 XL probe integrates seamlessly with compatible extension cables and Proximitor sensors, providing full interchangeability and eliminating the need for component-specific bench calibration. This compatibility extends backward to older non-XL 3300 series 5 mm and 8 mm probes, enabling flexible integration in existing automation systems.

The 330104-00-10-05-01-05 probe incorporates patented TipLoc molding, enhancing the structural integrity between the probe tip and the housing for improved durability under continuous operational stress. Its CableLoc design ensures a 330 N (75 lbf) pull strength, securing the probe cable to the probe body and preventing disconnections in critical automated processes. For applications exposed to lubricants or fluids, the optional FluidLoc cable provides additional protection against leaks, maintaining system integrity and ensuring continuous reliable data acquisition.

In modern industrial automation, the 3300 XL 8 mm Proximity Probe is valued for its combination of high measurement precision, robust mechanical design, and ease of integration into predictive maintenance and vibration monitoring systems. By leveraging the 330104-00-10-05-01-05 probe, automation engineers can achieve precise monitoring of rotating machinery, enhance equipment lifespan, reduce unscheduled downtime, and maintain optimal operational efficiency. Its versatility and compliance with international standards make it a preferred choice for energy, petrochemical, and heavy manufacturing applications, where reliable and accurate position and vibration measurements are critical.

With its proven performance, ease of installation, and advanced safety features, the 330104-00-10-05-01-05 3300 XL 8 mm Proximity Probe sets a benchmark for industrial automation sensors, combining reliability, accuracy, and adaptability in a single, highly engineered package.

Applications

The 330104-00-10-05-01-05 3300 XL 8 mm Proximity Probe is designed for precision monitoring in demanding industrial automation environments. Its primary function is to provide highly accurate voltage output that is directly proportional to the distance between the probe tip and the observed conductive surface. This capability allows it to measure both static positions and dynamic vibrations, making it a versatile sensor for multiple automation applications.

Vibration Monitoring in Rotating Machinery

The probe is ideal for measuring radial vibrations in fluid-film bearing machines, turbines, compressors, and generators. With a recommended gap setting of -9 Vdc (~1.27 mm / 50 mils) and a linear range of 2 mm, the 3300 XL 8 mm Proximity Probe provides reliable vibration data critical for predictive maintenance and operational safety. Its robust construction ensures stable operation across an extensive temperature range from -52°C to +177°C (-62°F to +350°F).

Position and Displacement Sensing

This proximity probe accurately detects shaft or rotor positions in automated machinery, offering precise measurements for alignment, balancing, and motion control. Its miniature coaxial ClickLoc connector with protector enables secure and consistent connection to Proximitor sensors and extension cables, facilitating reliable position monitoring in complex automated systems.

Speed and Keyphasor Reference Measurements

The 3300 XL 8 mm probe supports Keyphasor applications, providing speed and phase reference signals for synchronous monitoring of rotating equipment. This is critical for advanced automation systems where real-time feedback is needed for control loops, safety interlocks, and performance optimization.

Compatibility and Field Integration

All components of the 3300 XL 8 mm Transducer System are fully interchangeable with other 3300 series probes, including 5 mm models, allowing flexible integration into existing automation systems without requiring additional calibration. Optional FluidLoc cables provide protection against oil or fluid leaks, maintaining data integrity in harsh industrial environments.

Industrial Approvals and Reliability

With CSA, ATEX, and IECEx approvals, and probe case materials of AISI 303 or 304 stainless steel, this probe is suitable for use in explosive or hazardous areas. The probe tip material, Polyphenylene sulfide (PPS), enhances chemical and temperature resistance, while the M10 x 1 threaded design ensures secure mounting with up to 15 mm of thread engagement.

In summary, the 330104-00-10-05-01-05 3300 XL 8 mm Proximity Probe is essential for vibration analysis, position monitoring, and speed measurements in industrial automation, offering exceptional precision, durability, and integration flexibility for modern machinery and control systems.

Specifications

Competitive Advantage

High-Precision Measurement for Critical Applications

The 330104-00-10-05-01-05 3300 XL 8 mm Proximity Probe delivers output voltage directly proportional to the distance between the probe tip and conductive surfaces, enabling precise measurement of both static positions and dynamic vibrations. Its 2 mm linear range and minimal supply sensitivity (less than 2 mV per volt) ensure reliable data for critical automation processes in turbines, compressors, and fluid-film bearing machinery.

Robust Industrial Design

Constructed with AISI 303 or 304 stainless steel and a PPS probe tip, the probe withstands extreme industrial environments, operating reliably from -52°C to +177°C (-62°F to +350°F). The M10 x 1 threaded case with up to 15 mm engagement ensures secure mounting, while the miniature coaxial ClickLoc connector with protector provides durable and stable connections for industrial automation systems.

Enhanced Durability and Reliability

Patented TipLoc molding strengthens the bond between the probe tip and body, improving long-term durability under mechanical stress. CableLoc design provides 330 N (75 lbf) pull strength, preventing accidental disconnections and ensuring continuous measurement integrity in harsh operating conditions. Optional FluidLoc cables prevent leakage of oil or other fluids, maintaining reliable probe performance and reducing maintenance requirements.

Interchangeability and Compatibility

The 3300 XL 8 mm probe supports full interchangeability with other 3300 series probes and extension cables, including 5 mm and 8 mm non-XL components. This backward compatibility simplifies system upgrades, reduces inventory complexity, and eliminates the need for component-specific calibration, making it ideal for automated monitoring systems.

Compliance and Safety Certifications

With CSA, ATEX, and IECEx approvals, the 330104-00-10-05-01-05 probe meets stringent safety and performance standards for hazardous industrial environments. Its design ensures reliable operation while adhering to international automation and process control regulations, enhancing operational safety and reducing risk in critical machinery applications.
